Camshaft Position Sensor: Service and Repair

Camshaft Position (CMP) Sensor - 2.0L GDI

WARNING: Before beginning any service procedure, REFER to Safety Warnings . Failure to follow this instruction may result in serious personal injury.

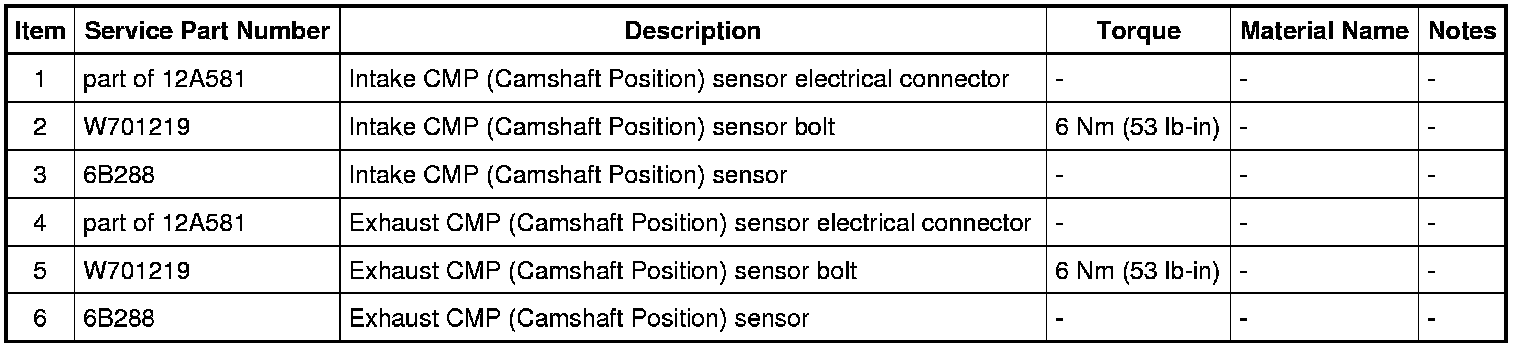

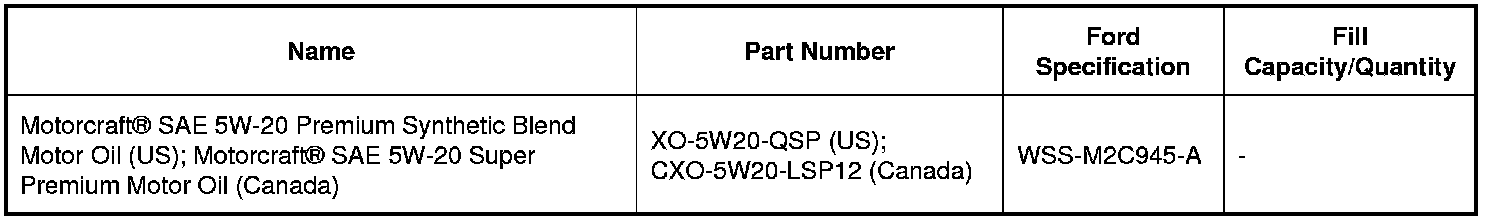

Material(s)

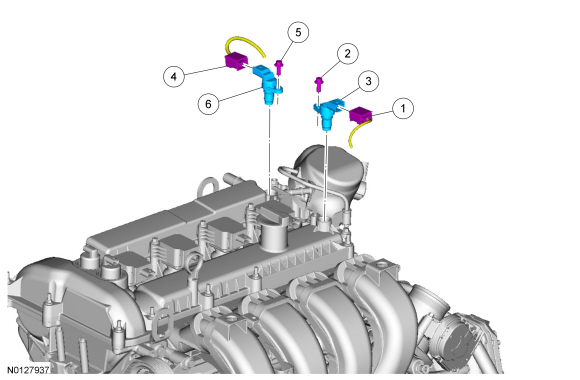

Exploded View










Removal

1. Disconnect the CMP (Camshaft Position) sensor electrical connectors.

2. Remove the bolts and the CMP (Camshaft Position) sensors.

Installation

1. Lubricate the CMP (Camshaft Position) sensor O-rings with clean engine oil.

2. Install the CMP (Camshaft Position) sensors into the valve cover.

3. Install the CMP (Camshaft Position) sensor bolts.
- Tighten to 6 Nm (53 lb-in).

4. Connect the CMP (Camshaft Position) sensor electrical connectors.
