Radiator Shutter Control Module: Service and Repair

Grille Shutter Actuator

WARNING: Before beginning any service procedure, REFER to Safety Warnings . Failure to follow this instruction may result in serious personal injury.

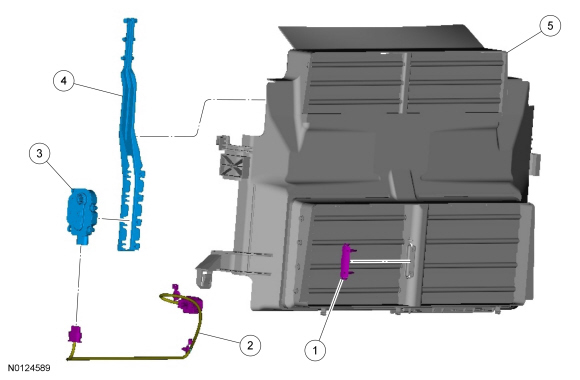

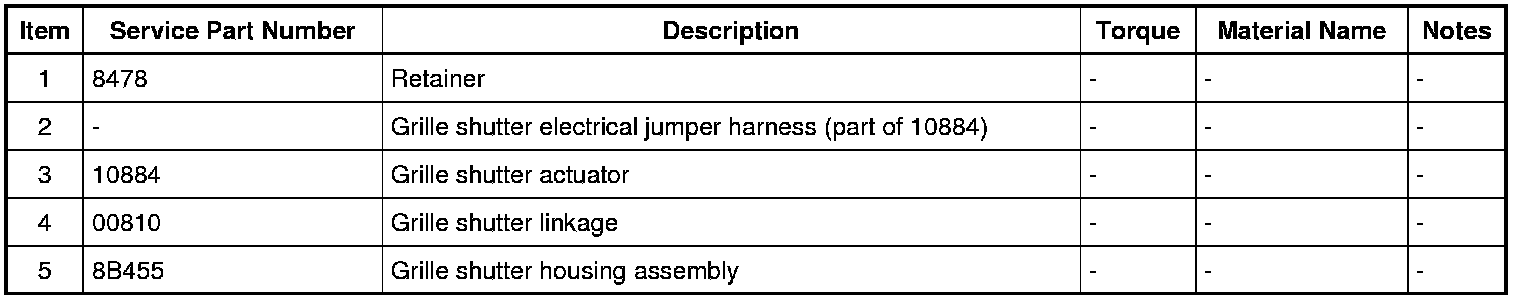

Exploded View










Removal

NOTE: The removal steps in this procedure may include installation details.

1. Remove the grille shutter assembly. REFER to Grille Shutter Assembly .

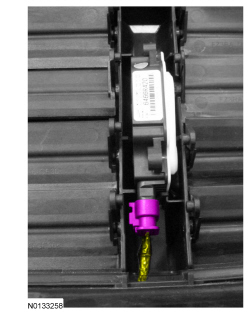

2.

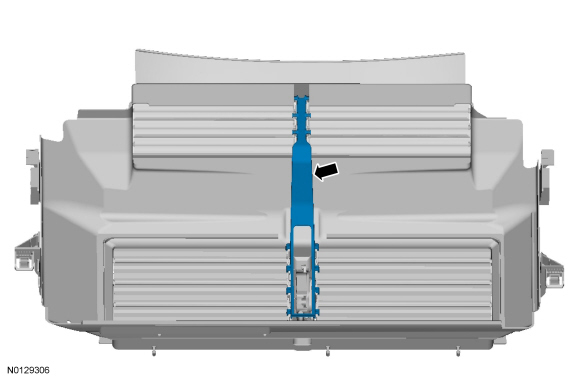

3.

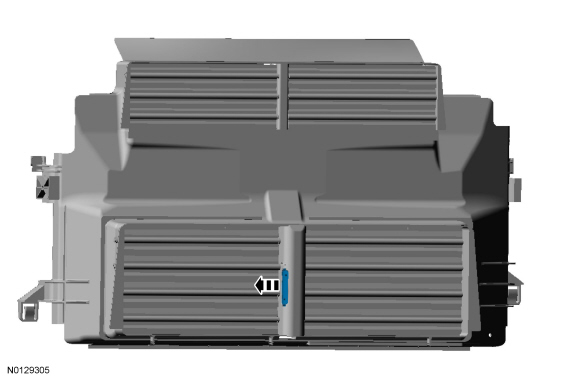

4.

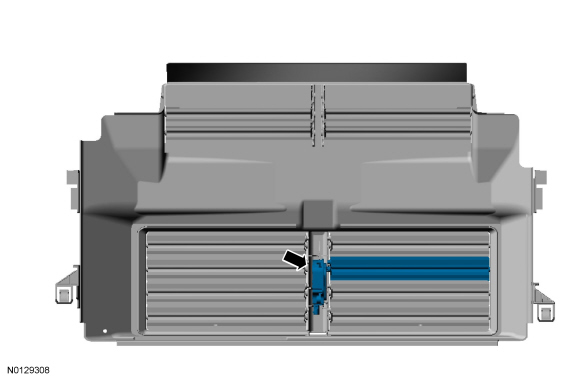

5. NOTE: Shutter 3R is attached to the shutter actuator.






Installation

1. To install, reverse the removal procedure.
