Connecting Rod, Engine

ROD BEARING CAP





Using the original connecting rod cap bolts, install the connecting caps and bolts and tighten the bolts in 2 stages:
Stage 1: Tighten to 29 Nm (21 lb-ft).
Stage 2: Tighten an additional 90 degrees.

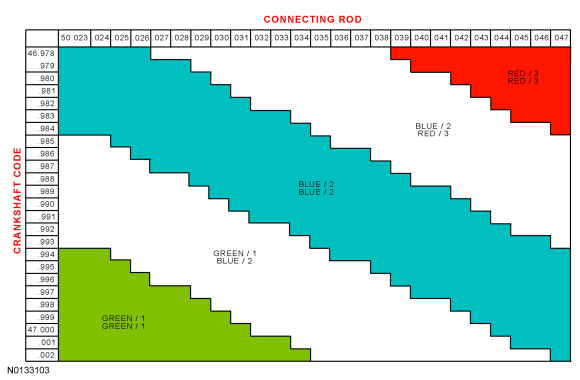

Connecting rod bearing chart.
