Intake Manifold

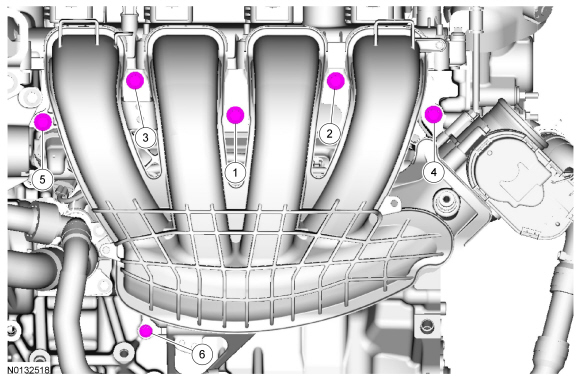

Tighten the 6 intake manifold bolts in the sequence shown.
Tighten to 20 Nm (177 lb-in).
