Timing Cover

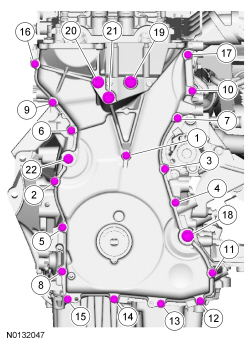

Position the engine front cover and tighten the 22 engine front cover bolts in the sequence shown.
Tighten bolts 1 through 17 to 10 Nm (89 lb-in).
Tighten bolts 19 through 21 to 48 Nm (35 lb-ft).
Tighten bolt 22 to 25 Nm (18 lb-ft).
Tighten bolt 18 to 48 Nm (35 lb-ft).
