Flywheel

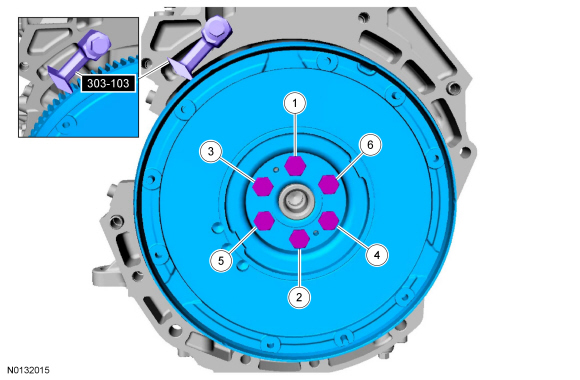

Install the flywheel, the 6 new bolts and the 303-103 (T74P-6375-A).
Tighten in the sequence shown in 3 stages:
Stage 1: Tighten to 50 Nm (37 lb-ft).
Stage 2: Tighten to 80 Nm (59 lb-ft).
Stage 3: Tighten to 112 Nm (83 lb-ft).
