Home >> Ford >> 2012 >> Fusion FWD L4-2.5L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Electronic Brake Control Module
April 5, 2026: LEMON Manuals is launched! Read the announcement.

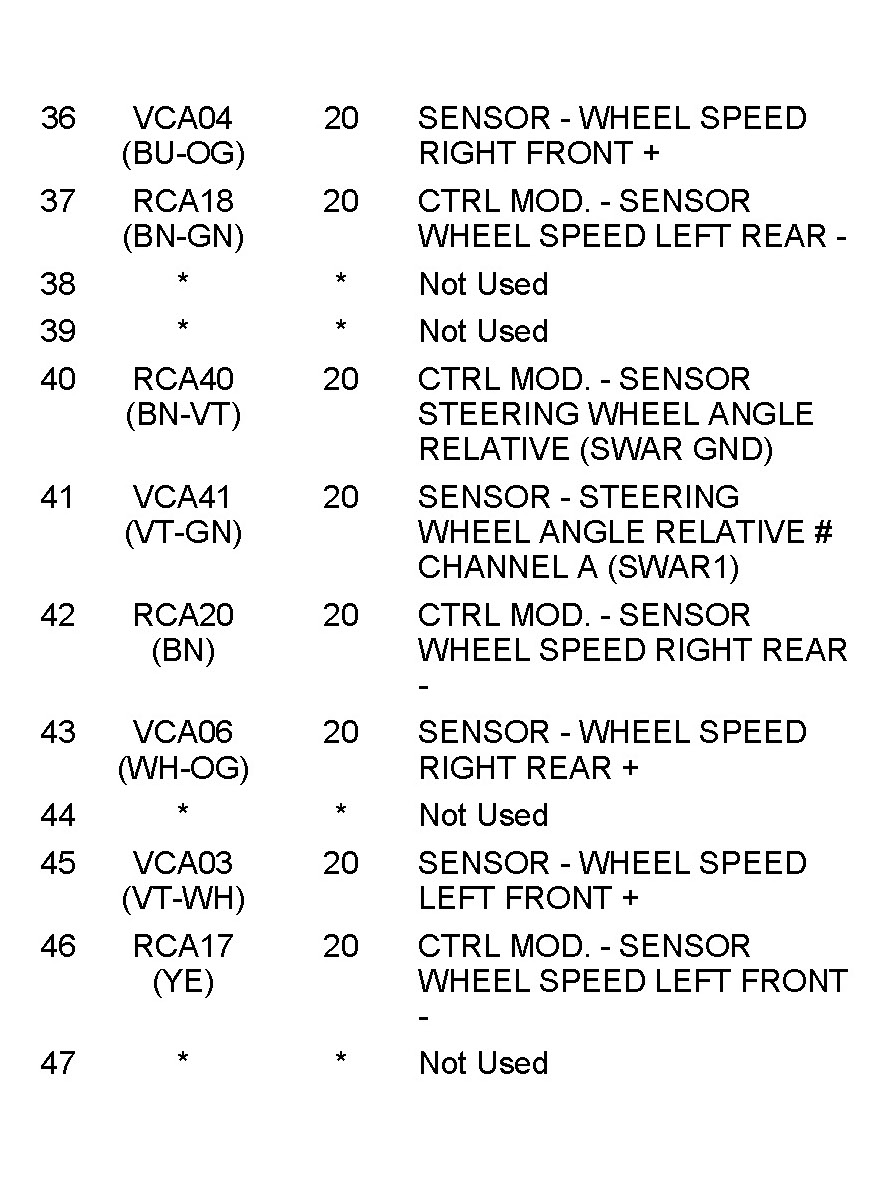

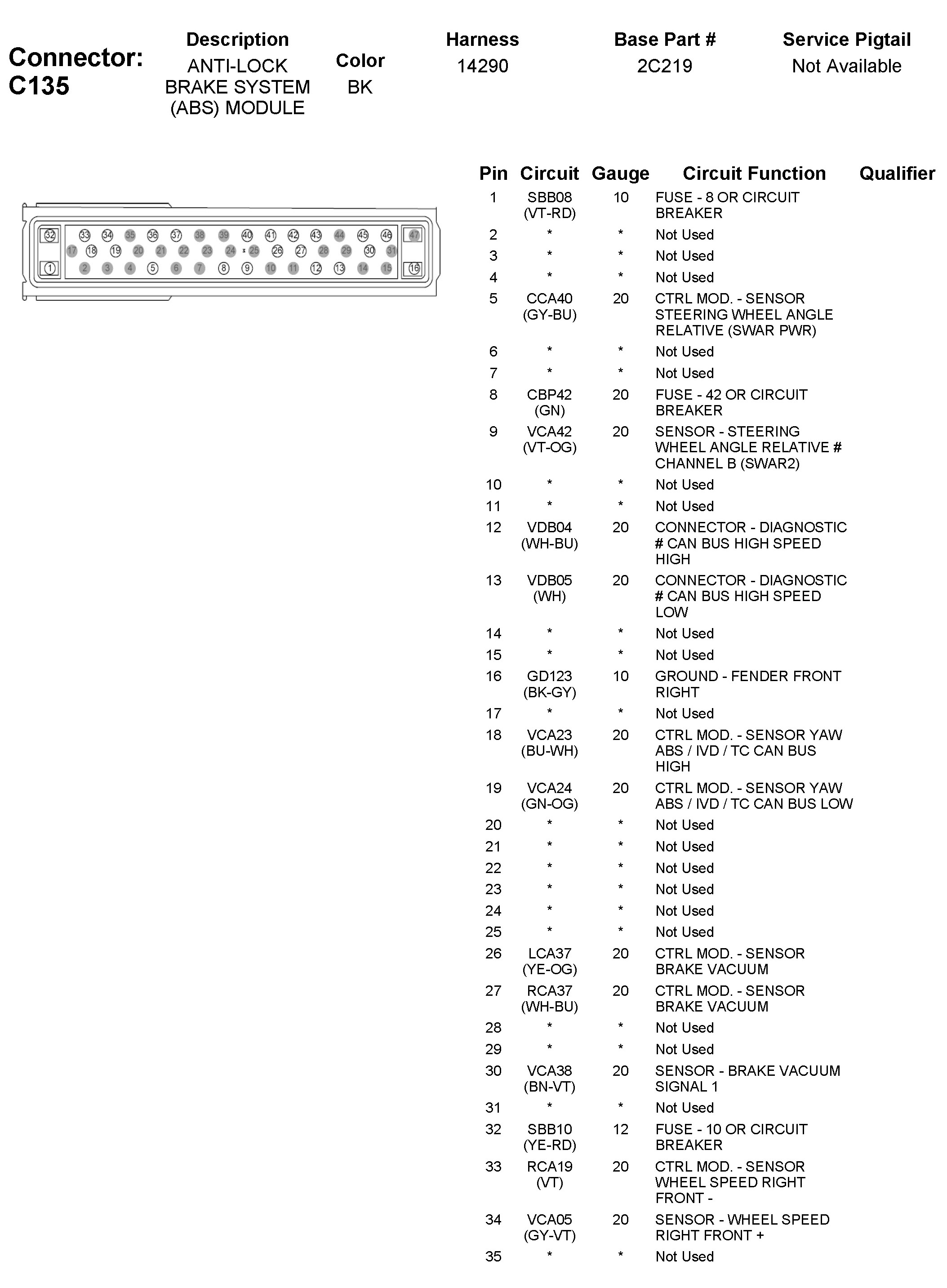

Electronic Brake Control Module
