C175T Powertrain Control Module (PCM)
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

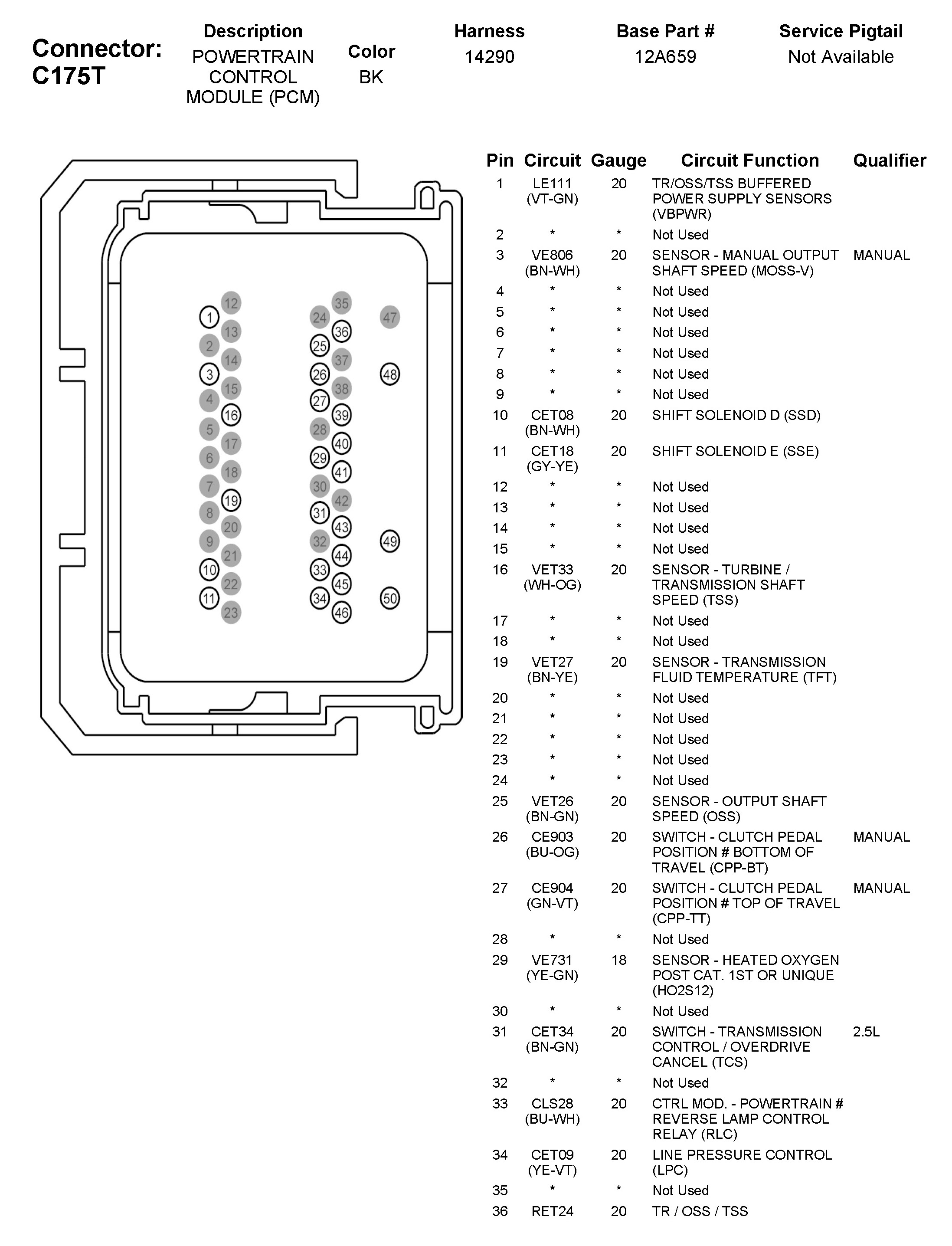

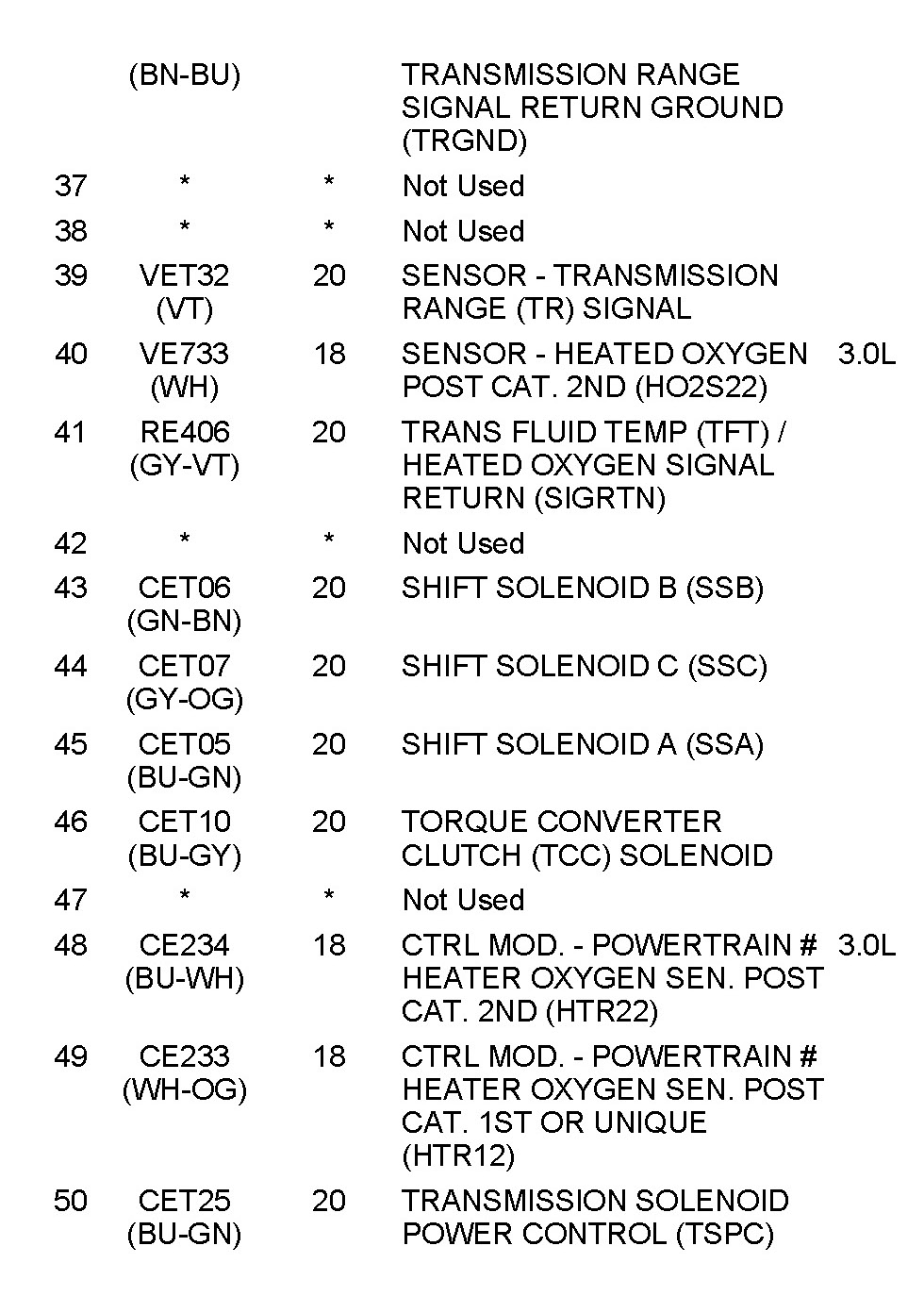

C175T Powertrain Control Module (PCM)
