Interior Lighting Module
>>
C2301 Interior Lighting Control Module (ILCM)
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

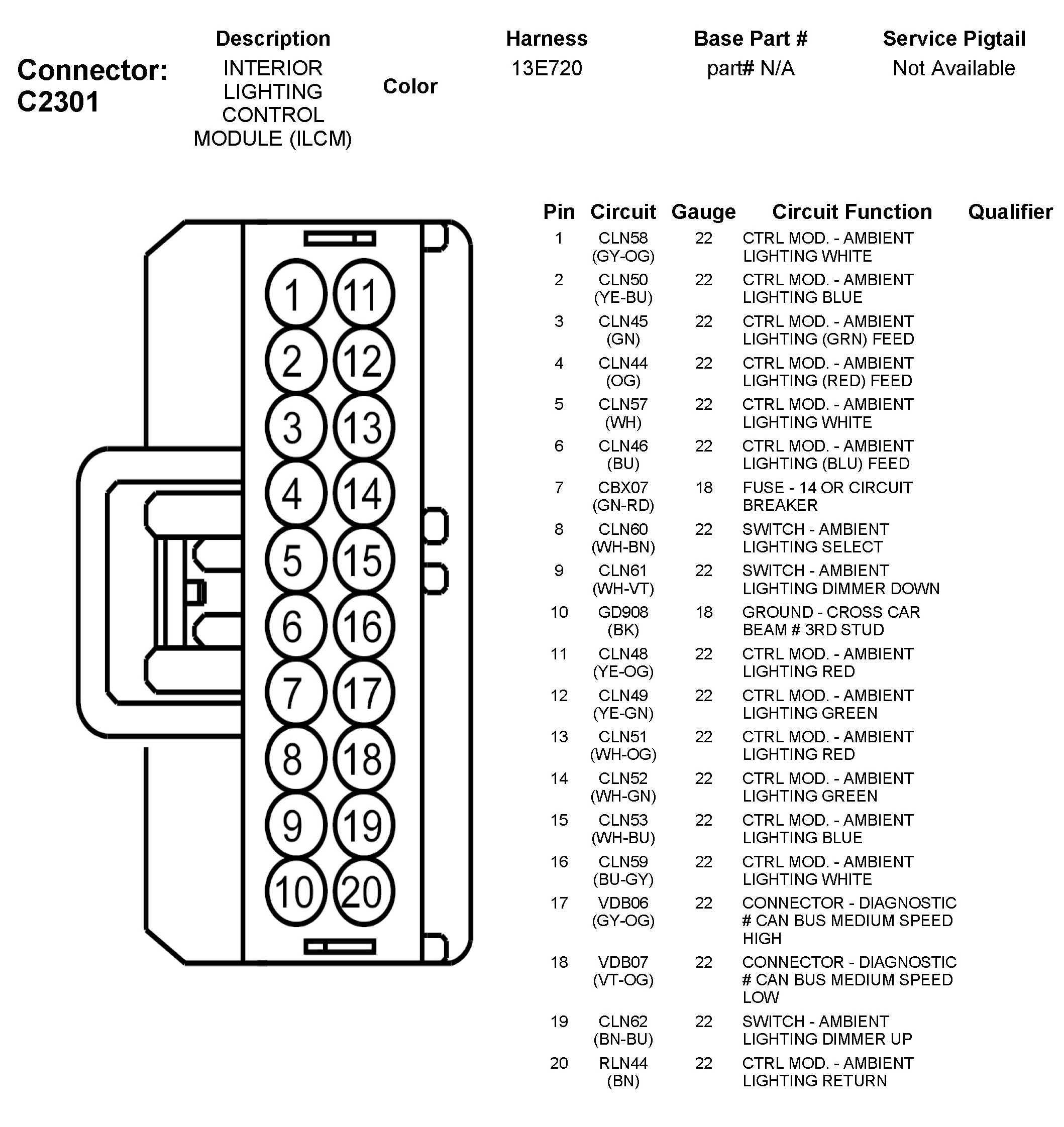

C2301 Interior Lighting Control Module (ILCM)
