Control Assembly: Service and Repair

Heating Ventilation Air Conditioning (HVAC) Module - Fusion, Milan

With Navigation System










Without Navigation System









Removal and Installation

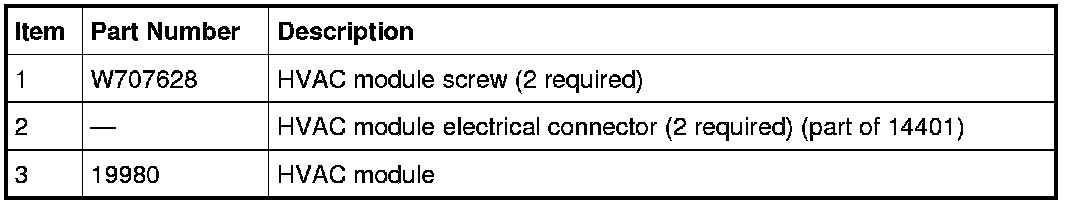

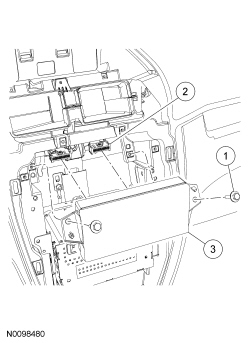

Vehicles equipped with navigation system

1. Remove the Front Display Interface Module (FDIM).

2. Remove the 2 HVAC module screws.

3. Disconnect the 2 HVAC module electrical connectors and remove the HVAC module.

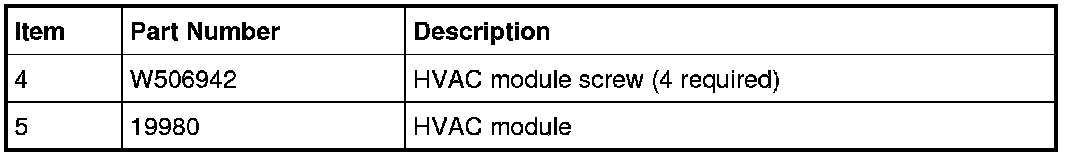

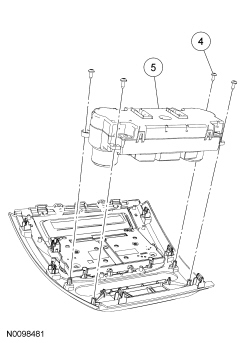

Vehicles without navigation system

4. Remove the center instrument panel finish panel.

5. Remove the 4 HVAC module screws and remove the HVAC module.

All vehicles

6. To install, reverse the removal procedure.
