Engine Temperature Sensor: Service and Repair

Cylinder Head Temperature (CHT) Sensor









Removal and Installation

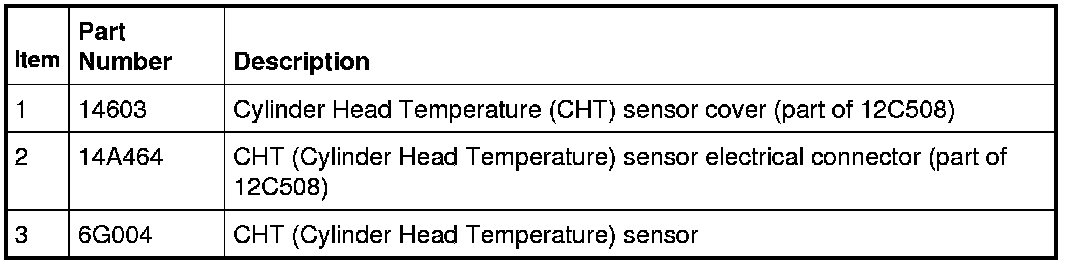

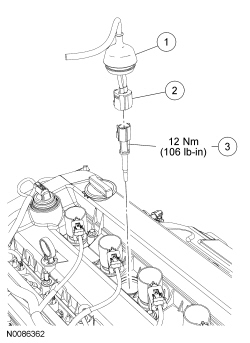

1. Detach the Cylinder Head Temperature (CHT) sensor cover and position aside.

2. Disconnect the CHT (Cylinder Head Temperature) sensor electrical connector.

3. Remove the CHT (Cylinder Head Temperature) sensor.
- To install, tighten to 12 Nm (106 lb-in).


4. To install, reverse the removal procedure.
