All Others.

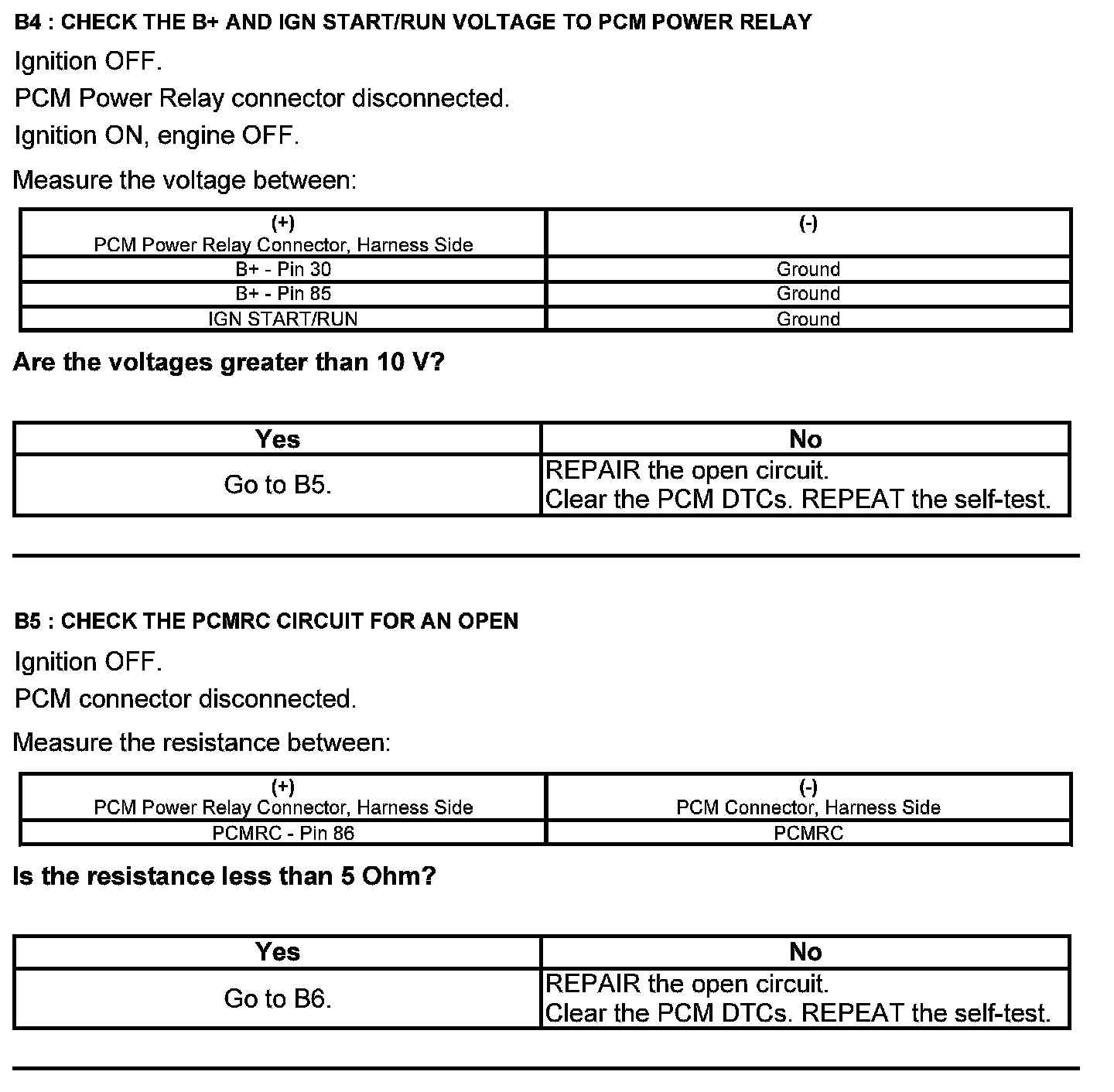

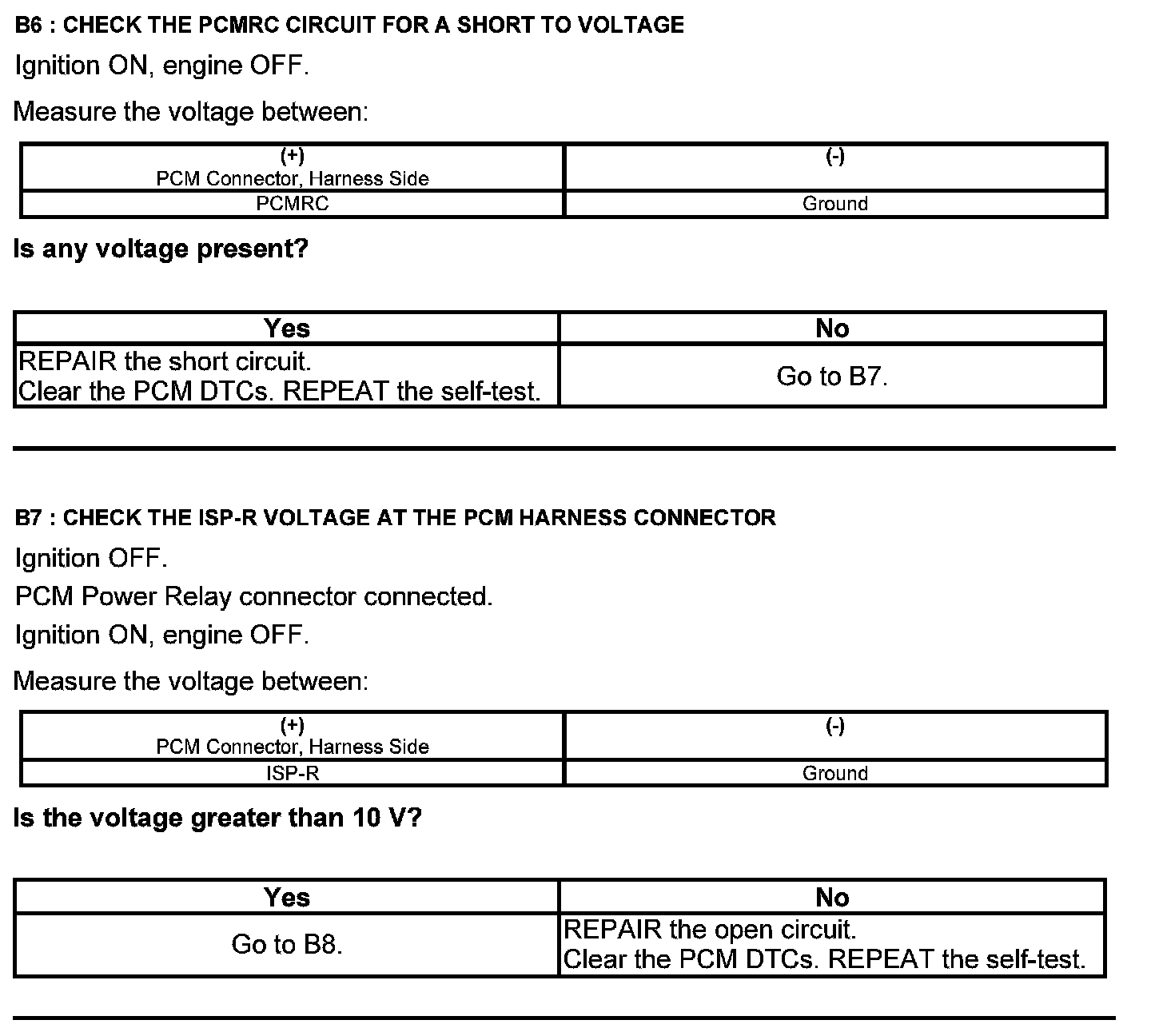

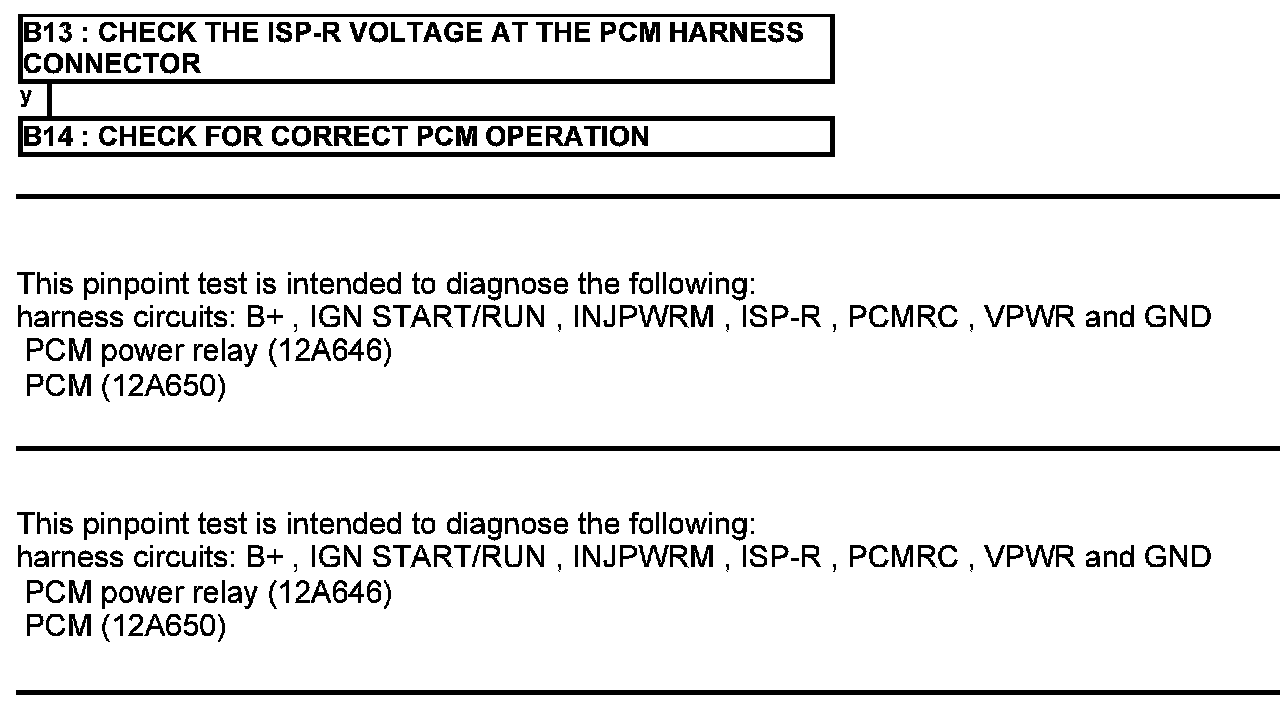

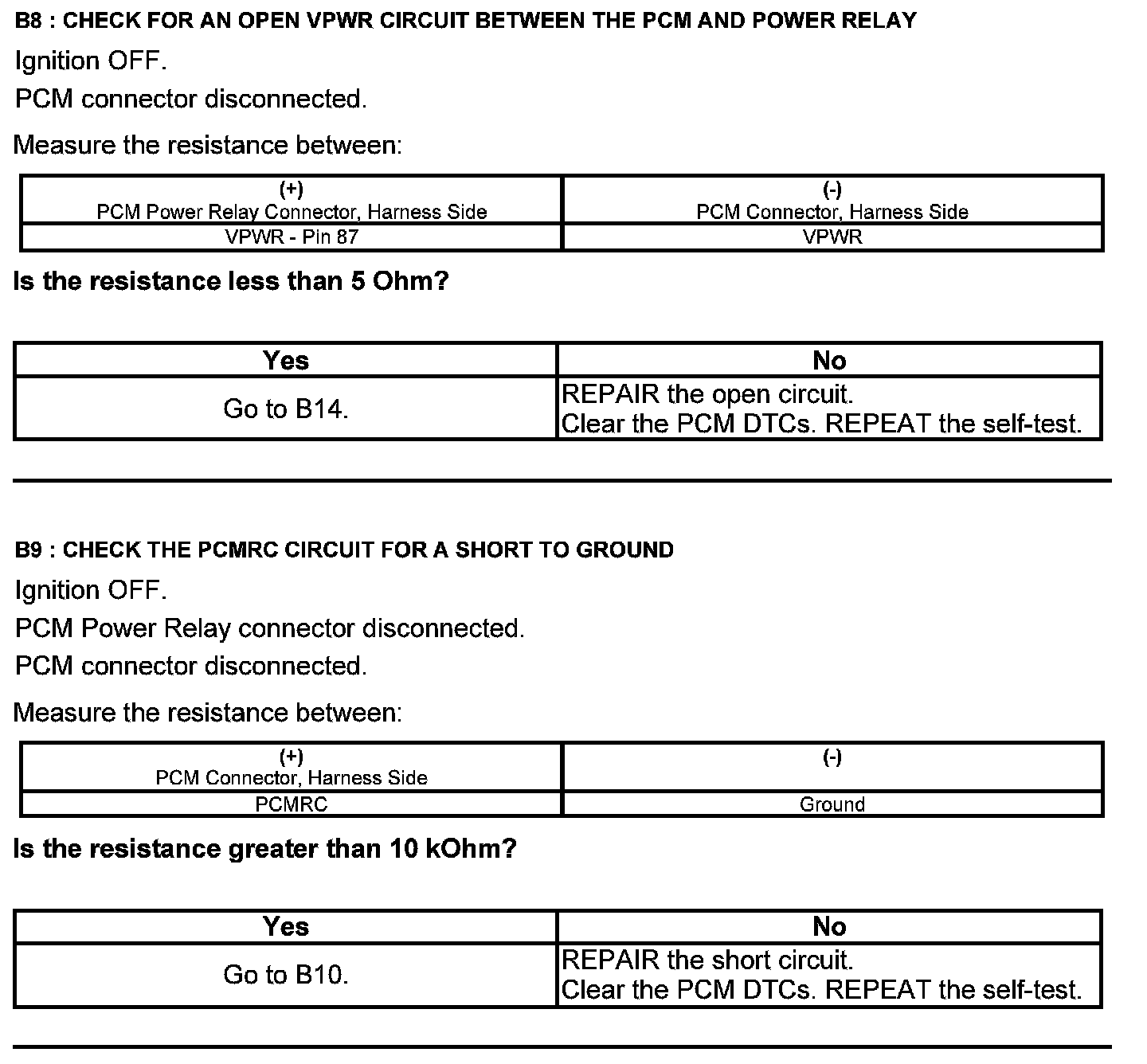

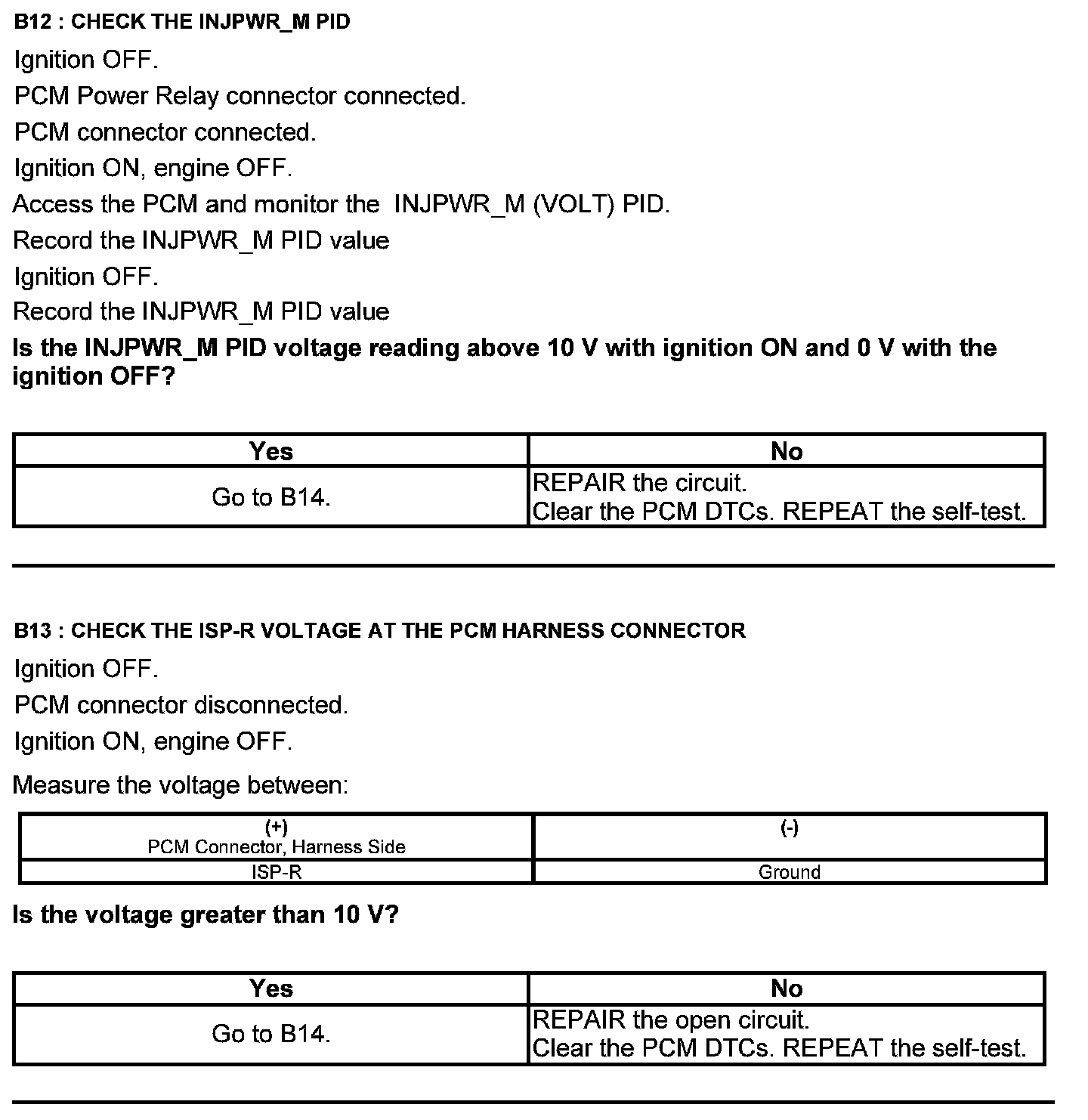

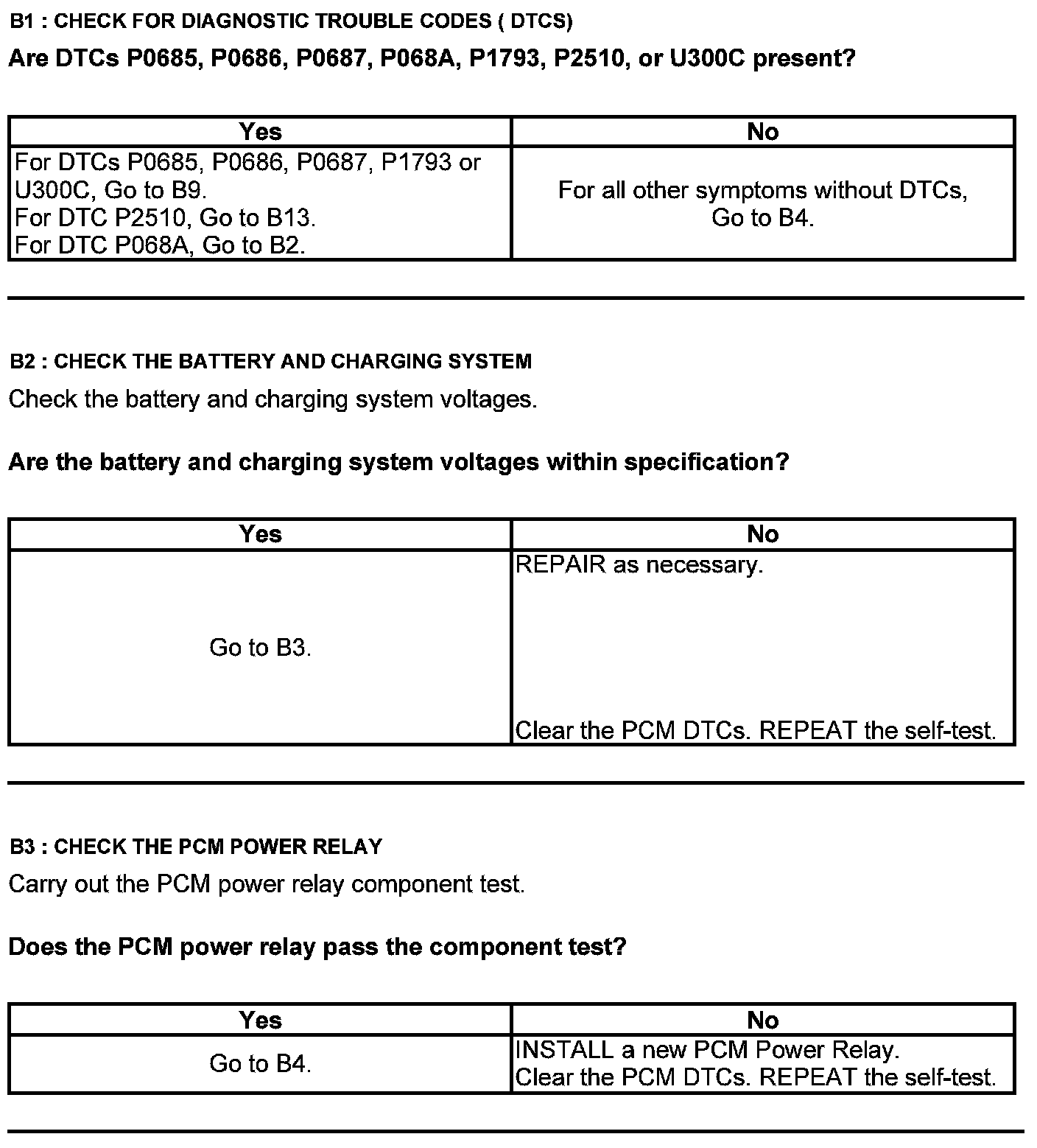

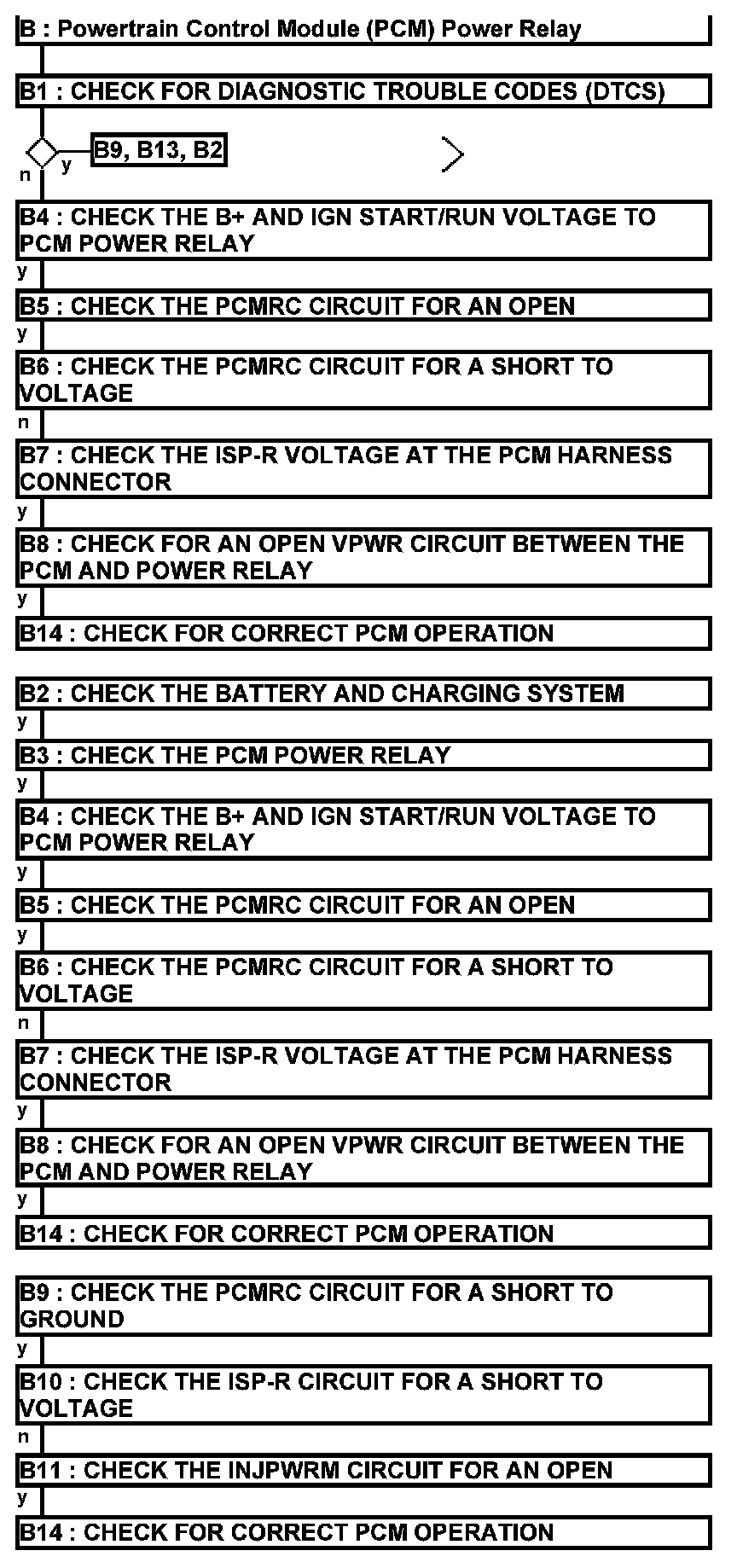

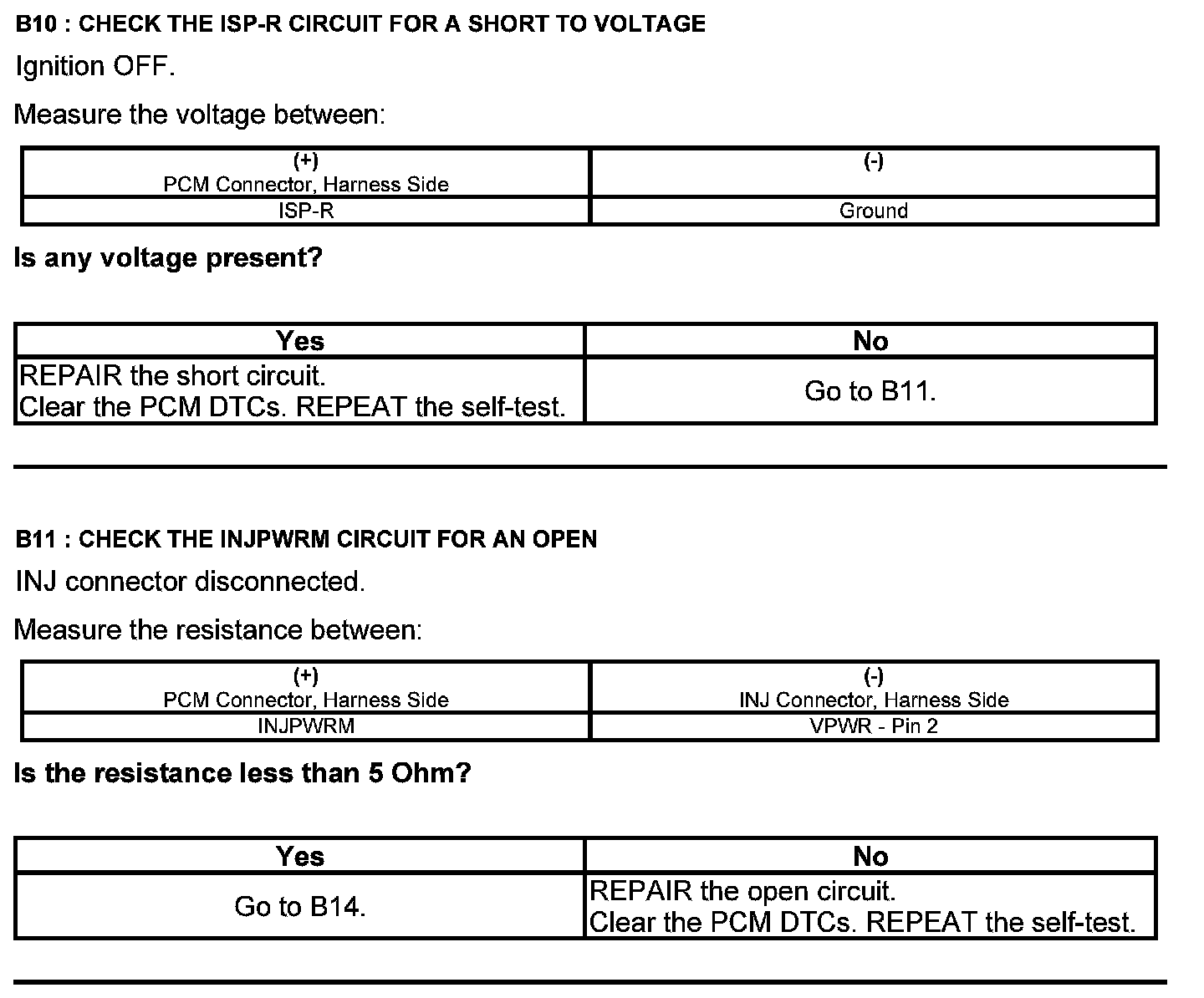

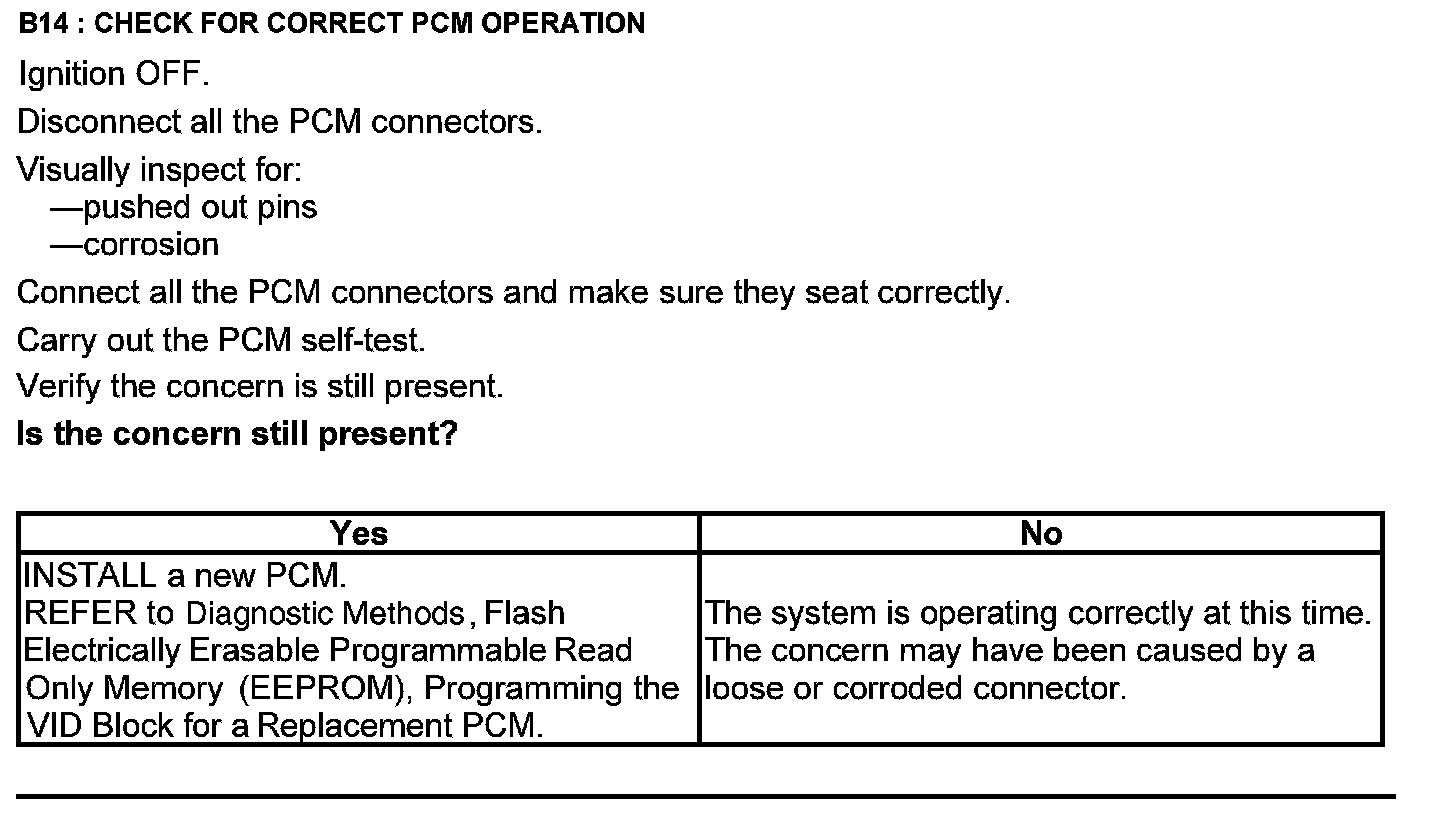

Powertrain Control Module (PCM) Power Relay - All Others.











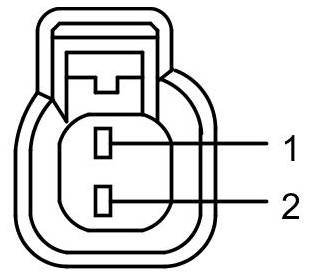

Injector (INJ) Connector





Harness Side

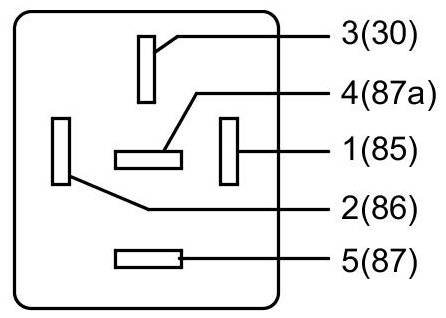

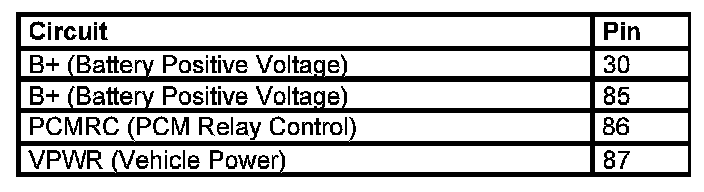

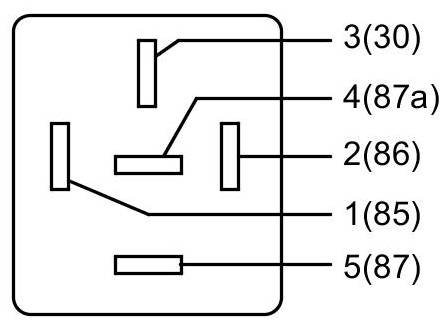

Powertrain Control Module Power (PCM Power) Relay Connector





Harness Side





Component side
