System Specifications

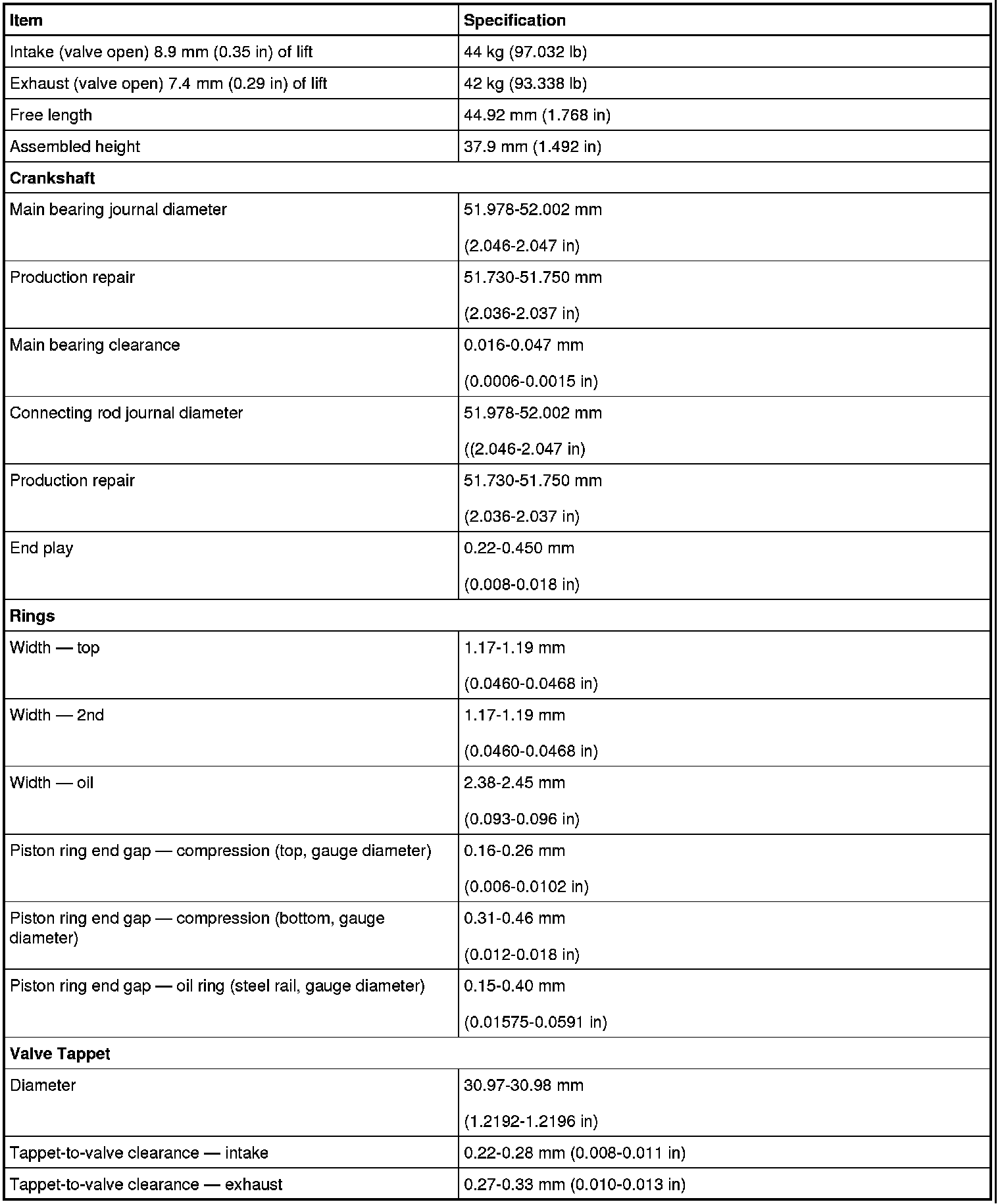

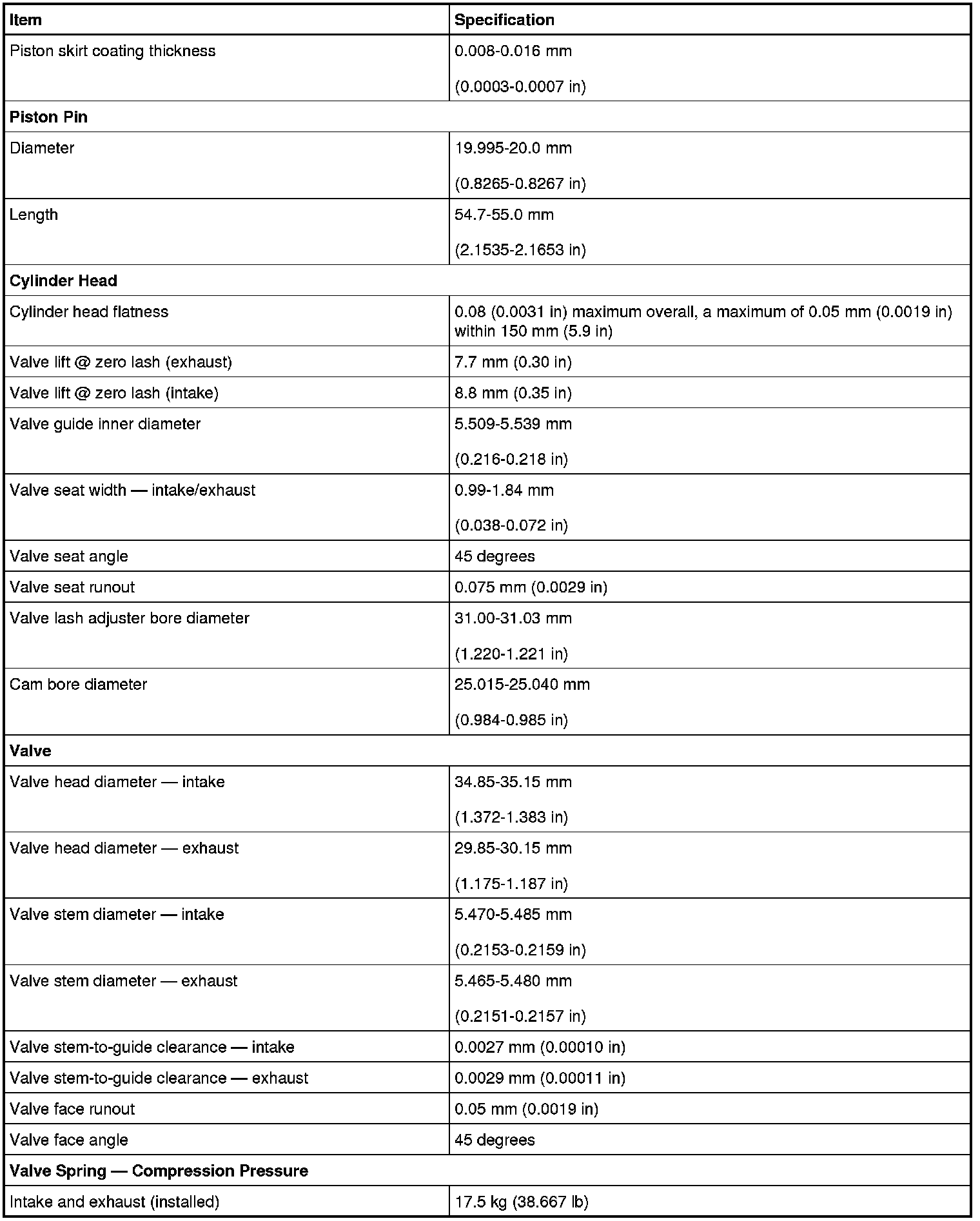

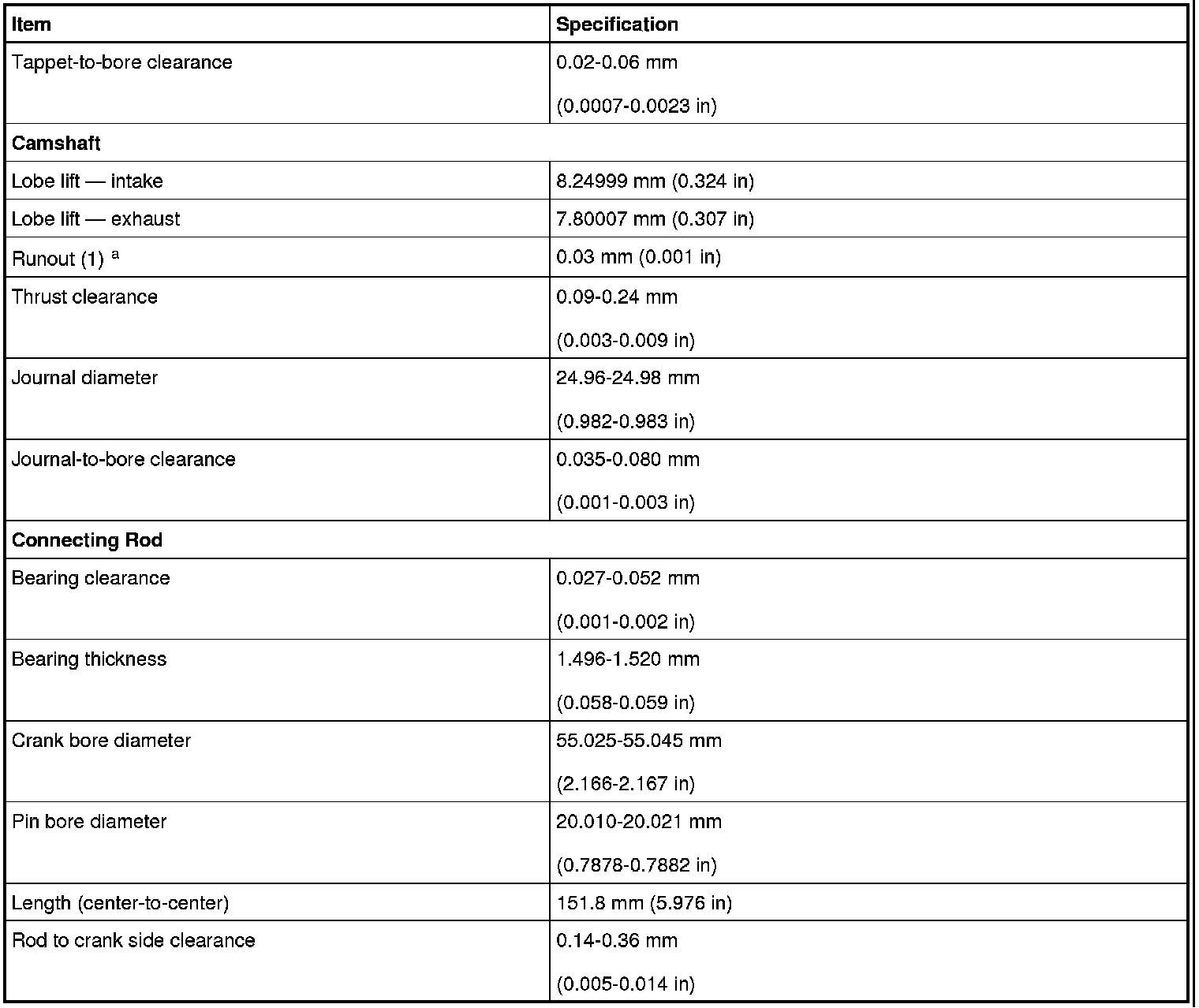

General Specifications

















a No. 3 Journal - Supported by No. 1 and No. 5 journals.

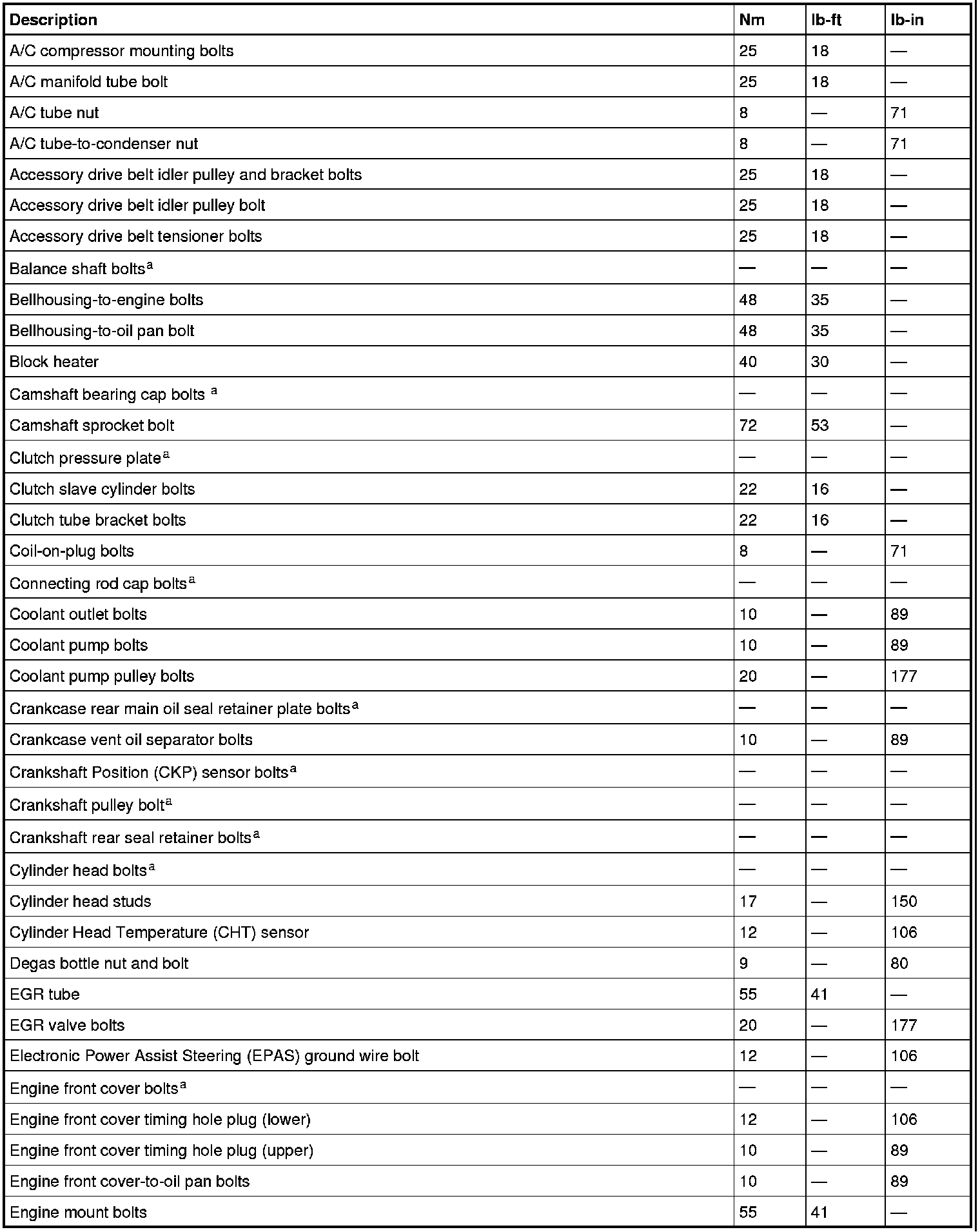

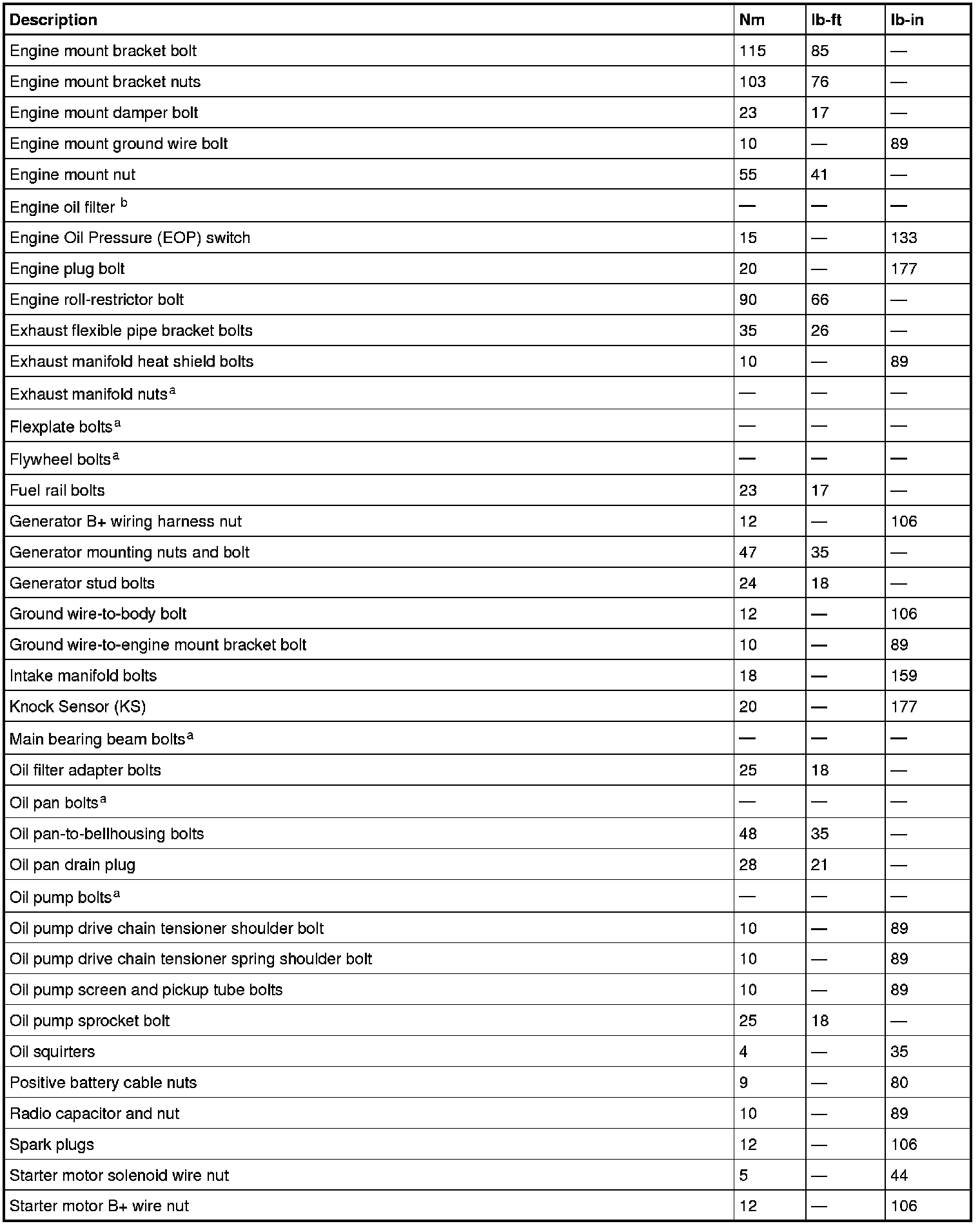

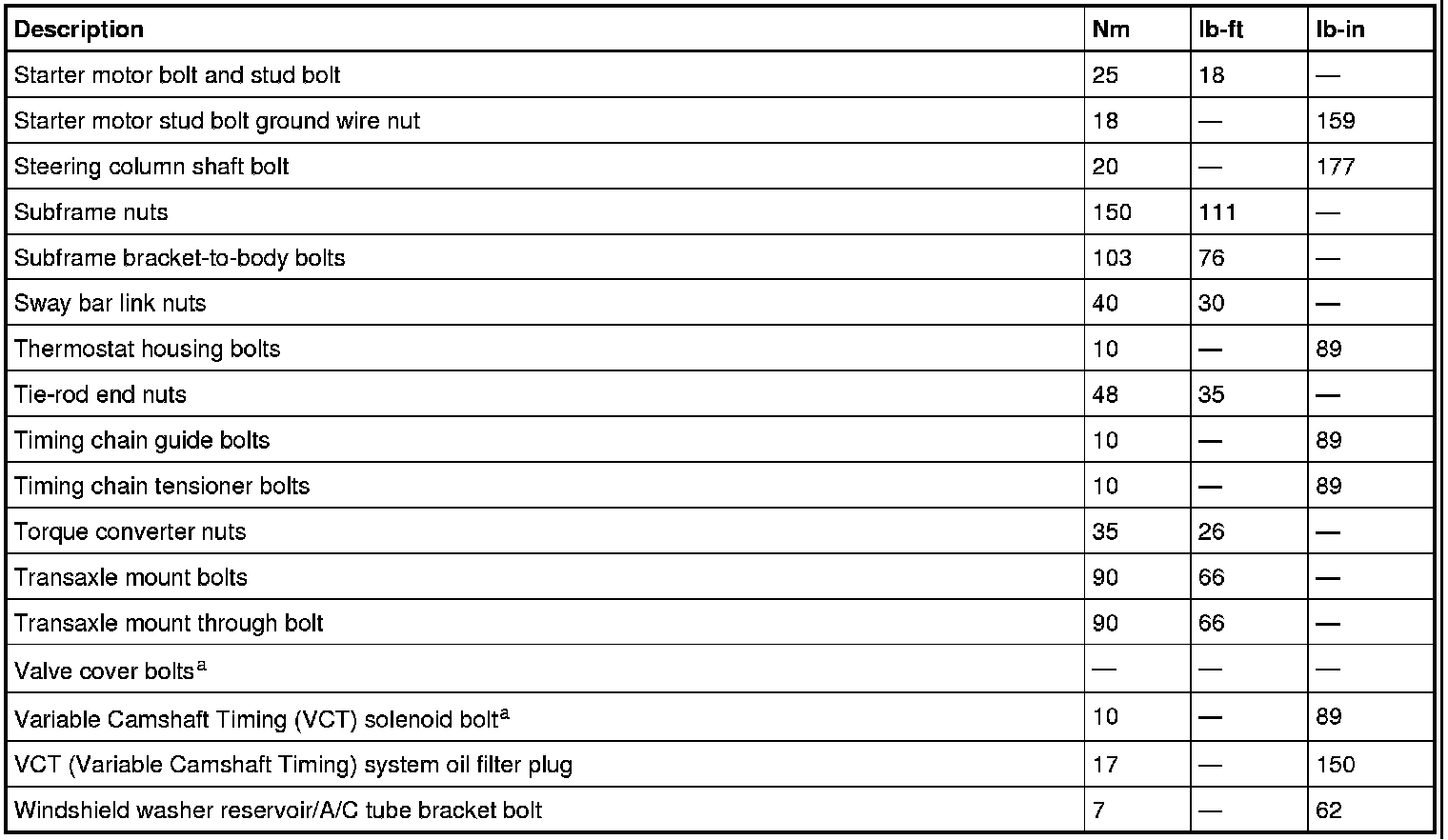

Torque Specifications













a Refer to the procedure for the specification.

b Lubricate the engine oil filter gasket with clean engine oil. Tighten the oil filter three-fourths turn after the oil filter gasket makes contact with the oil filter adapter.
