Engine Temperature Sensor: Service and Repair

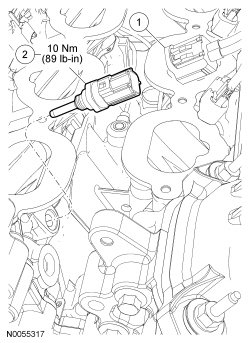

Cylinder Head Temperature (CHT) Sensor










1. Remove the lower intake manifold.

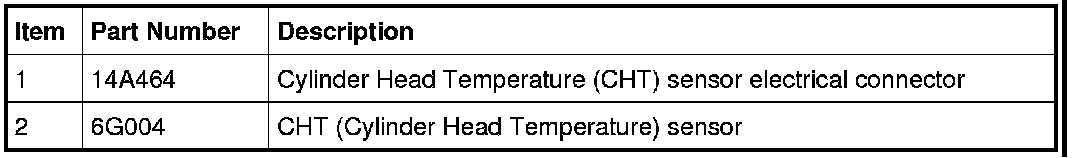

2. Disconnect the Cylinder Head Temperature (CHT) sensor electrical connector.

3. Remove and discard the CHT (Cylinder Head Temperature) sensor.
- To install, tighten to 10 Nm (89 lb-in).


4. To install, reverse the removal procedure.
- Do not reuse the CHT (Cylinder Head Temperature) sensor, install a new sensor.
