Engine Ignition Components - Exploded View

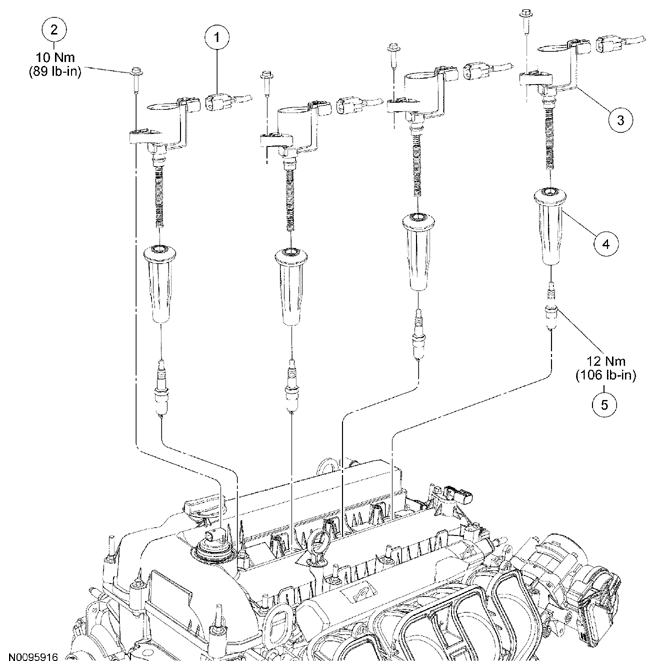

Fig 1: Exploded View Of Engine Ignition Components Locations With Torque Specification

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	14A464	Ignition coil-on-plug electrical connector (part of 12B637) (4 required)
2	W500215	Ignition coil-on-plug bolt (4 required)
3	12A366	Ignition coil-on-plug (4 required)
4	12A402	Ignition coil-on-plug boot (4 required)
5	12405	Spark plug (4 required)

For additional information, refer to the appropriate procedures in this information.
