Steering Column Assembly: Notes

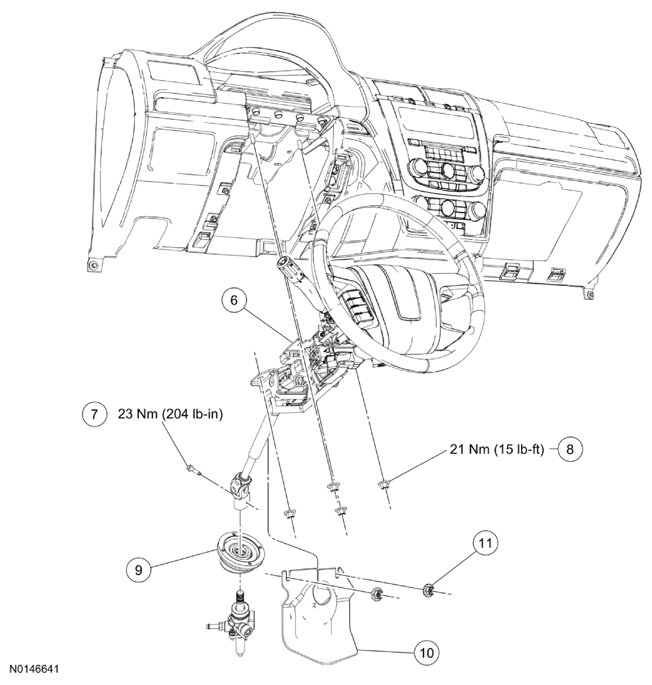

Fig 1: Exploded View Of Steering Column Assembly With Torque Specification
G08019107Courtesy of FORD MOTOR CO.
Item Part Number Description
6 3C529 Steering column
7 3R827 Steering column shaft-to-steering gear bolt
8 N806423 Steering column support bracket nut (4 required)
9 3C611B Steering gear/dash seal
10 3C611A Steering column shaft joint cover
11 W704904 Steering column shaft joint cover nut (2 required)
