Accelerator Pedal: Notes

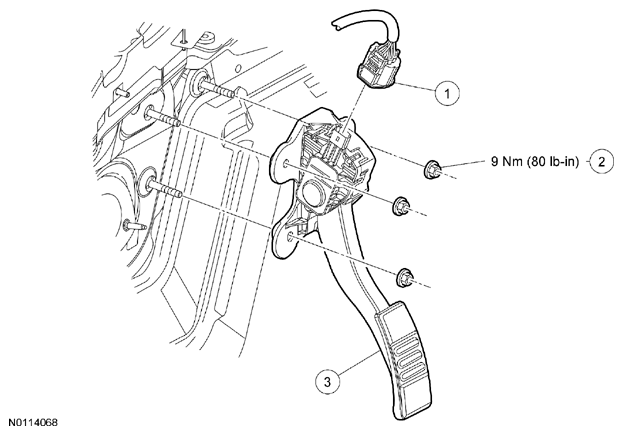

Fig 1: Accelerator Pedal Related Replacement Components With Torque Specifications
G07992130Courtesy of FORD MOTOR CO.
Item Part Number Description
1 14A464 Accelerator pedal sensor electrical connector
2 W711330 Accelerator pedal and sensor nuts (3 required)
3 9F836 Accelerator pedal and sensor assembly
