Control Assembly: Service and Repair

Heating Ventilation Air Conditioning (HVAC) Module









Removal and Installation

1. Remove the Front Display Interface Module (FDIM).

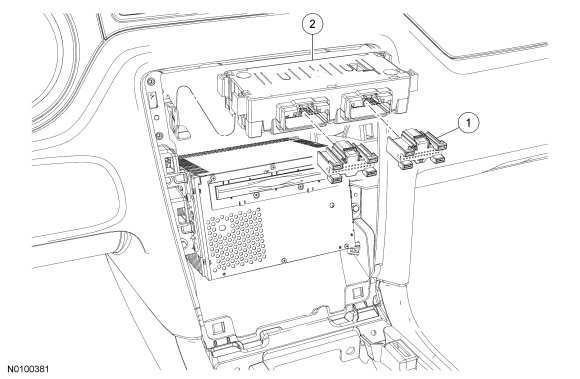

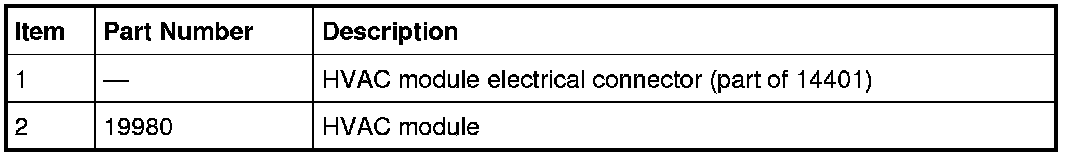

2. NOTE: Vehicles equipped with Electronic Automatic Temperature Control (EATC) have 2 HVAC module electrical connectors. Vehicles equipped with Electronic Manual Temperature Control (EMTC) have 1 HVAC module electrical connector.
Disconnect the 2 HVAC module electrical connector(s).


3. Release the HVAC module retaining clips and remove the HVAC module.

4. NOTE: Be sure that all HVAC module electrical connectors are securely fastened before installing the center instrument panel finish panel.
To install, reverse the removal procedure.
