Engine Ignition Components - Exploded View




Engine Ignition Components - Exploded View

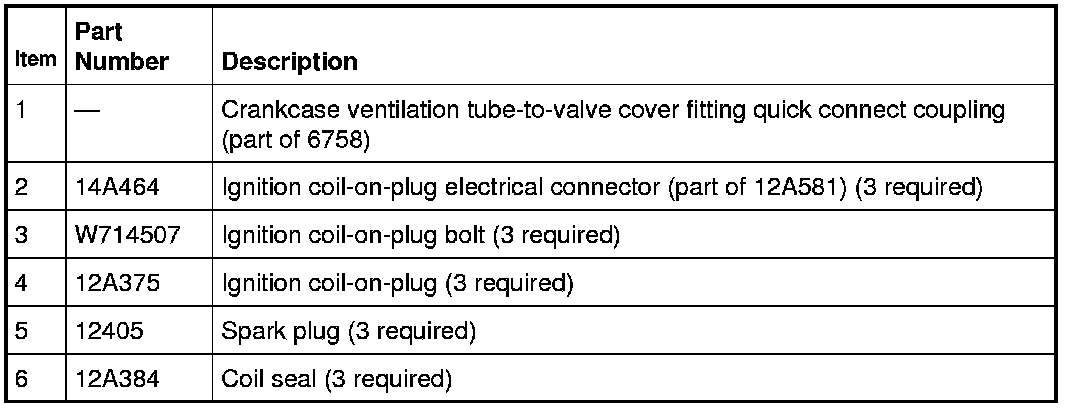

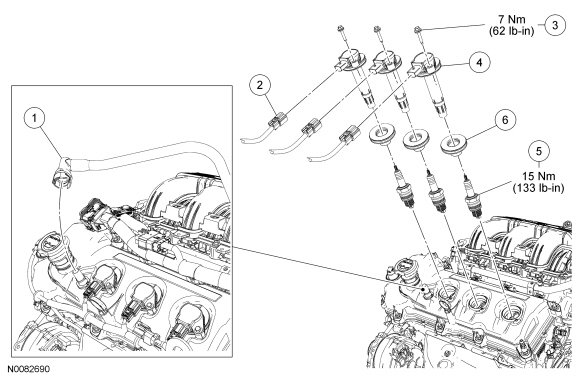

LH Ignition Coil-on-plugs and Spark Plugs

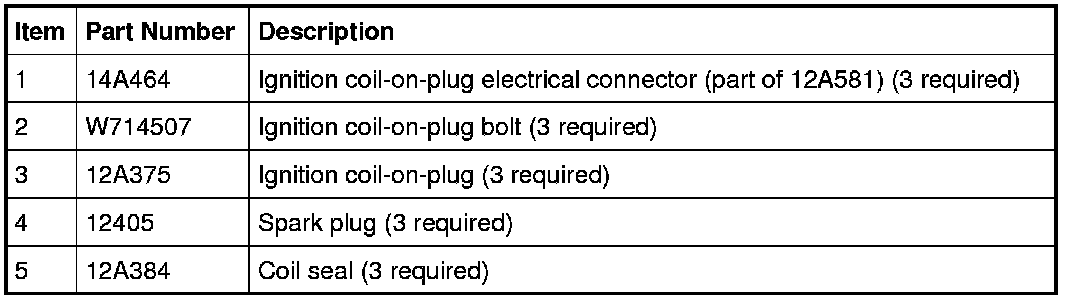

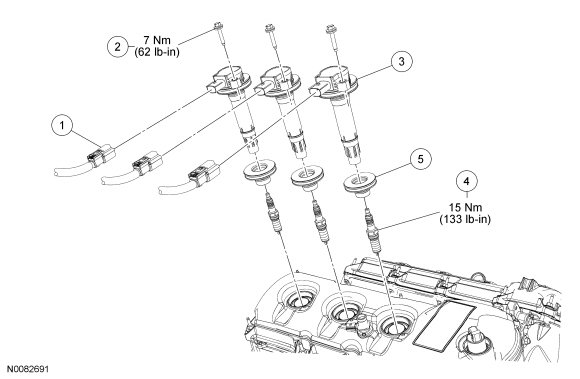

RH Ignition Coil-on-plugs and Spark Plugs










1. Refer to the procedures and/or exploded views for any Warnings, Notices, Notes, Materials, Specifications, and Special Tools. Items in the exploded views may not be listed in order of removal.
