Intake Manifold

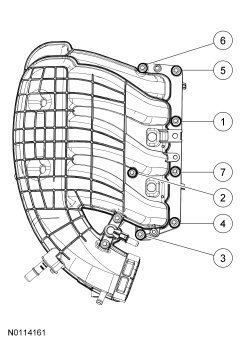

Using new gaskets, install the upper intake manifold and tighten the 7 bolts in the sequence shown in 2 stages.
Stage 1: Tighten to 10 Nm (89 lb-in).
Stage 2: Tighten an additional 45 degrees.










Using new lower intake manifold gaskets, install the lower intake manifold and the 10 bolts and tighten in the sequence shown.
Tighten to 10 Nm (89 lb-in).
