Engine Lubrication

Engine Lubrication Components - Exploded View

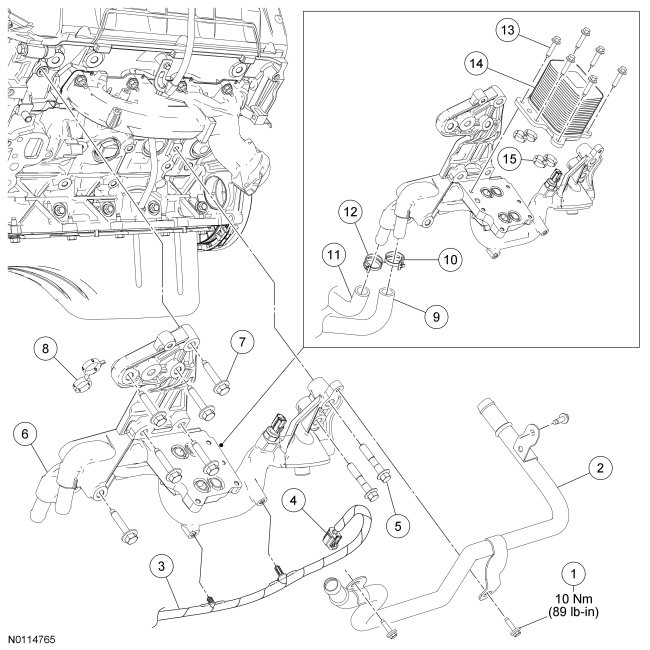

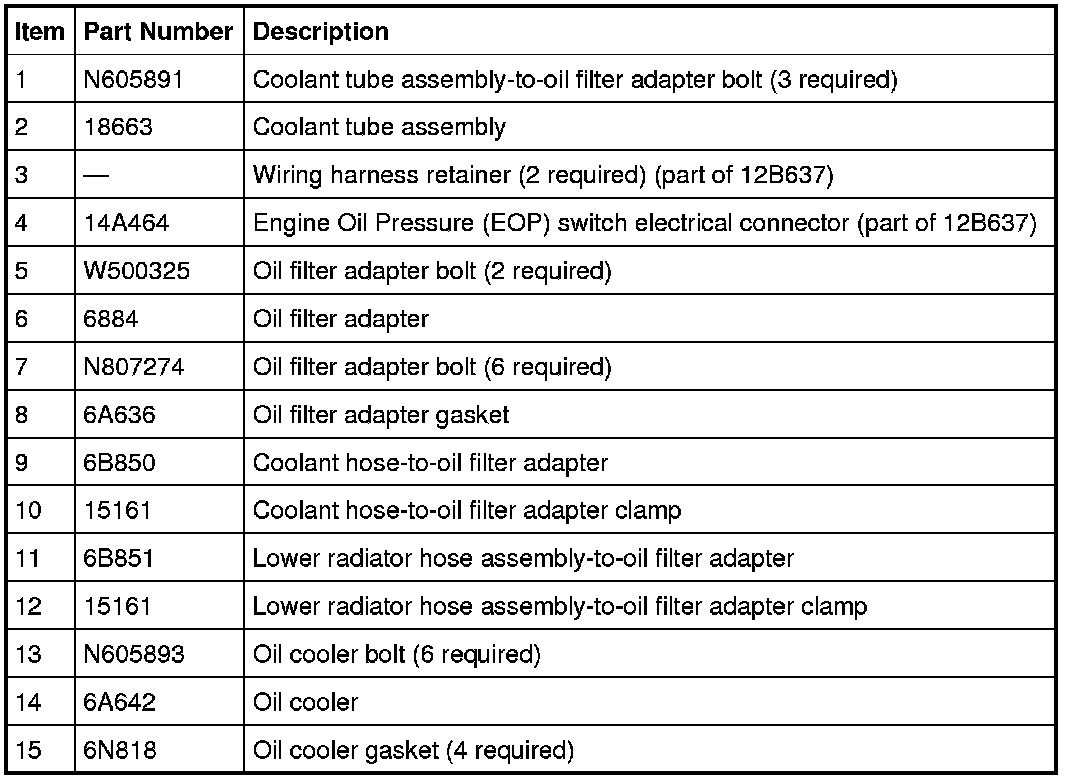

Oil Filter Adapter, Coolant Hoses and Oil Cooler

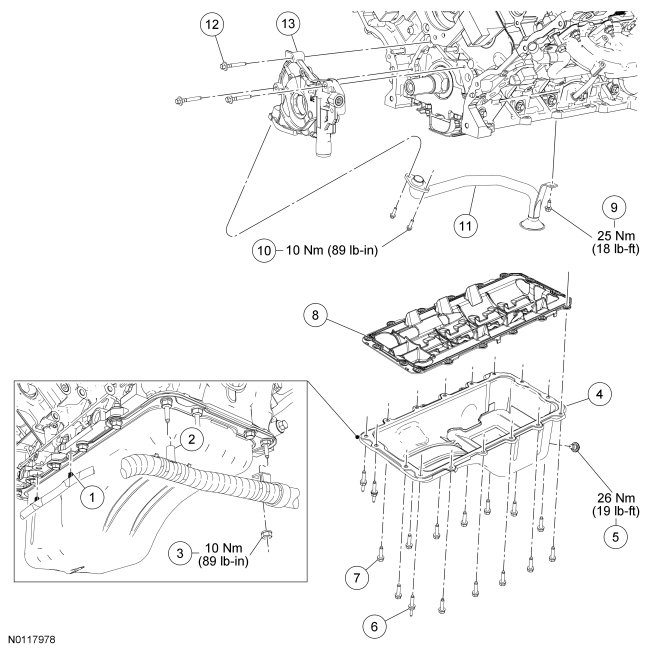

Oil Pan , Oil Pump, Oil Pump and Screen and Pickup Tube










1. Refer to the procedures and/or exploded views for any Warnings, Notices, Notes, Materials, Specifications, and Special Tools. Items in the exploded views may not be listed in order of removal.
