Engine Specifications

Specifications

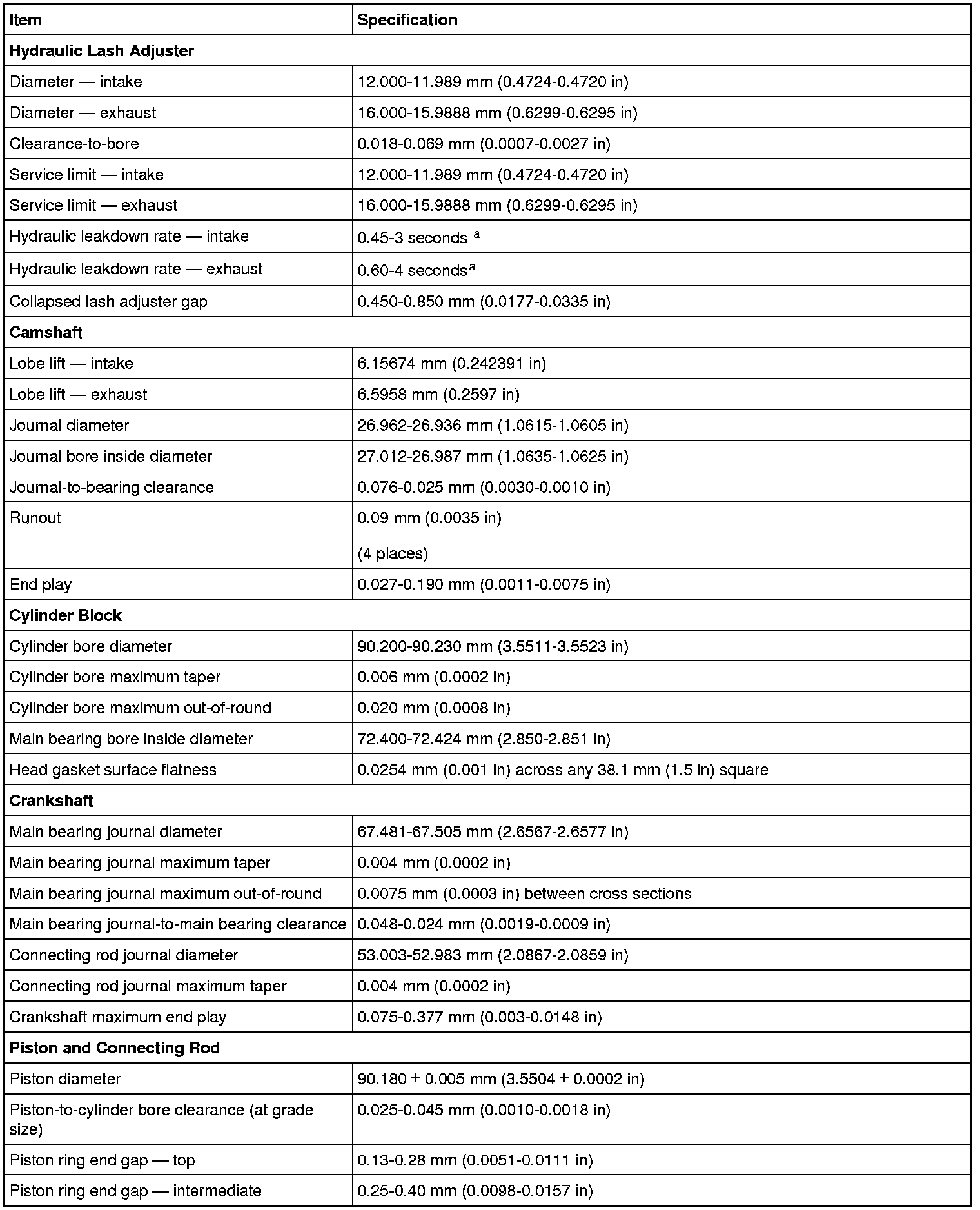

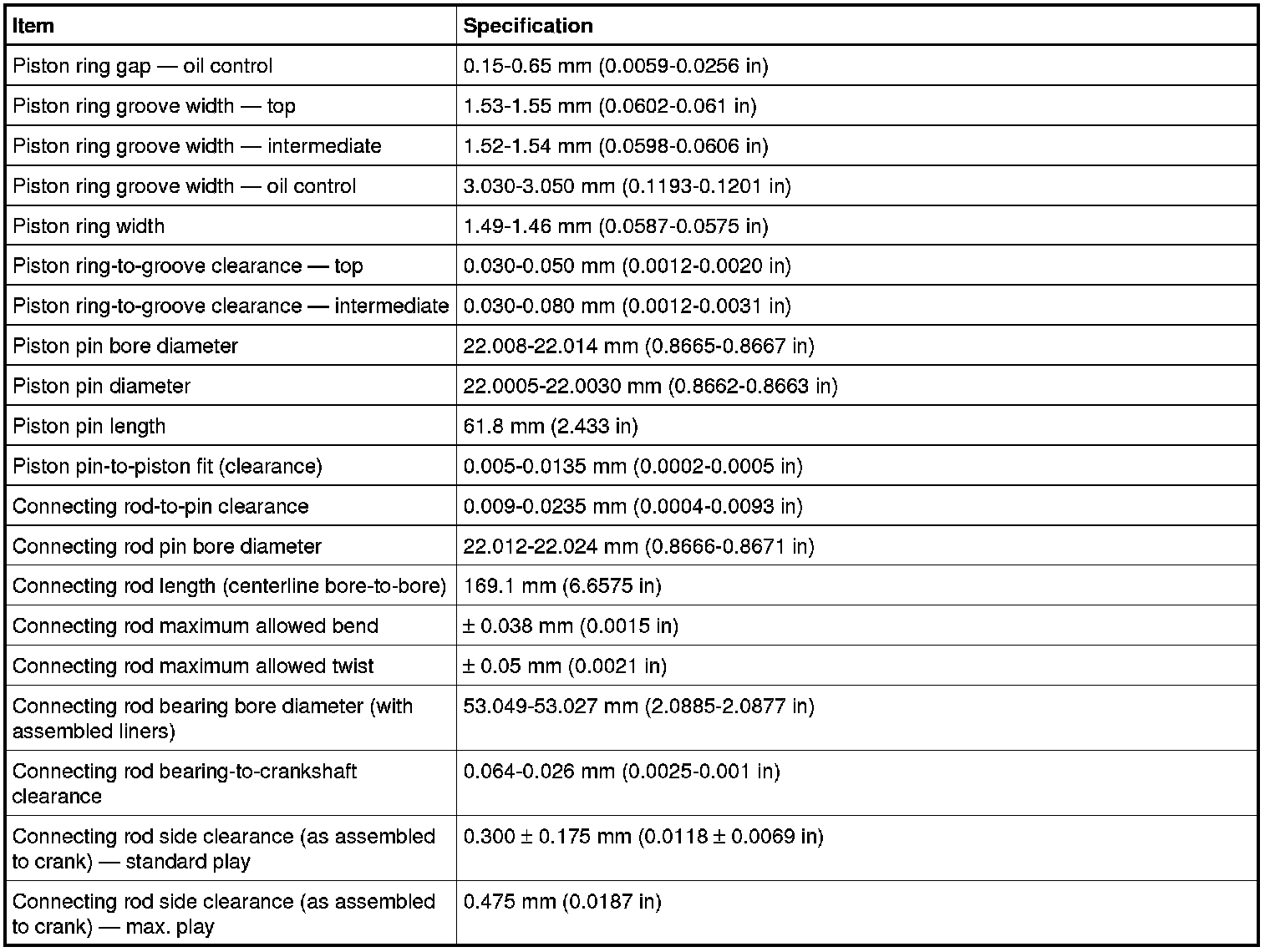

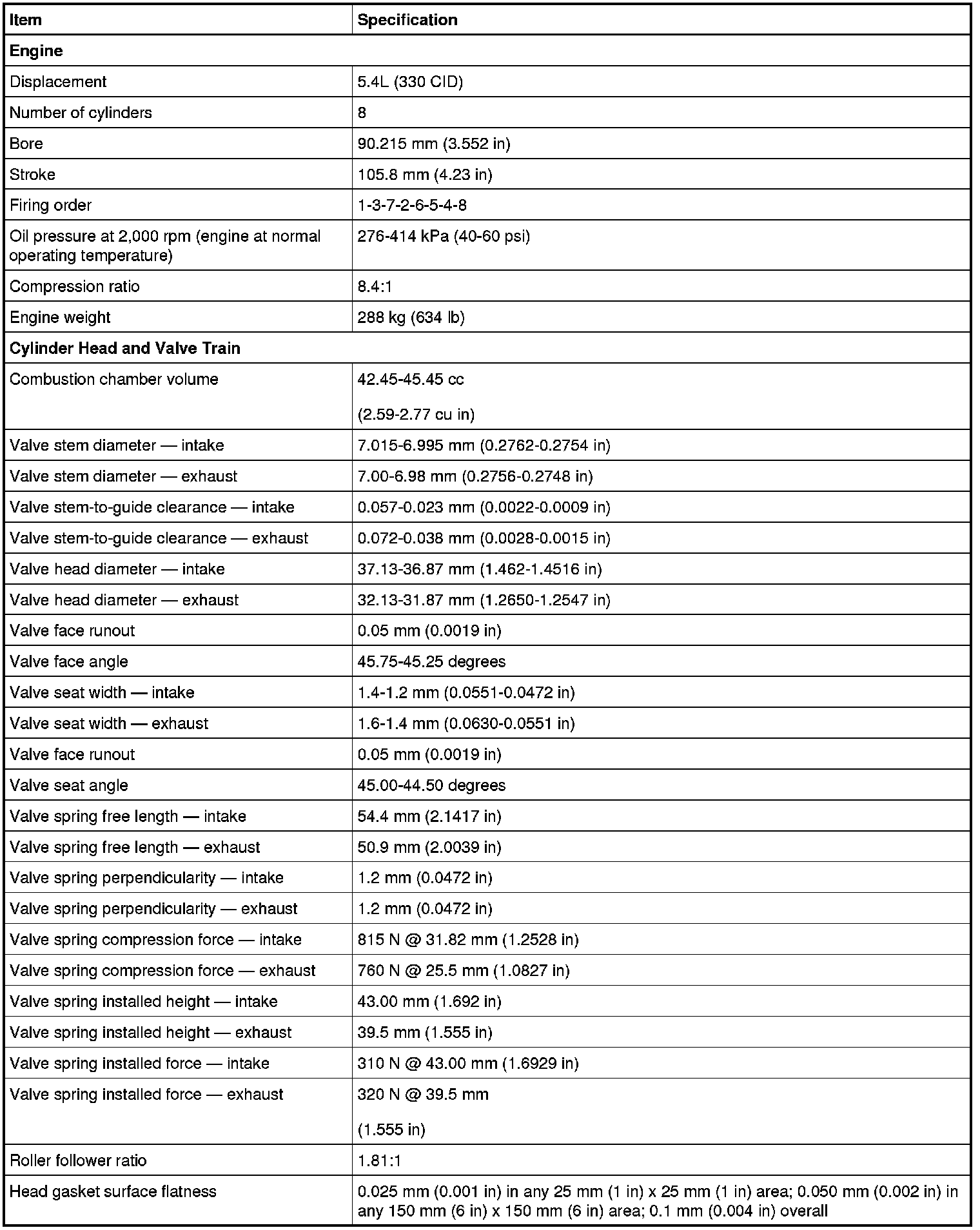

General Specifications













a Time required for the plunger to leak down 1.6 mm of travel with 222 N force and leak-down fluid in the lash adjuster.

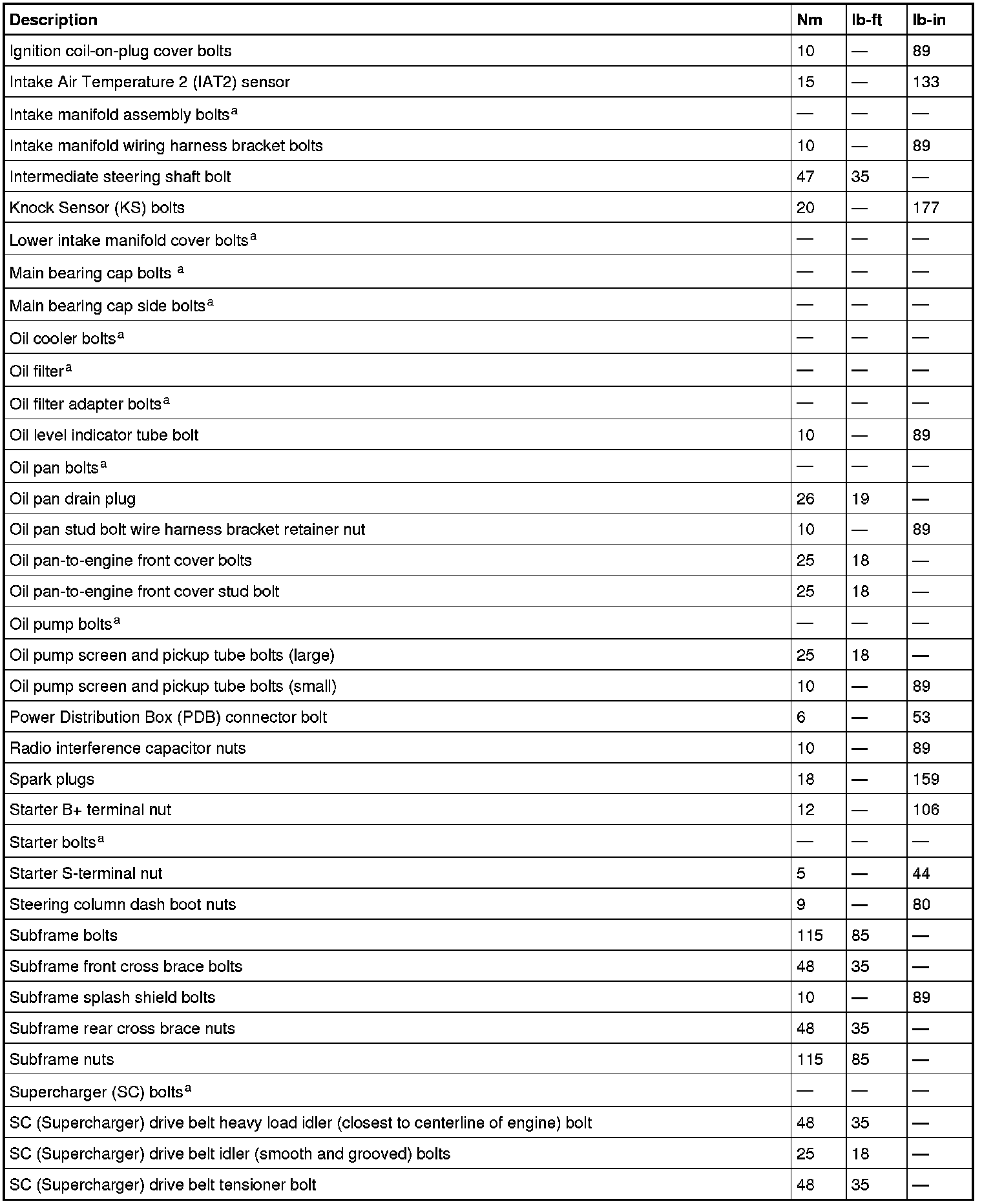

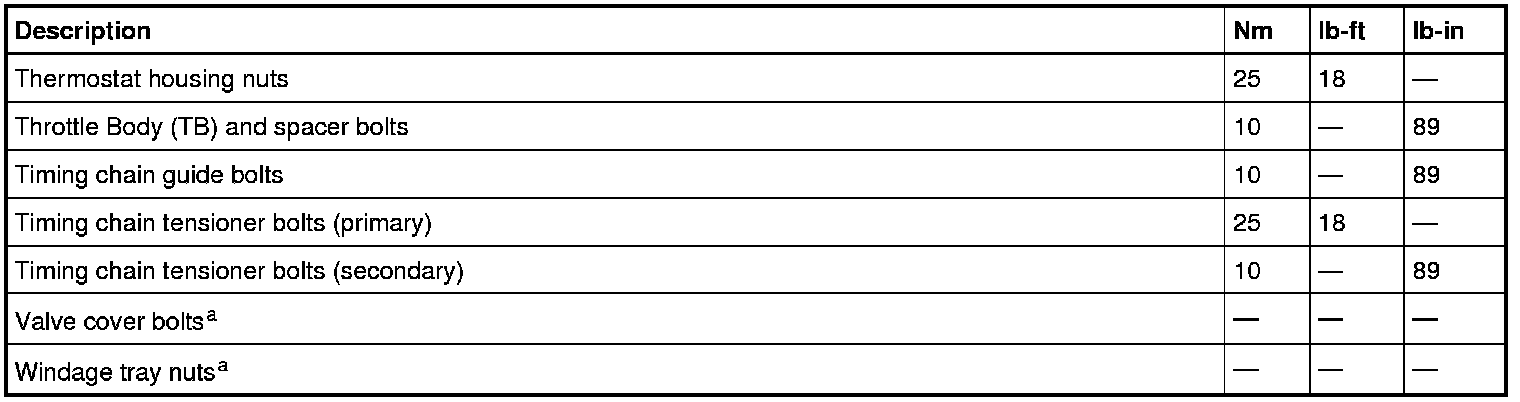

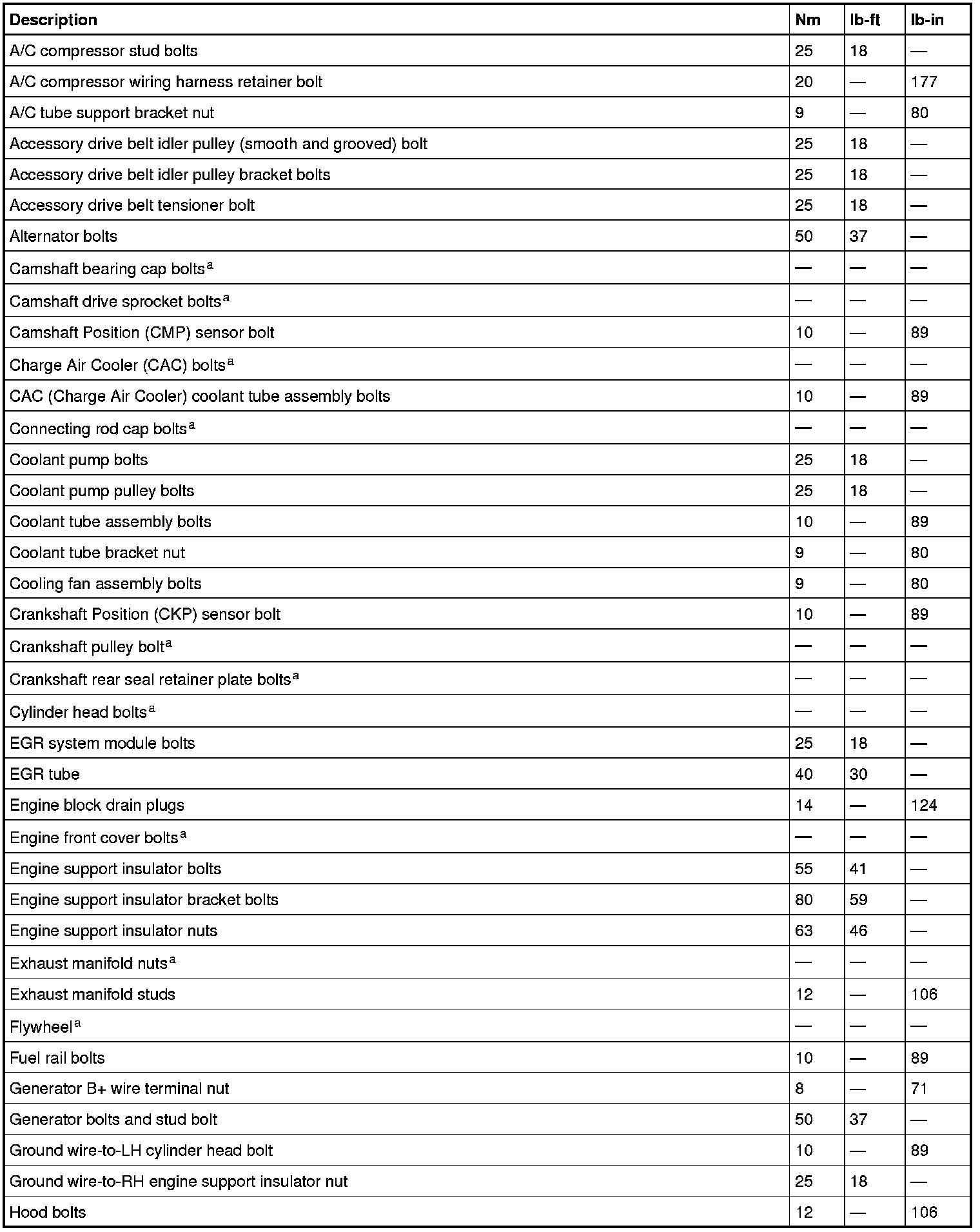

Torque Specifications













a Refer to the procedure in Engine.
