Intake Manifold




Using new intake manifold, coolant crossover and thermostat housing gaskets, install the intake manifold and the 12 bolts.

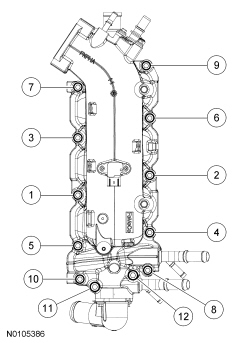

Tighten in the sequence shown to 10 Nm (89 lb-in).
