Control Assembly: Service and Repair

Heating Ventilation Air Conditioning (HVAC) Module

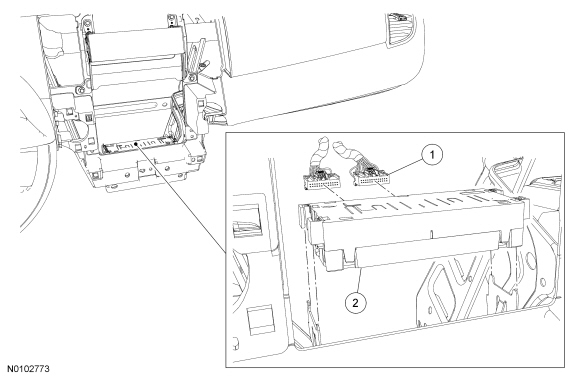

Removal and Installation

1. Remove the Audio Control Module (ACM).

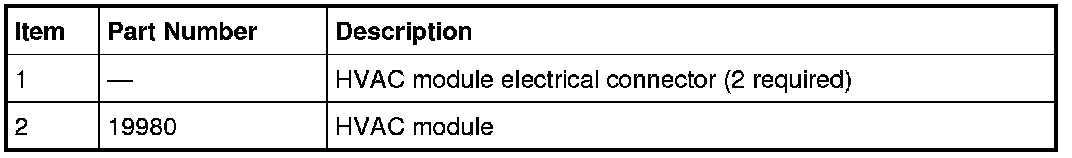

2. Disconnect the 2 HVAC module electrical connectors.

3. Release the retaining tabs and remove the HVAC module.





4. To install, reverse the removal procedure.
