Catalyst Monitor Sensor

Catalyst Monitor Sensor









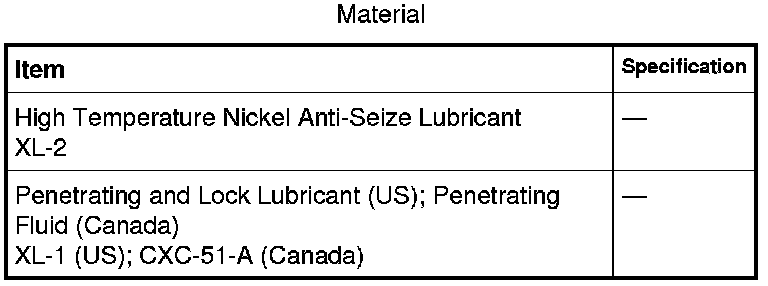

Removal and Installation

All sensors

1. With the vehicle in NEUTRAL, position it on a hoist.

All sensors except the RH 3.5L Gasoline Turbocharged Direct Injection (GTDI) sensor

2. Disconnect the Catalyst Monitor Sensor (CMS) electrical connector.

RH 3.5L GTDI (Gasoline Turbocharged Direct Injection) sensor

3. Disconnect the CMS (Catalyst Monitor Sensor) electrical connector.
- Detach the wiring retainer from the rear engine roll restrictor bracket.


All sensors

4. NOTE: If necessary, lubricate the sensor threads with penetrating and lock lubricant to assist in removal.

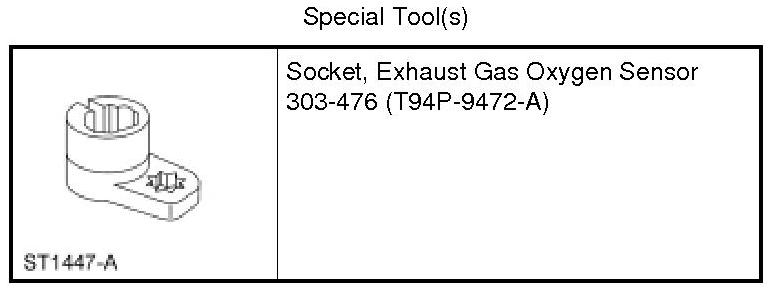

Using the Exhaust Gas Oxygen Sensor Socket, remove the CMS (Catalyst Monitor Sensor).

- Calculate the correct torque wrench setting for the following torque.

- To install, tighten to 48 Nm (35 lb-ft).






5. NOTE: Apply a light coat of anti-seize lubricant to the threads of the CMS (Catalyst Monitor Sensor).
To install, reverse the removal procedure.
