Exhaust System

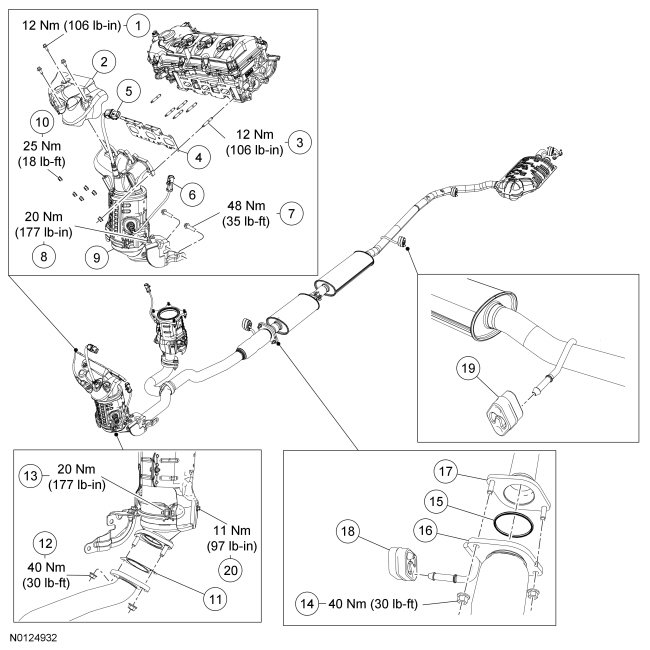

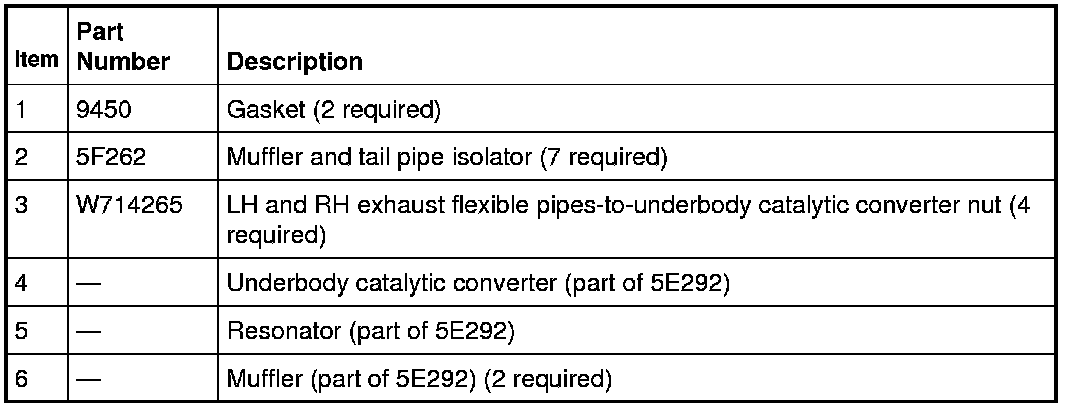

Exhaust System - Exploded View

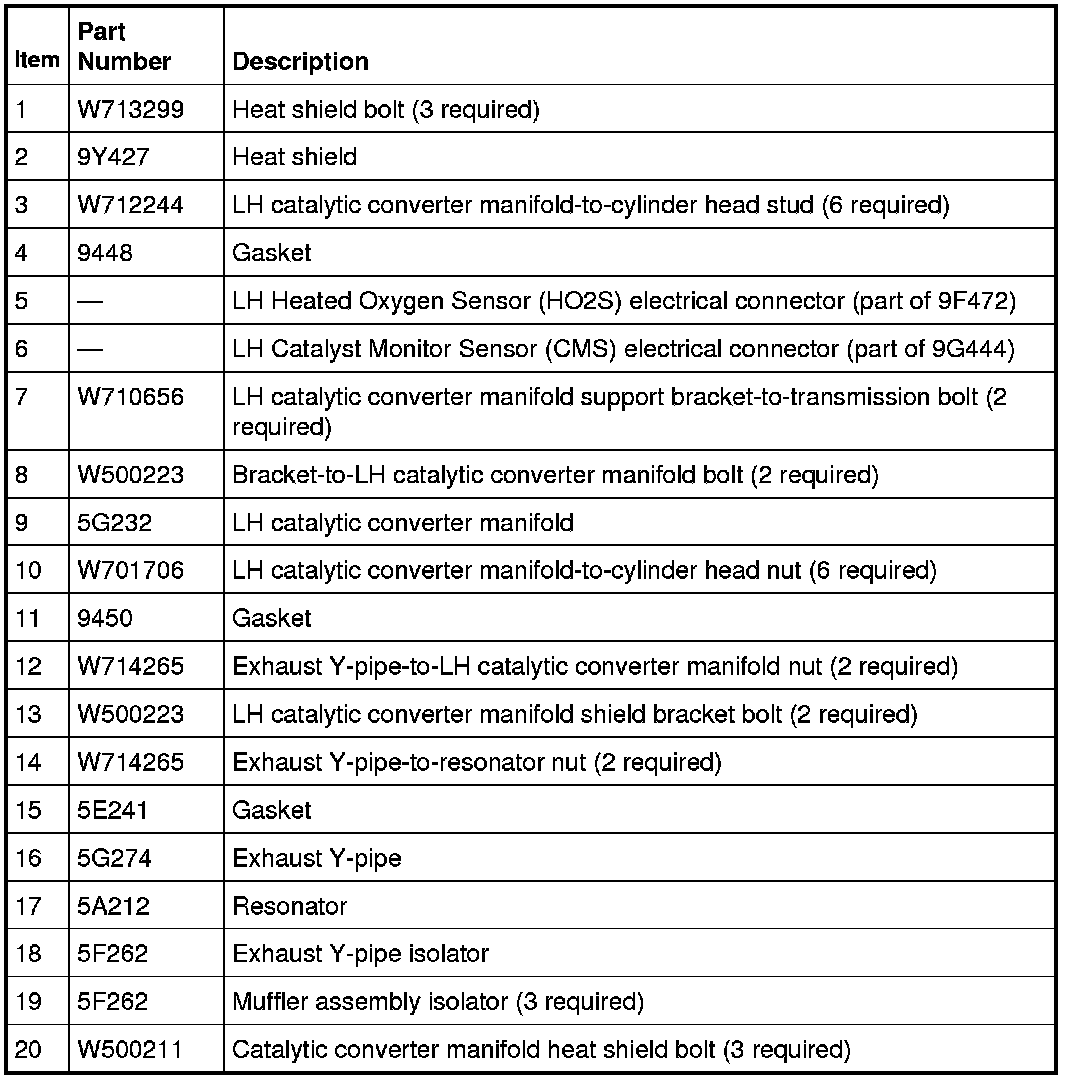

3.5L LH Catalytic Converter and Exhaust Pipes

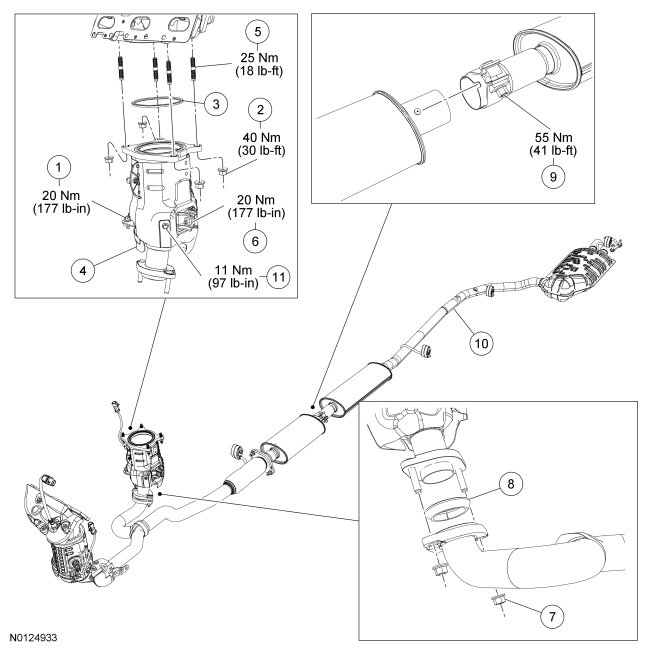

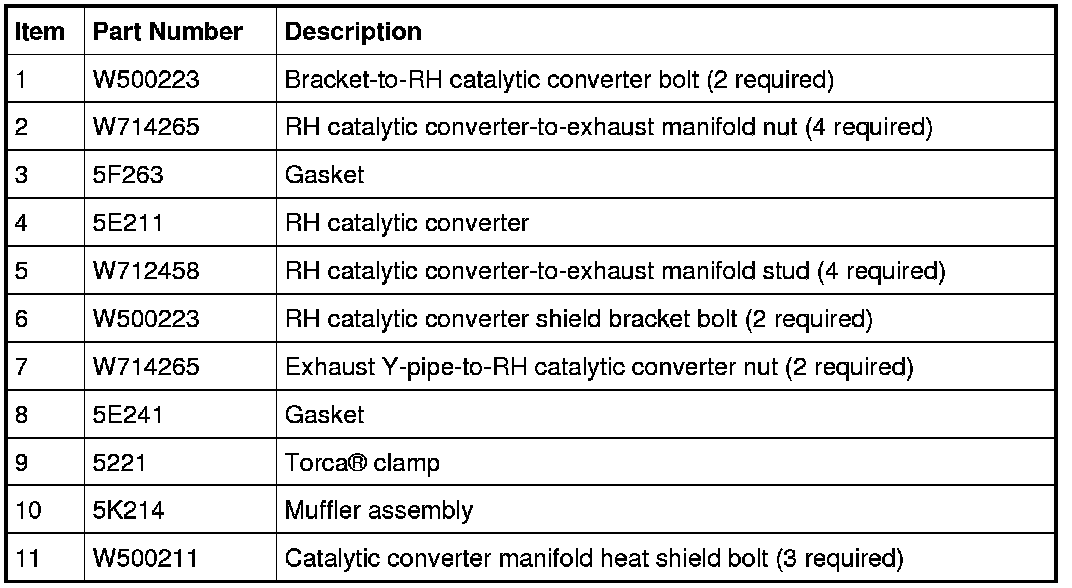

3.5L RH Catalytic Converter and Exhaust Pipes

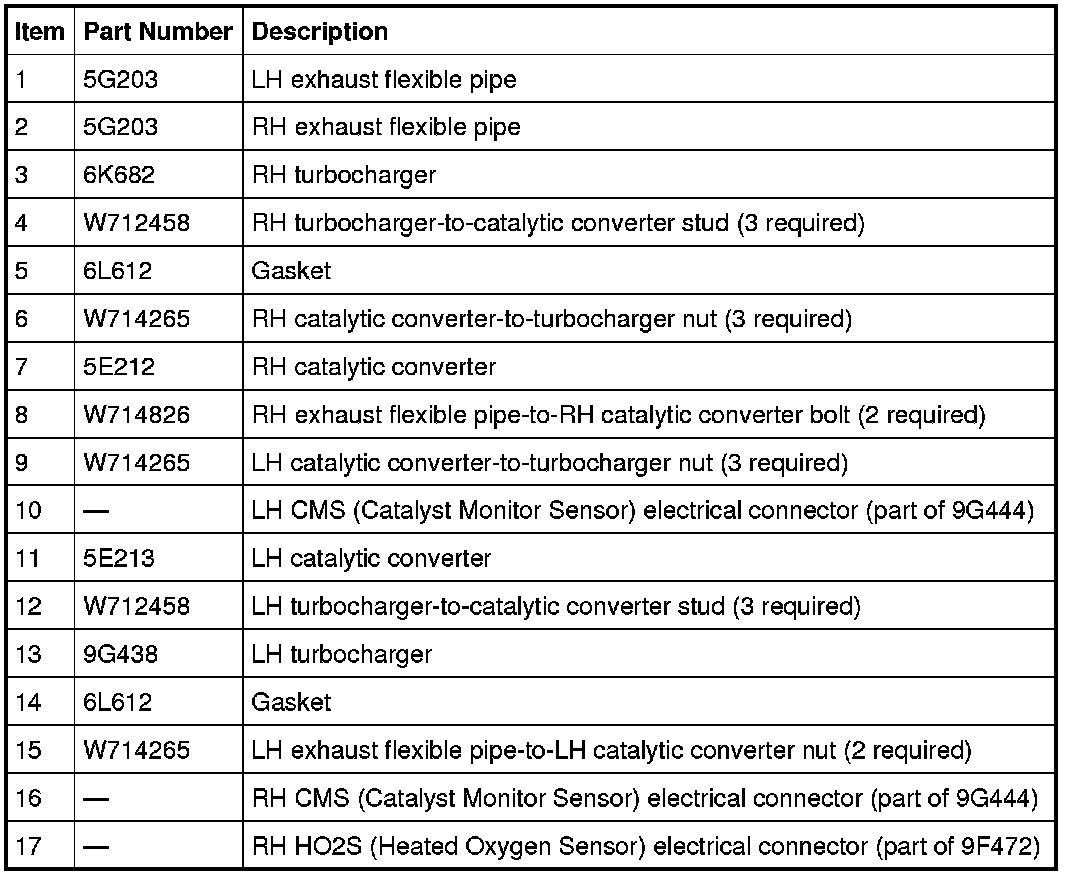

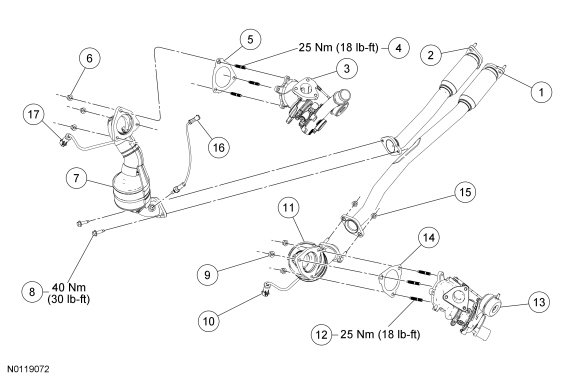

3.5L Gasoline Turbocharged Direct Injection (GTDI) LH and RH Catalytic Converters and Exhaust Flexible Pipes










3.5L Gasoline Turbocharged Direct Injection (GTDI) Muffler and Tail Pipe Assembly










1. Refer to the procedures and/or exploded views for any Warnings, Notices, Notes, Materials, Specifications, and Special Tools. Items in the exploded views may not be listed in order of removal.
