Engine Temperature Sensor: Service and Repair

Cylinder Head Temperature (CHT) Sensor - 3.5L










1. Remove the lower intake manifold.

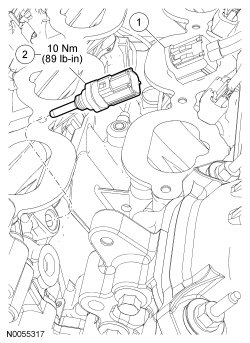

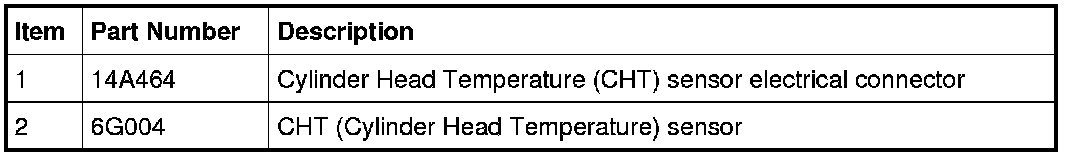

2. Disconnect the Cylinder Head Temperature (CHT) sensor electrical connector.

3. Remove and discard the CHT (Cylinder Head Temperature) sensor.
- To install, tighten to 10 Nm (89 lb-in).


4. To install, reverse the removal procedure.
- Do not reuse the CHT (Cylinder Head Temperature) sensor. Install a new sensor.
