Multifunction Switch, Wiper/Washer Portion: Schematic

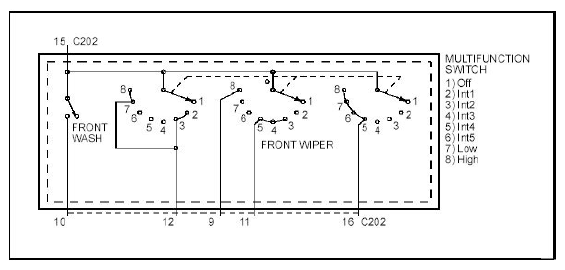

Fig 1: Multifunction Switch, Wiper/Washer Portion - Component Testing
G07898307Courtesy of FORD MOTOR CO.
