Communications Network: Notes
Vehicle communication utilizes both medium and high speed controller area network (CAN) communications. CAN is used for many modules to communicate with each other on a common network. CAN in-vehicle networking, is a method for transferring data among distributed electronic modules via a serial data bus. Without serial networking, inter-module communication requires dedicated, point to point wiring resulting in bulky, expensive, complex, and difficult to install wiring harnesses. Applying a serial data network reduces the number of wires combining the signals on a single network. Information is sent to the individual control modules that control each function.

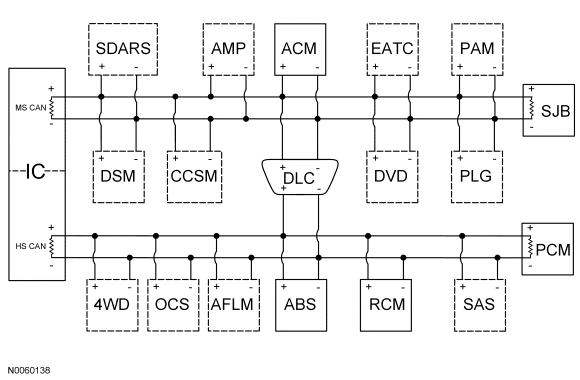

The vehicle has 2 module communication networks:
- Medium speed (MS) CAN
- High speed (HS) CAN
Both networks are connected to the data link connector (DLC). This makes diagnosis and testing of these systems easier by allowing one scan tool to be able to diagnose and control any module on both networks from one connector. The DLC can be found under the instrument panel between the steering column and the audio unit.
| Module Name | Network Type | Termination Module |
|---|---|---|
| Adaptive front lighting module (AFLM) (if equipped) | HS-CAN | No |
| Audio control module (ACM) | MS-CAN | No |
| Anti-lock brake system (ABS) module | HS-CAN | No |
| Digital versatile disc (DVD) player (if equipped) | MS-CAN | No |
| Driver seat module (DSM) (if equipped) | MS-CAN | No |
| Electronic automatic temperature control (EATC) module (if equipped) | MS-CAN | No |
| Climate controlled seat module (CCSM) (if equipped) | MS-CAN | No |
| Four wheel drive (4WD) control module (if equipped) | HS-CAN | No |
| Instrument cluster (IC) (gateway module) | HS-CAN MS-CAN |
Yes Yes |
| Occupant classification sensor (OCS) module | HS-CAN | No |
| Parking aid module (PAM) (if equipped) | MS-CAN | No |
| Power liftgate (PLG) module (if equipped) | MS-CAN | No |
| Powertrain control module (PCM) | HS-CAN | Yes |
| Restraints control module (RCM) | HS-CAN | No |
| Smart junction box (SJB) | MS-CAN | Yes |
| Satellite digital audio radio system (SDARS) (if equipped) | MS-CAN | No |
| Steering angle sensor (SAS) module (if equipped) | HS-CAN | No |
| THX® amplifier (AMP) (if equipped) | MS-CAN | No |
