Steering Wheel: Notes

NOTE: Steering wheel with paddle shifters shown in illustration, steering wheel without paddle shifters similar.

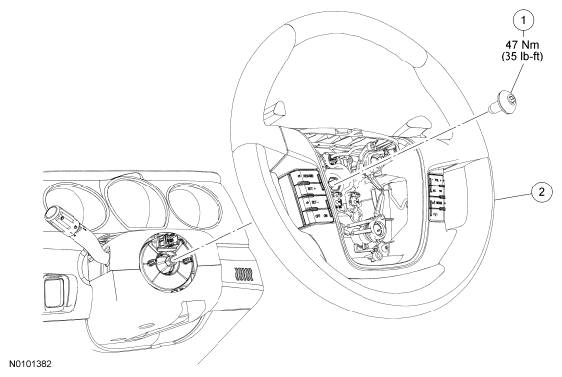

Fig 1: Steering Wheel And Steering Wheel Bolt With Torque Specifications
G06261334Courtesy of FORD MOTOR CO.
Item Part Number Description
1 W708887 Steering wheel bolt
2 3600 Steering wheel (urethane wheel)
2 3F563 Steering wheel (leather wheel with paddle shifters)
