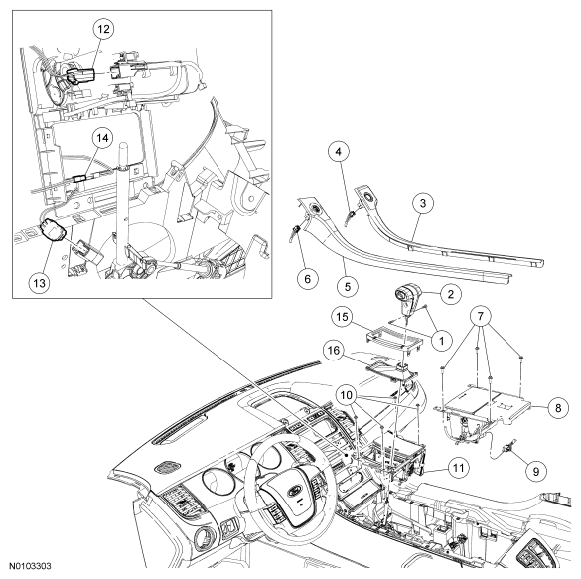

| 1 |
- |
Selector lever knob screws (part of 7L010) |
| 2 |
7L010 |
Selector lever knob |
| 3 |
54061A16 |
Center console RH trim panel |
| 4 |
14489 |
Trunk release electrical connector |
| 5 |
54061A17 |
Center console LH trim panel |
| 6 |
14489 |
Ignition switch electrical connector |
| 7 |
W707628 |
Storage compartment screws |
| 8 |
5413560 |
Storage compartment |
| 9 |
14489 |
Storage compartment lighting electrical connector |
| 10 |
W707628 |
Selector lever bezel screws |
| 11 |
54045A76 |
Selector lever bezel |
| 12 |
14489 |
Selector lever bezel lighting electrical connector |
| 13 |
54045A76 |
PRNDL bezel electrical connector |
| 14 |
AA062P060 |
Transmission Control Switch (TCS) connector |
| 15 |
54045K08 |
PRNDL trim ring |
| 16 |
7B118 |
Selector lever boot |
