Selector Lever: Notes

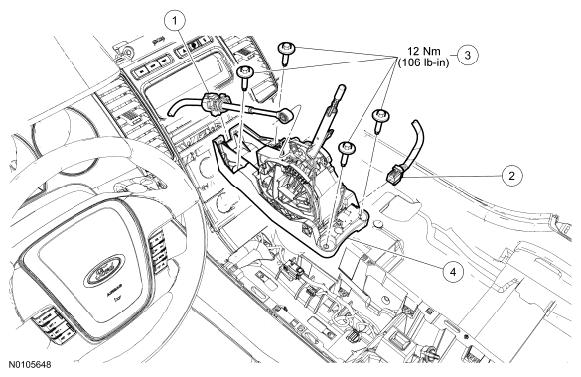

Fig 1: Selector Lever Replacement Components With Torque Specifications
G06258810Courtesy of FORD MOTOR CO.
Item Part Number Description
1 7E395 Selector lever cable
2 14A459 Selector lever electrical connector
3 N606678 Selector lever bolts
4 7K004 Selector lever
