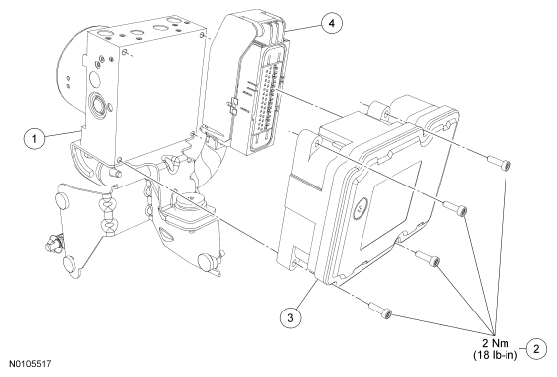

Anti-Lock Brake System (ABS) Module: Notes
| Item | Part Number | Description |
|---|---|---|
| 1 | 2M110 | Hydraulic Control Unit (HCU) (vehicles not equipped with AdvanceTrac® with Roll Stability Control (RSC®)) |
| 1 | 2C405 | HCU (vehicles equipped with AdvanceTrac® with RSC®) |
| 2 | - | ABS module screws (part of 2M110 or 2C405 service kit) (4 required) |
| 3 | 2C219 | ABS module (vehicles not equipped with AdvanceTrac® with RSC®) |
| 3 | 2C405 | ABS module (vehicles equipped with AdvanceTrac® with RSC®) |
| 4 | - | ABS module electrical connector (part of 14290) |
