Stability Control Sensor Cluster: Notes

SPECIAL TOOLS

G07482720
 Vehicle Communication Module (VCM) and Integrated Diagnostic System (IDS) software with appropriate hardware, or equivalent scan tool

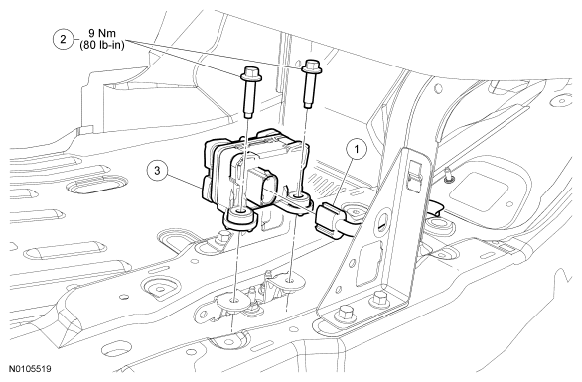

Fig 1: Stability Control Sensor Cluster Removal And Installation With Torque Specifications
G06256257Courtesy of FORD MOTOR CO.
Item Part Number Description
1 - Stability control sensor cluster electrical connector (part of 14401)
2 W500215 Stability control sensor cluster bolts (2 required)
3 14B296 Stability control sensor cluster
