Steering Angle Sensor Module (SASM): Notes

SPECIAL TOOLS

G07482720
Vehicle Communication Module (VCM) and Integrated Diagnostic System (IDS) software with appropriate hardware, or equivalent scan tool

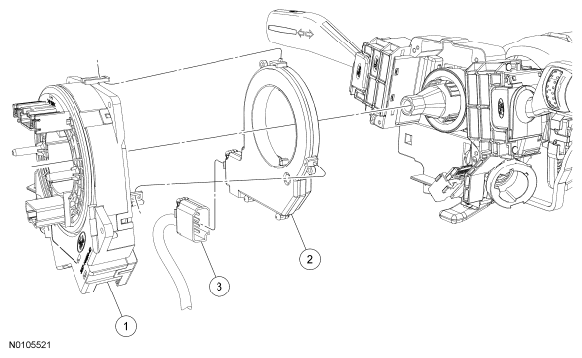

Fig 1: Identifying Steering Angle Sensor Module (SASM) Removal And Installation
G06256259Courtesy of FORD MOTOR CO.
Item Part Number Description
1 14A664 Clockspring
2 3F818 Steering Angle Sensor Module (SASM)
3 - SASM electrical connector (part of 14401)
