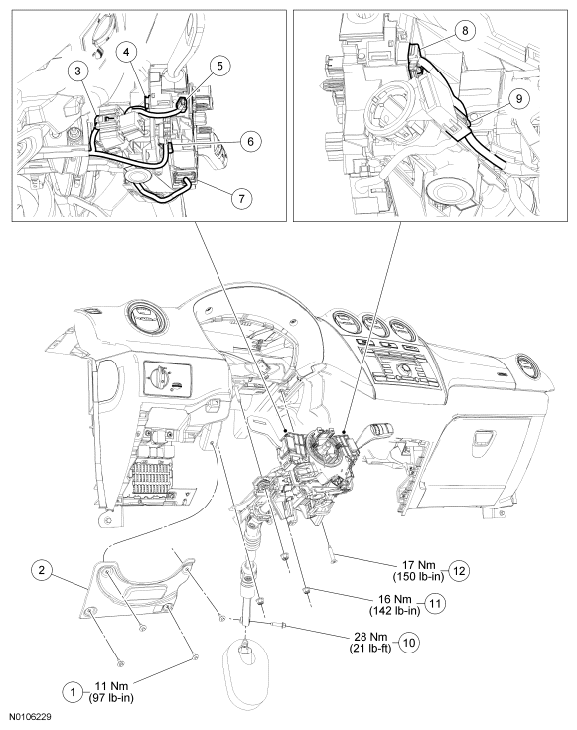

| 1 |
W503923 |
Steering column opening reinforcement bolt (4 required) |
| 2 |
V045K61 |
Steering column opening reinforcement |
| 3 |
- |
Ignition switch electrical connector (part of 14401) |
| 4 |
- |
LH multifunction switch electrical connector (part of 14401) |
| 5 |
- |
Steering wheel audio control switch electrical connector (part of 14401) (if equipped) |
| 6 |
- |
Steering Angle Sensor Module (SASM) electrical connector (part of 14401) |
| 7 |
- |
Clockspring electrical connector (part of 14401) |
| 8 |
- |
RH multifunction switch electrical connector (part of 14401) |
| 9 |
- |
Passive Anti-Theft System (PATS) transceiver electrical connector (part of 14401) |
| 10 |
W706229 |
Steering column shaft-to-steering column bolt |
| 11 |
W520202 |
Steering column nut (3 required) |
| 12 |
W703601 |
Steering column bolt |
| 13 |
3C529 |
Steering column |
