Selector Lever: Notes

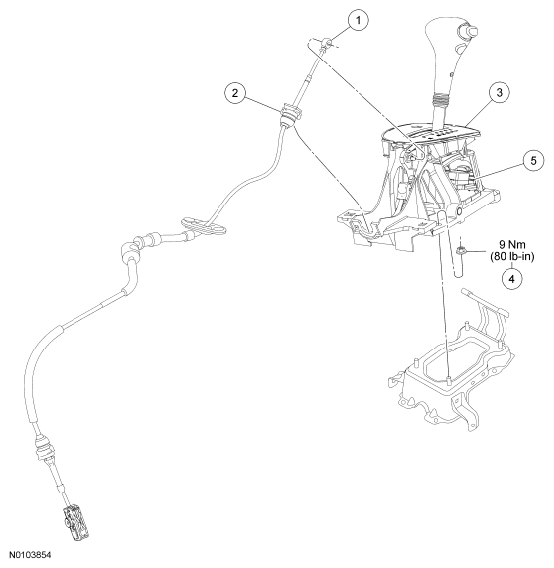

Fig 1: Selector Lever Replacement Components With Torque Specifications
G06293328Courtesy of FORD MOTOR CO.
Item Part Number Description
1 - Selector lever cable eyelet (part of 7E395)
2 - Selector lever cable retainer (part of 7E395)
3 7C453 Selector lever assembly
4 W702751 Selector lever nut (4 required)
5 14489 Selector lever electrical connector
