Transit Connect L4-2.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Communications Control Module
>>
C2364B In-Dash Computer Junction Box
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

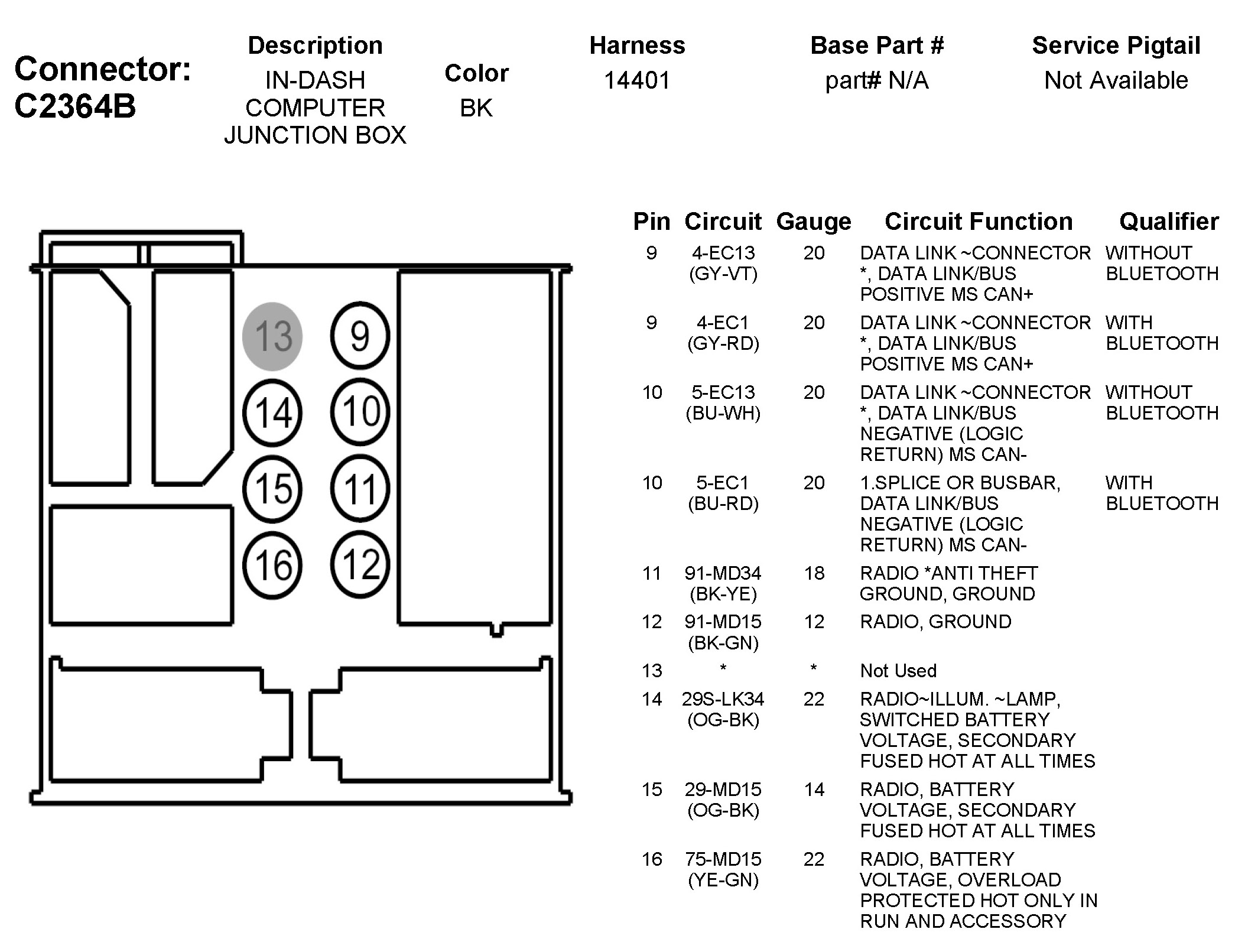

C2364B In-Dash Computer Junction Box
