Home >> Ford >> 2012 >> Transit Connect L4-2.0L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Control Assembly, HVAC >> C2892 Climate Control Assembly
April 5, 2026: LEMON Manuals is launched! Read the announcement.

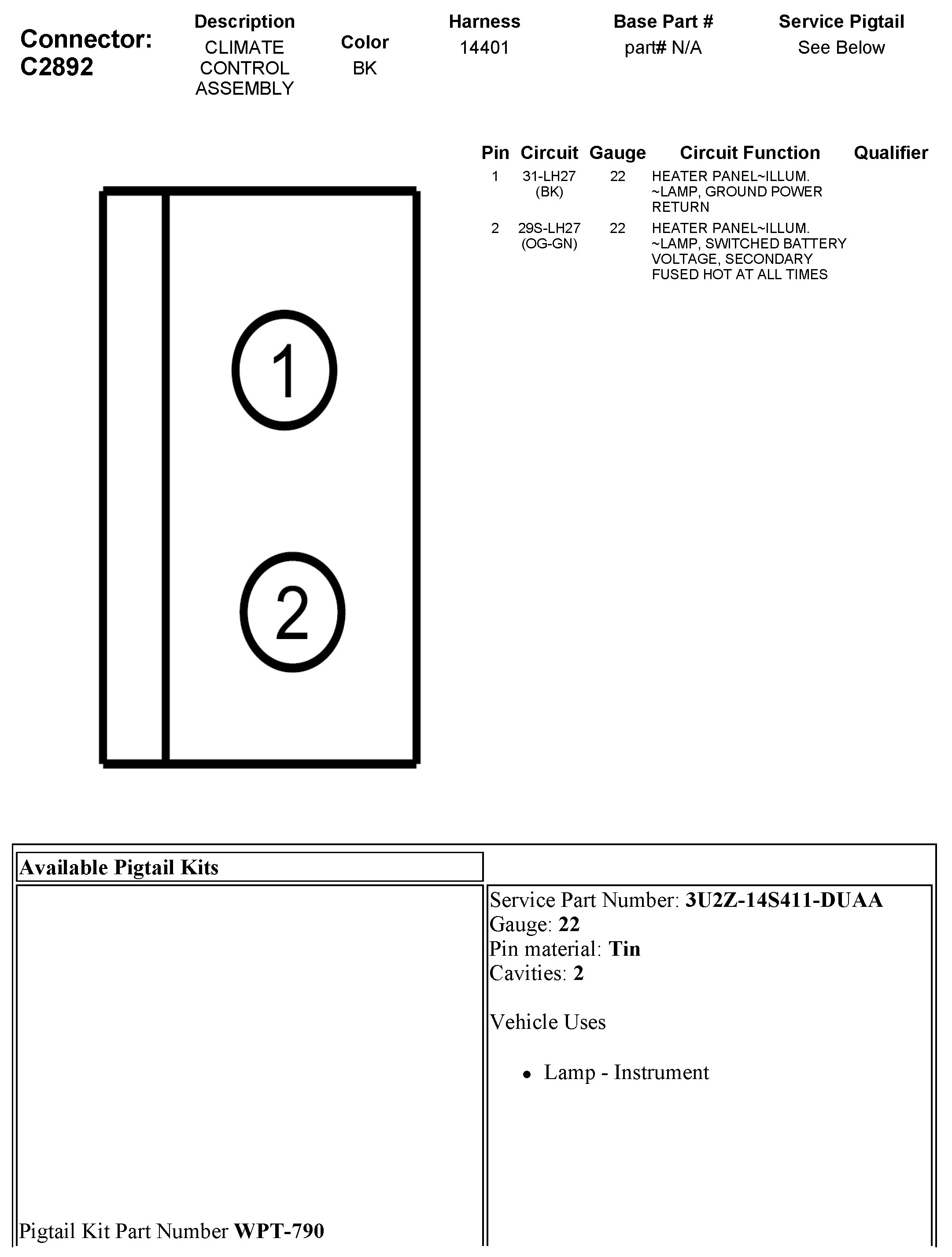

C2892 Climate Control Assembly
