Home
>>
Ford
>>
2012
>>
Transit Connect L4-2.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Control Assembly, HVAC
>>
C294 Function Selector Switch
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

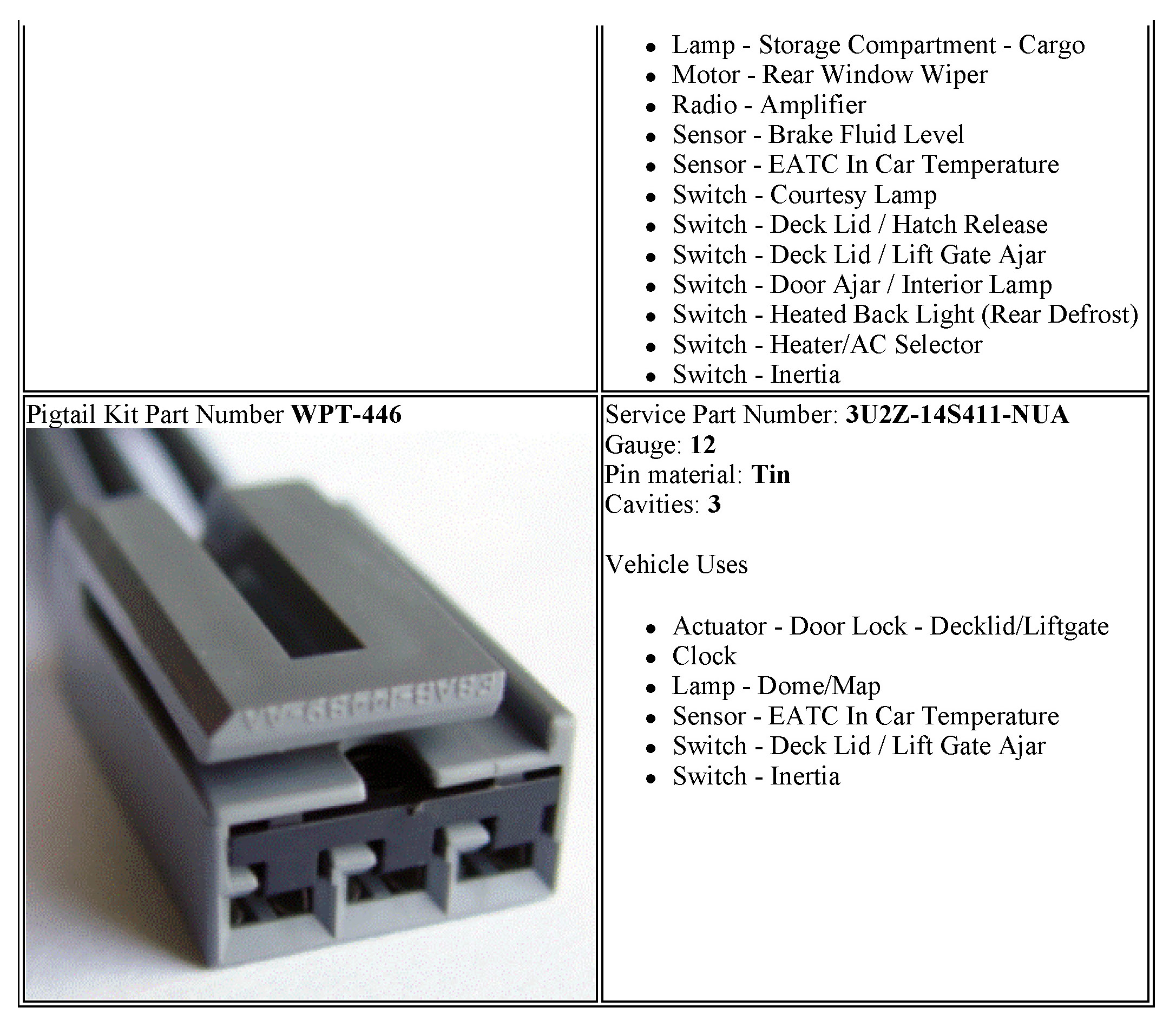

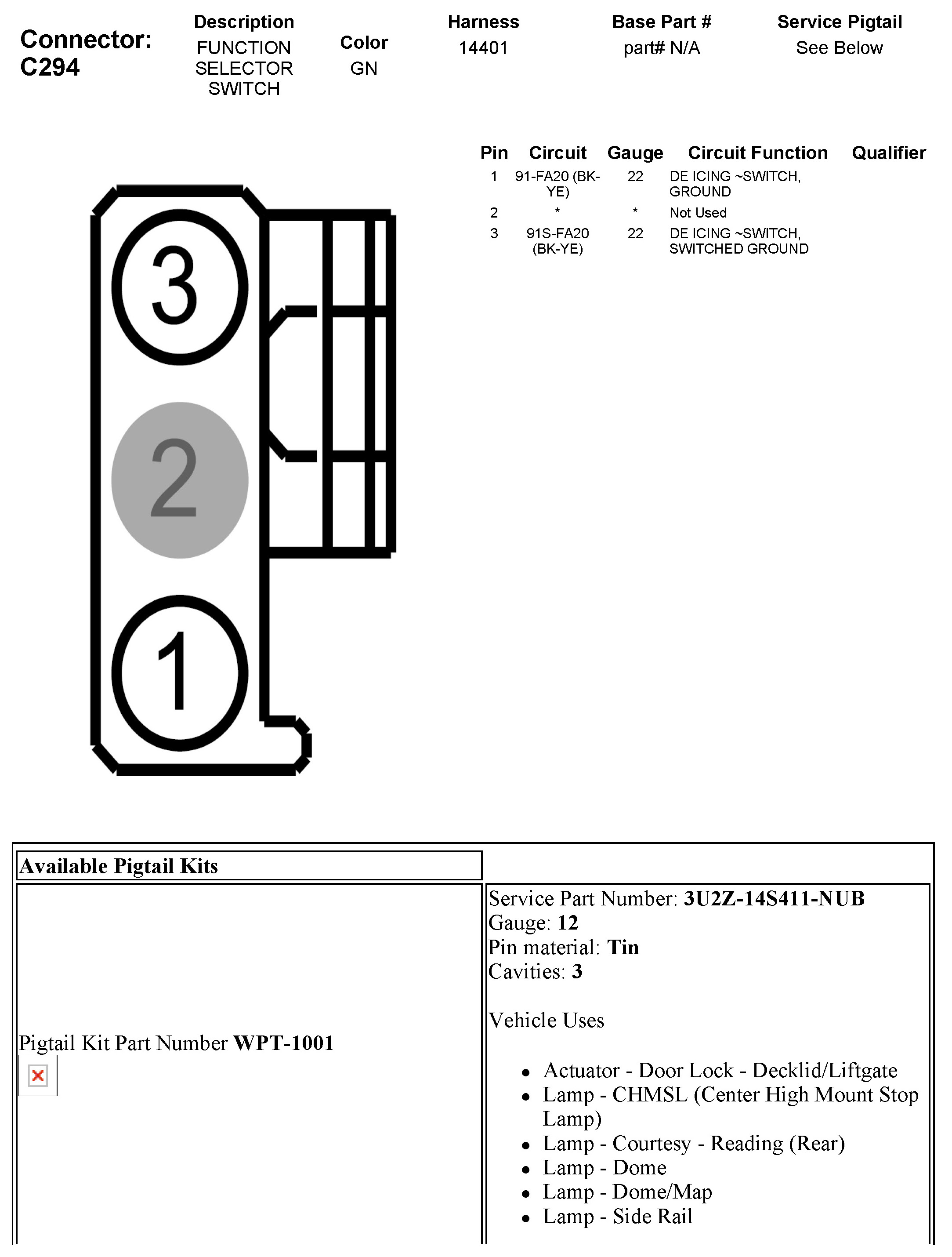

C294 Function Selector Switch
