C2409B Tire Pressure Monitoring System (TPMS) Module
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

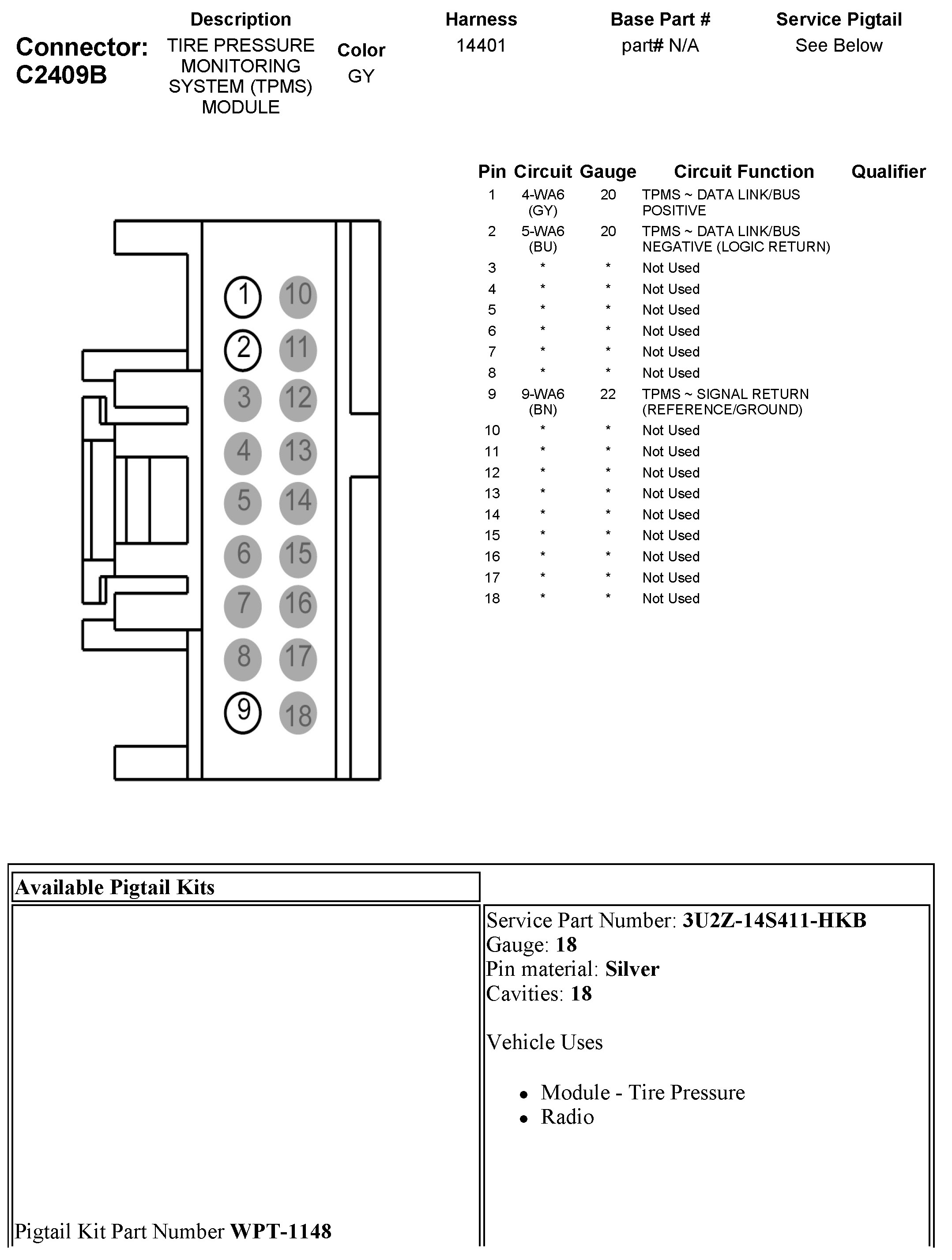

C2409B Tire Pressure Monitoring System (TPMS) Module
