Parking Brake System
Parking Brake - Exploded View
Parking Brake (View 1 of 3)

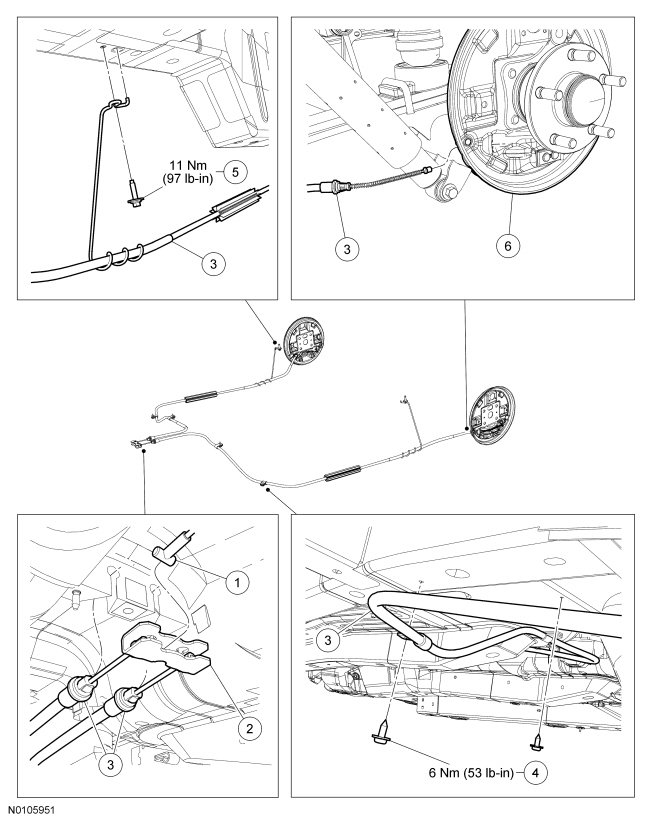

Parking Brake (View 2 of 3)

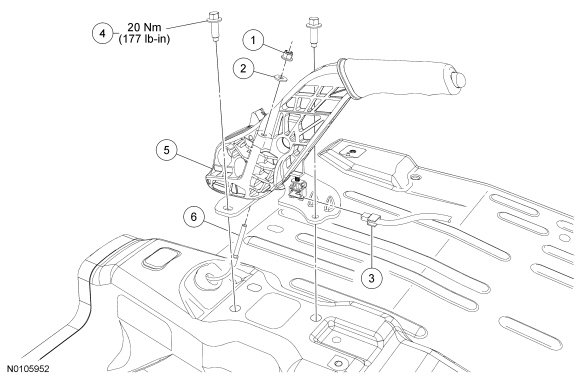

Parking Brake (View 3 of 3)
