Headlamp: Service and Repair

Headlamp Assembly









Removal and Installation

1. Remove the front bumper cover. For additional information, refer to Bumpers.

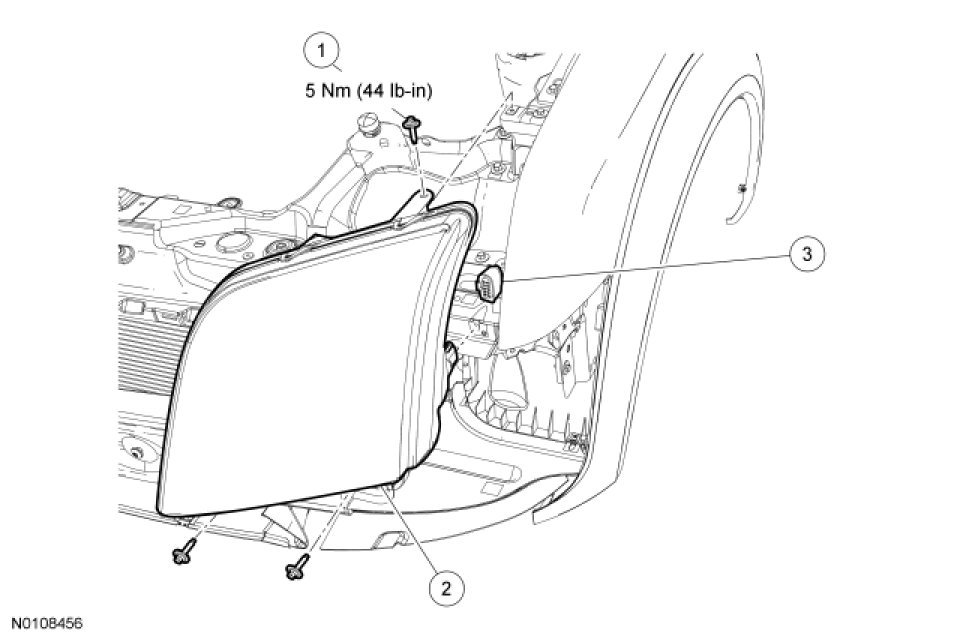

2. Remove the 3 bolts and the headlamp assembly.
- Disconnect the electrical connector.

- To install, tighten to 5 Nm (44 lb-in).

3. To install, reverse the removal procedure.
- If necessary, adjust the headlamps. For additional information, refer to Headlamp Adjustment.
