Transit Connect L4-2.0L
>>
Repair and Diagnosis
>>
Locations
>>
Connectors
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Connectors

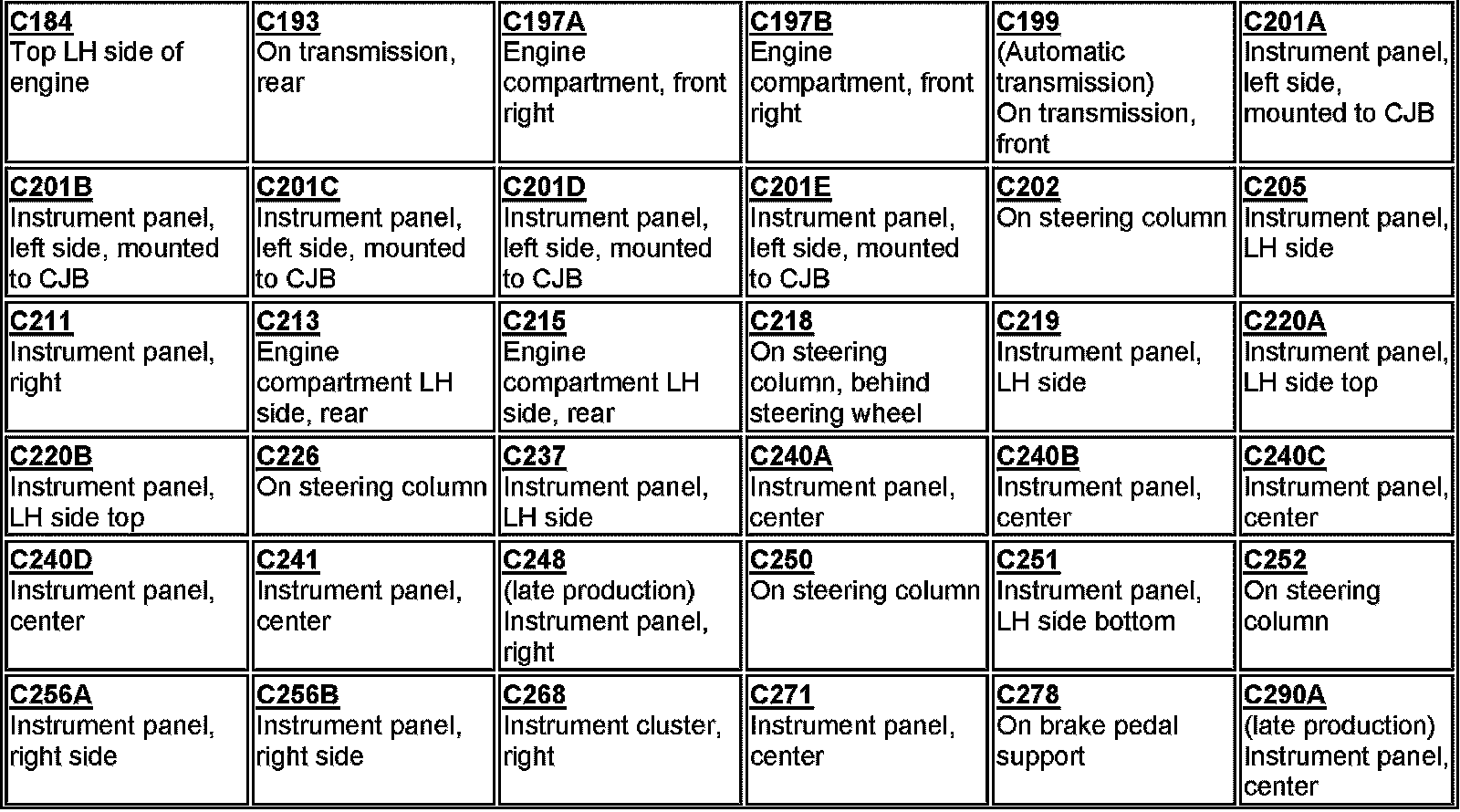

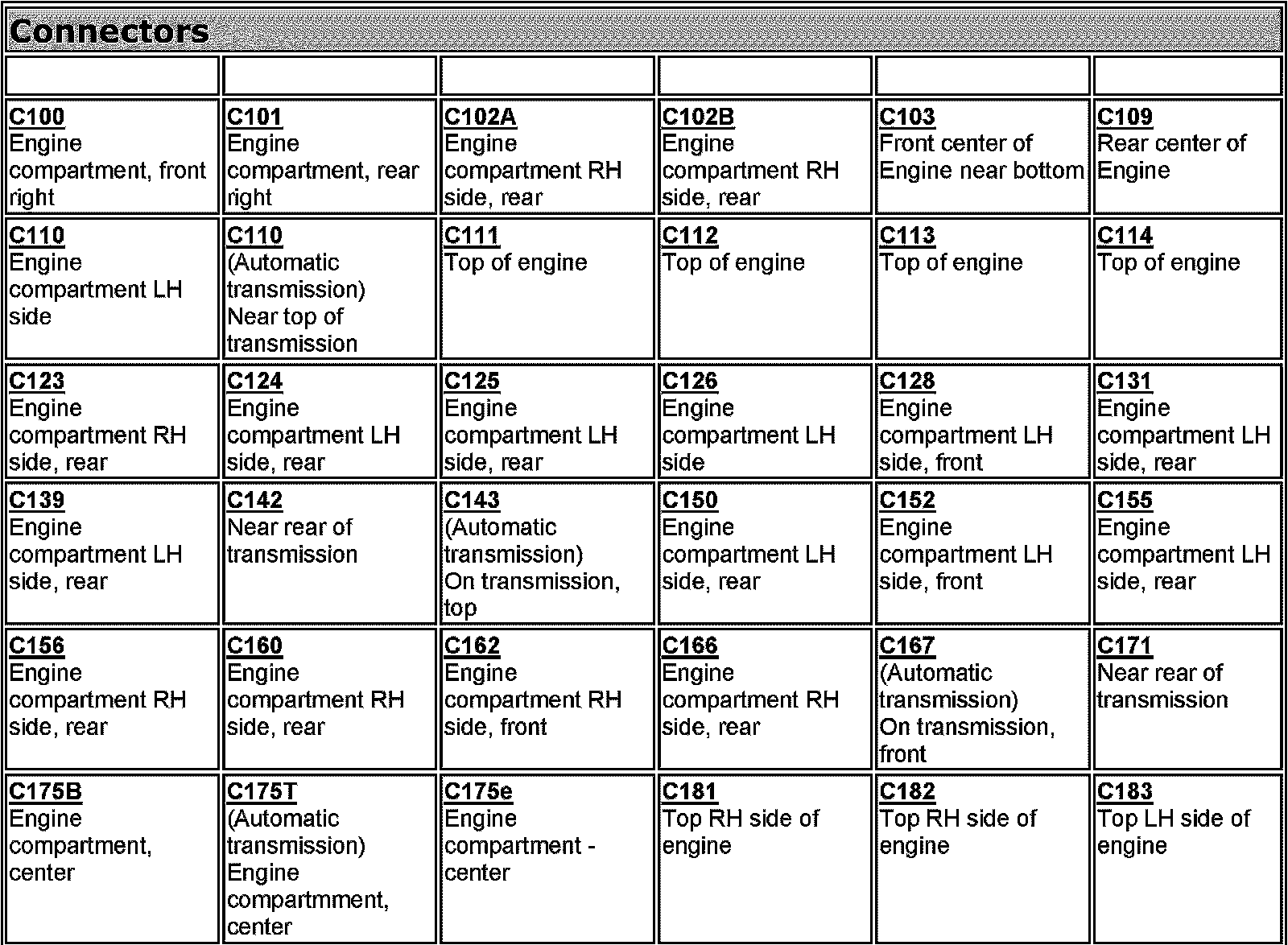

C100-C184:
C184-C290A:

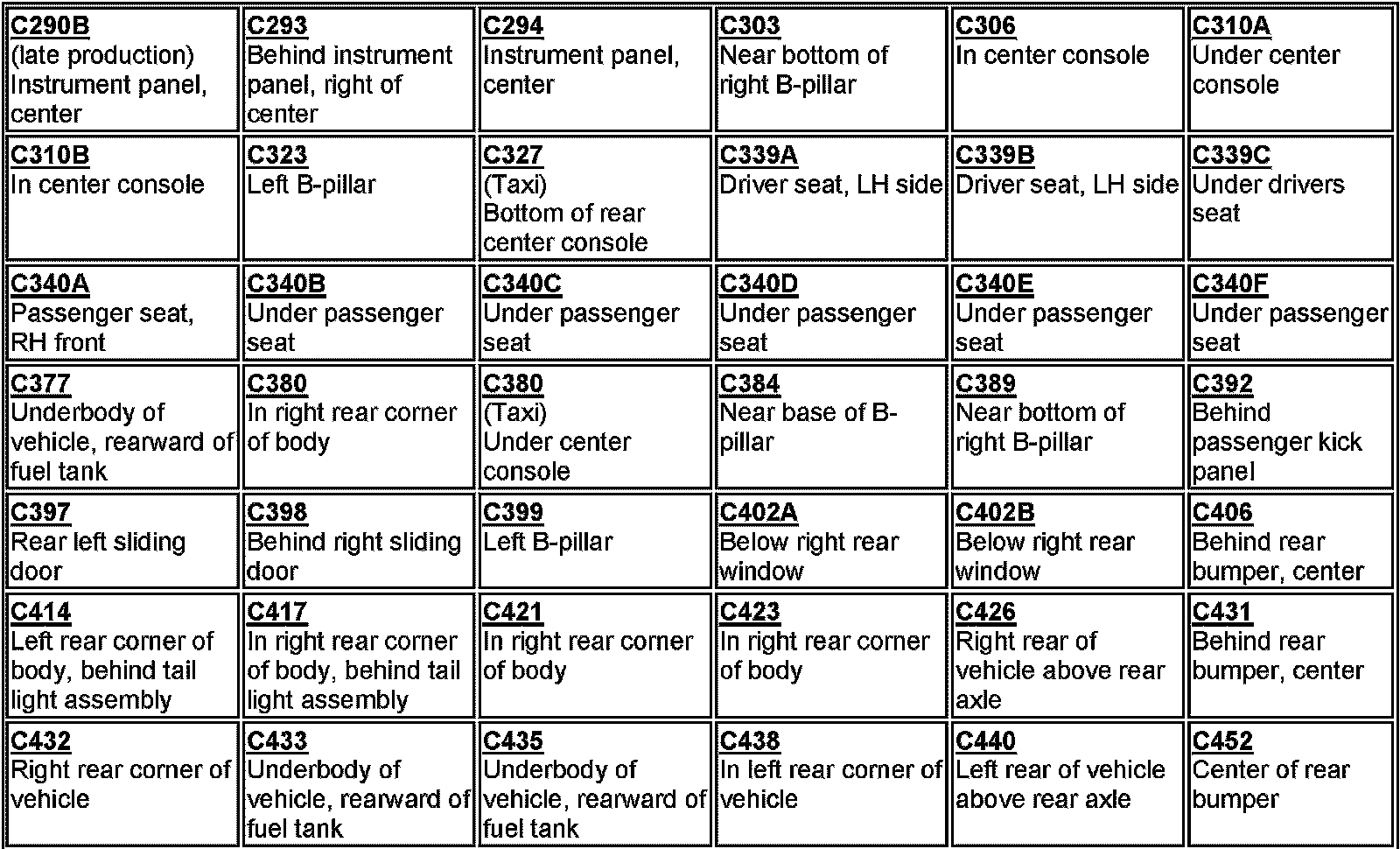

C290B-C452:

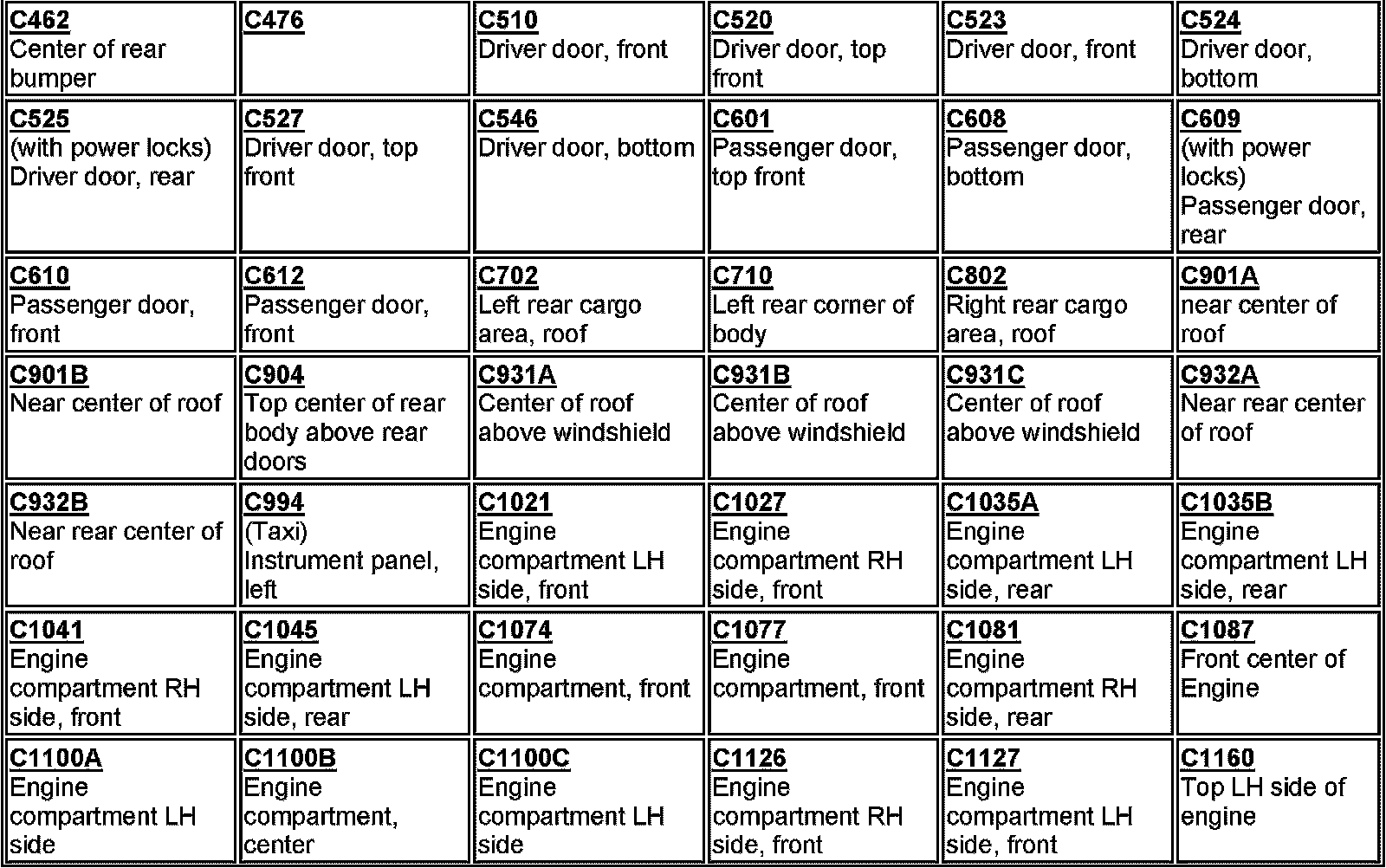

C462-C1160:

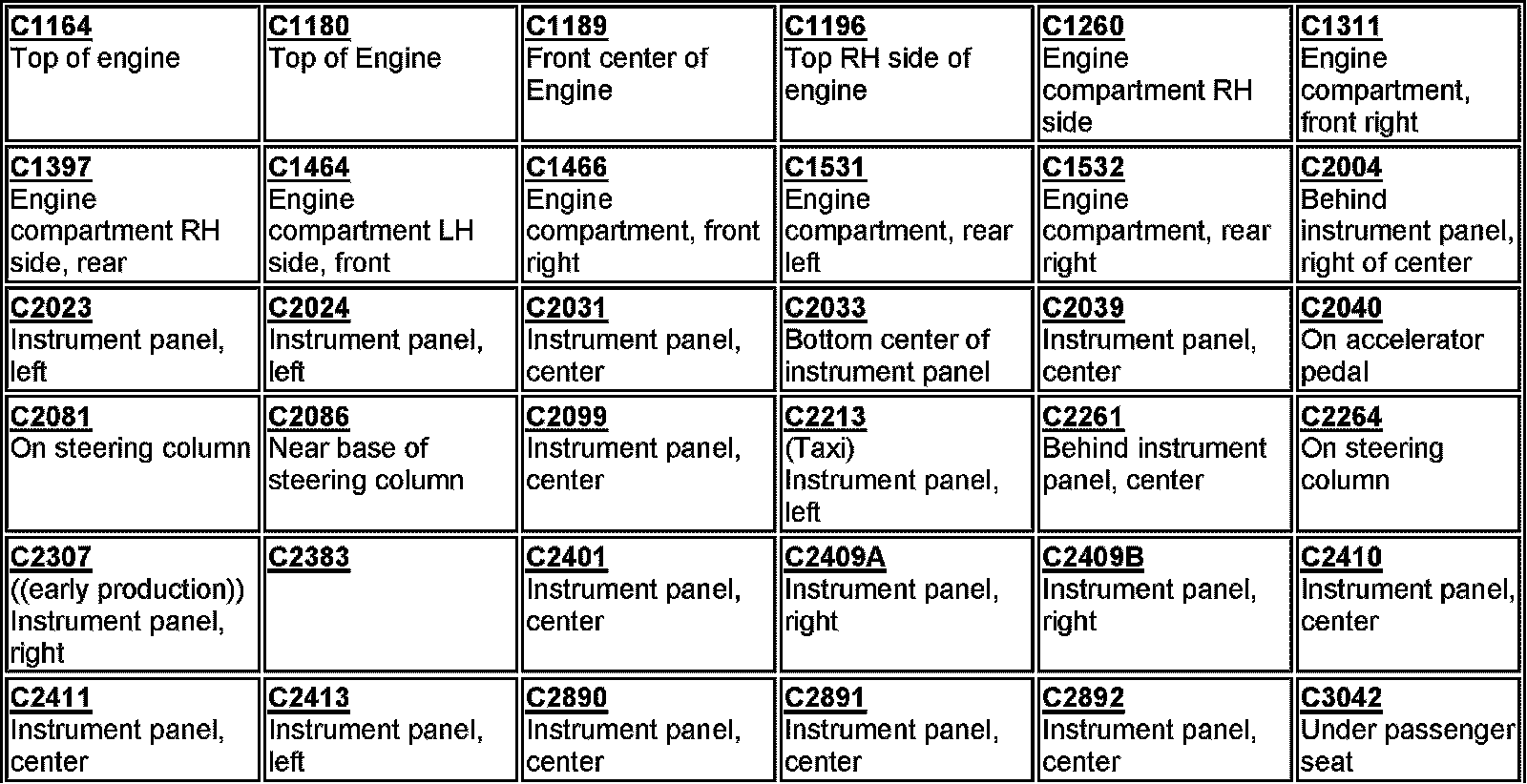

C1164-C3042:

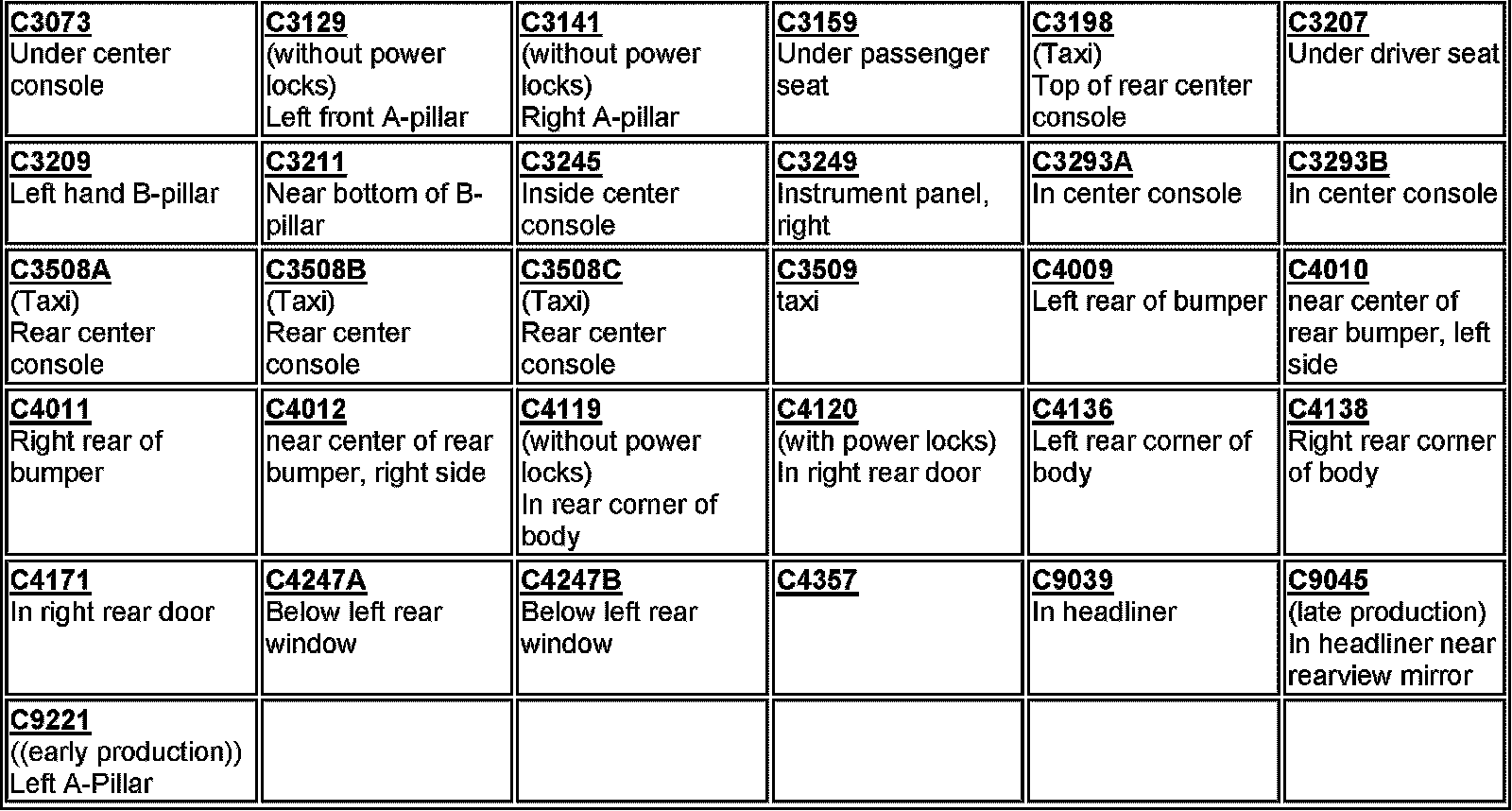

C3073-C9221:
