Air Flow Meter/Sensor: Service and Repair

Mass Air Flow (MAF) Sensor









Removal and Installation

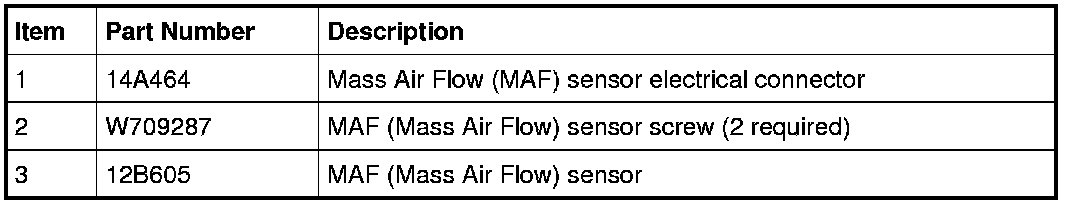

1. Disconnect the Mass Air Flow (MAF) sensor electrical connector.

2. Remove the 2 MAF (Mass Air Flow) sensor screws and the MAF (Mass Air Flow) sensor.
- To install, tighten to 10 Nm (89 lb-in).


3. To install, reverse the removal procedure.
