Oil Pressure Sensor: Service and Repair

Engine Oil Pressure (EOP) Switch





Removal and Installation

1. With the vehicle in NEUTRAL, position it on a hoist.

2. Disconnect the Engine Oil Pressure (EOP) switch electrical connector.

3. Remove the EOP (Engine Oil Pressure) switch.
- To install, tighten to 15 Nm (133 lb-in).

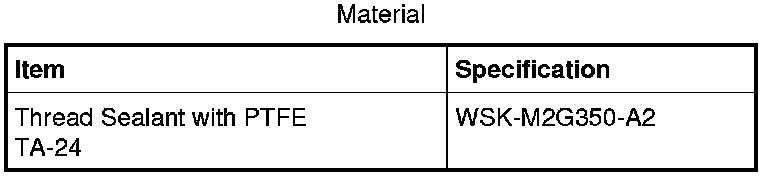

4. NOTE: Apply thread sealant to the EOP (Engine Oil Pressure) switch threads.
To install, reverse the removal procedure.
