Power Steering Pressure Switch: Service and Repair

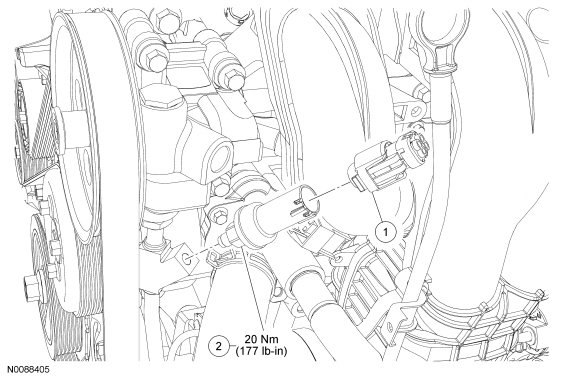

Power Steering Pressure (PSP) Switch









Removal and Installation

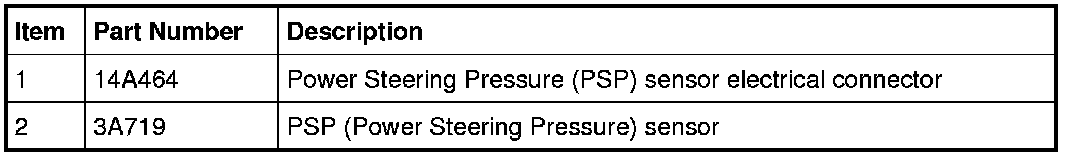

1. Disconnect the Power Steering Pressure (PSP) switch electrical connector.

2. Remove the PSP (Power Steering Pressure) switch.
- To install, tighten to 20 Nm (177 lb-in).


3. To install, reverse the removal procedure.
