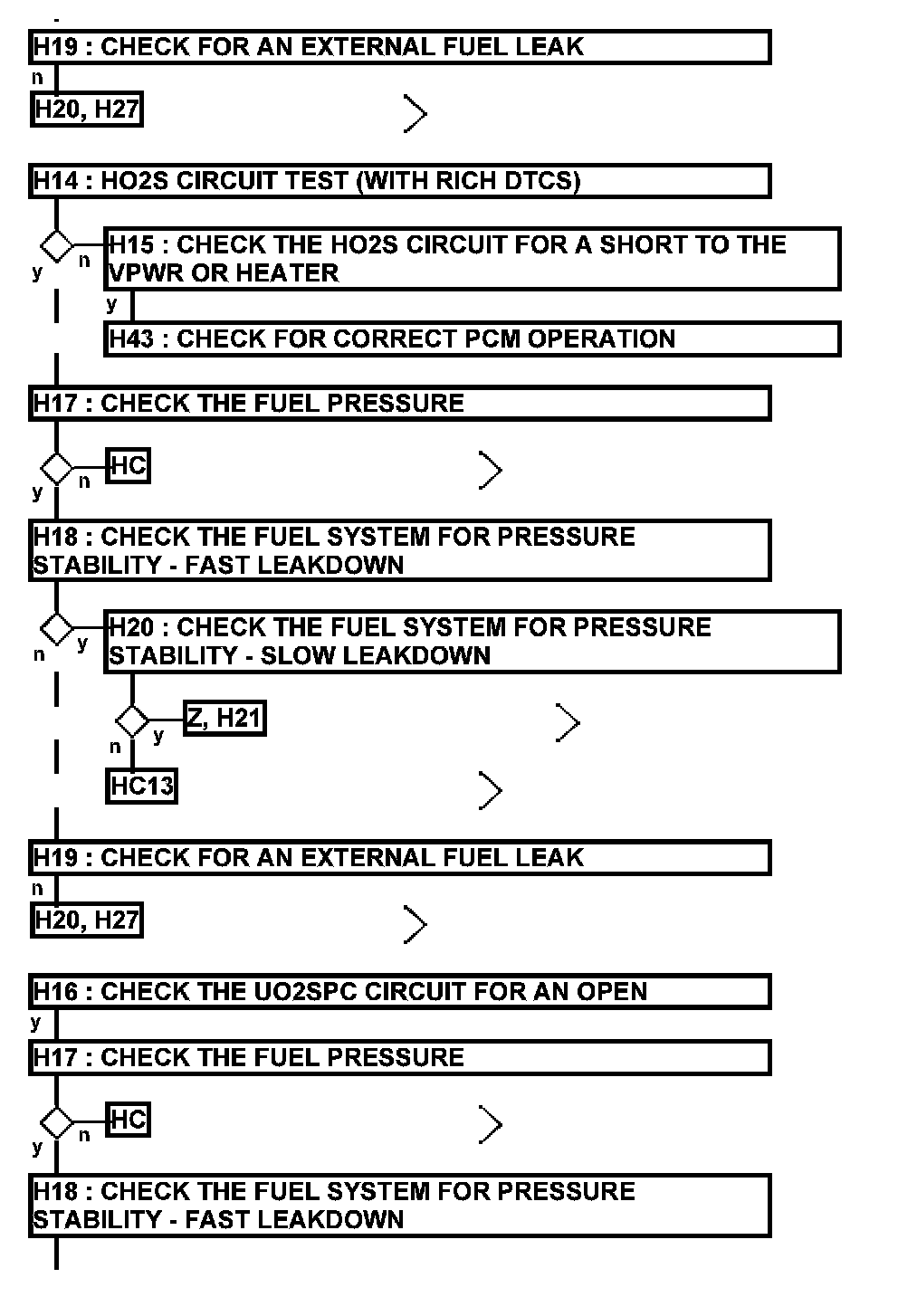

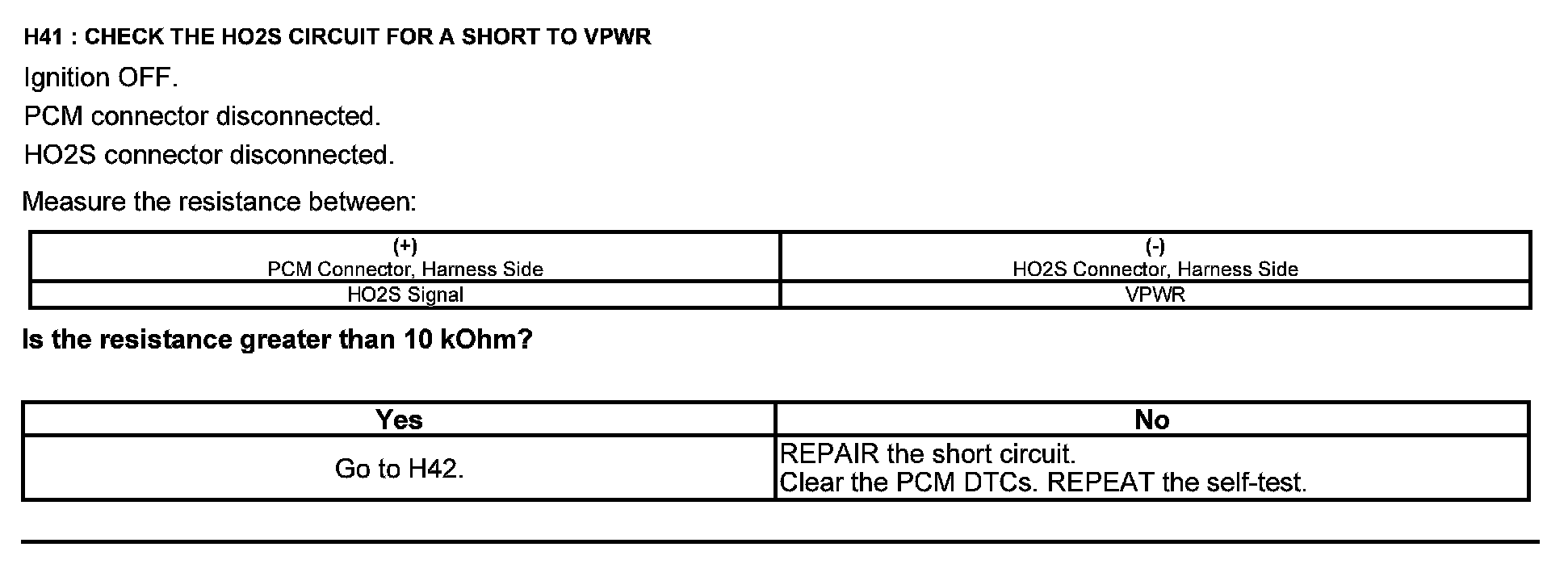

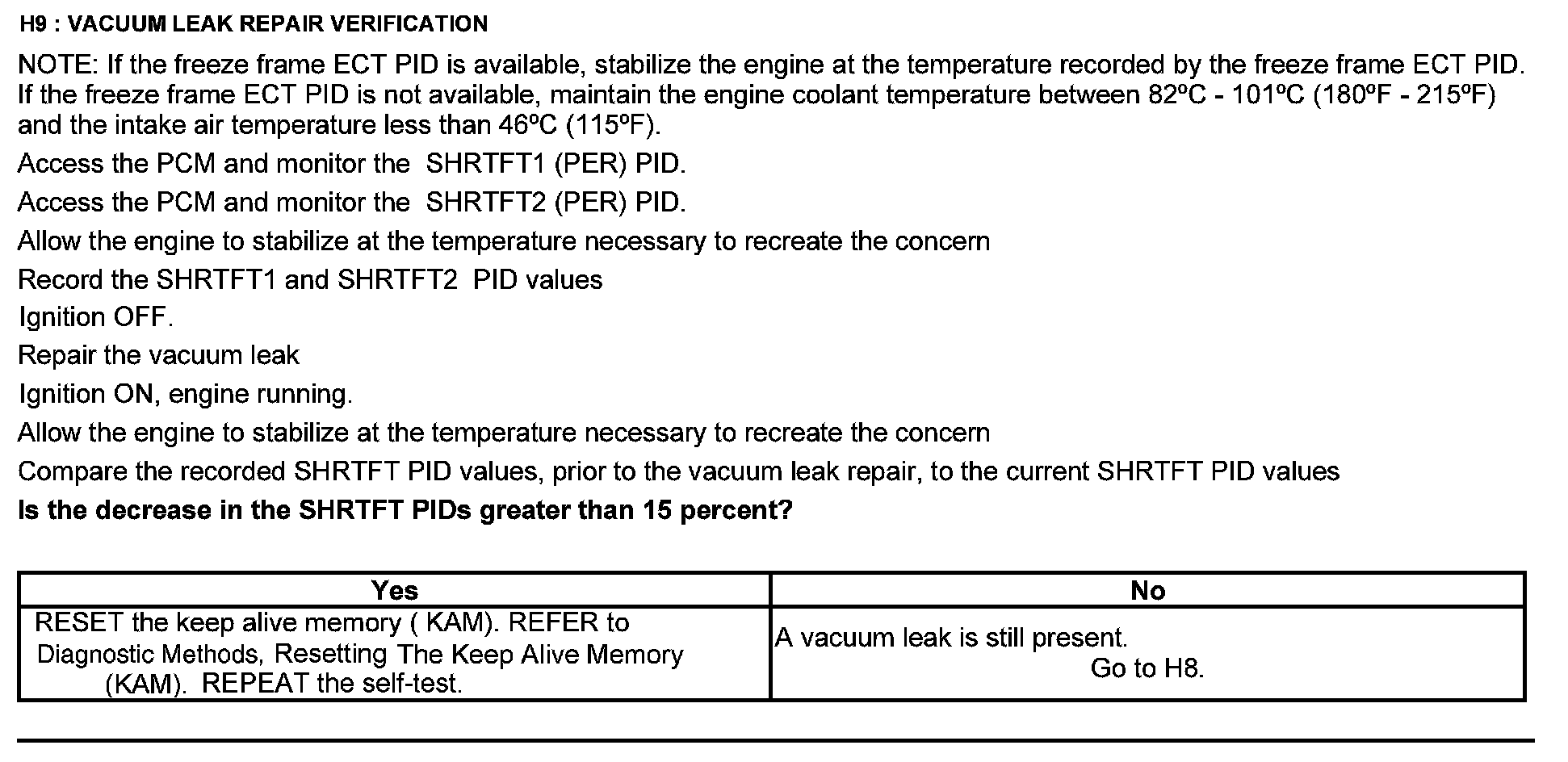

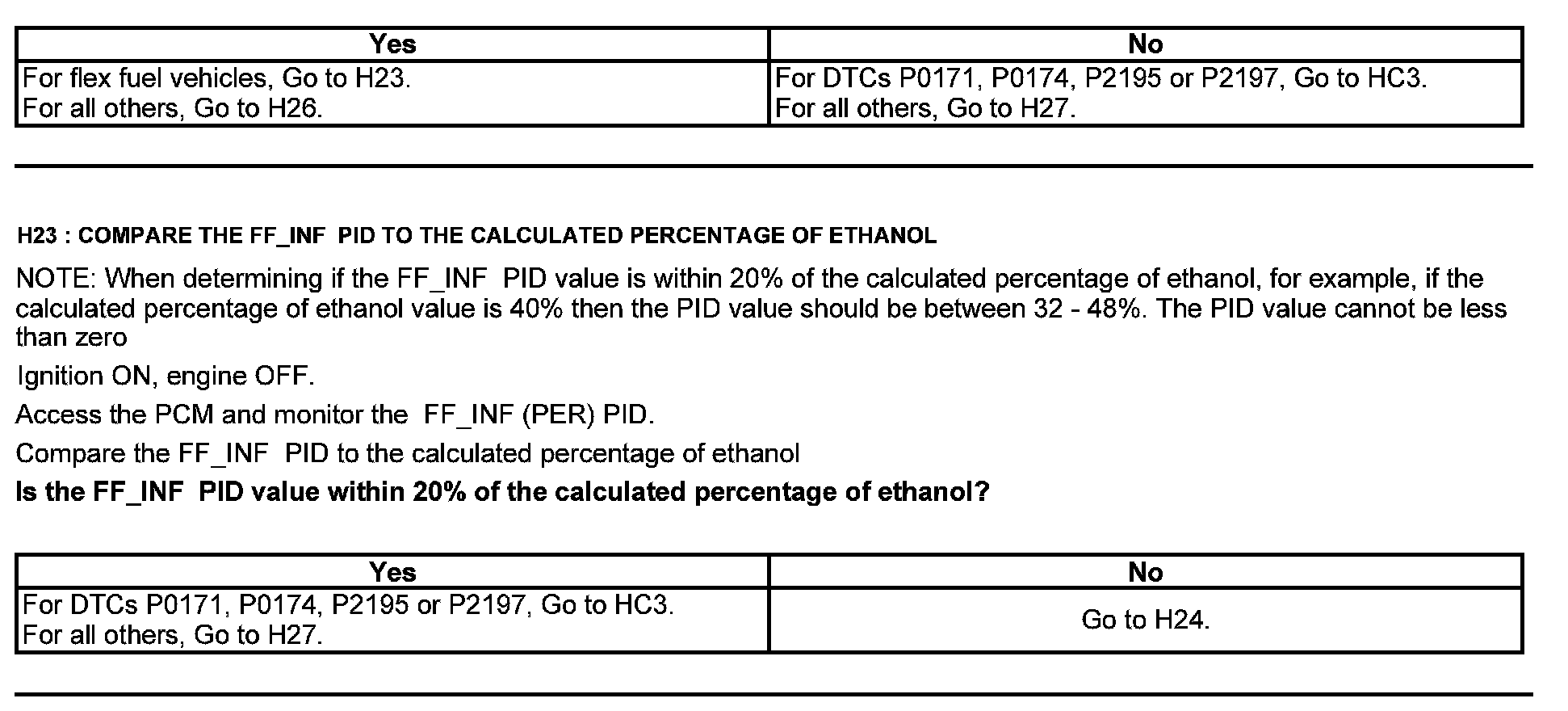

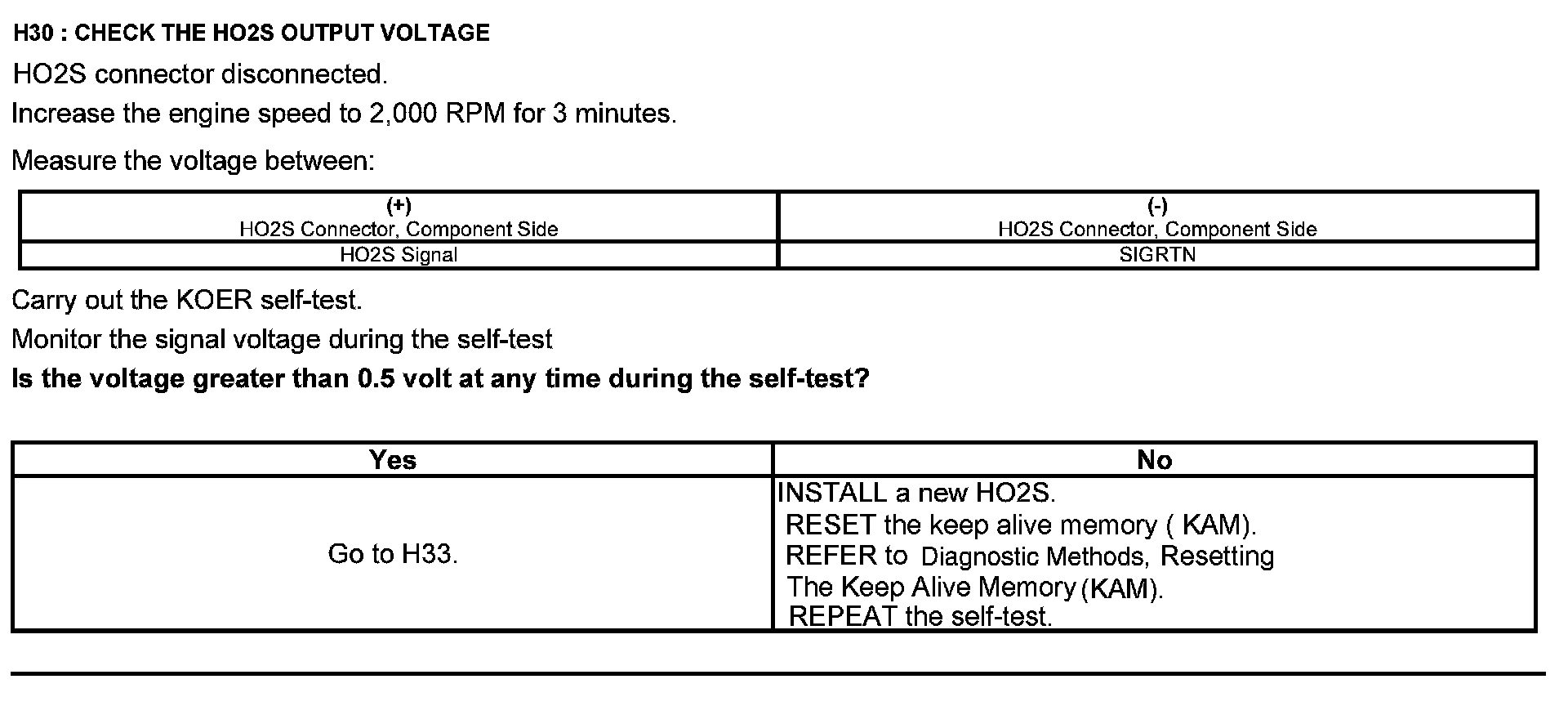

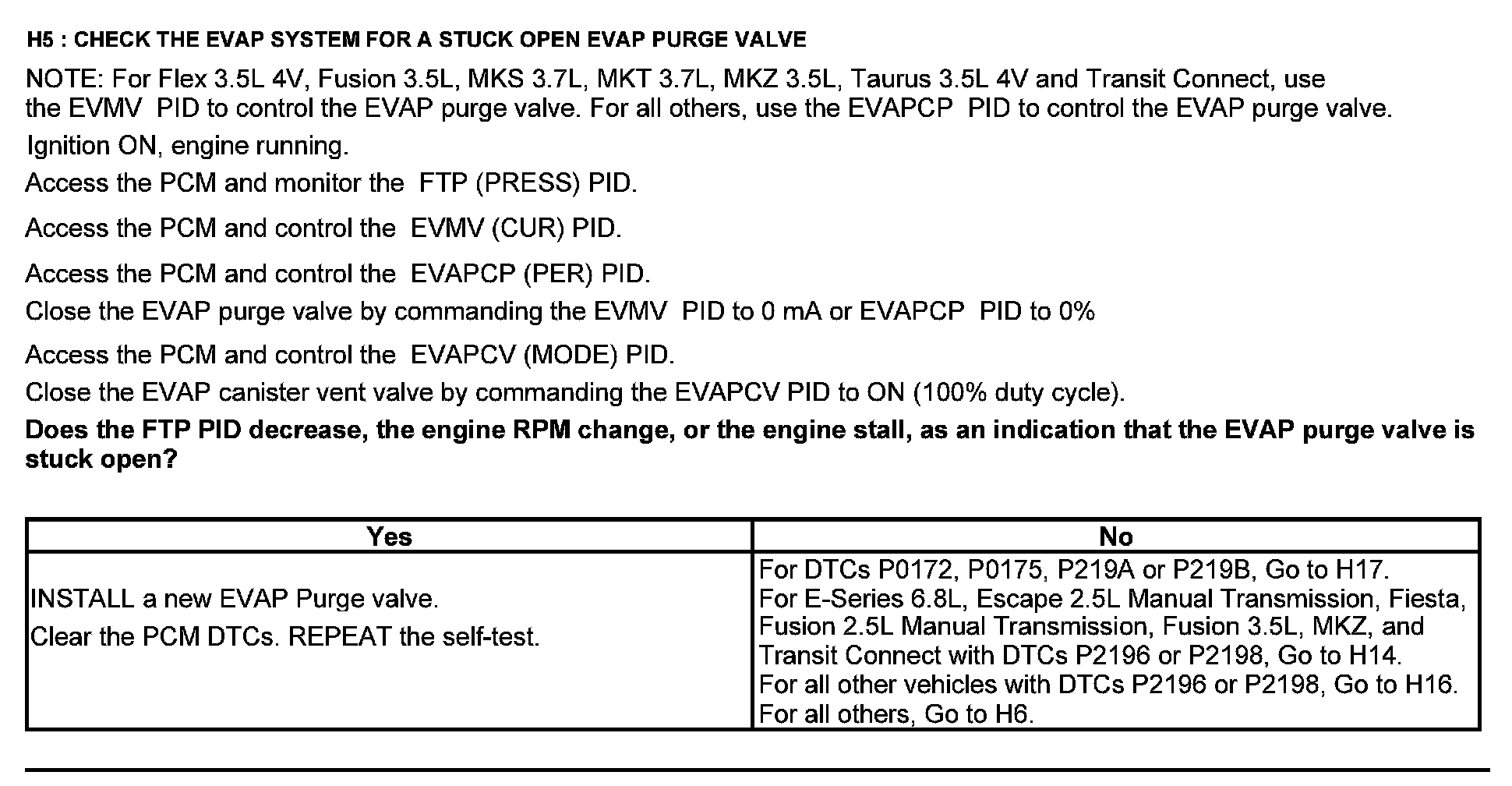

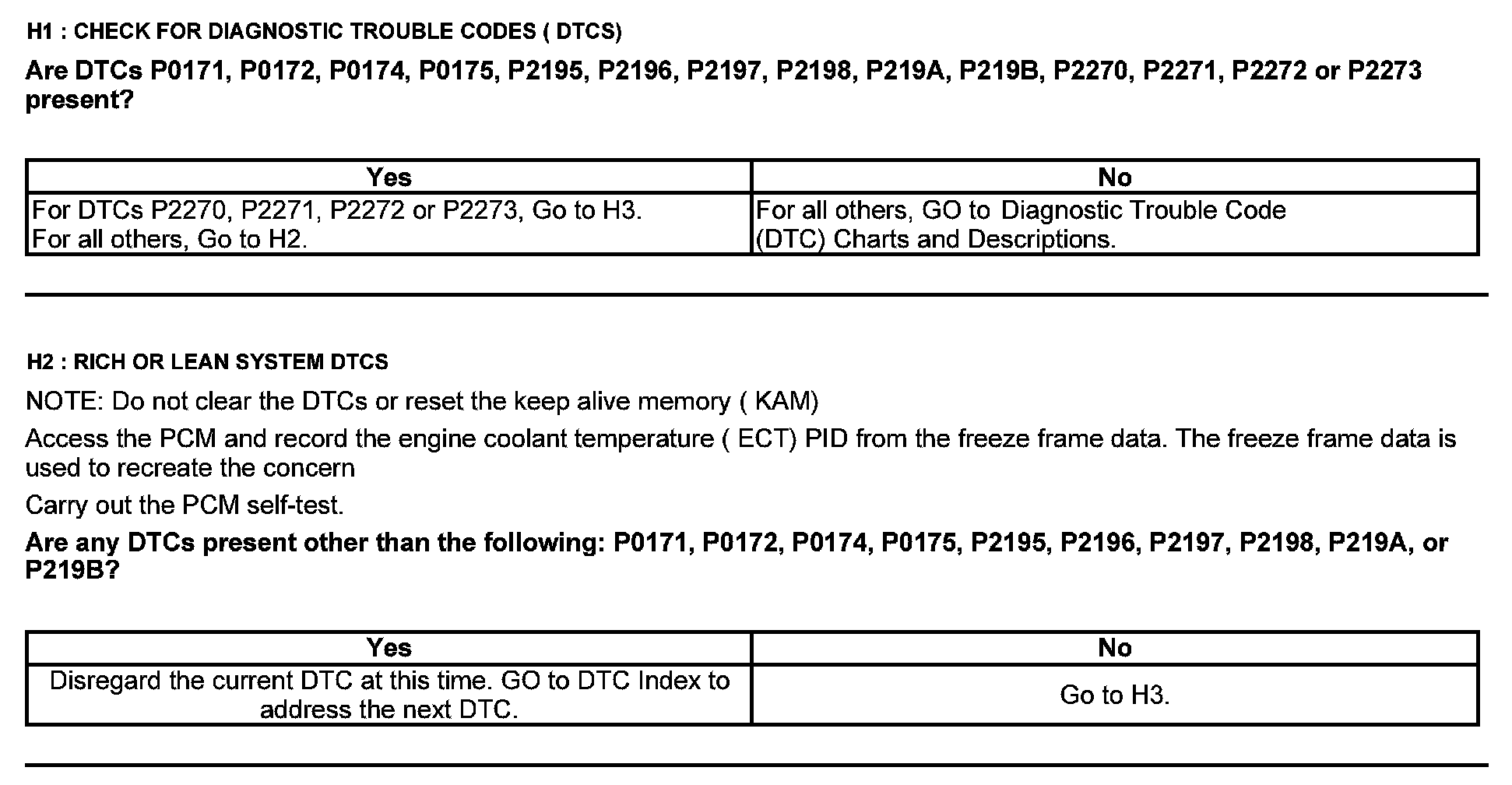

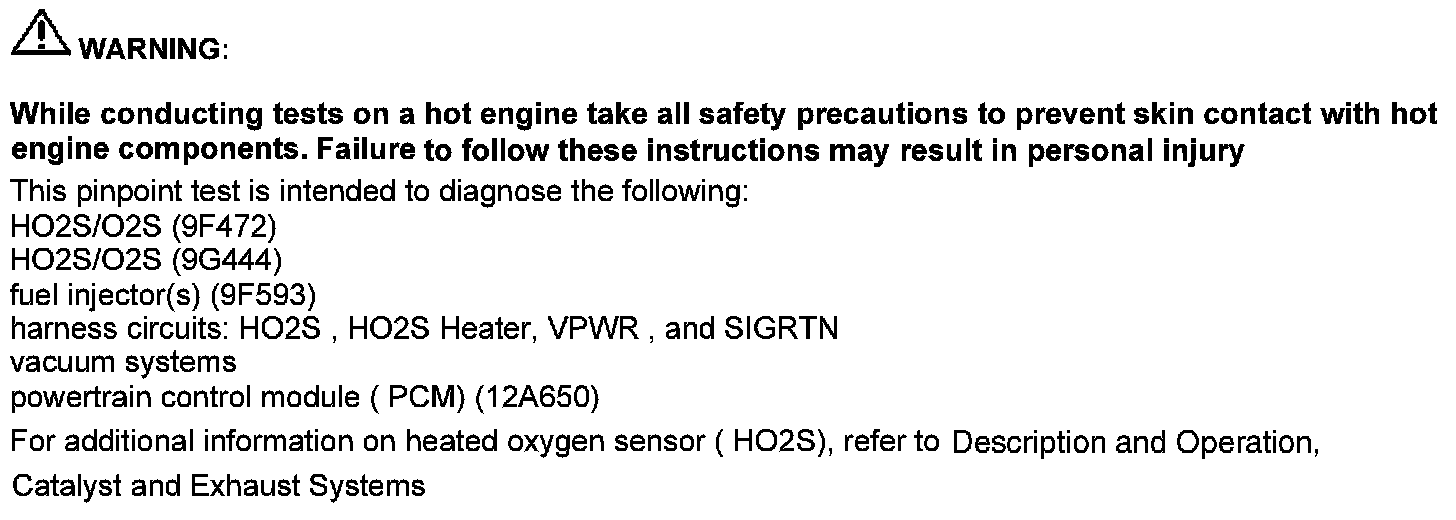

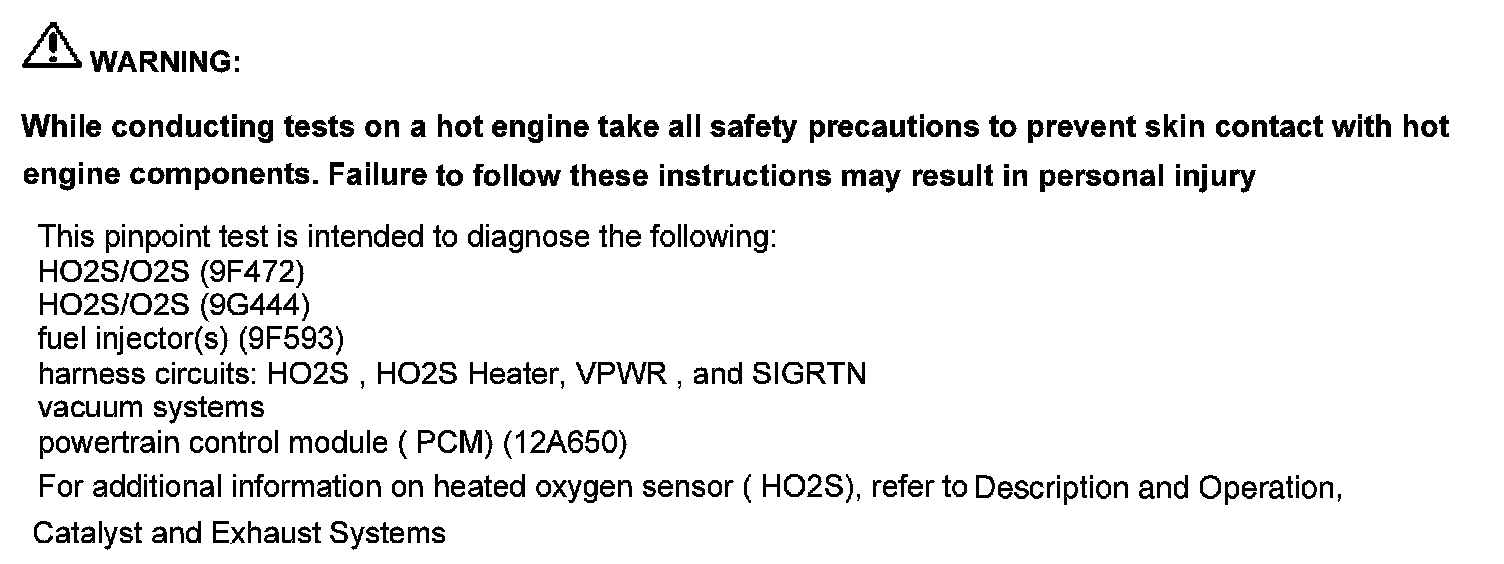

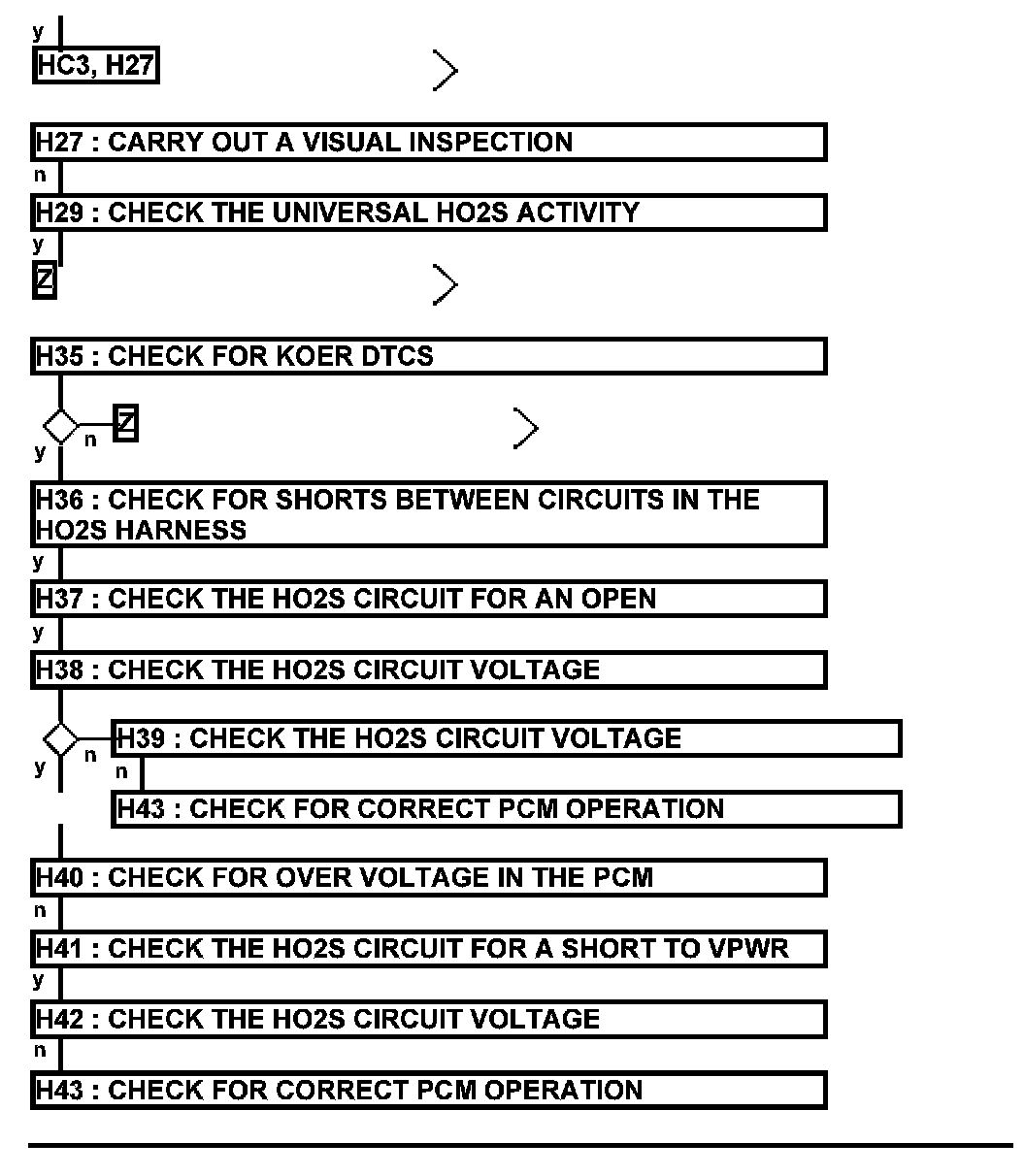

Test H: Fuel Control

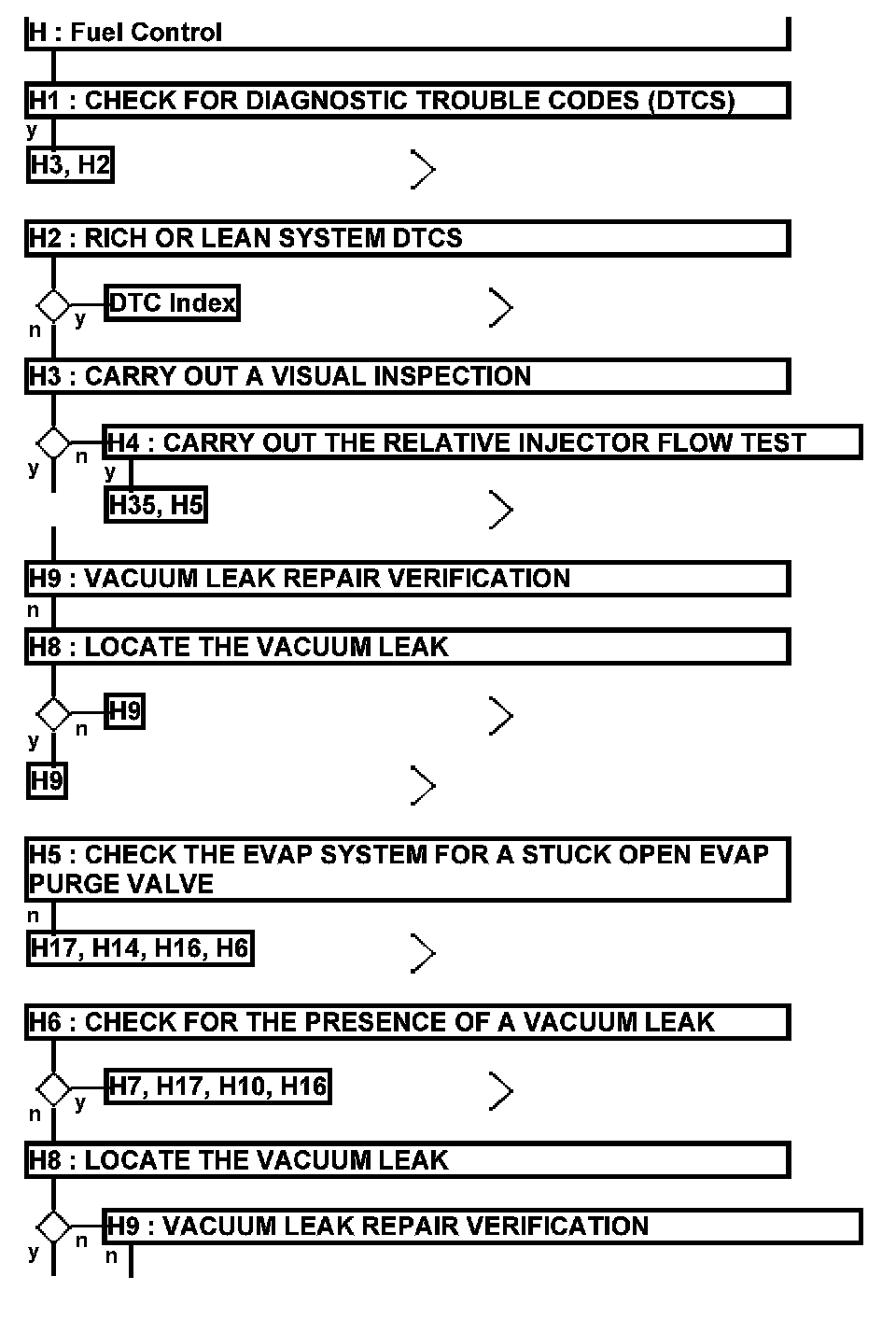

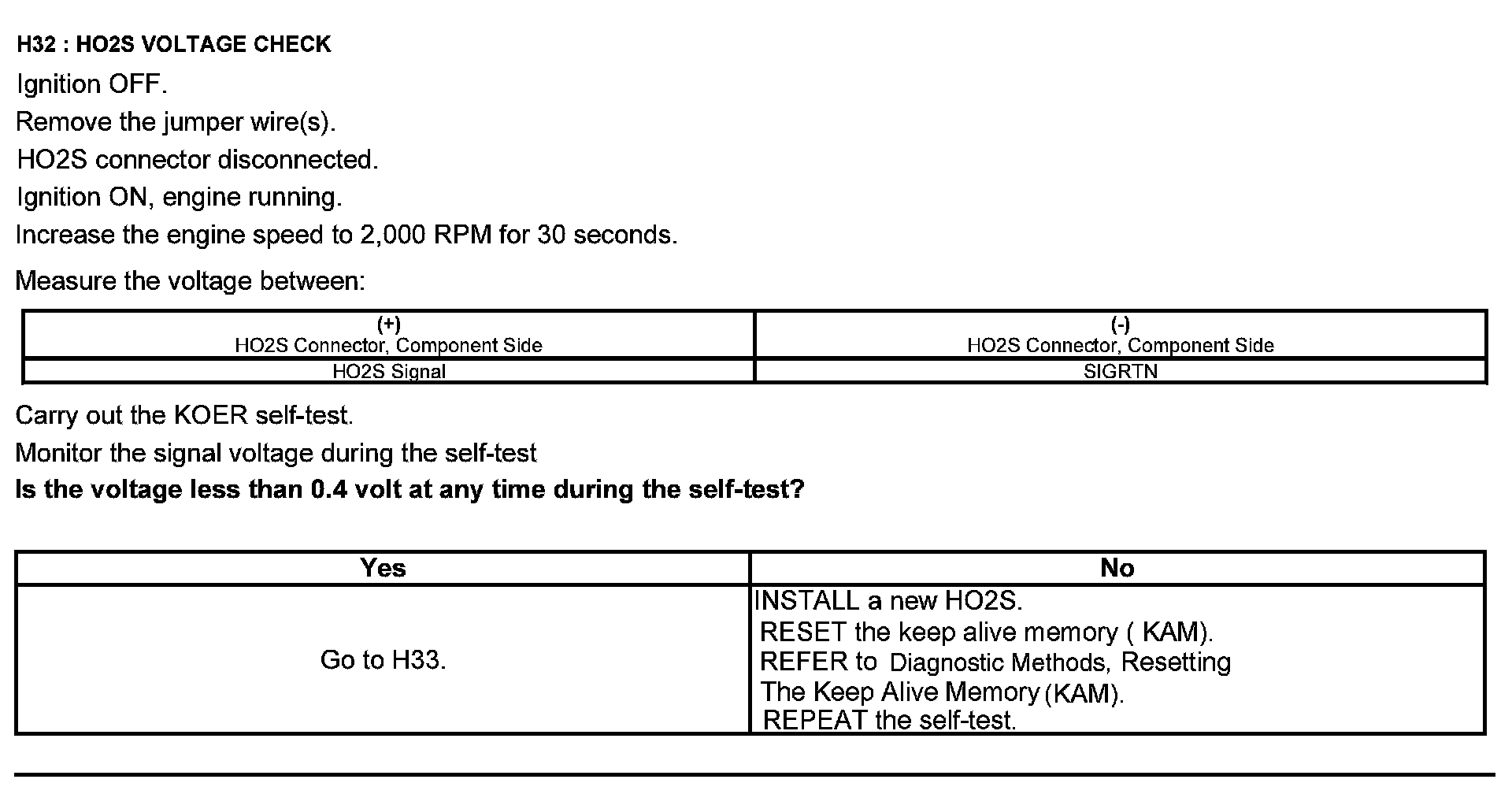

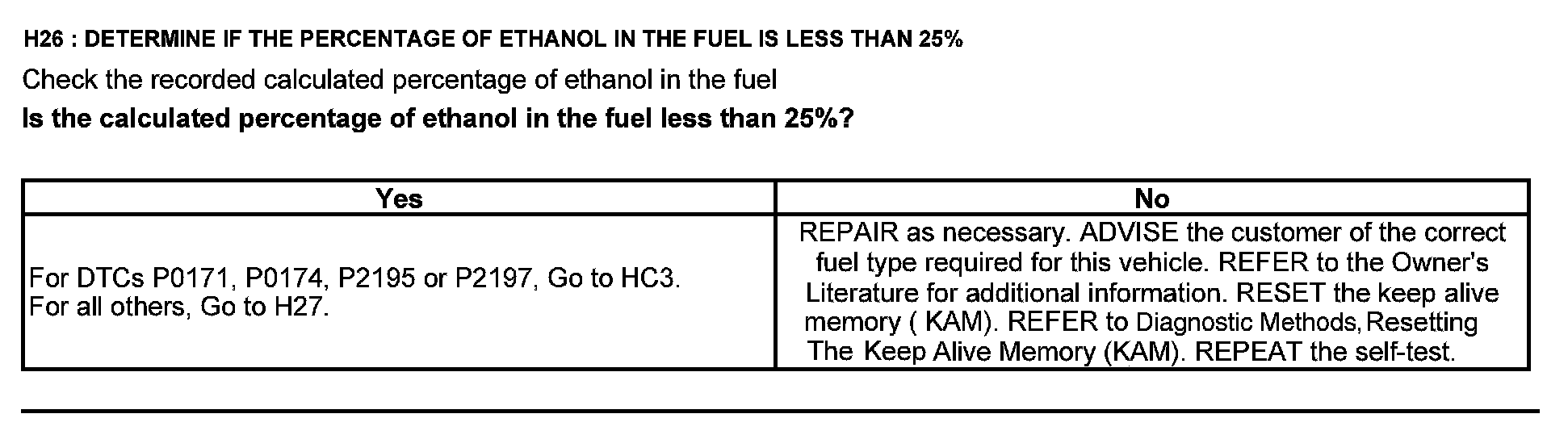

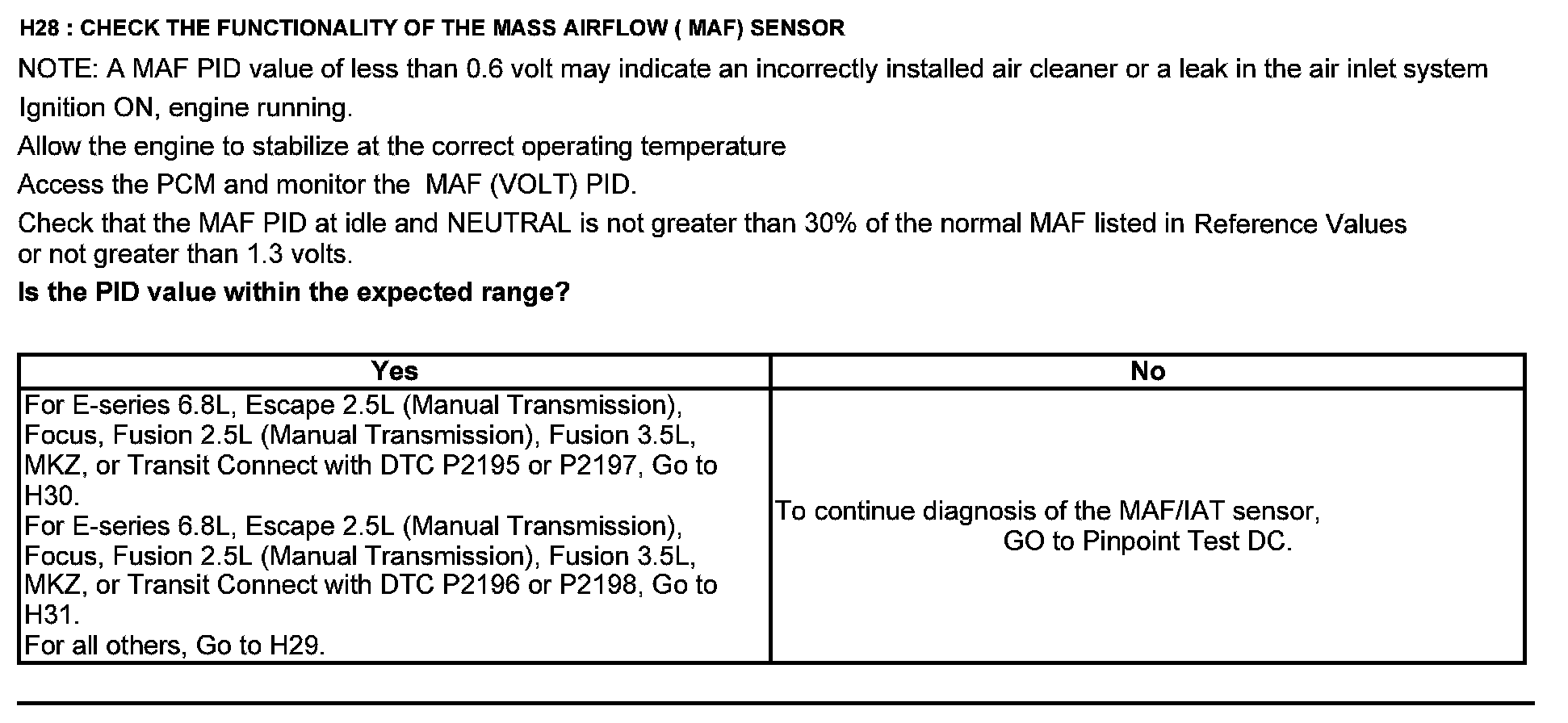

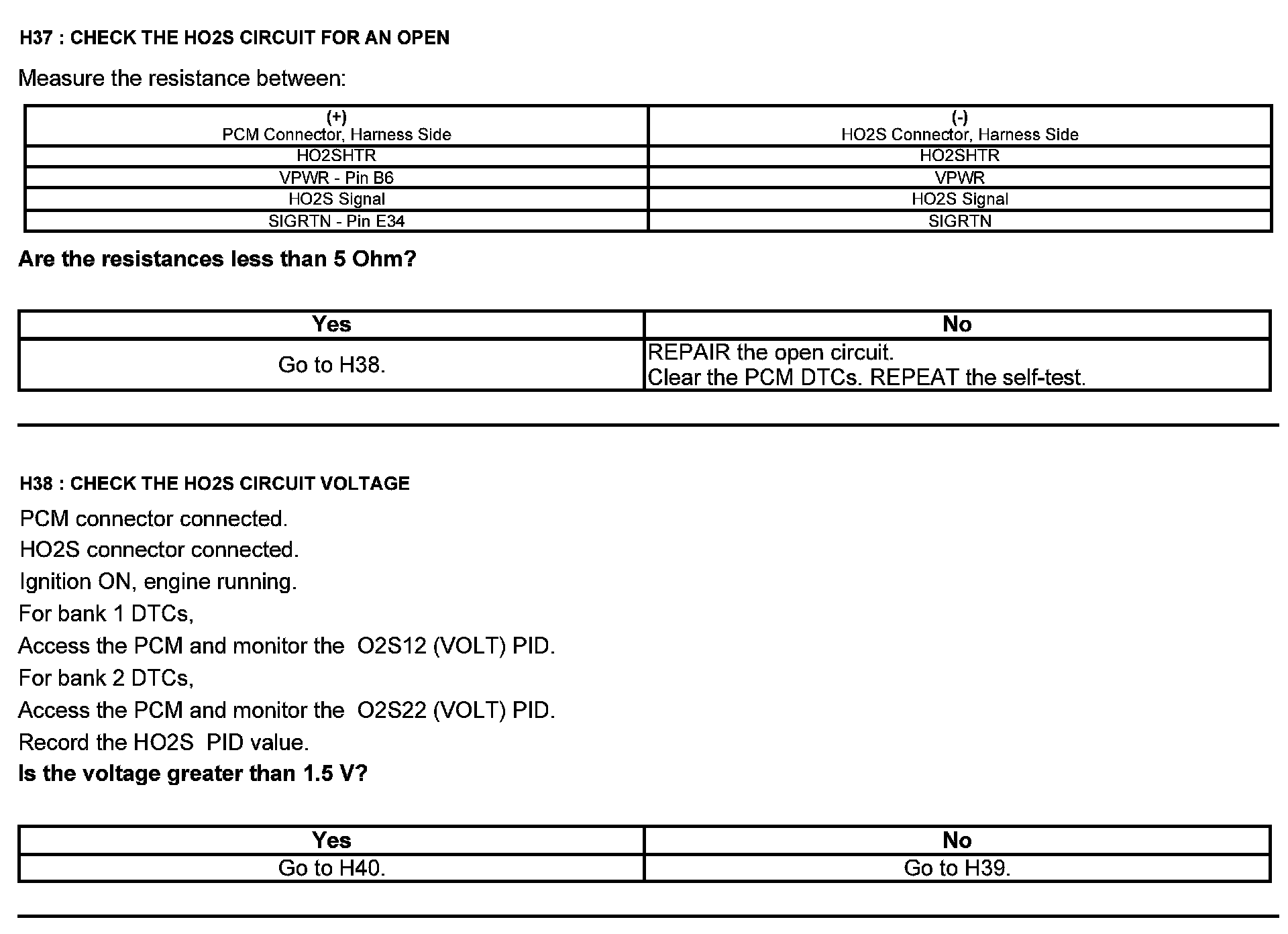

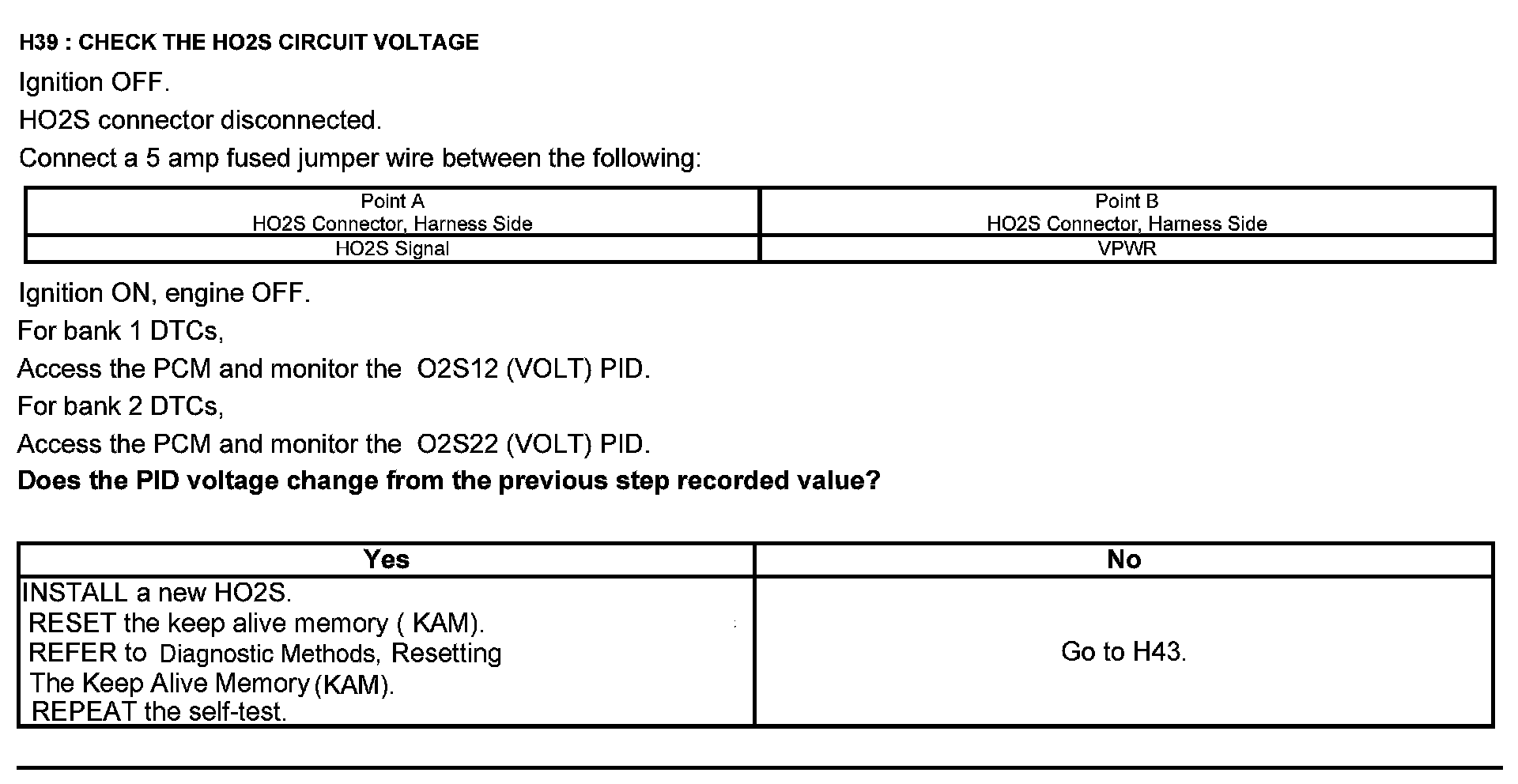

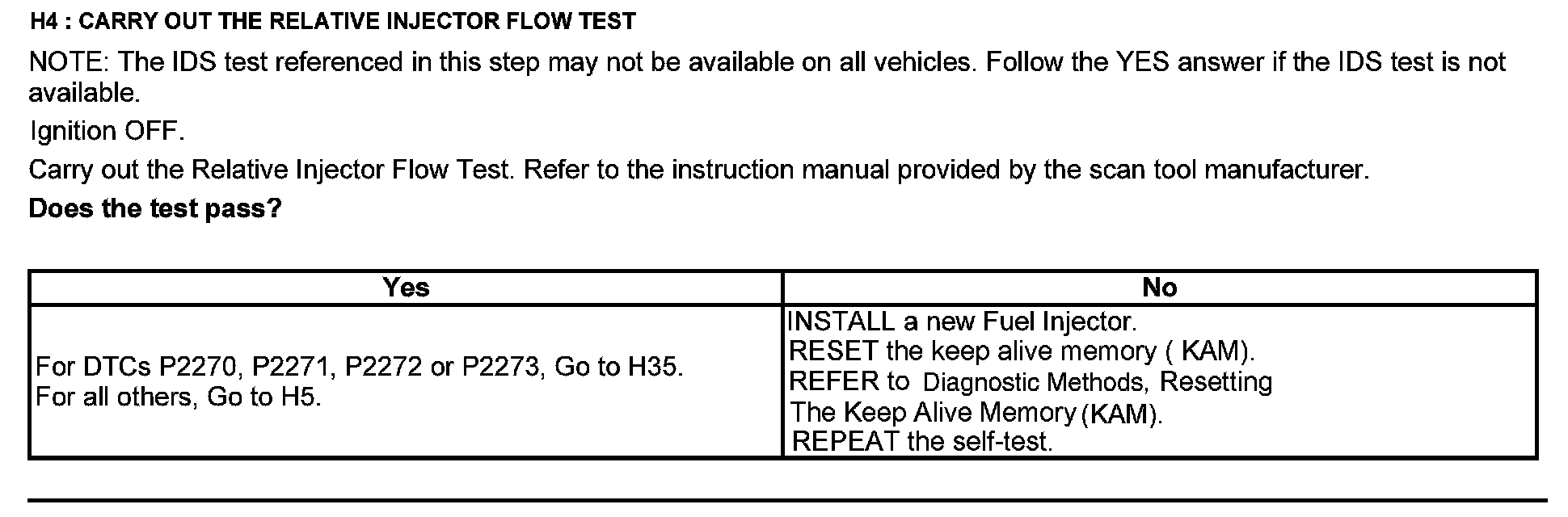

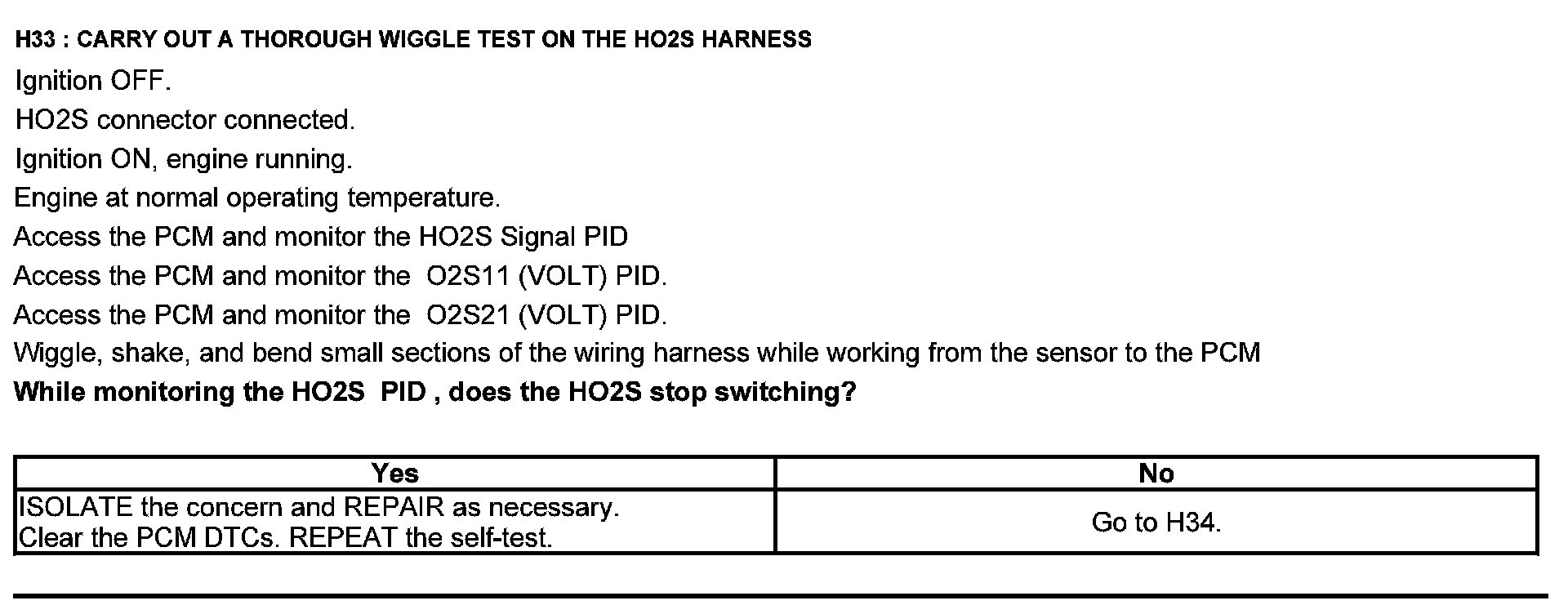

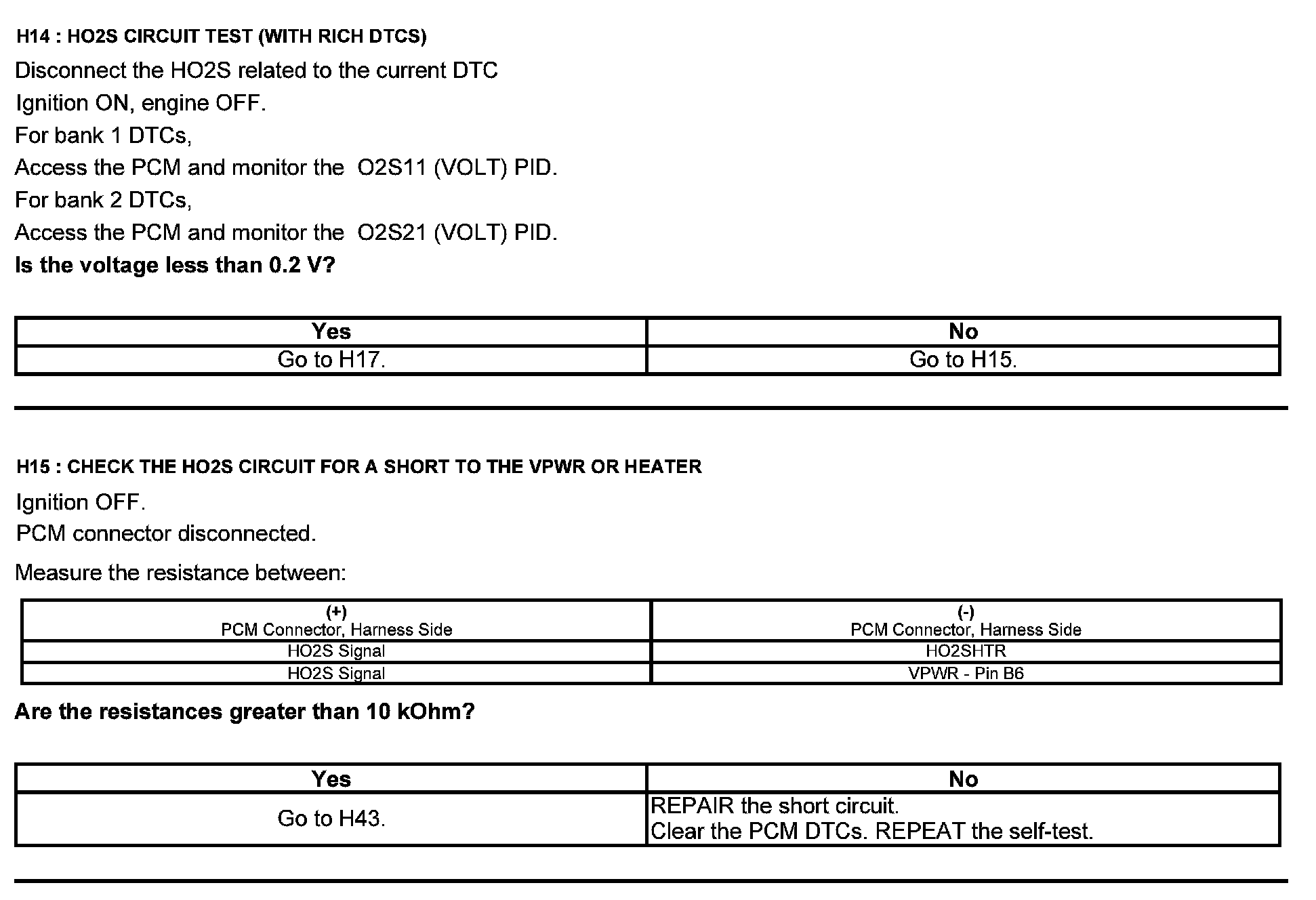

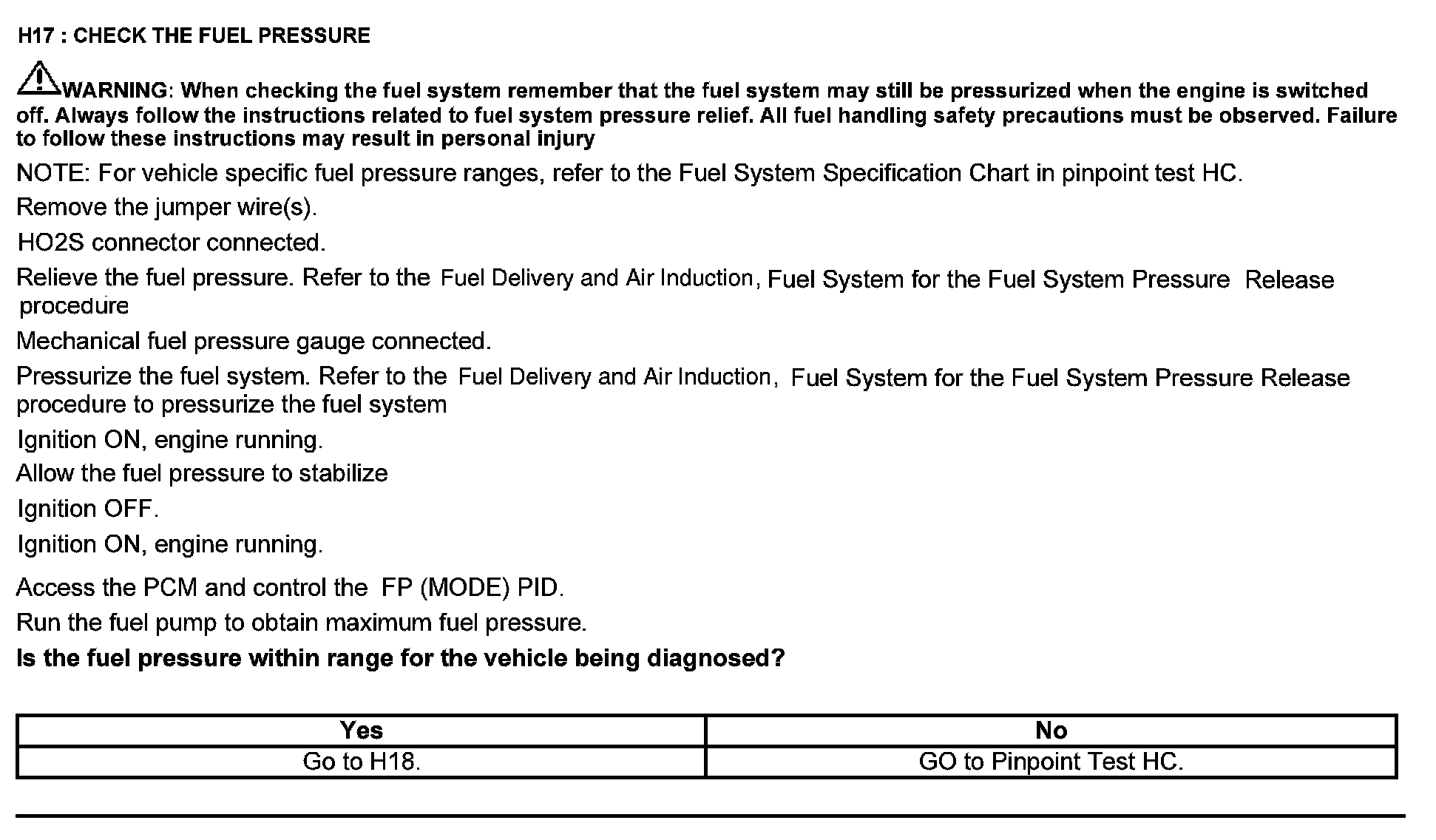

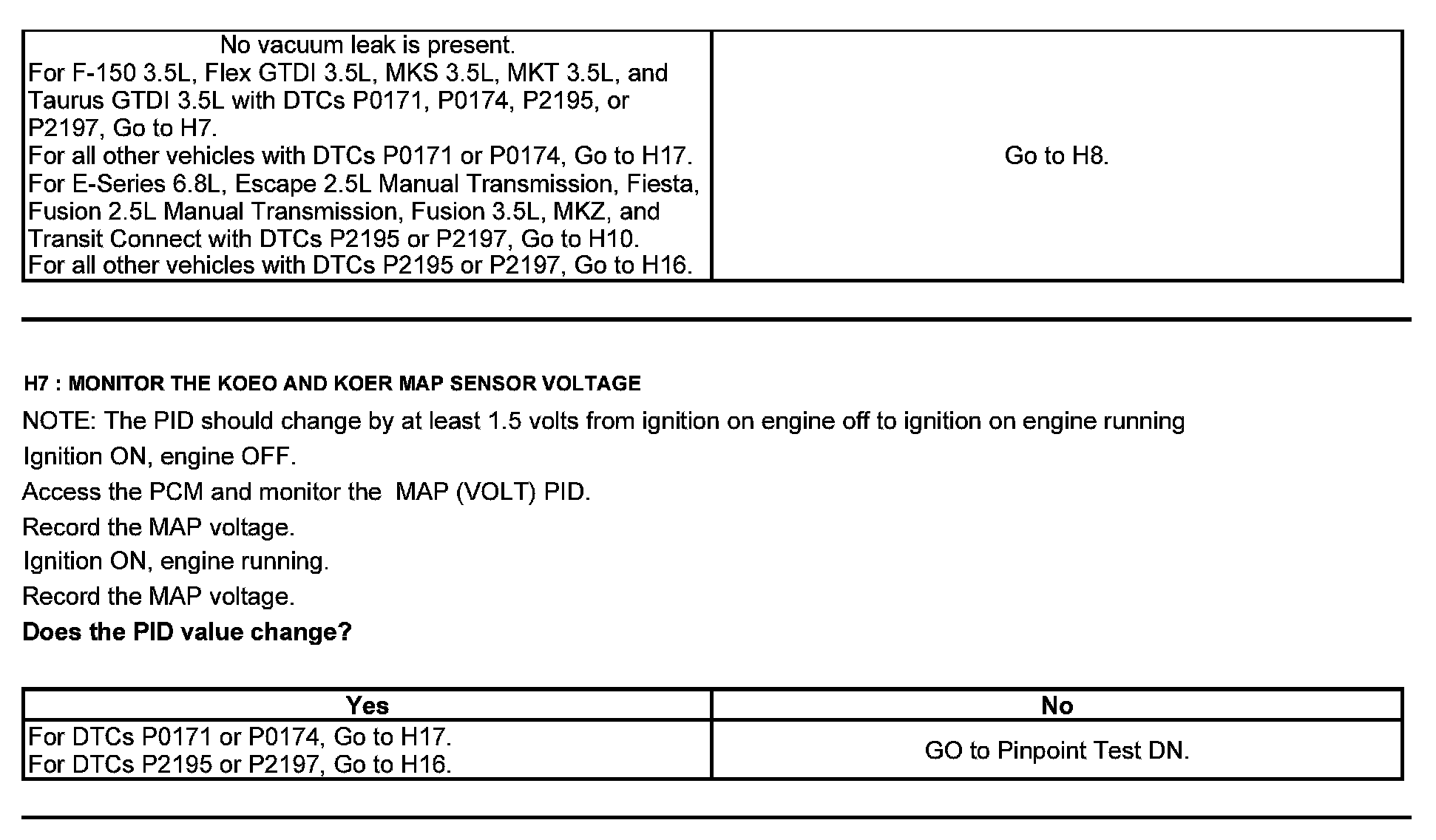

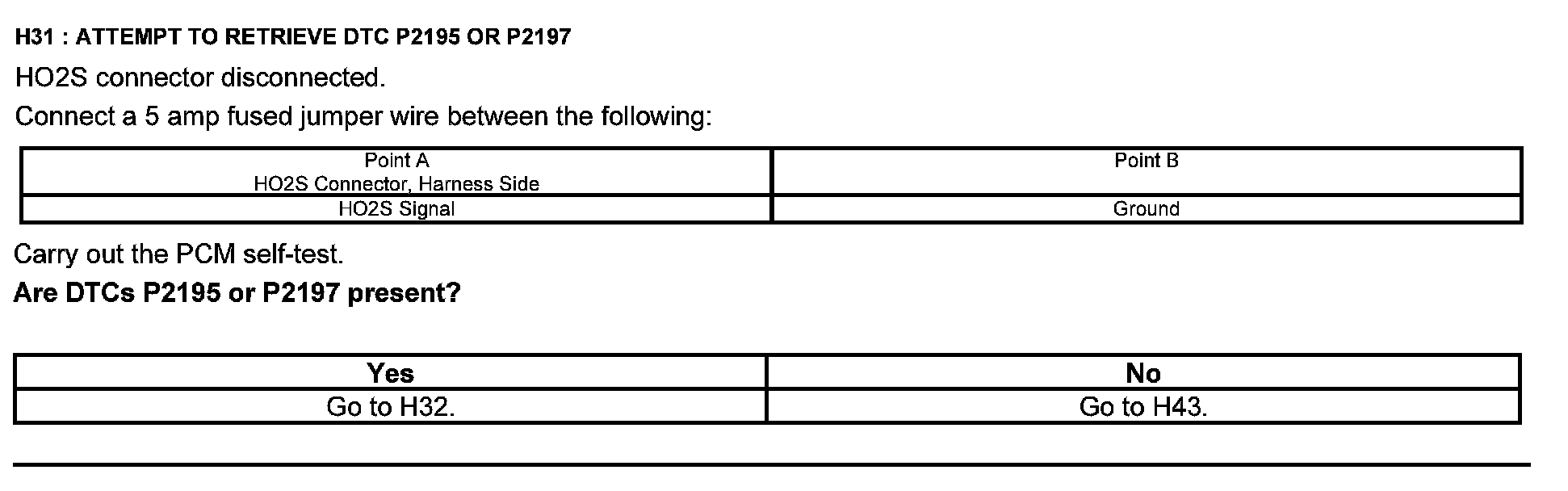

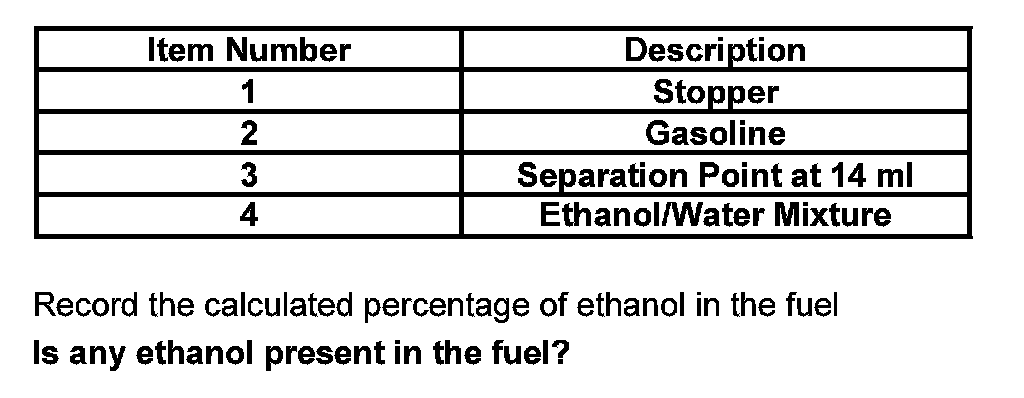

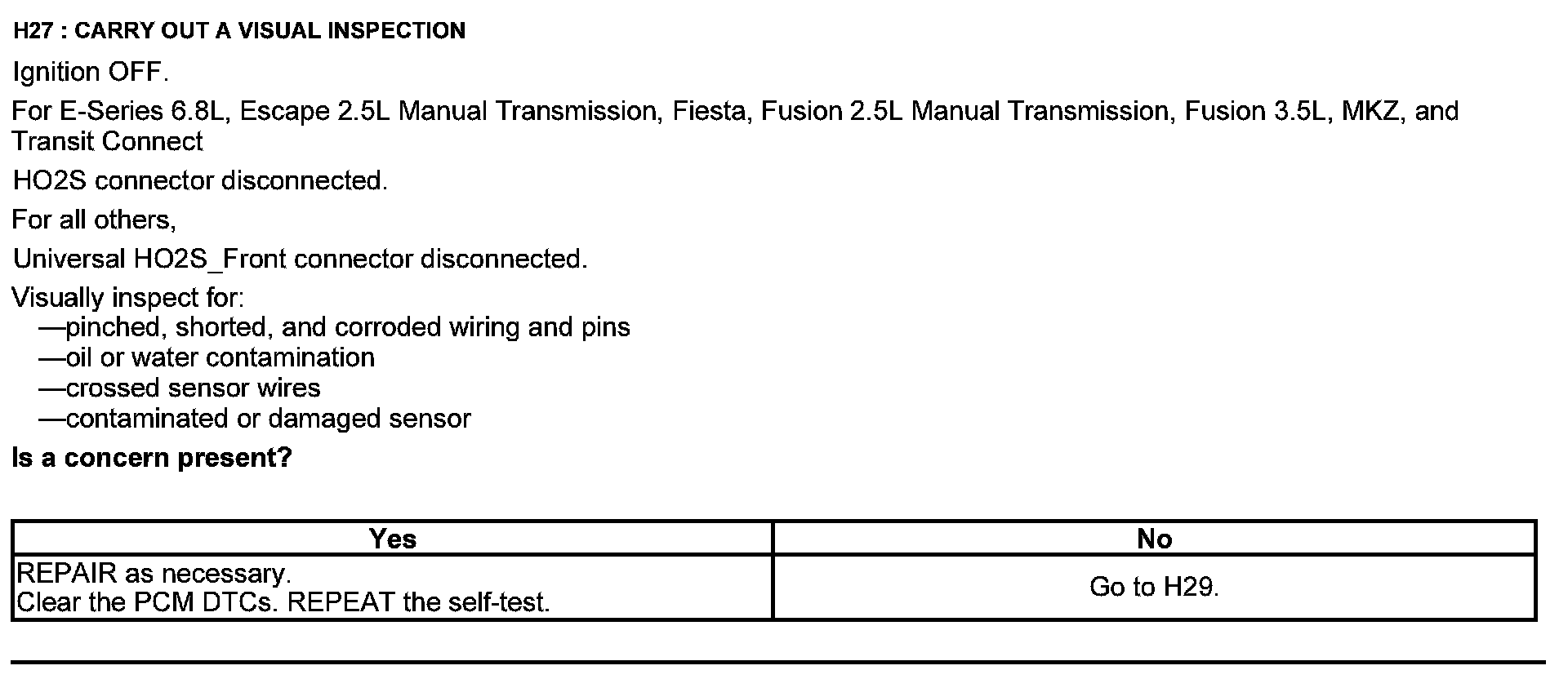

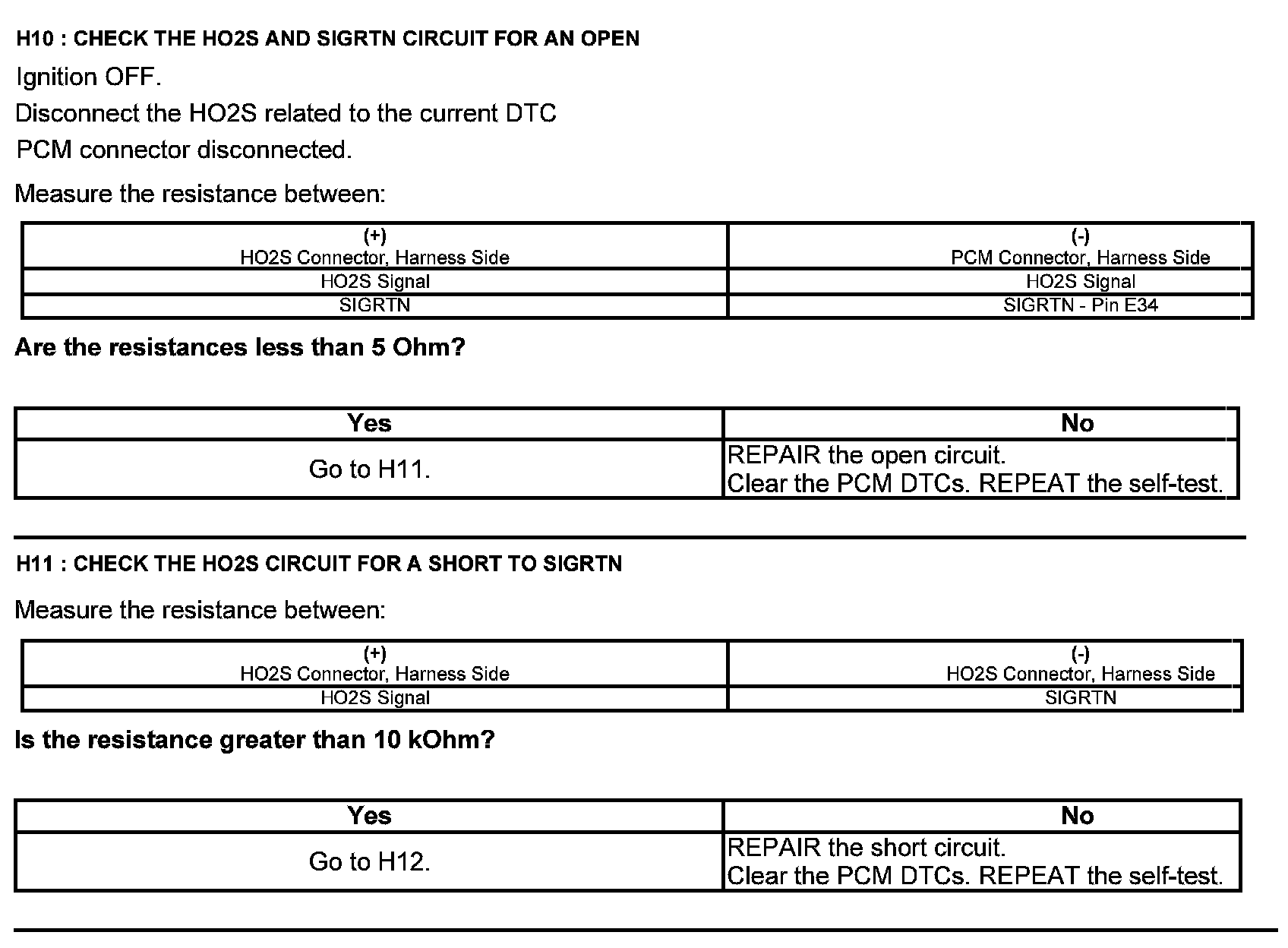

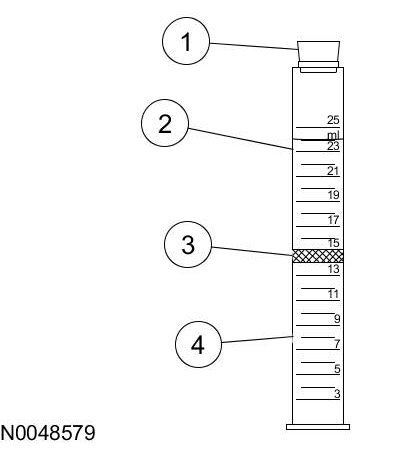

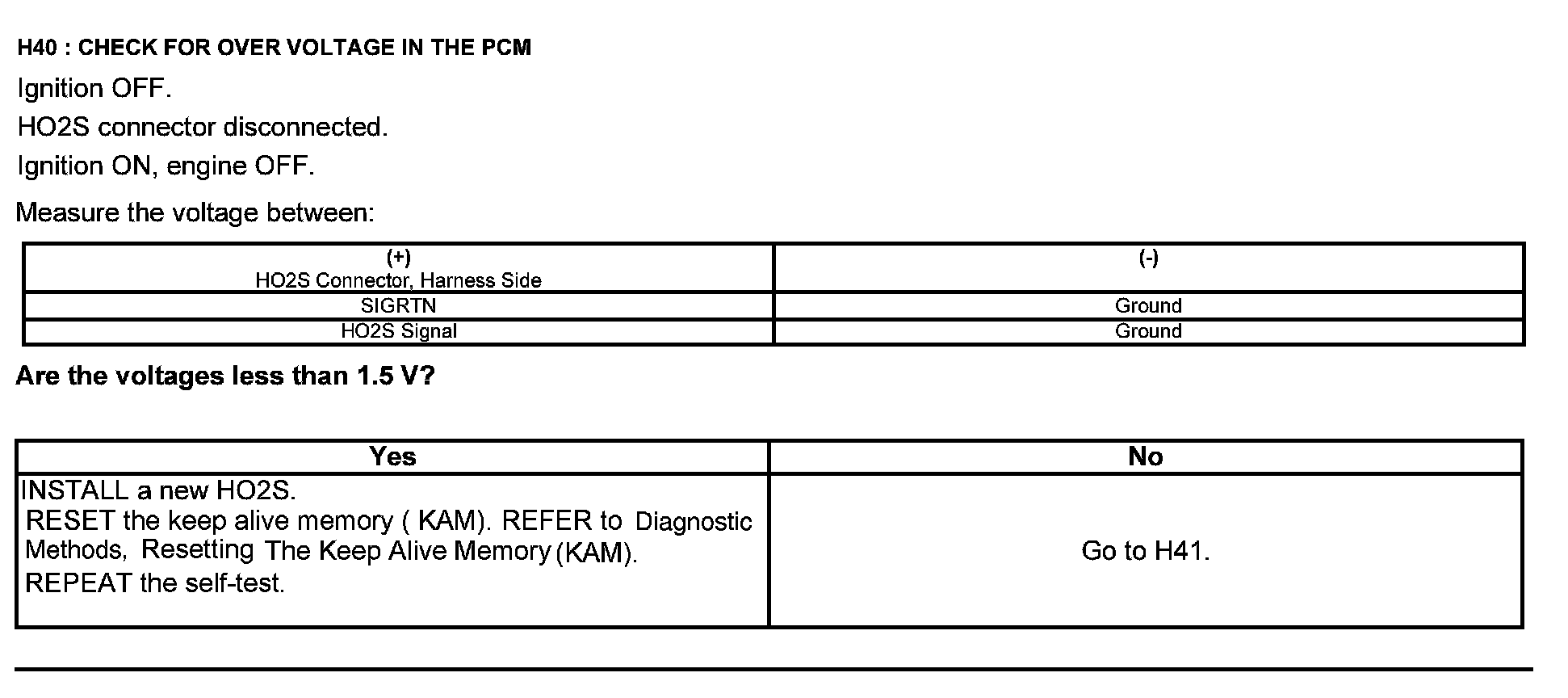

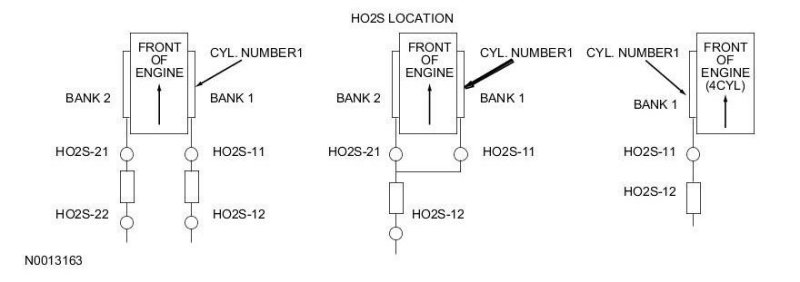

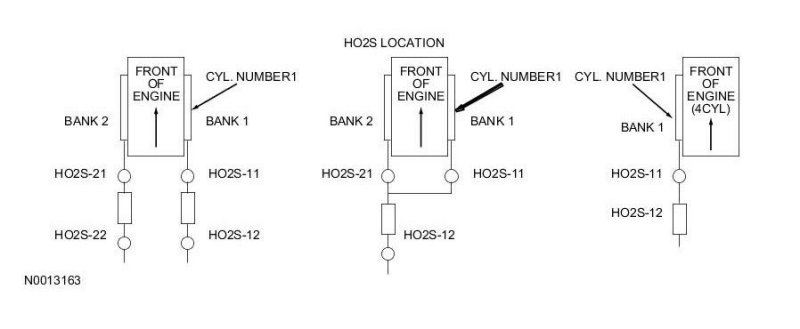

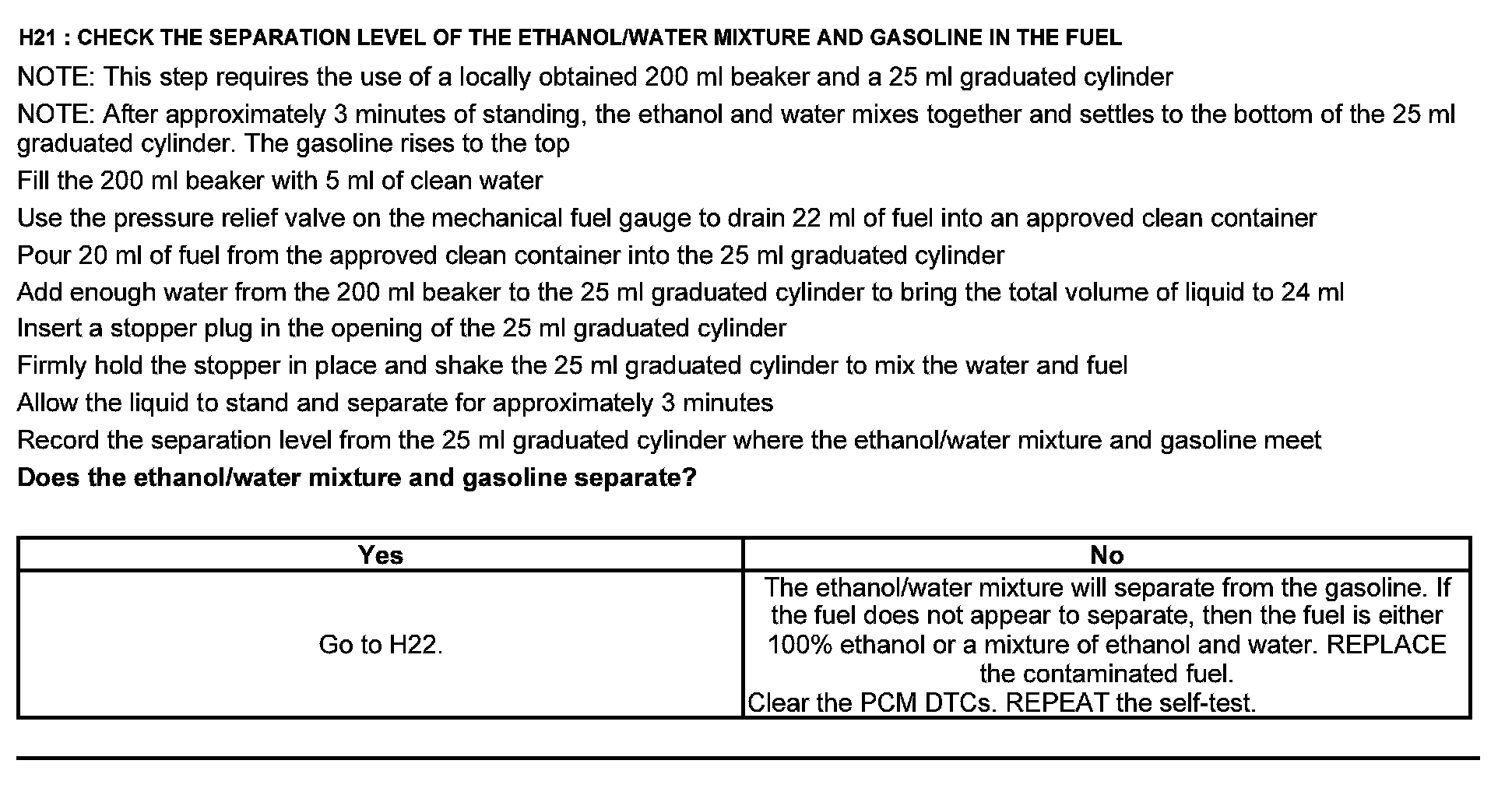

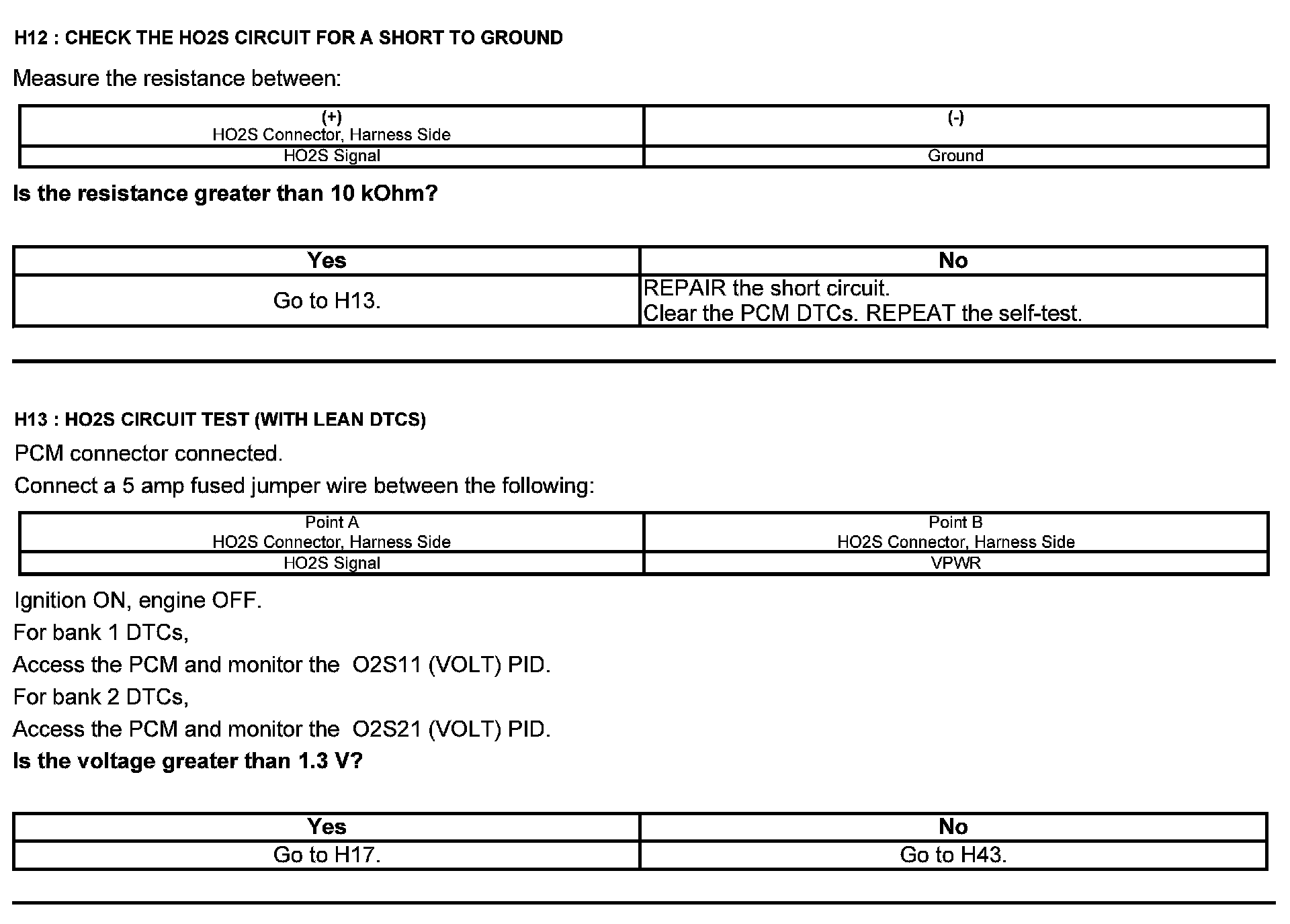

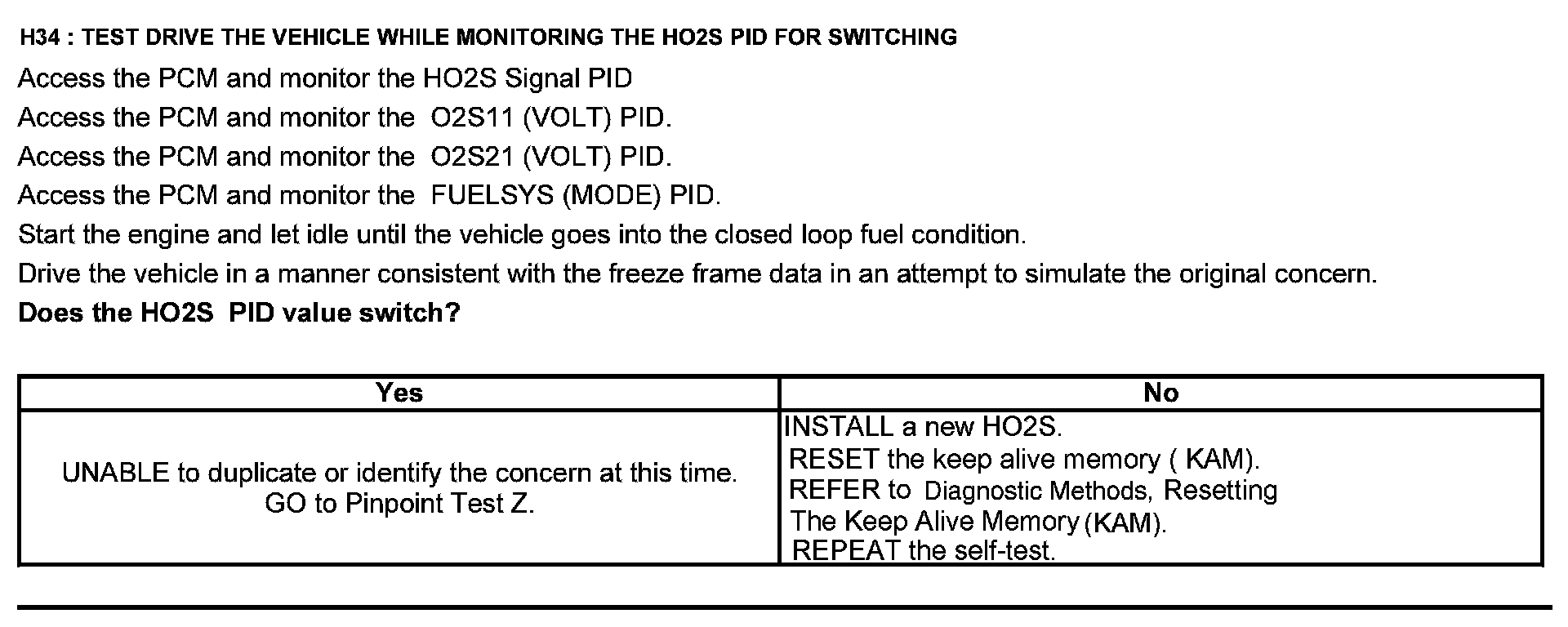

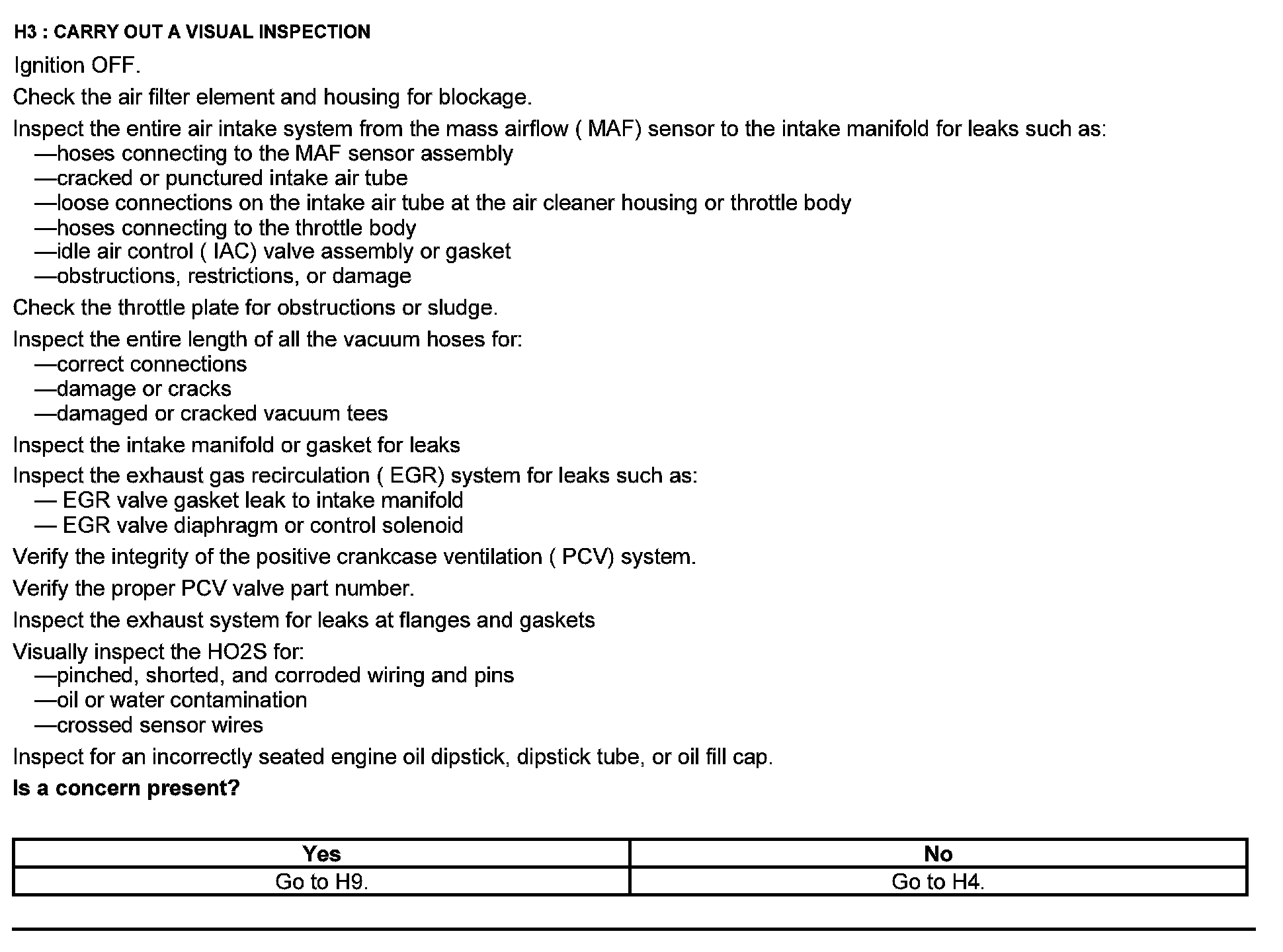

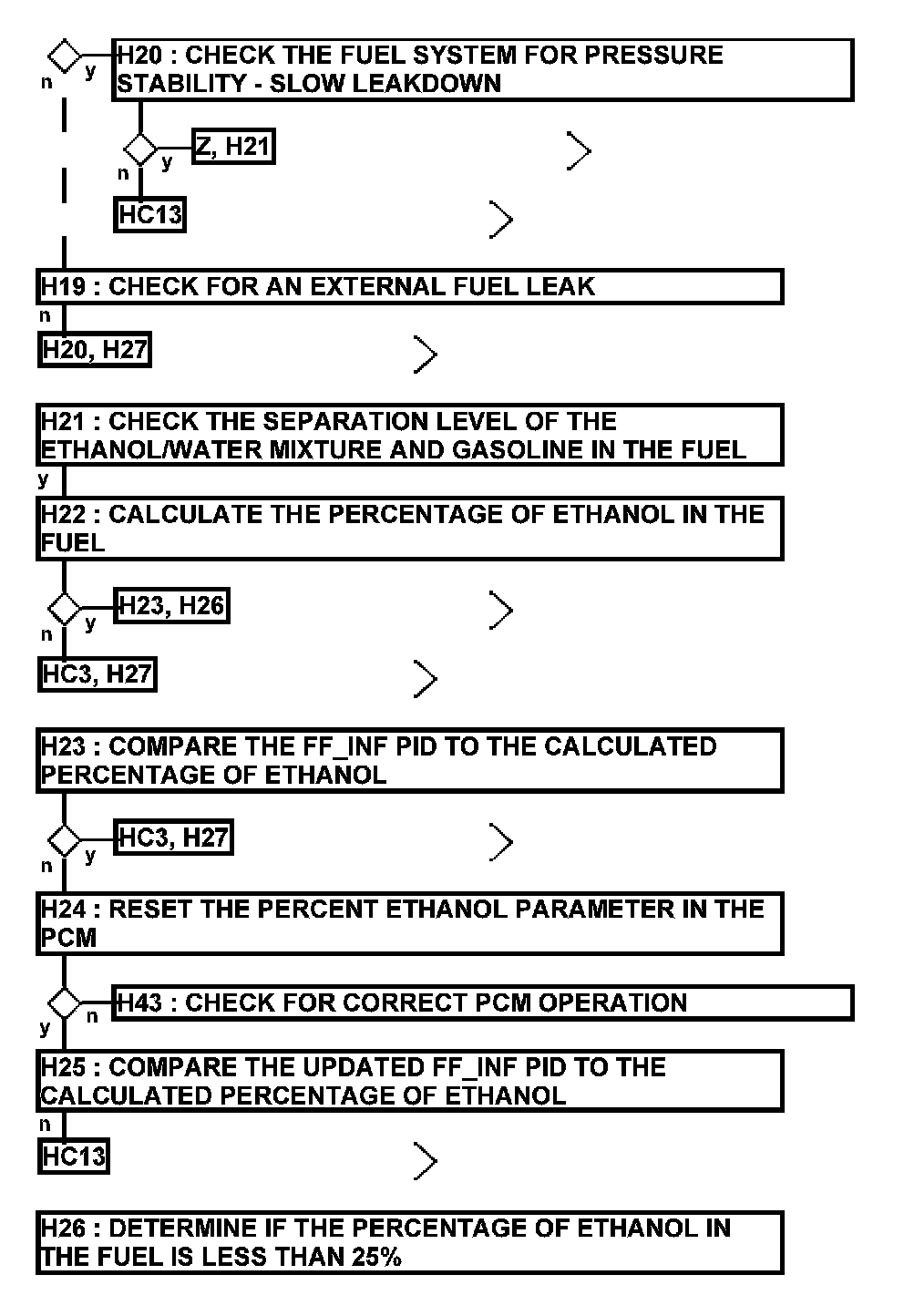

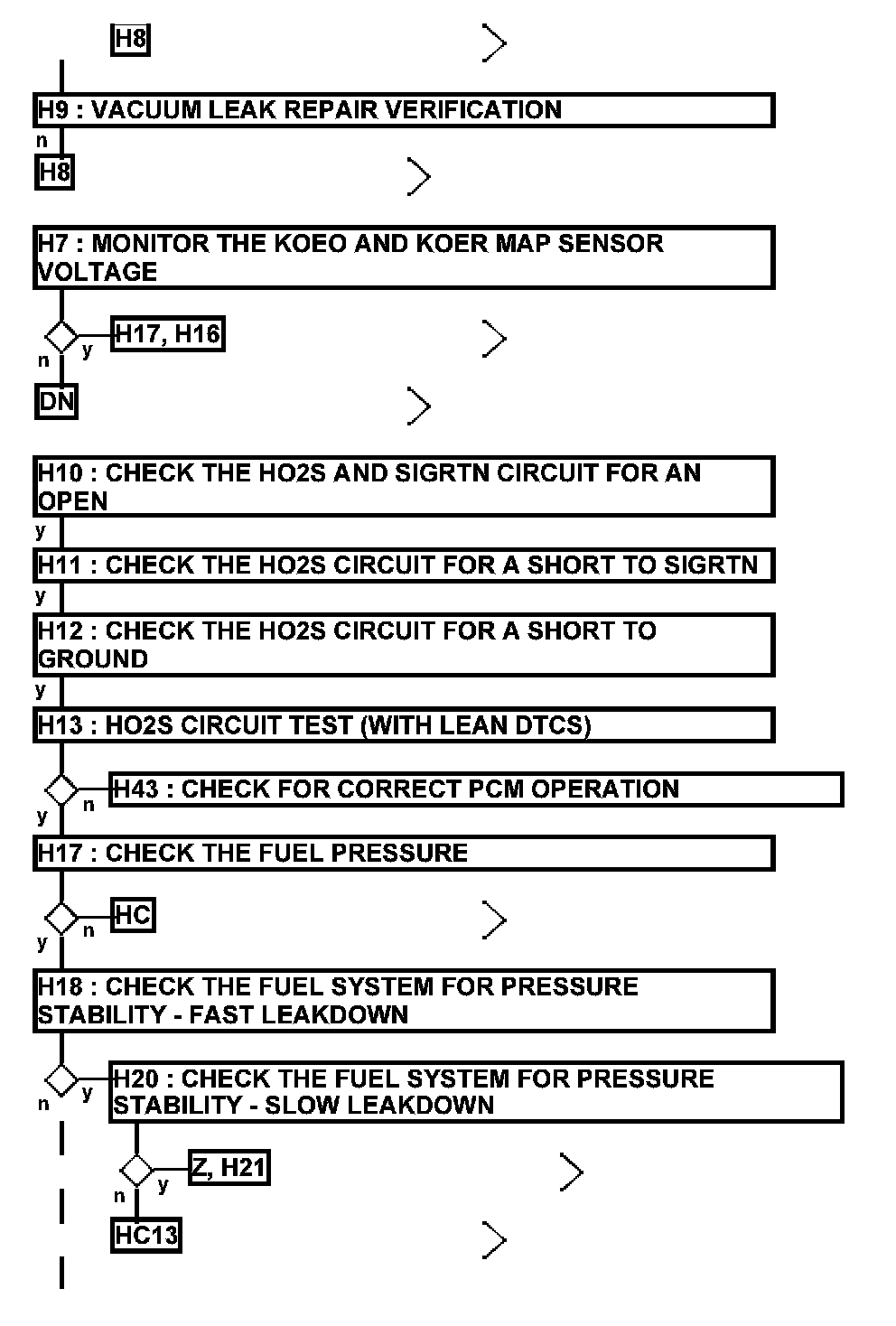

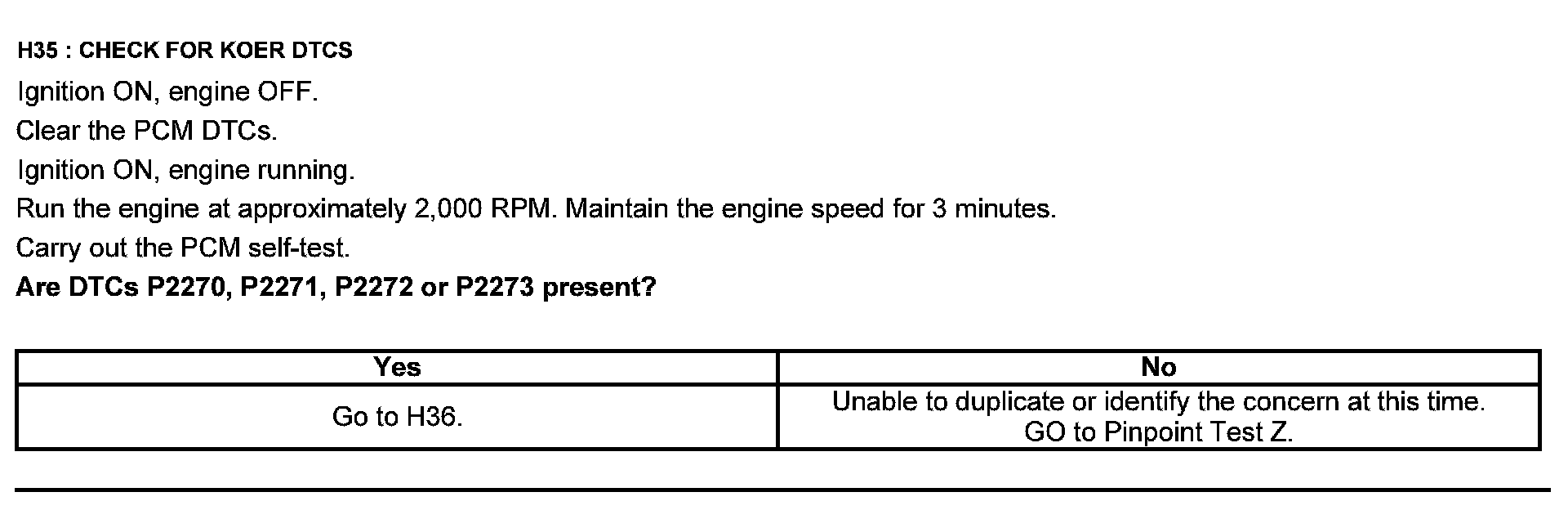

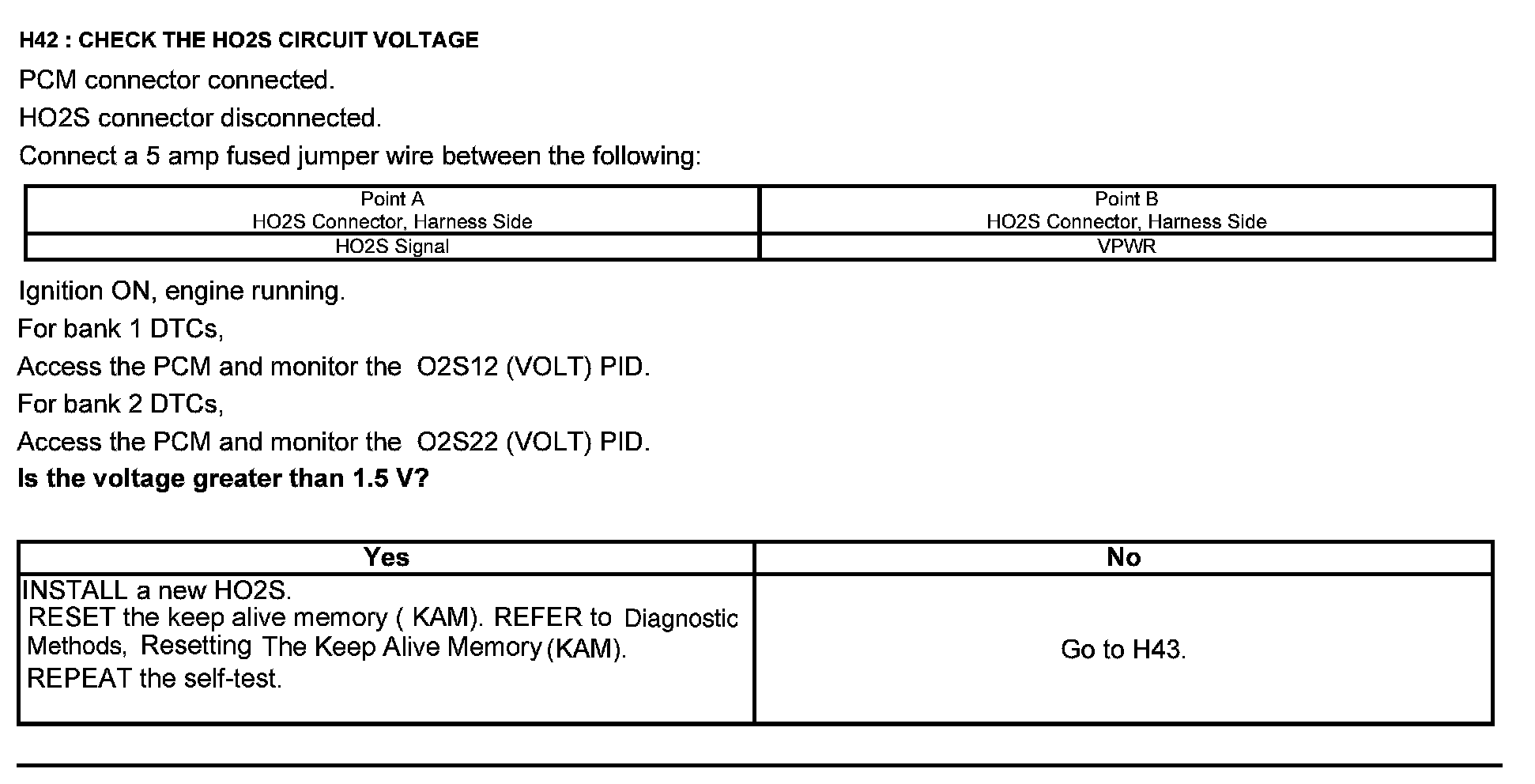

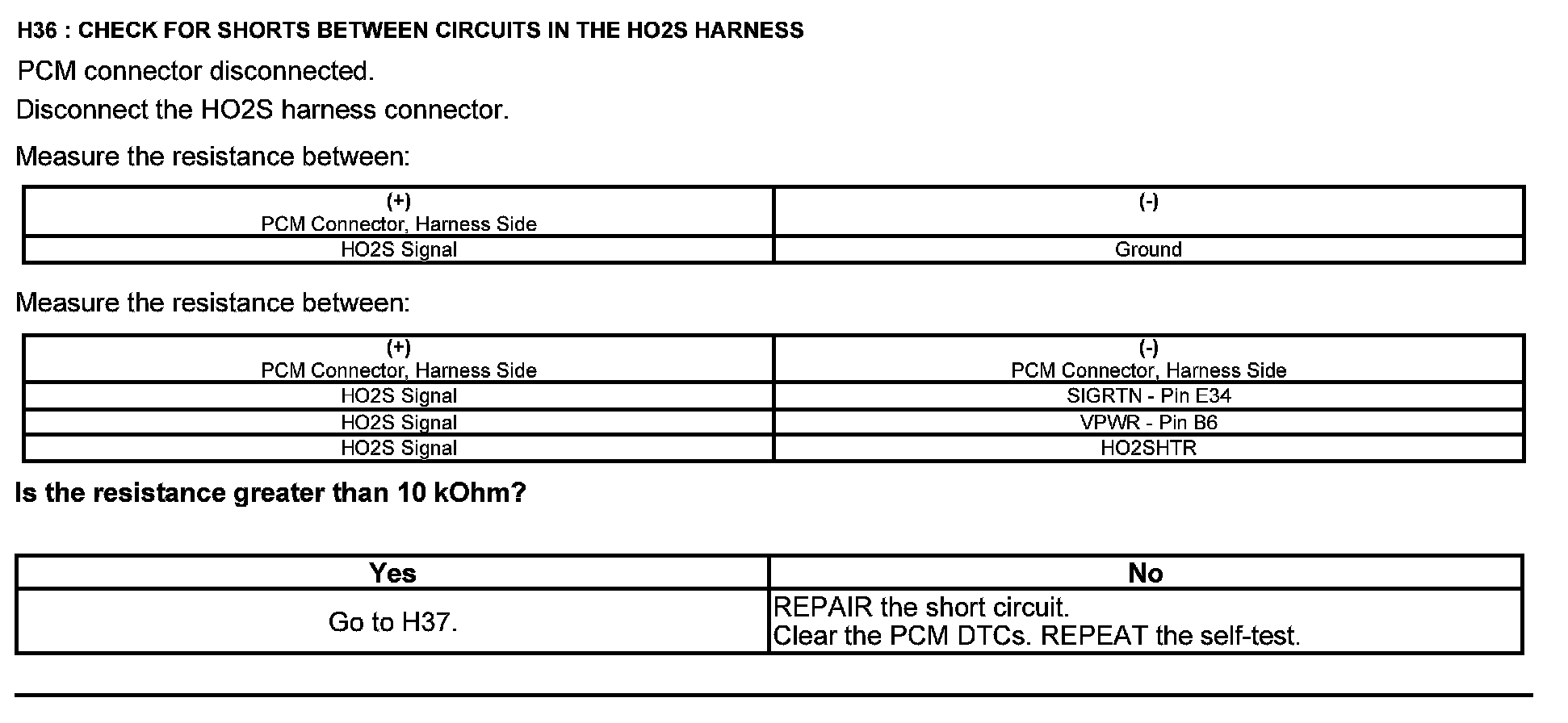

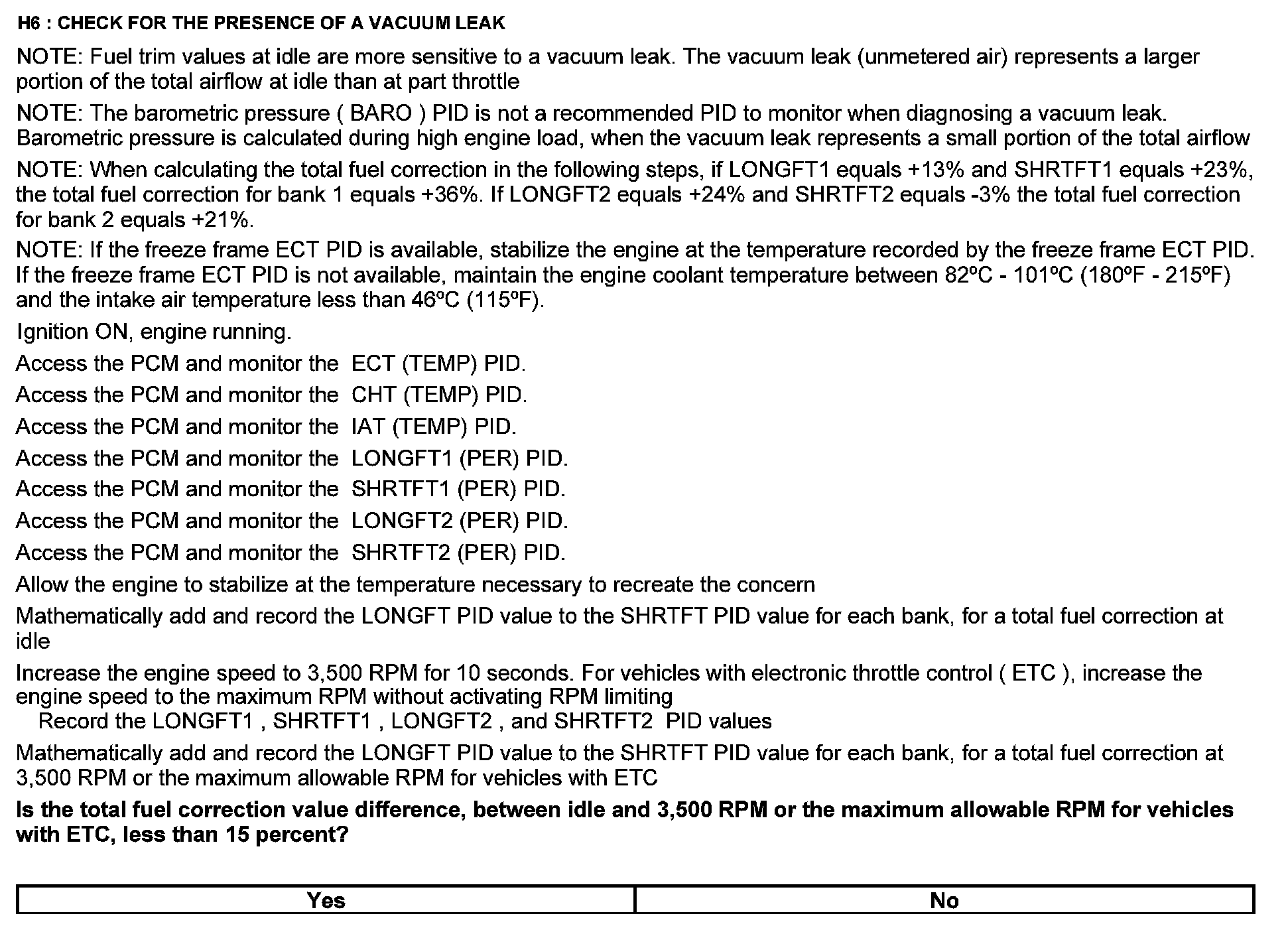

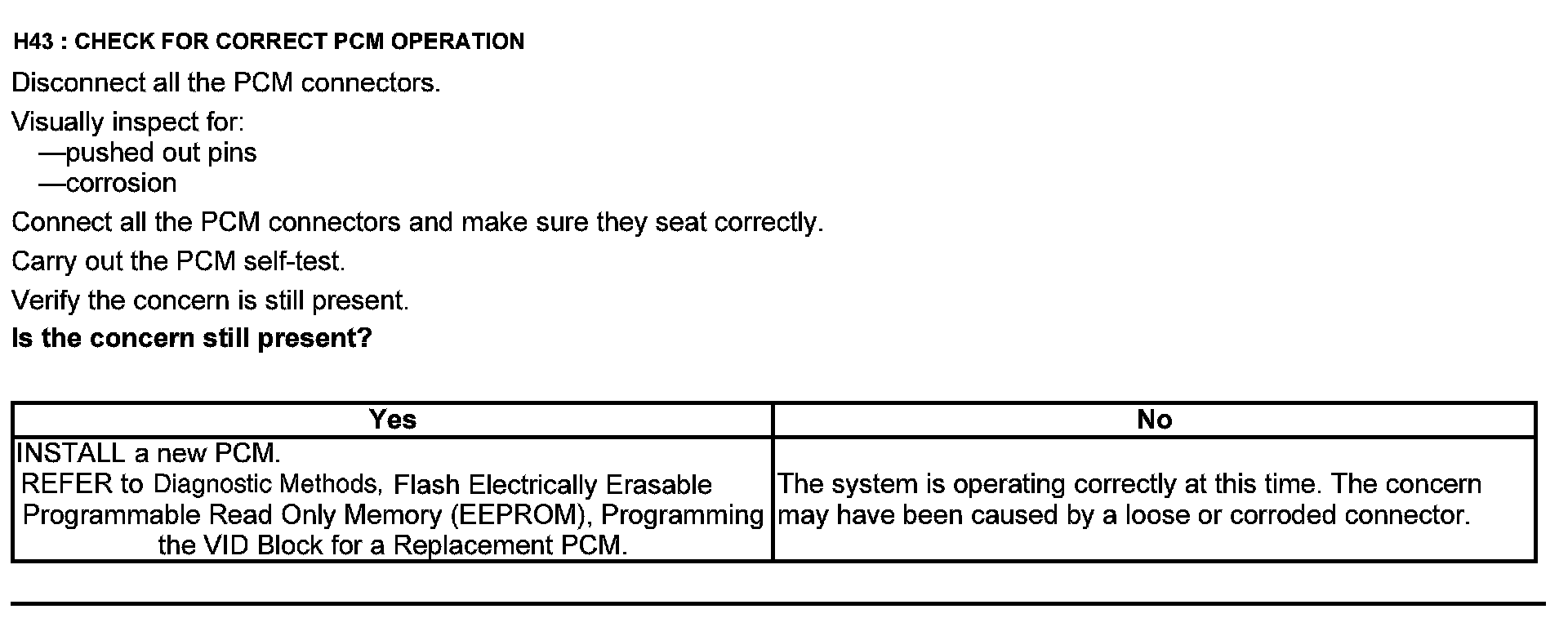

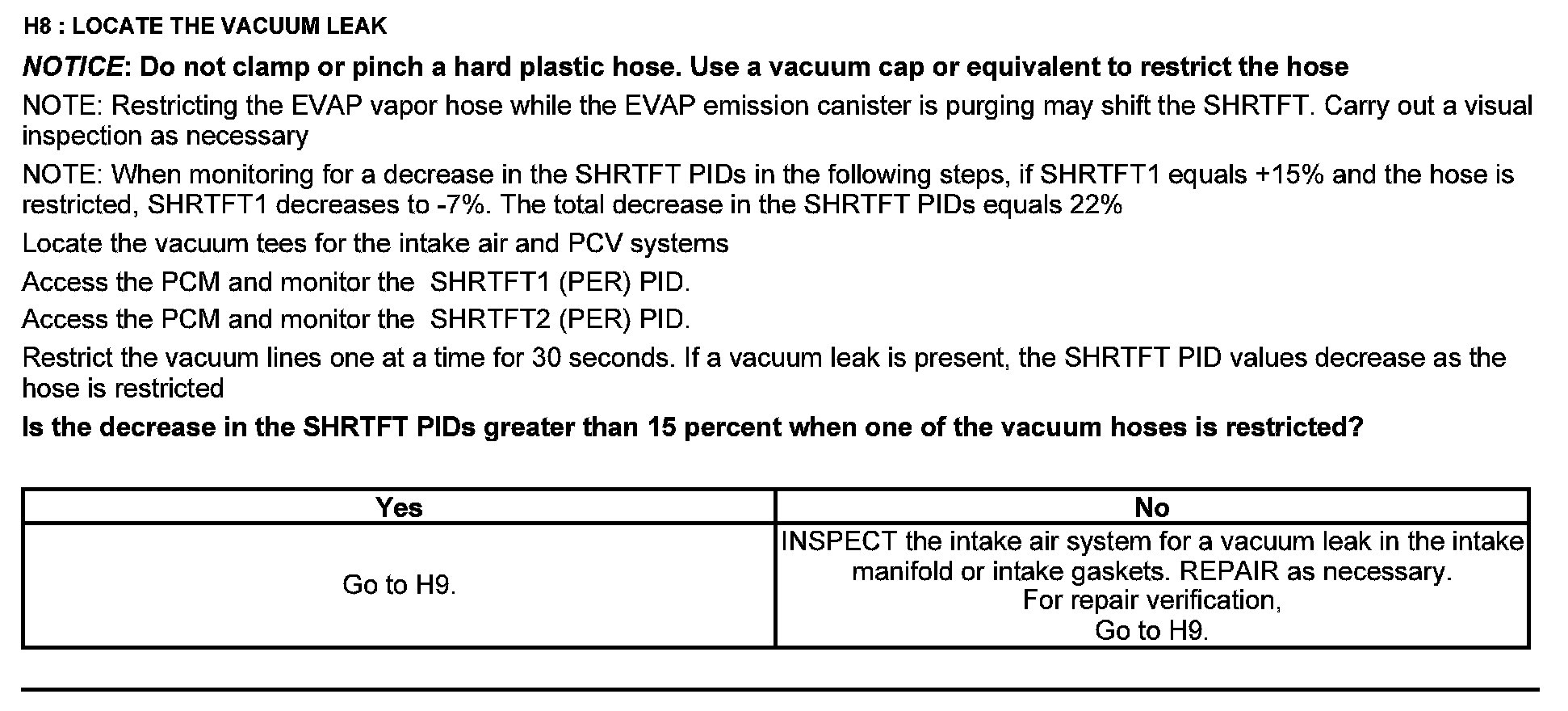

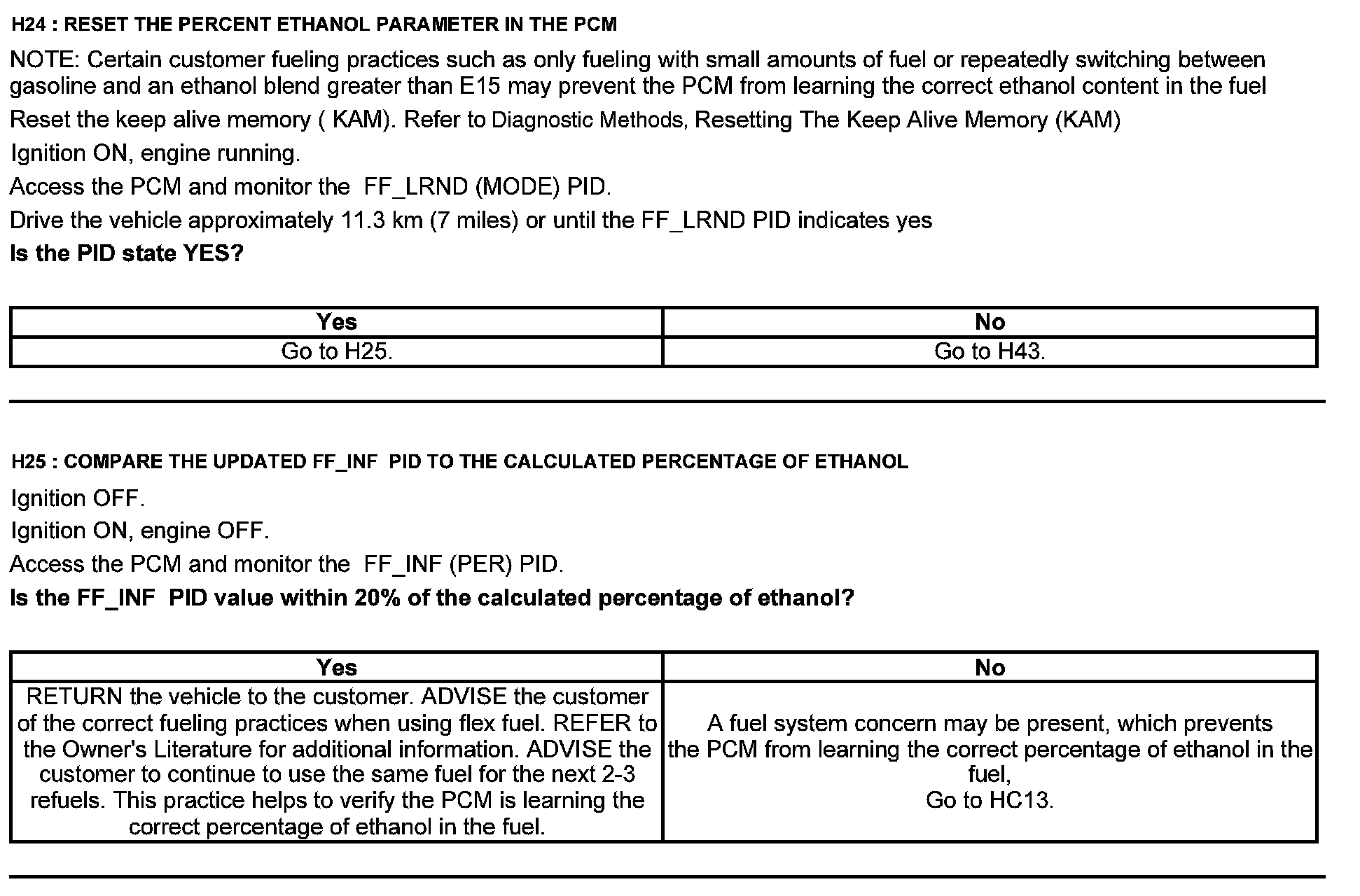

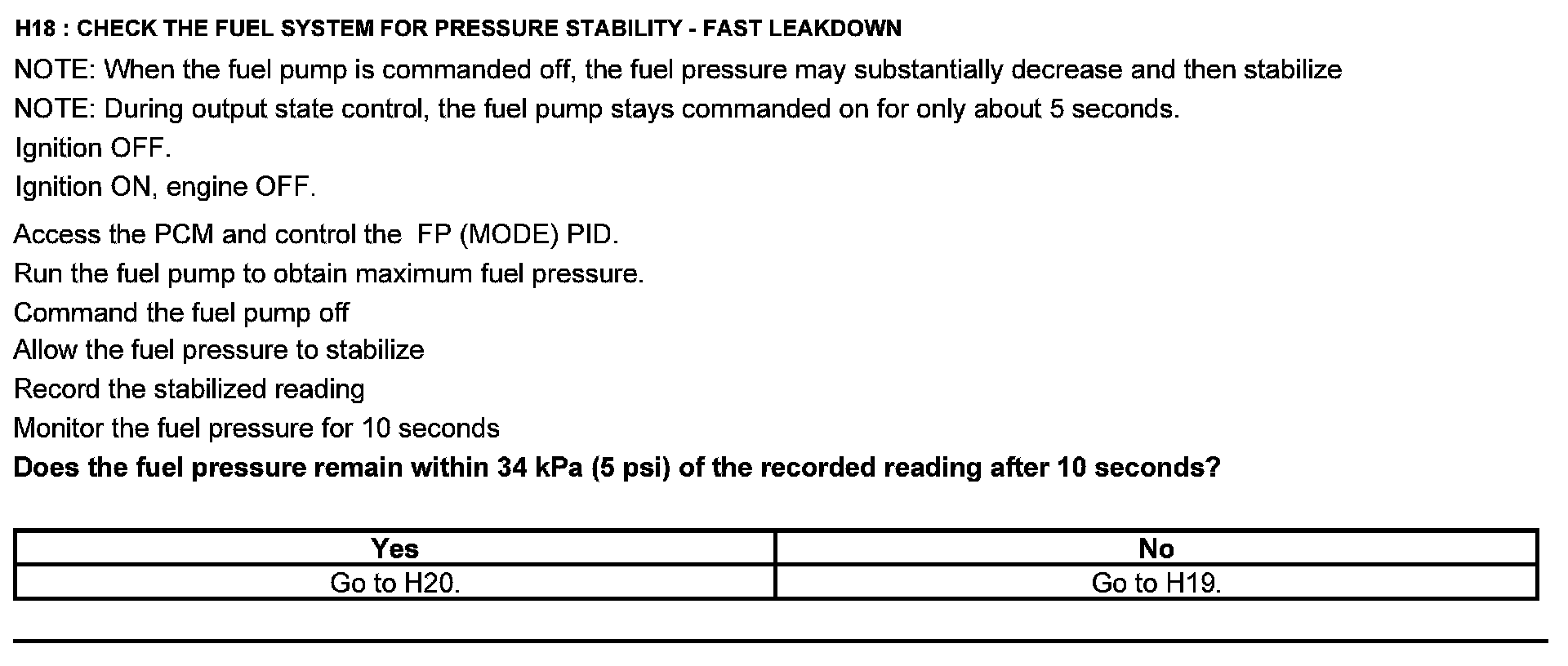

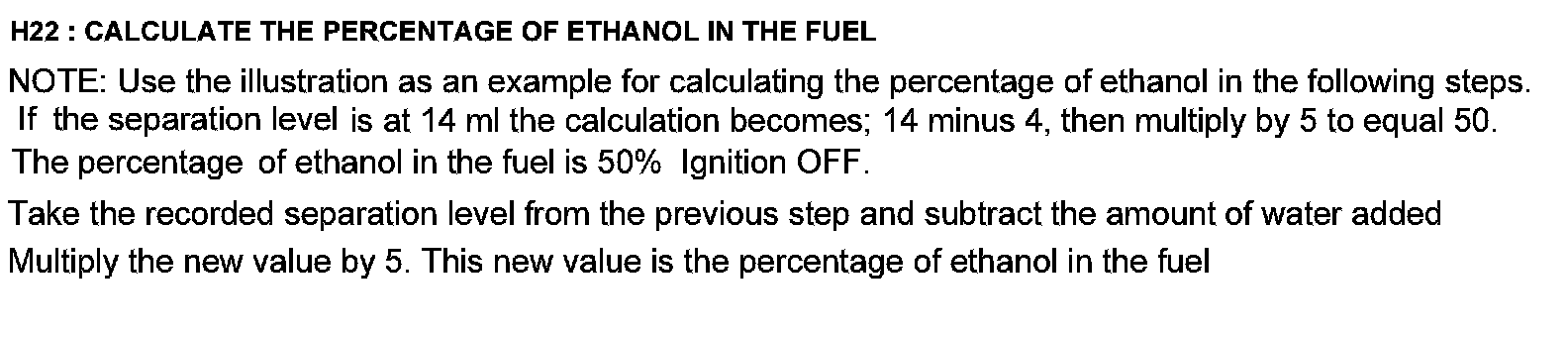

Fuel Control

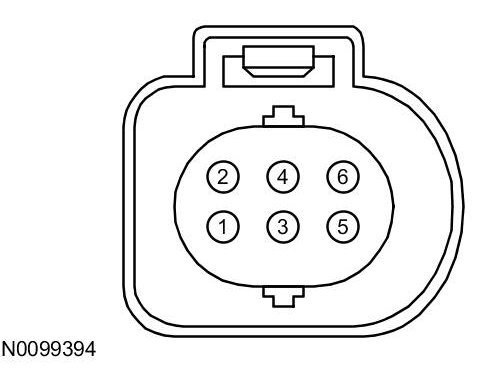

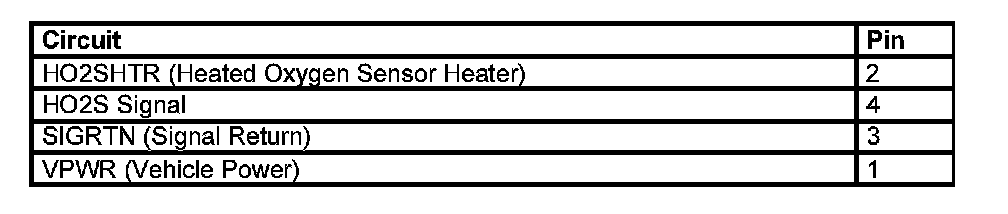

Heated Oxygen Sensor-Rear (HO2S-Rear) Connector - The pin numbering for the connector is in reference to the connector lock tab. Not all connector key combinations are shown.





Harness Side

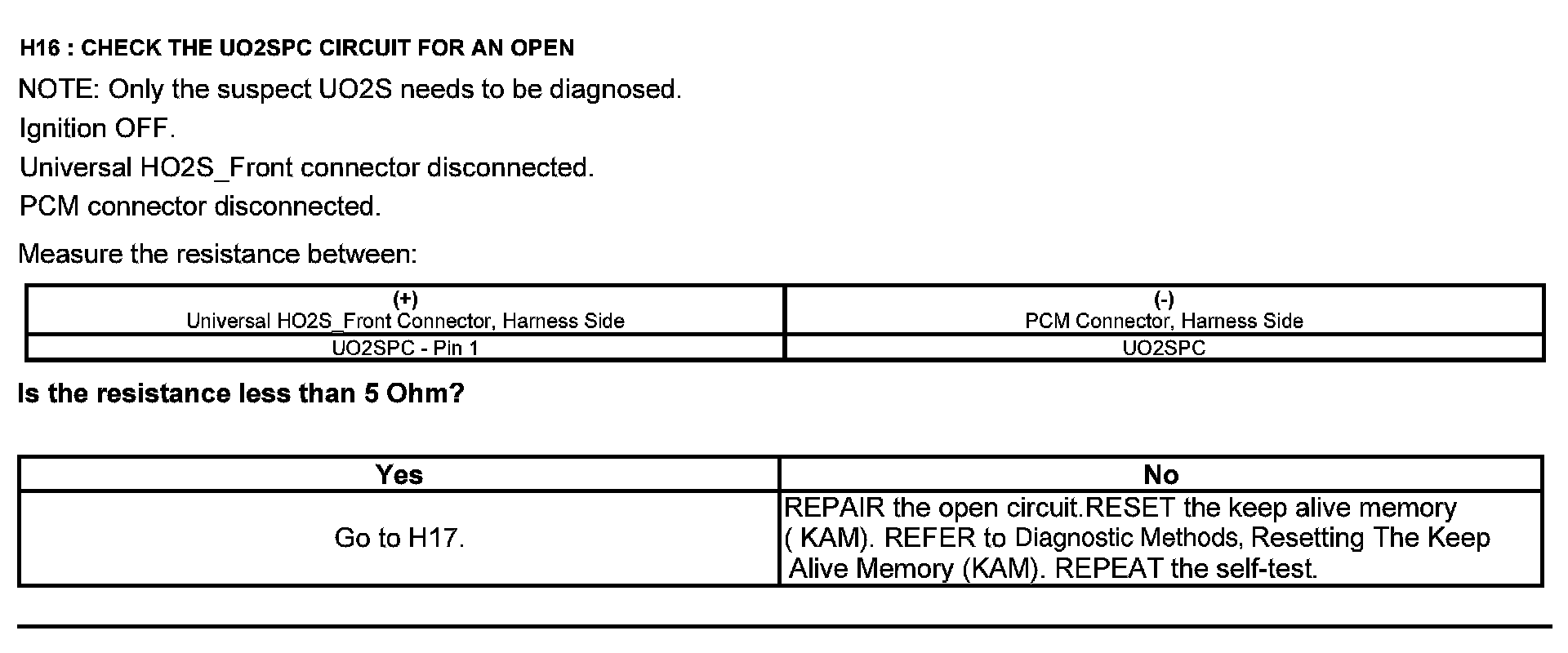

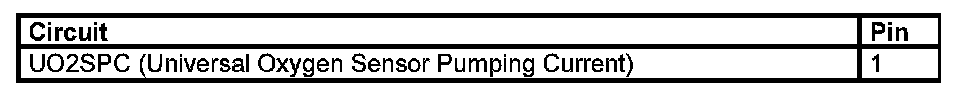

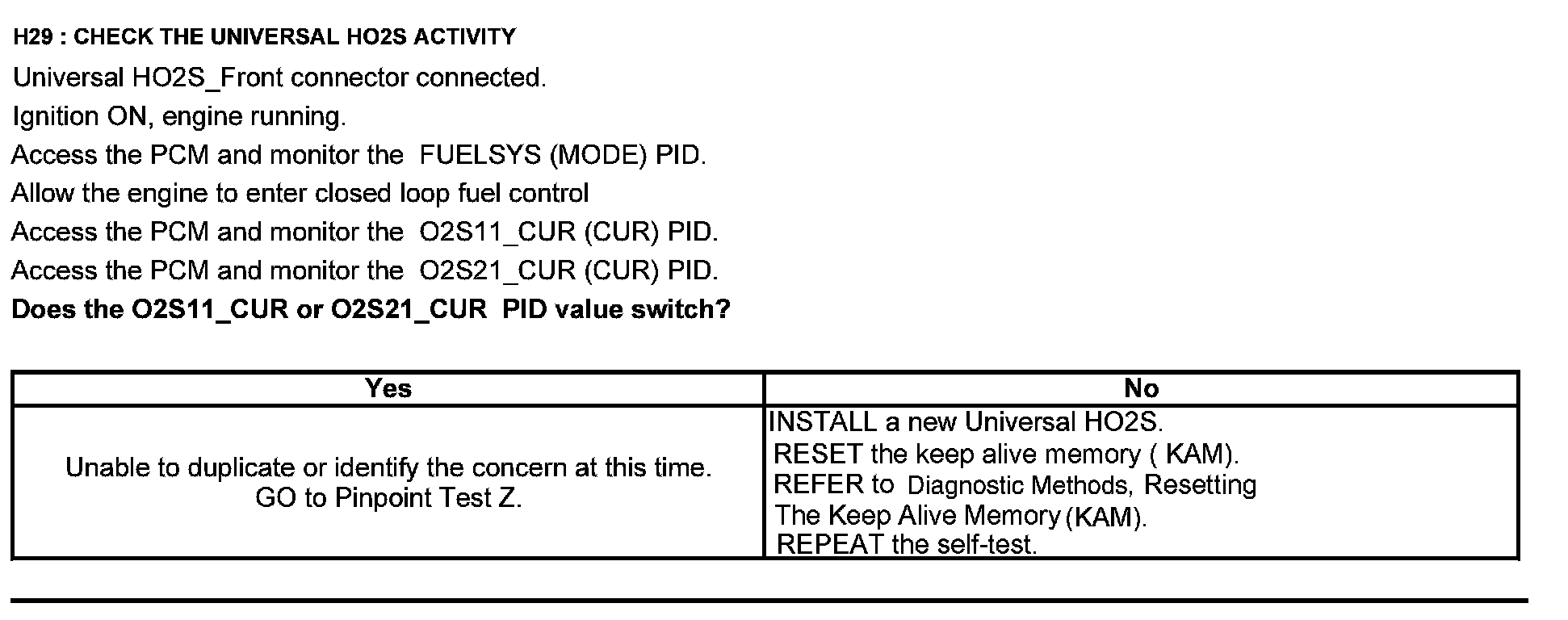

Universal HO2S-Front Connector




Harness Side

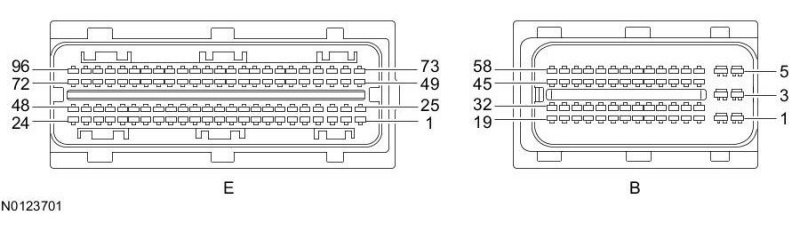

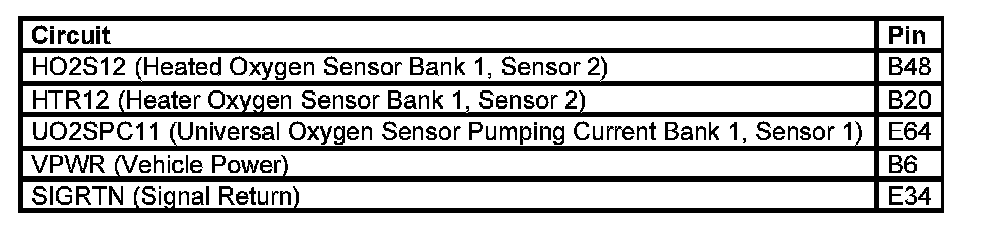

Powertrain Control Module (PCM) Connector - For PCM connector views or reference values, refer to Reference Values.





Harness Side
