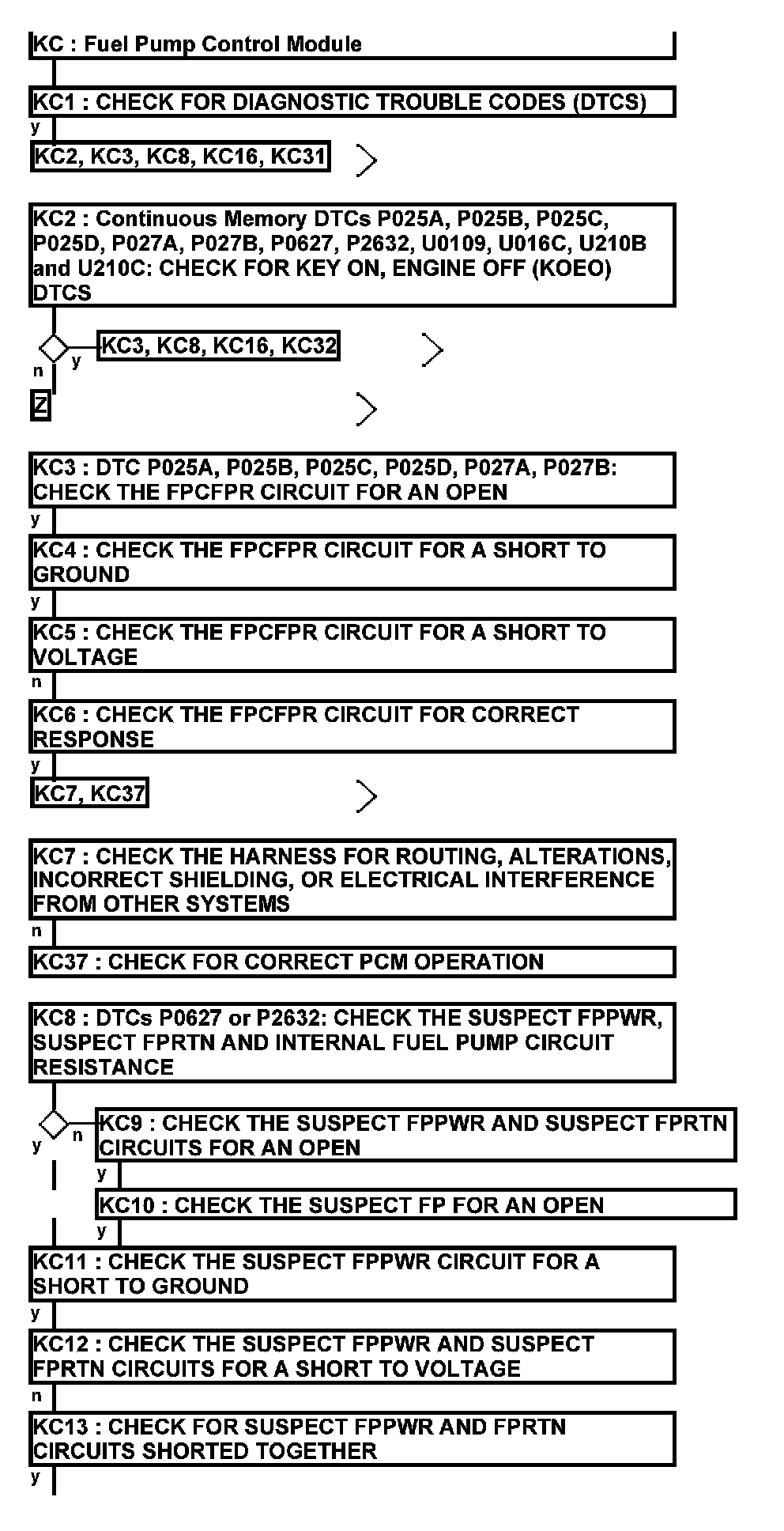

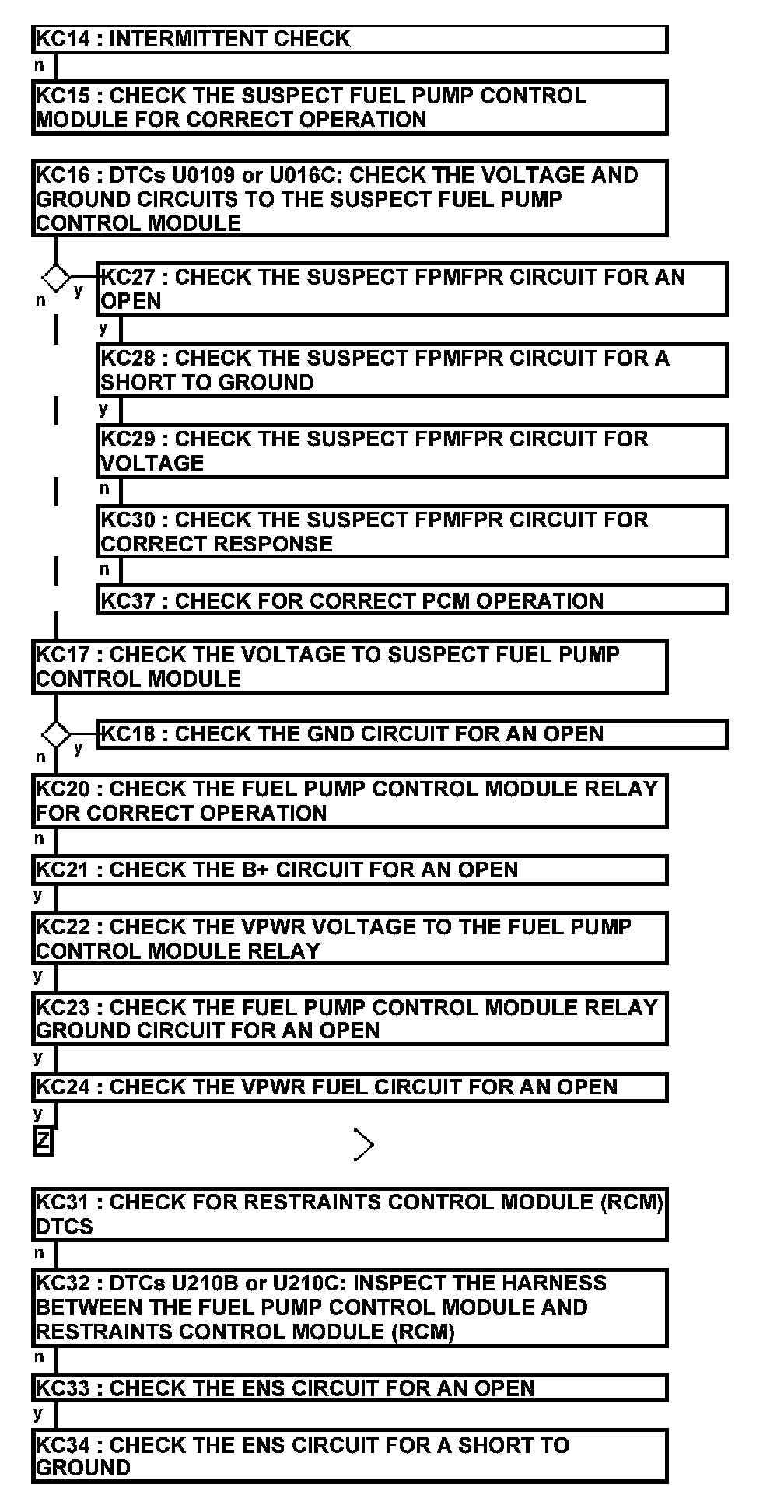

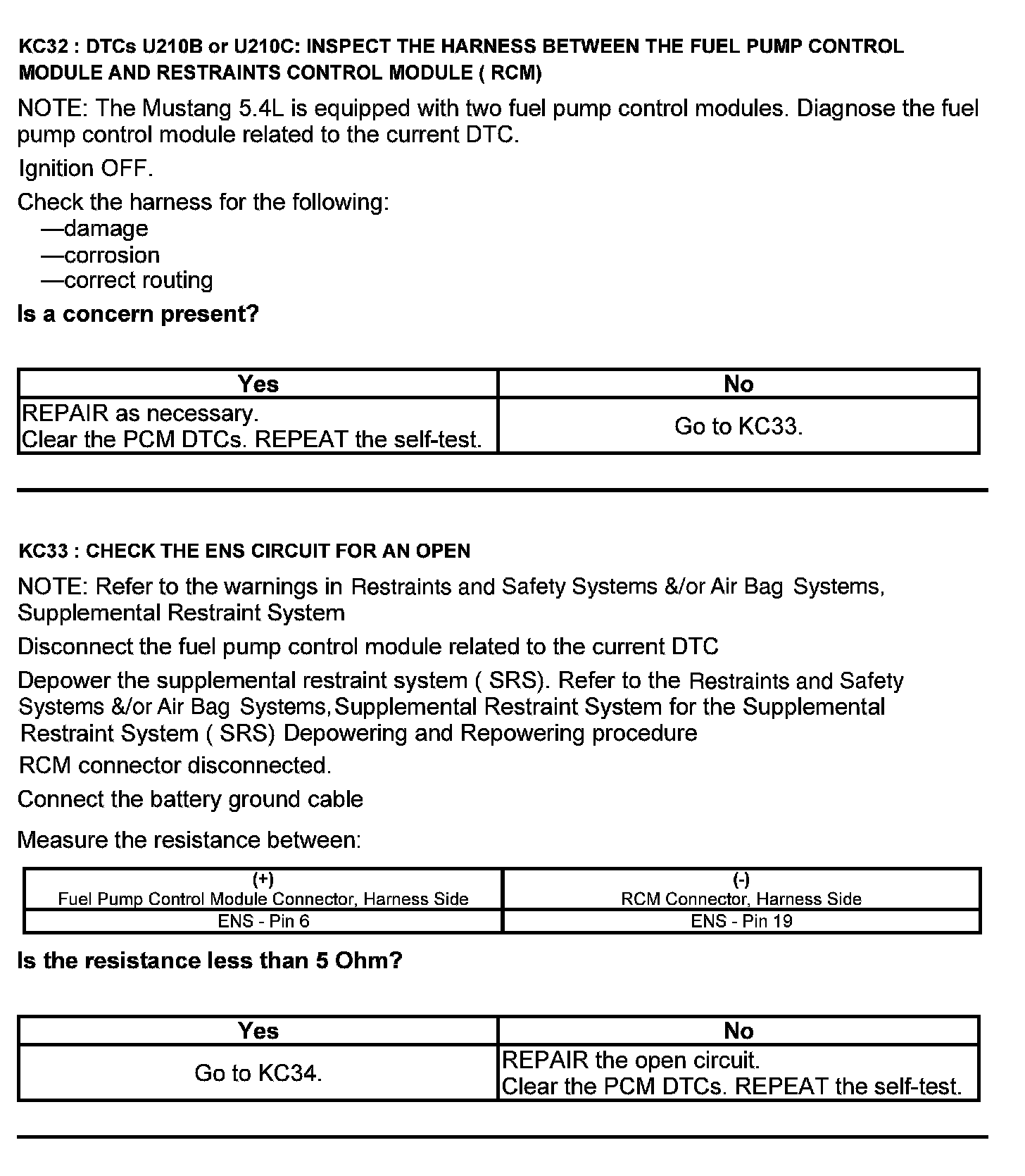

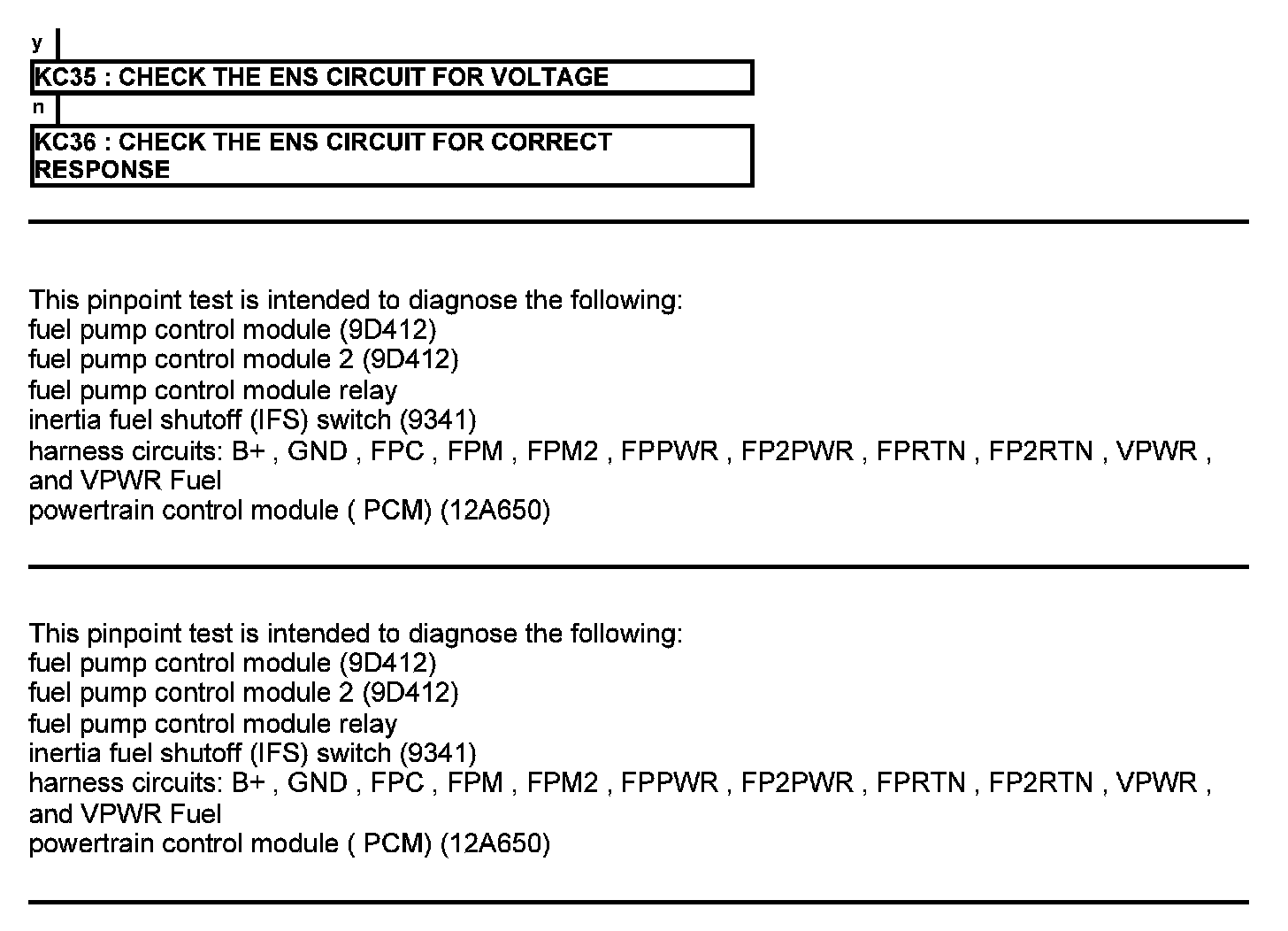

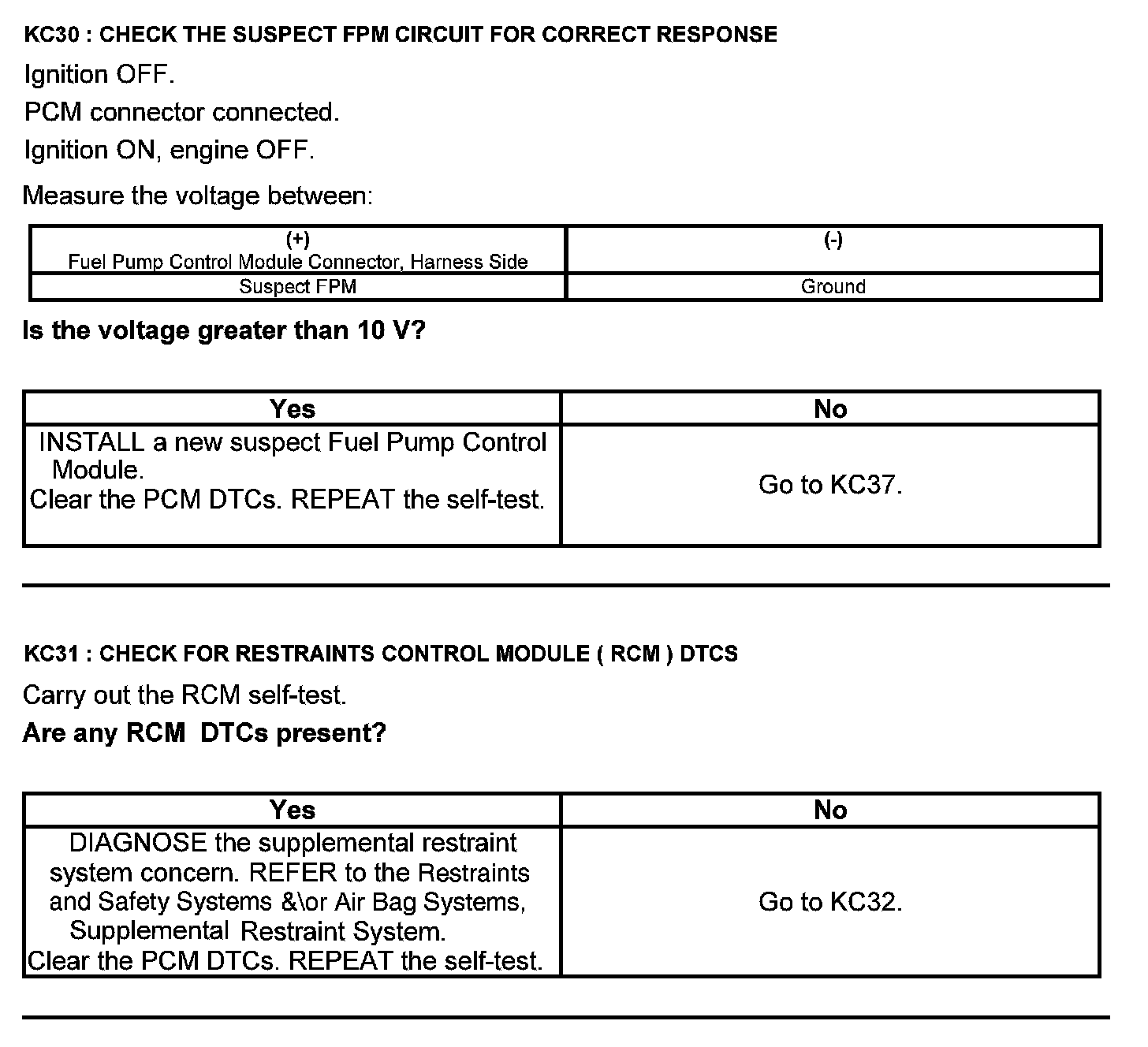

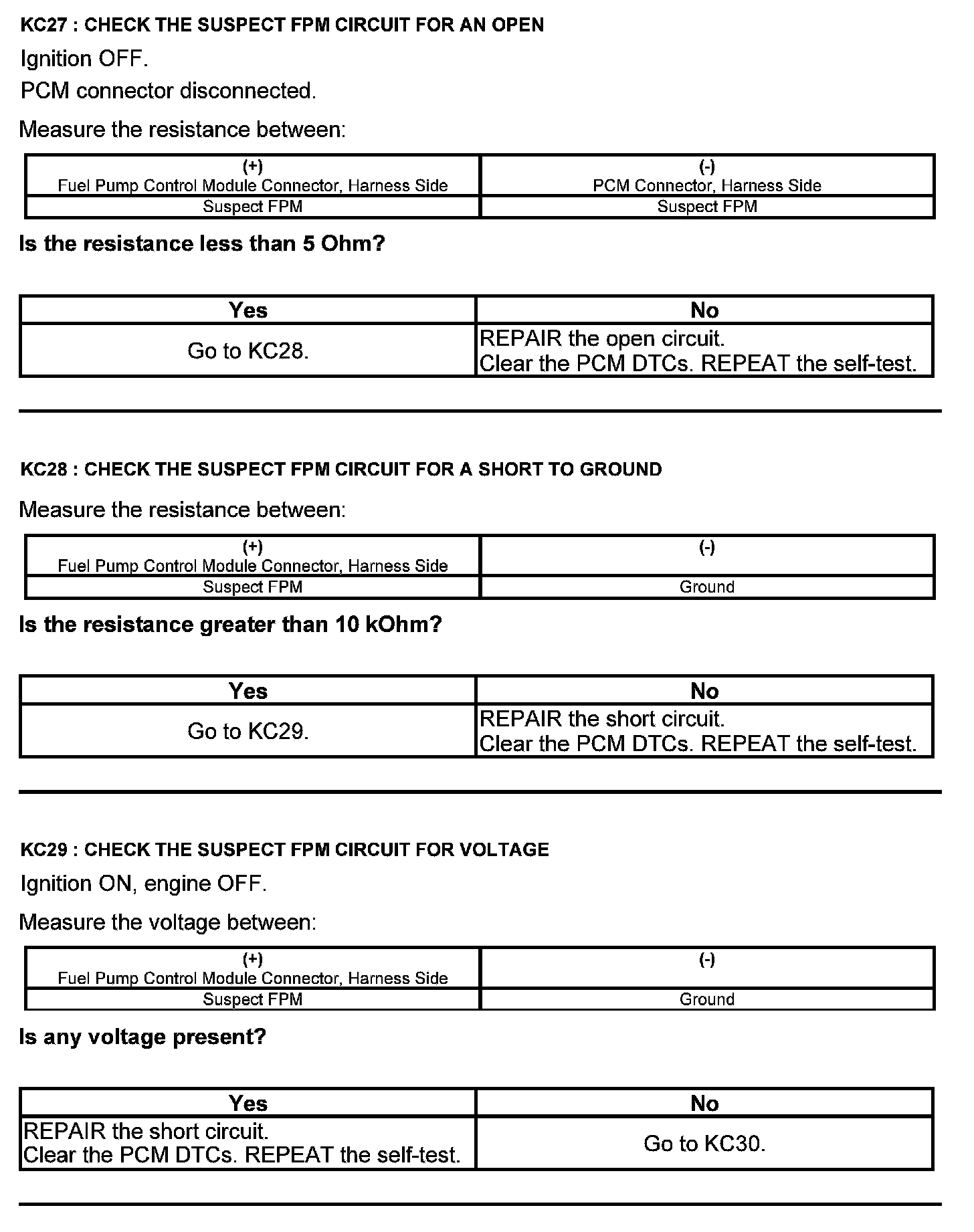

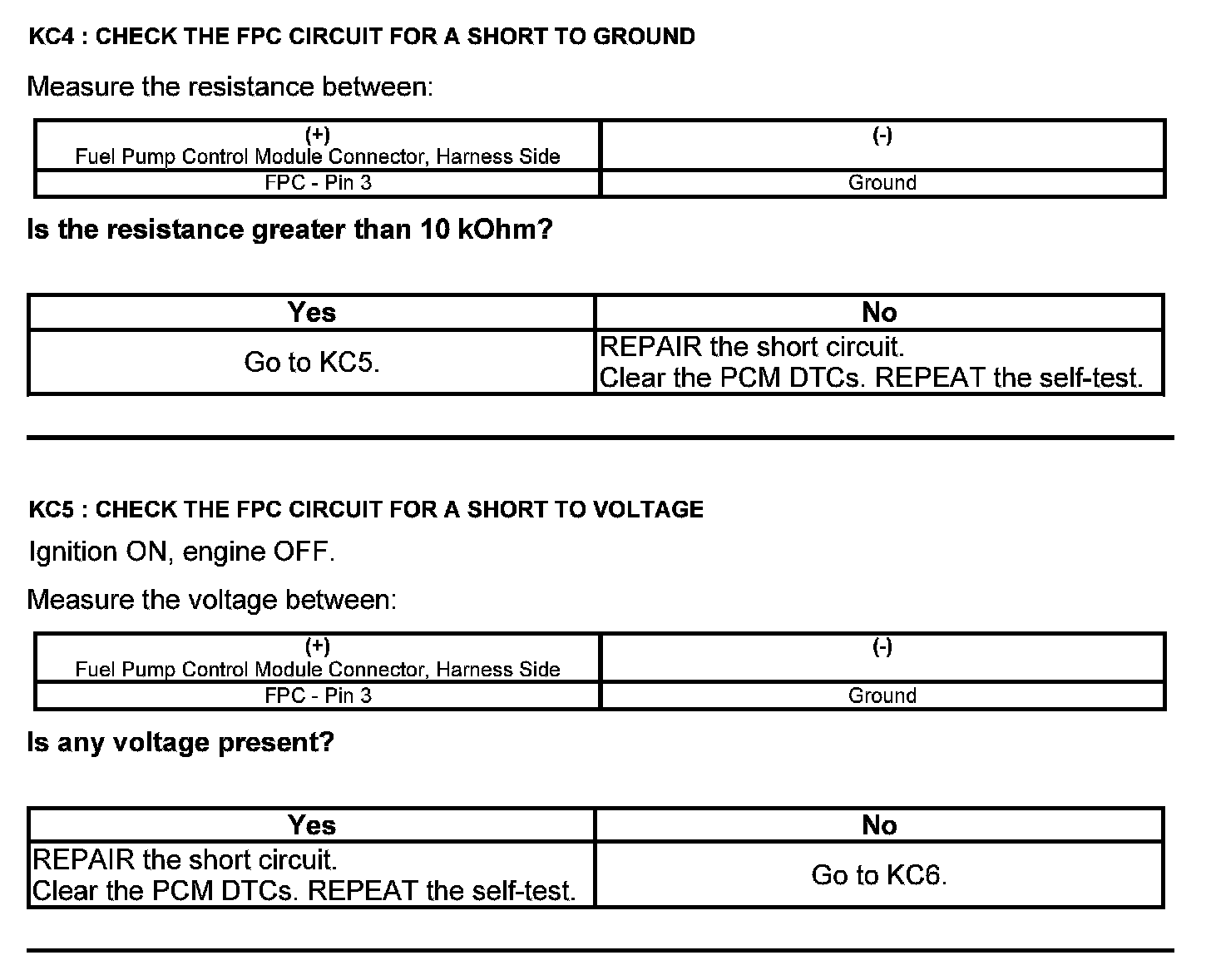

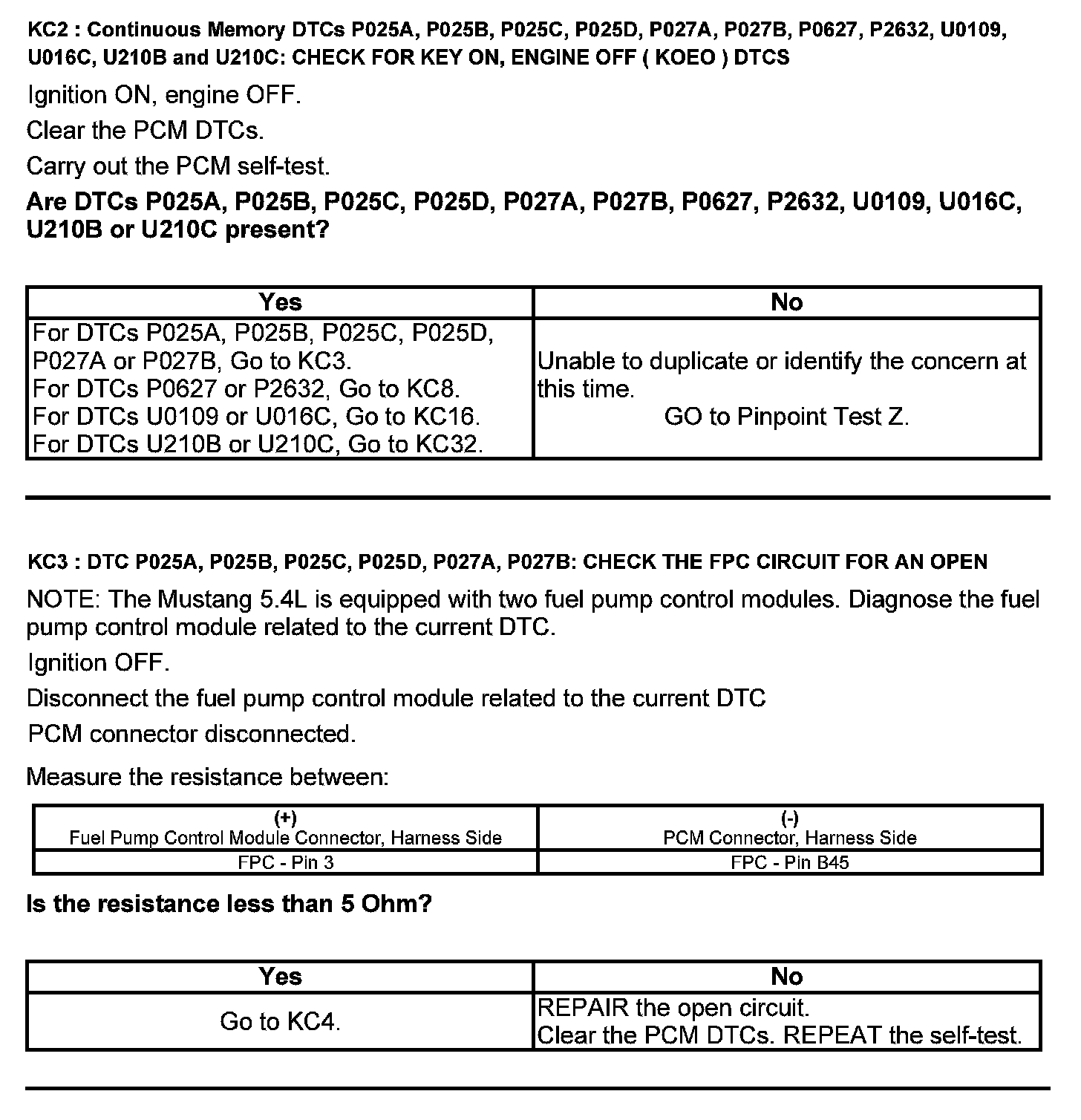

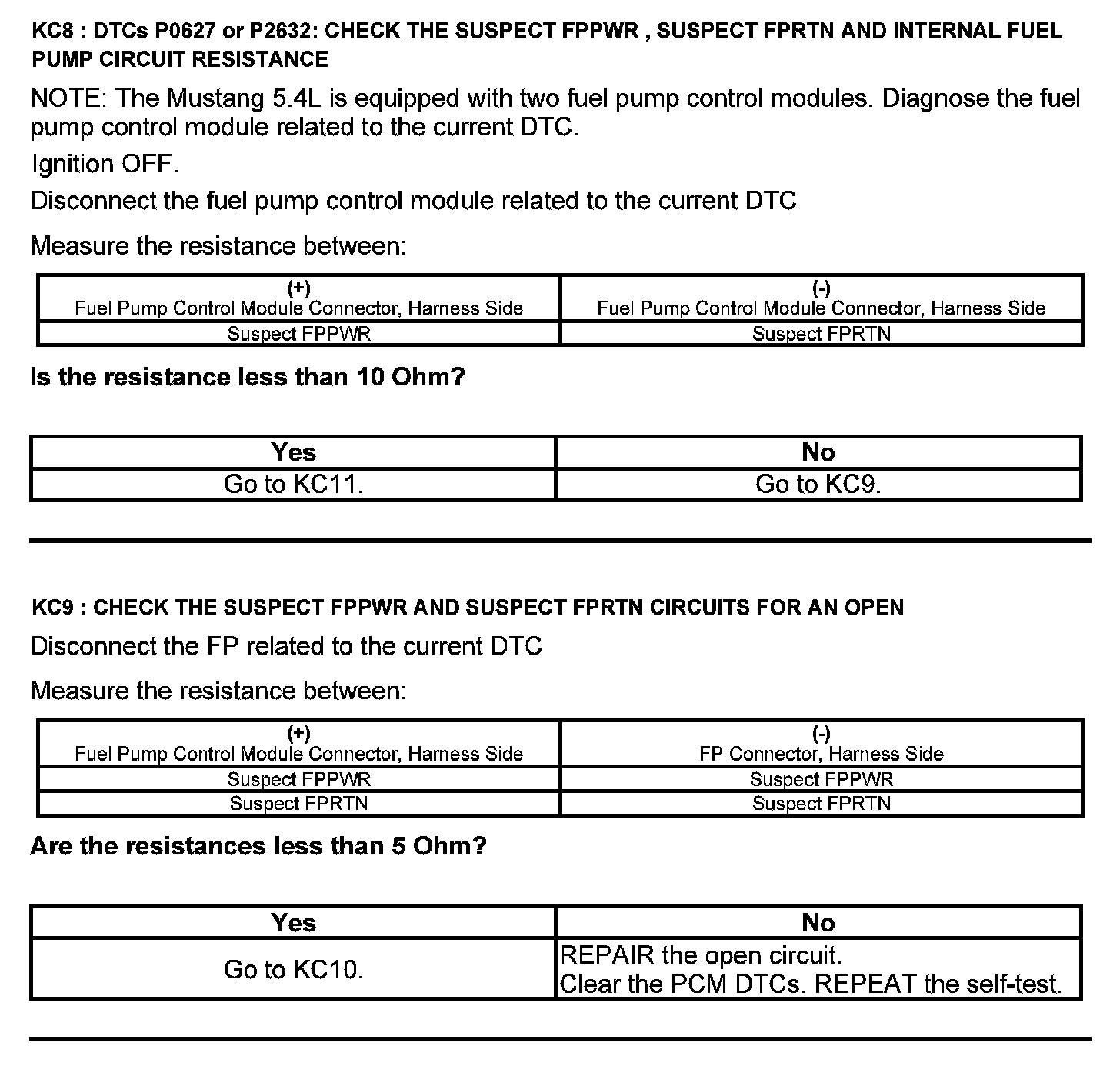

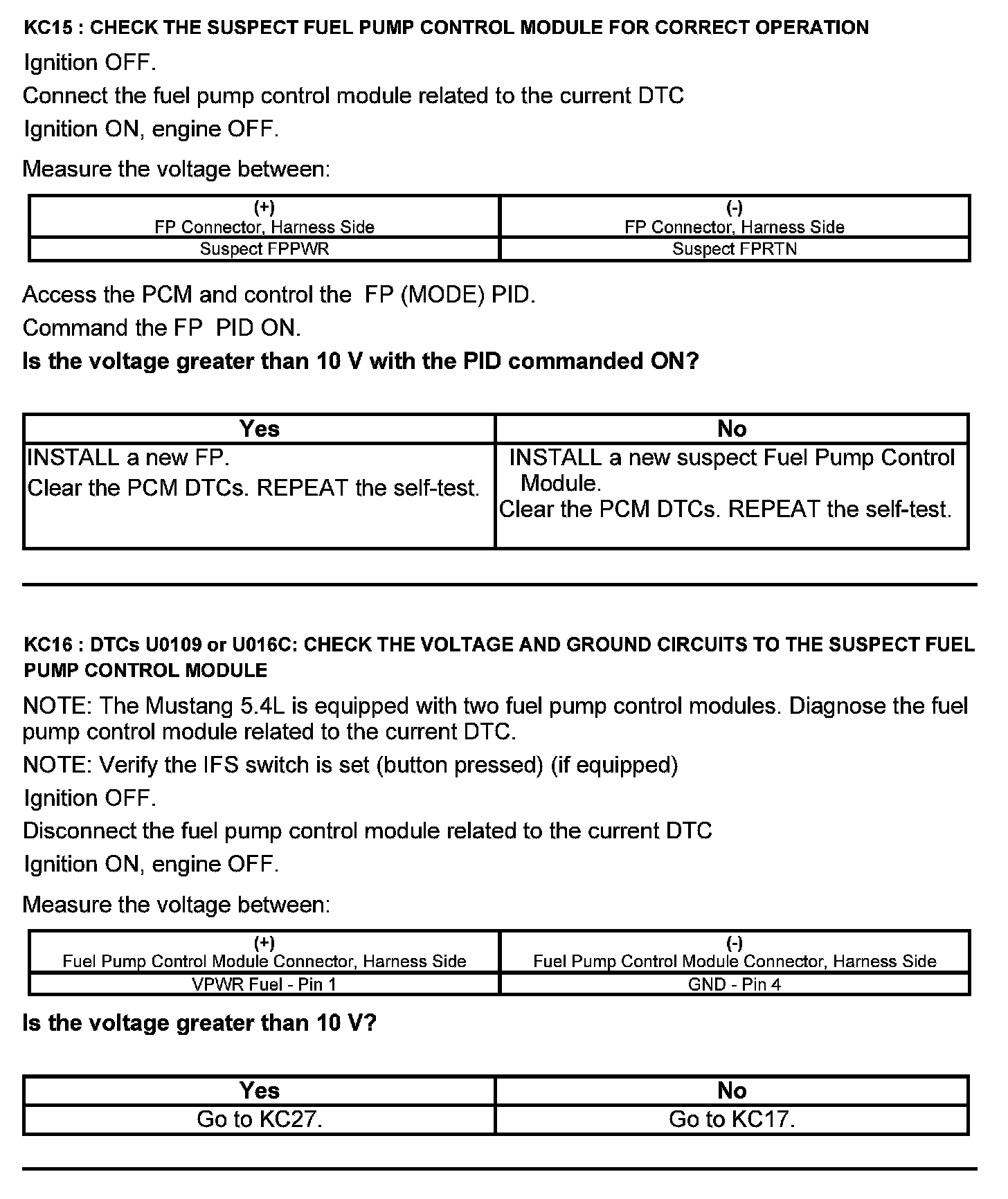

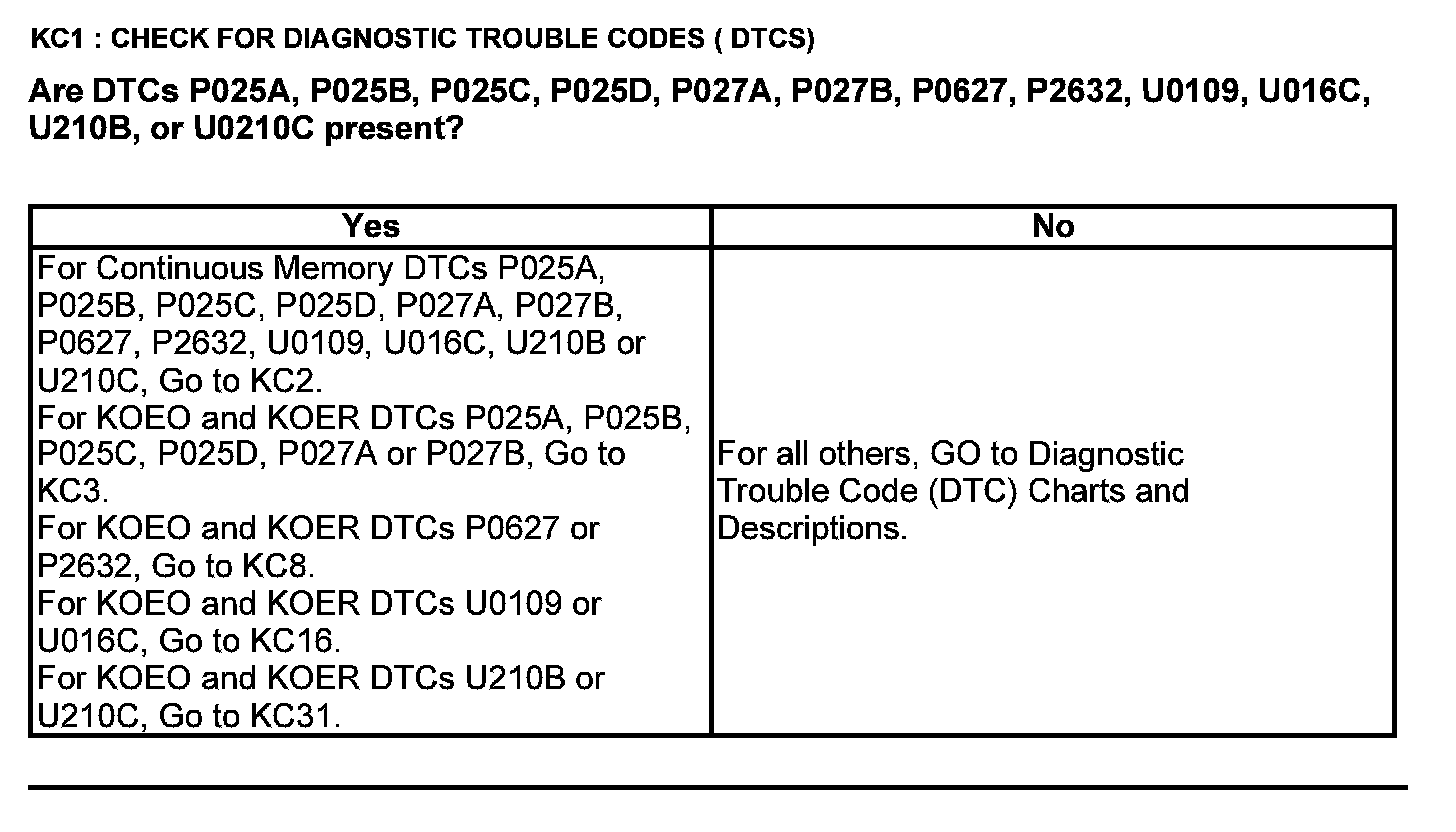

Test KC: Fuel Pump Control Module



Fuel Pump Control Module

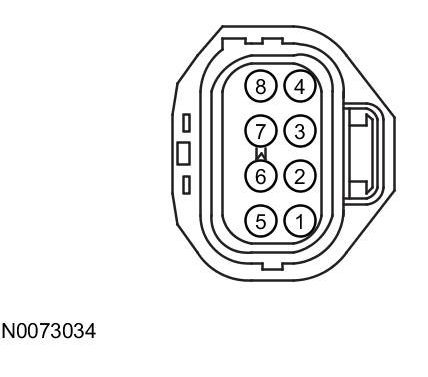

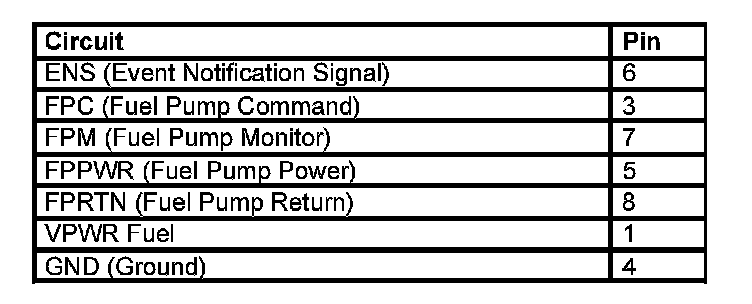

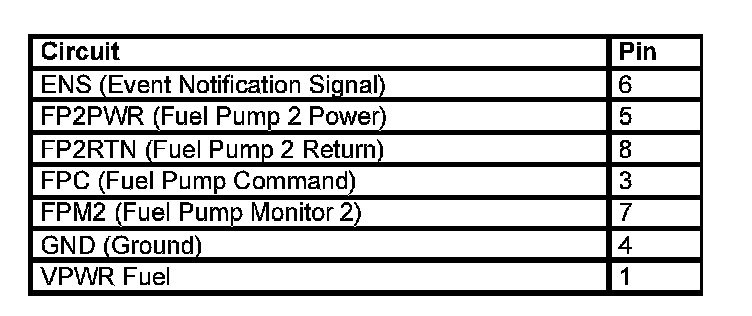

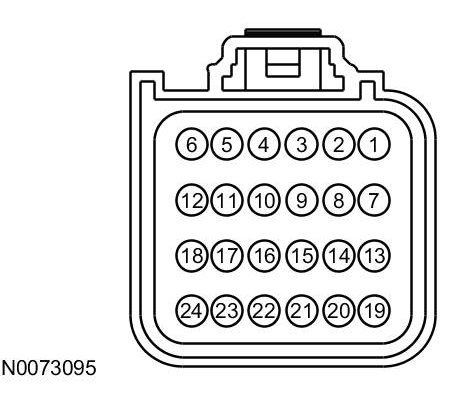

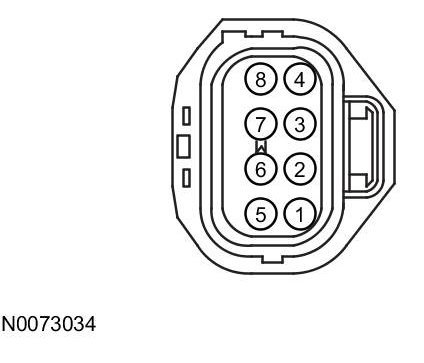

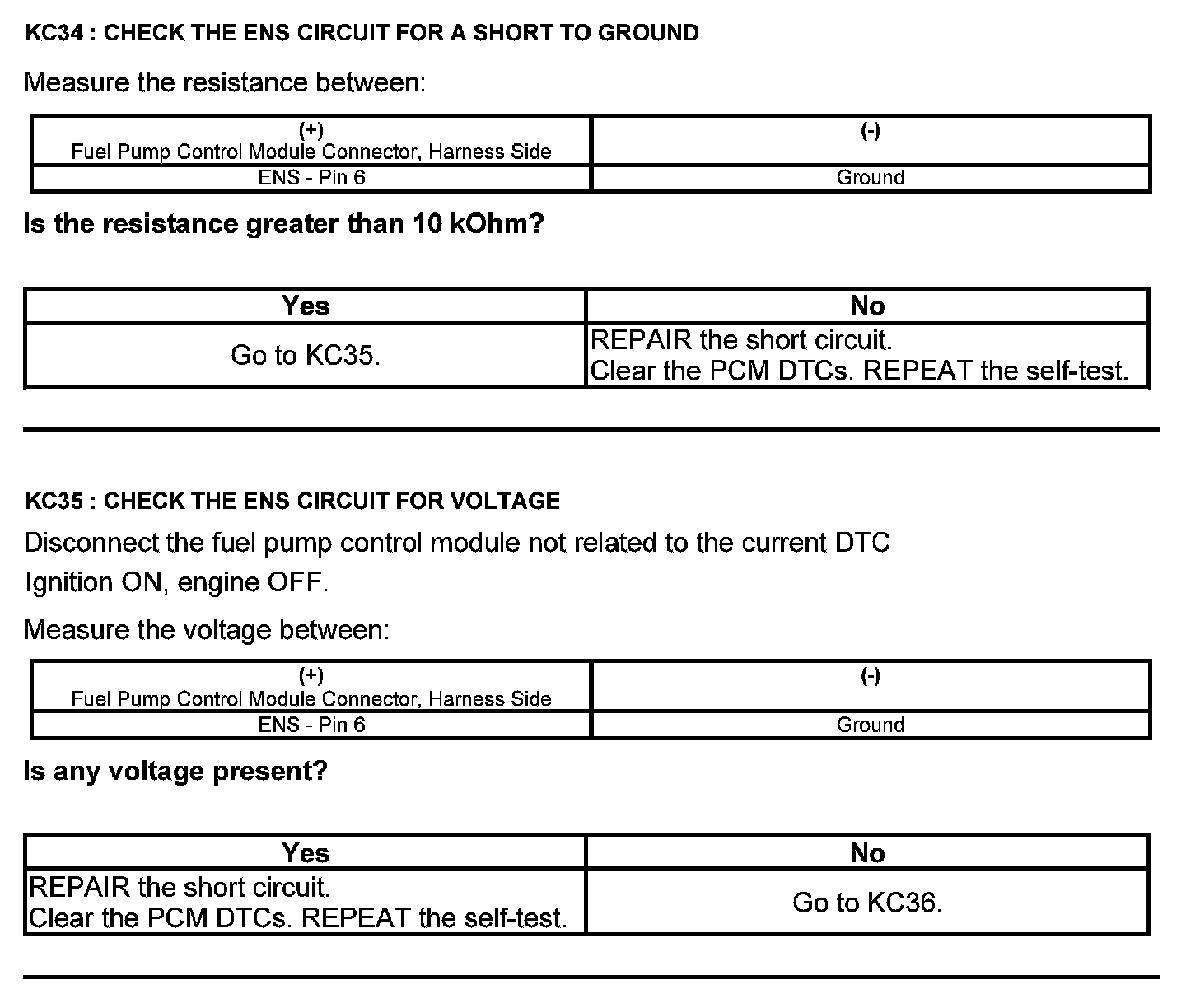

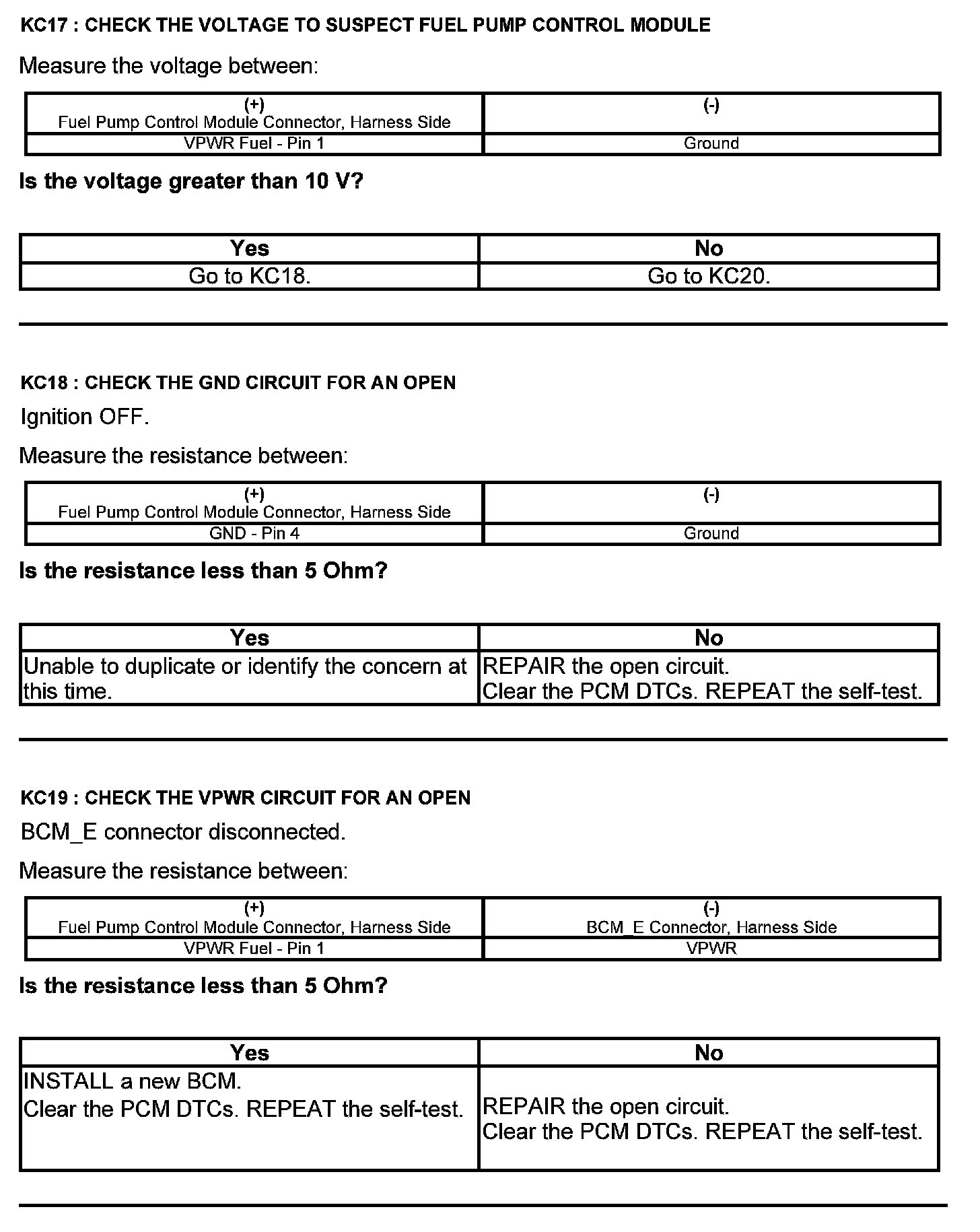

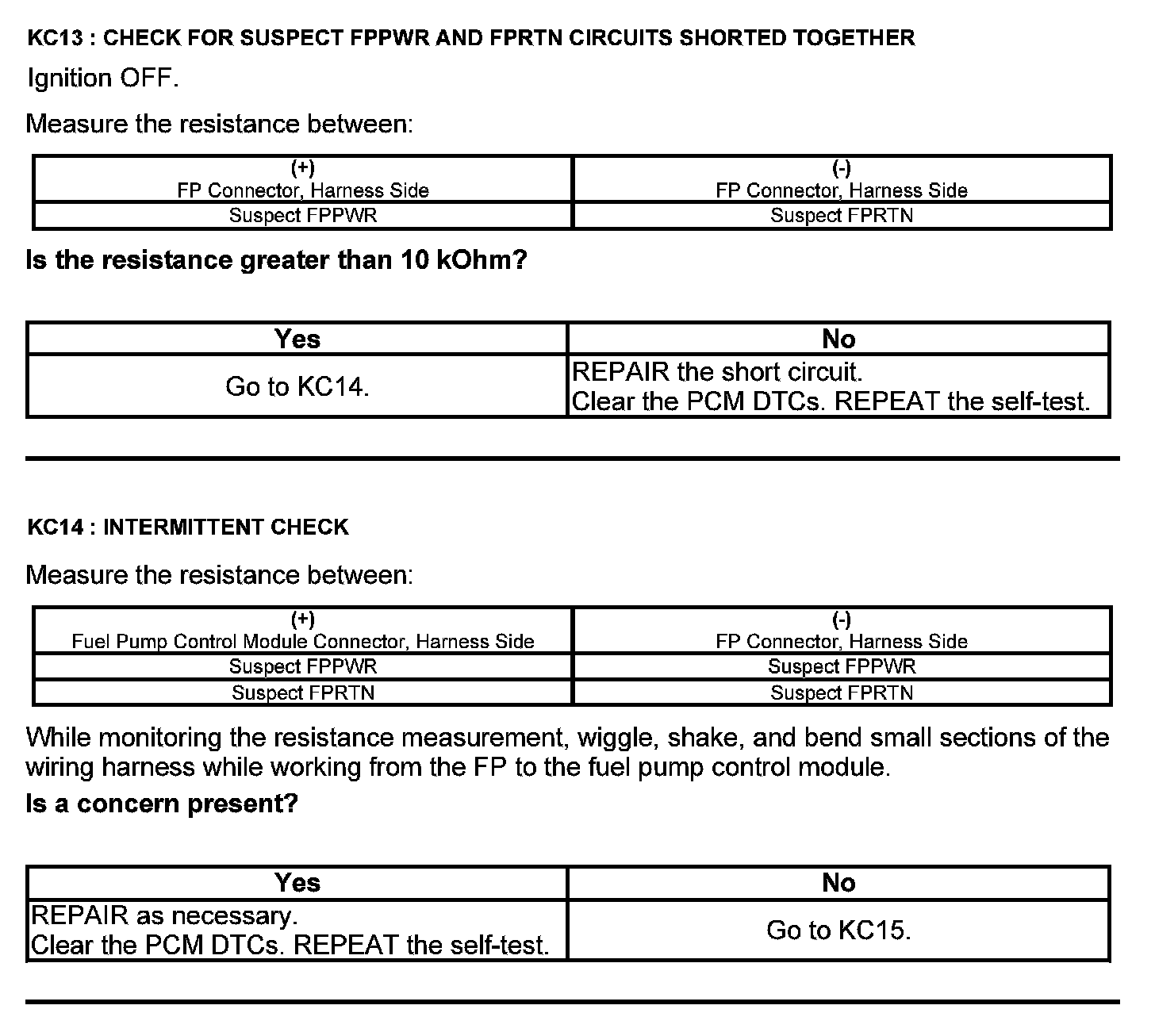

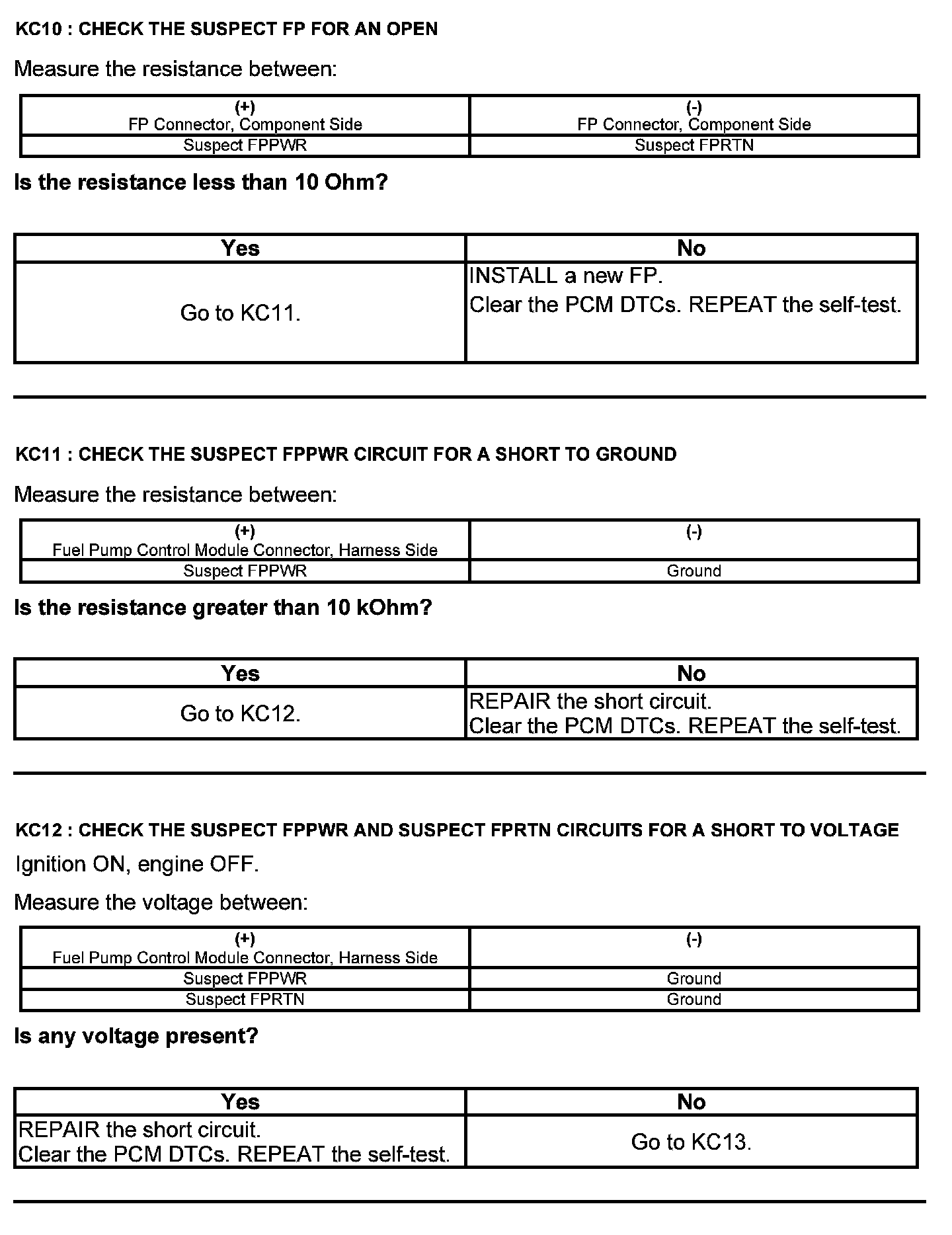

Fuel Pump Control Module Connector





Harness Side







Fuel Pump Control Module 2 Module Connector





Harness Side

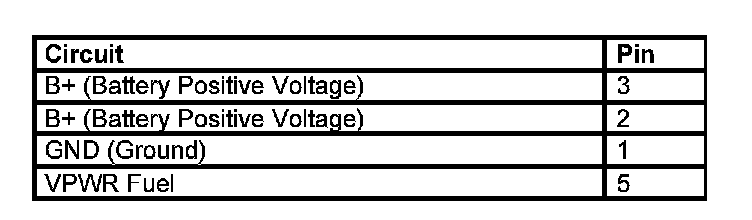

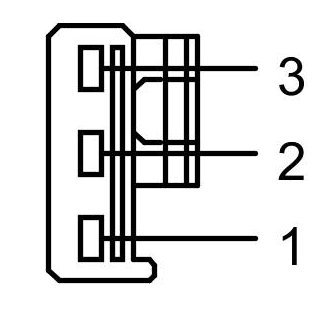

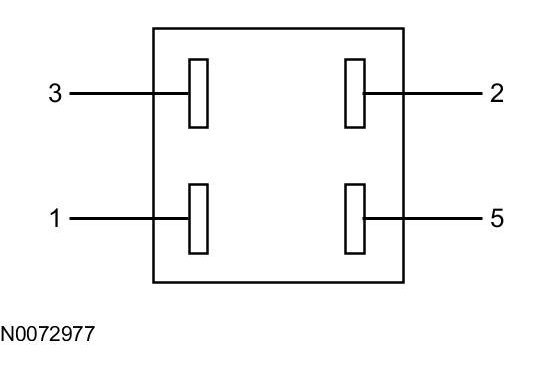

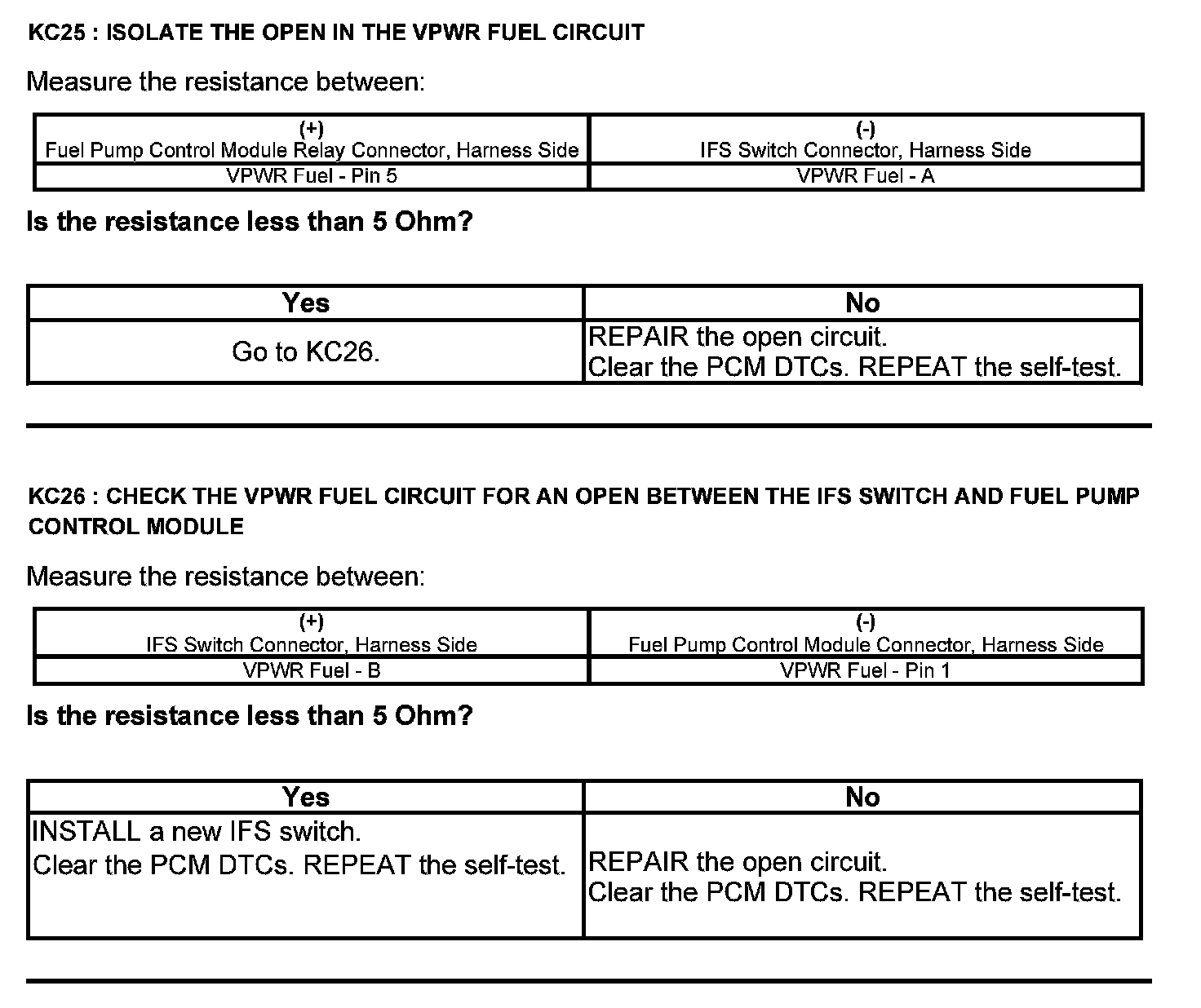

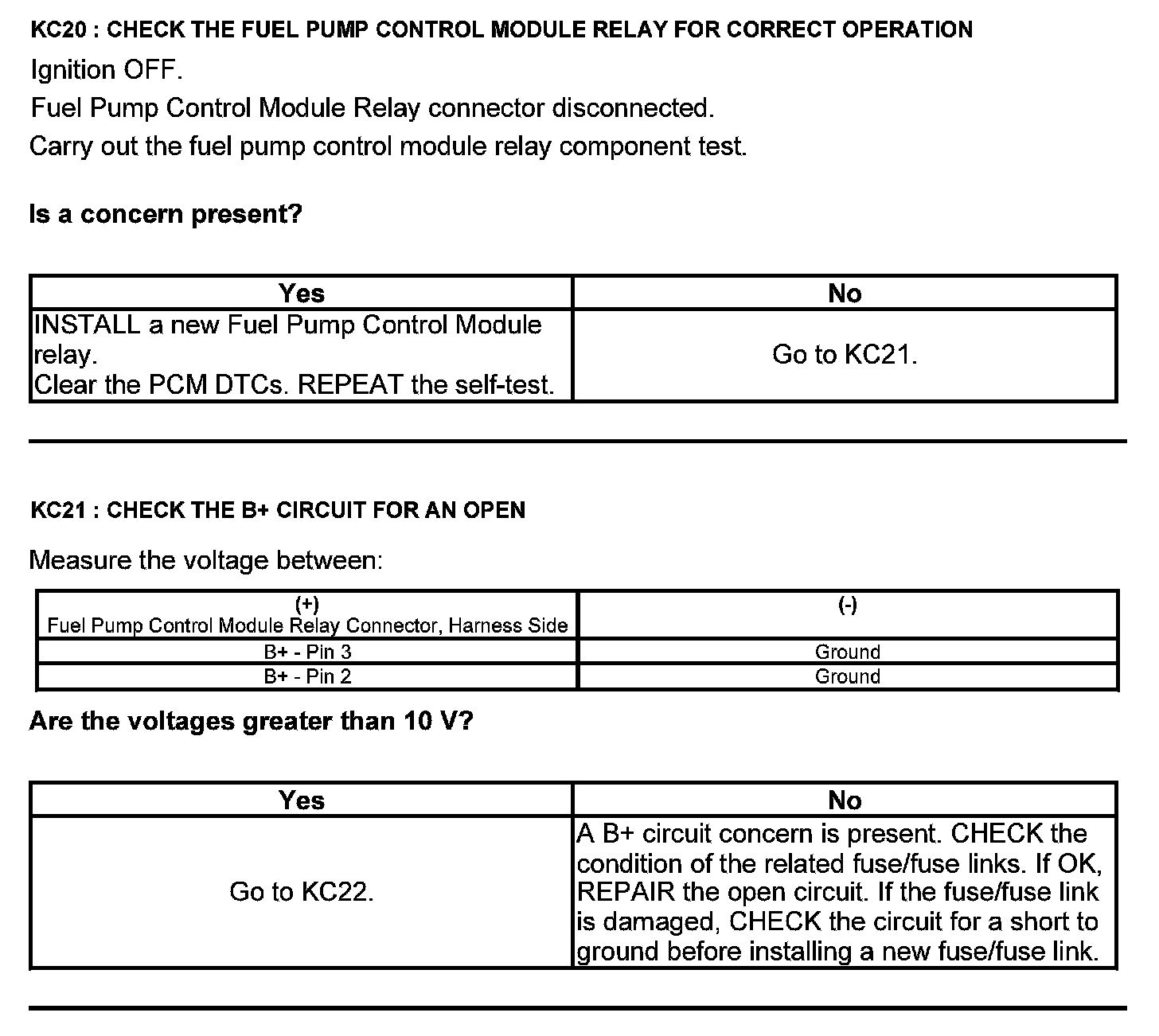

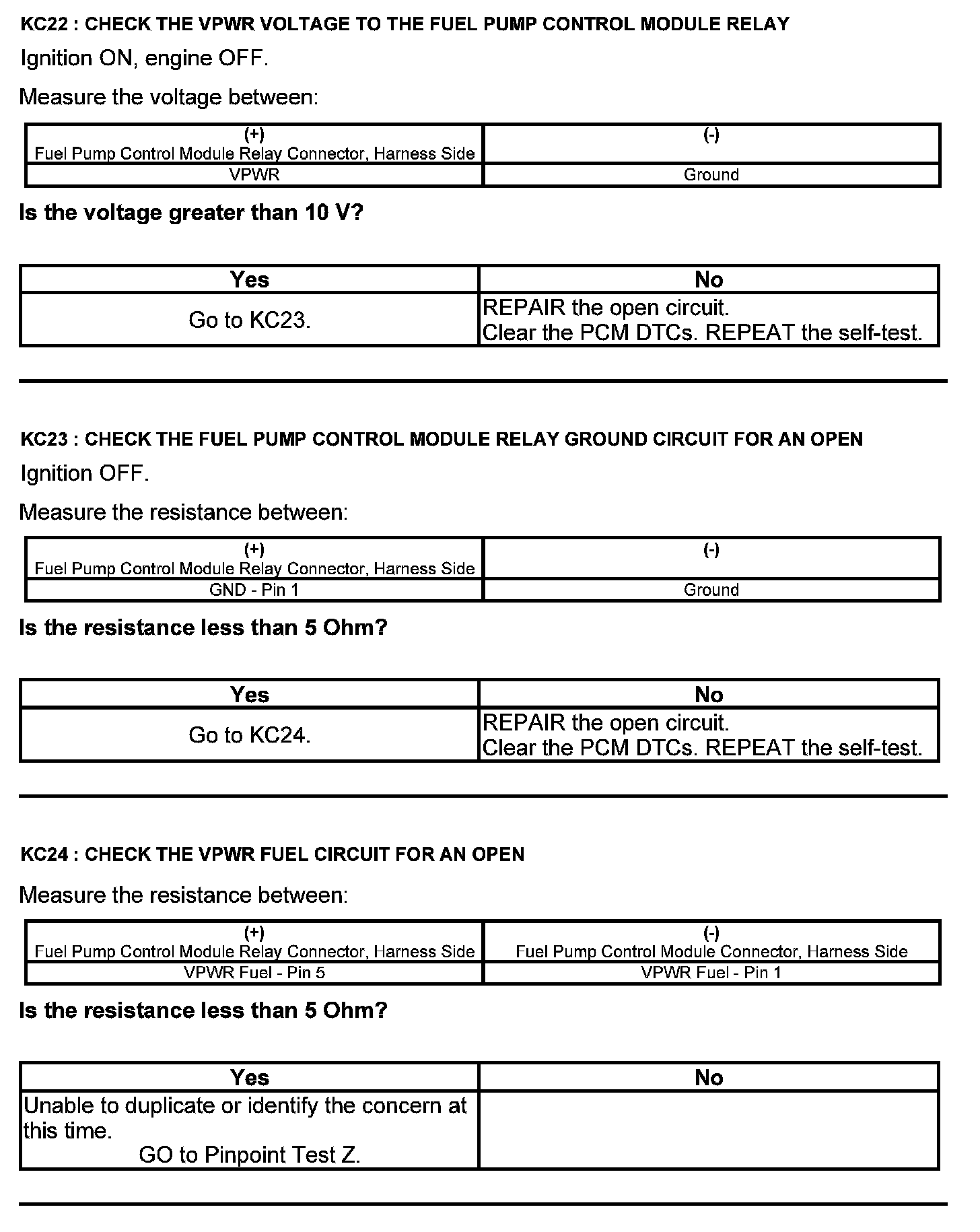

Fuel Pump Control Module Relay Connector - Refer to the Wiring Diagrams for schematic and connector information.





Harness Side







Inertia Fuel Shutoff (IFS) Switch Connector





Harness Side

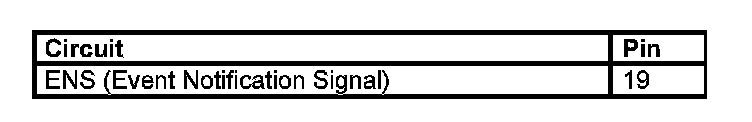

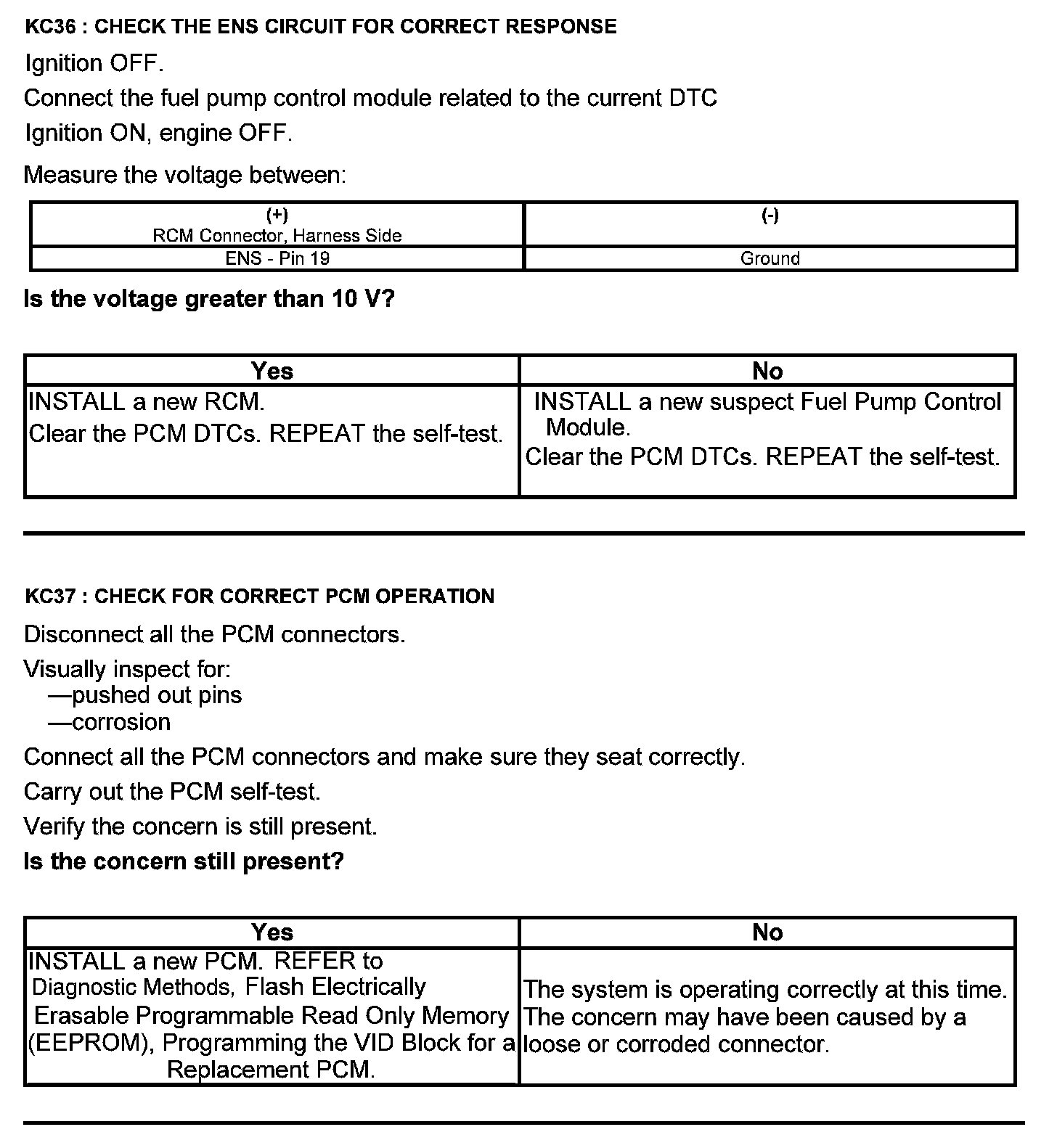

Restraints Control Module (RCM) Connector





Harness Side

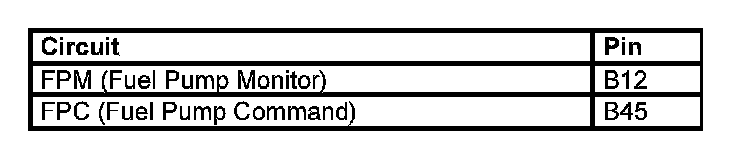

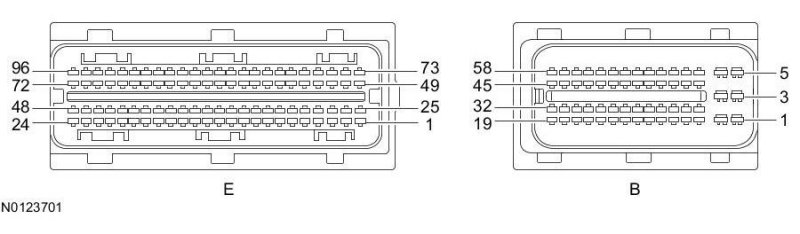

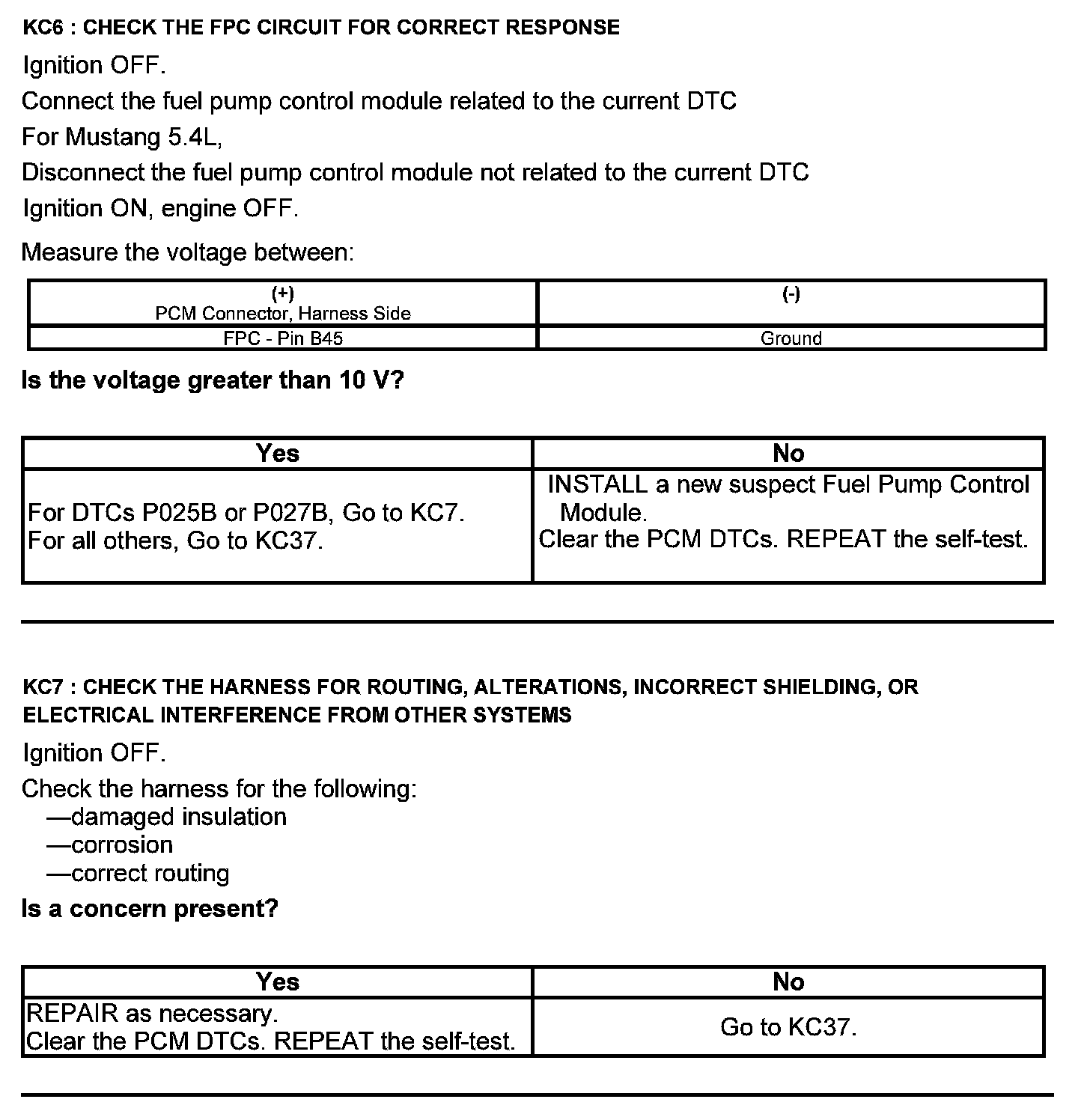

Powertrain Control Module (PCM) Connector - For PCM connector views or reference values, refer to Reference Values.





Harness Side
