Engine Ignition Components - Exploded View
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

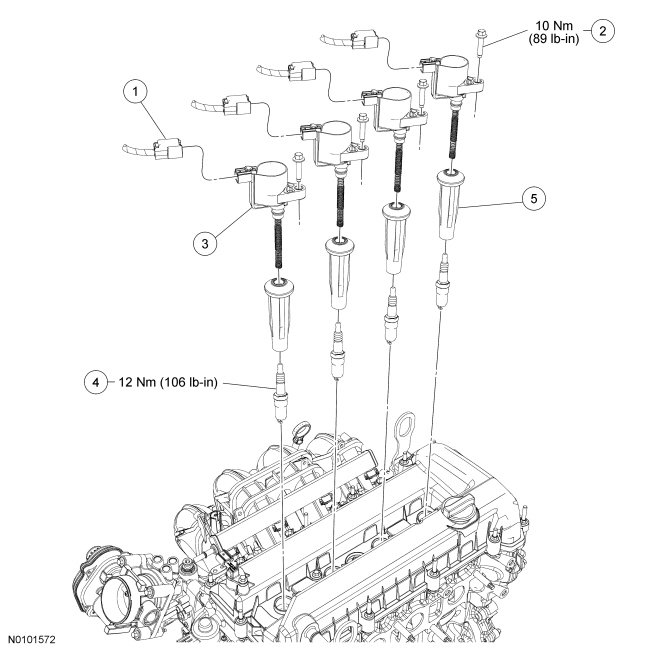

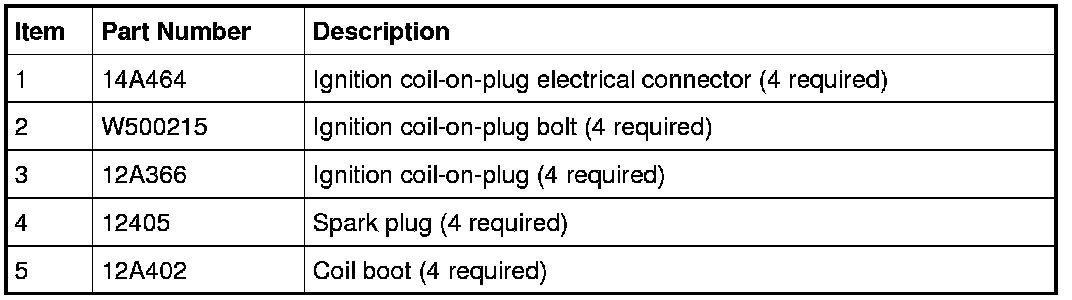

Engine Ignition Components - Exploded View
Engine Ignition Components - Exploded View
